CAIS DA FONTINHA

Alexandre Burmester Arquitectos Associados

ARCHITECTS
Alexandre Burmester Arquitectos Associados: Alexandre Burmester Arquitectos Associados - Alexandre Burmester, André Lopes Cardoso

AREA
6000 m²

YEAR
2010

LOCATION
Vila Nova De Gaia, Portugal

CATEGORY
Houses

The ware houses are on the riverside road looking out over the River Douro. Given the width of the road, they are almost part of the river. They are located at Cais de CapeloIvens, half way between the D.

Cais da Fontinha
Courtesy of alexandre burmester arquitectos associados
Cais da Fontinha
Courtesy of alexandre burmester arquitectos associados

Luís Bridge and Arrábida Bridge. They form an angle with Rua Viterbo de Campos, a narrow road running behind them, and are also served by the Escadas das Fontaínhas steps.

In general, the buildings were highly dilapidated and only the walls and structures have been renovated.

The renovation project for the buildings entailed their reconstruction and maintenance as a way of preserving the quality of the construction and merging them into their surroundings.

Cais da Fontinha
Courtesy of alexandre burmester arquitectos associados
Cais da Fontinha
Courtesy of alexandre burmester arquitectos associados
Cais da Fontinha
Courtesy of alexandre burmester arquitectos associados

The main goal of the plan was to take advantage of the buildings, by reinventing their forms and making the most of their location.

In their relationship with the river and their setting, it will be necessary to take into account that any space or use to be developed must always be associated with the river, even if only through the views that it offers.

Cais da Fontinha
Courtesy of alexandre burmester arquitectos associados
Cais da Fontinha
Courtesy of alexandre burmester arquitectos associados

The buildings' potential uses were developed in a mixed fashion in order to create multi-functionality so that they can attract diversified, complementary interests.

We have therefore created spaces for business and housing. The business areas will be on the ground floor and the residential areas on the floors above.

The solutions for occupation of the spaces were based on the buildings' possibilities, which are exemplified in the attached floor plans.

Cais da Fontinha
Courtesy of alexandre burmester arquitectos associados
Cais da Fontinha
Courtesy of alexandre burmester arquitectos associados
Cais da Fontinha
Courtesy of alexandre burmester arquitectos associados

The warehouses were rebuilt with the same type of old materials, following some of their original forms.

The main structure is made of reinforced concrete, while the structure of the upper floors is metal.

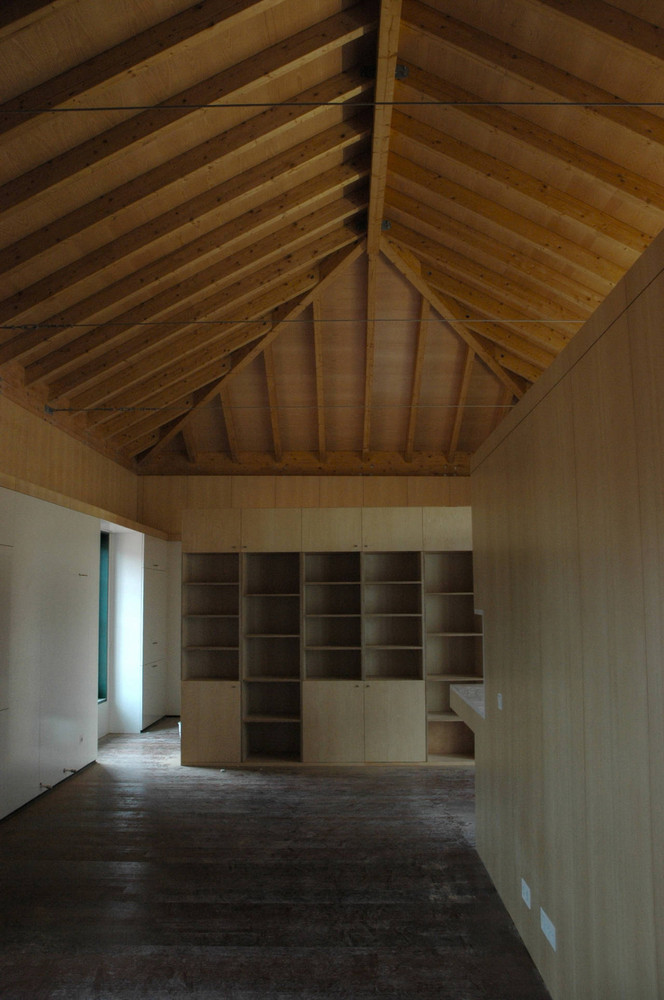

The new roofs are made of laminated timber. The proposed finishings show a concern for quality and a contemporary image.

Cais da Fontinha
Courtesy of alexandre burmester arquitectos associados
Cais da Fontinha
Courtesy of alexandre burmester arquitectos associados

A complex of this nature requires high-quality work. It is not enough to develop the space; it is also necessary to add a contemporary, modern image.

This was taken into consideration during the development, along with respect for and integration into its setting. The proposed spaces and their forms seek to express these concepts.

Cais da Fontinha
Courtesy of alexandre burmester arquitectos associados
Cais da Fontinha
Courtesy of alexandre burmester arquitectos associados

On the one hand, the existing buildings have been restored to make them appear as a harmonised whole, and on the other hand additional forms have been introduced to break with tradition and make them stand out.

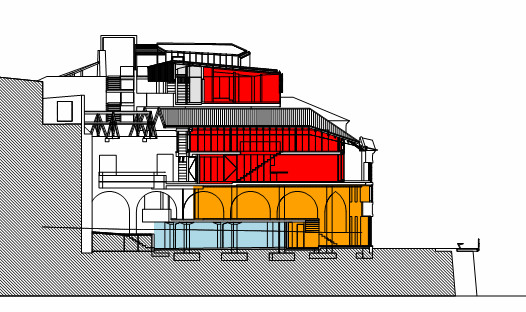

Cais da Fontinha

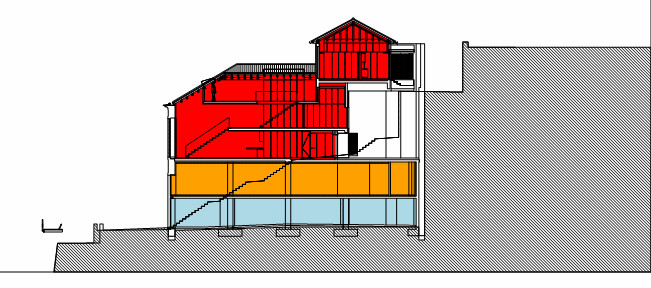

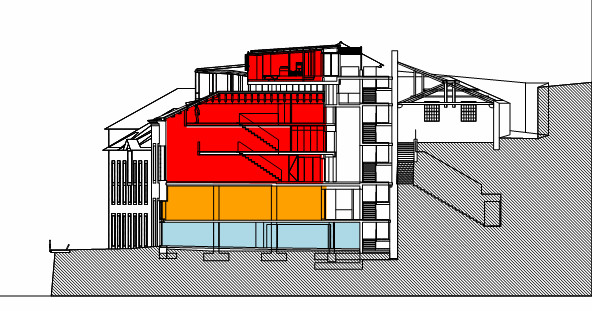

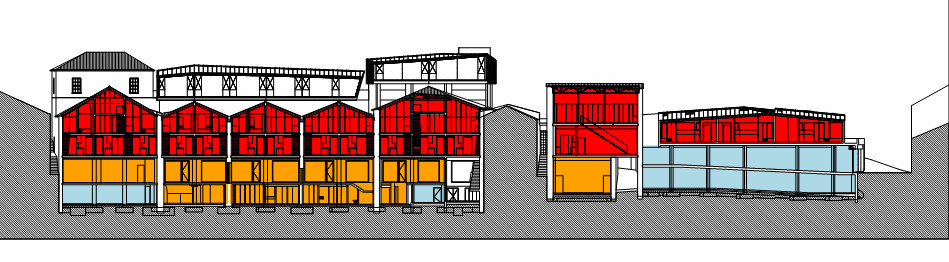

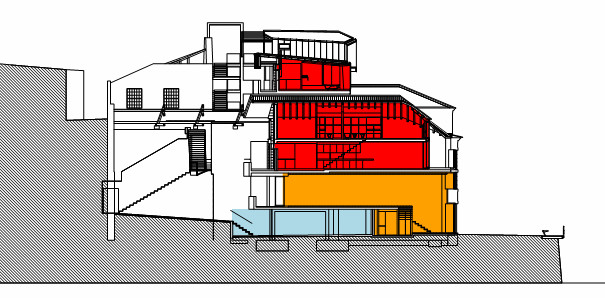

section 01
Cais da Fontinha
section 02
Cais da Fontinha
section 03
Cais da Fontinha
section 04
Cais da Fontinha
section 05

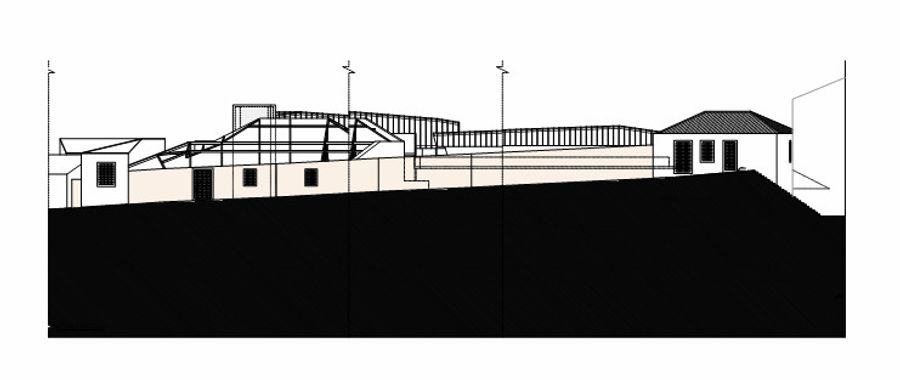

Cais da Fontinha
elevation 01

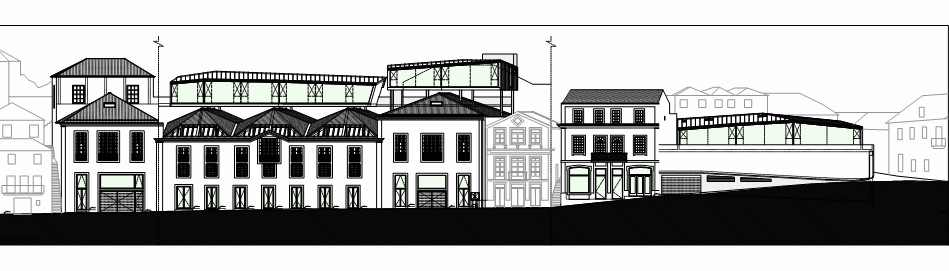

Cais da Fontinha
elevation 02

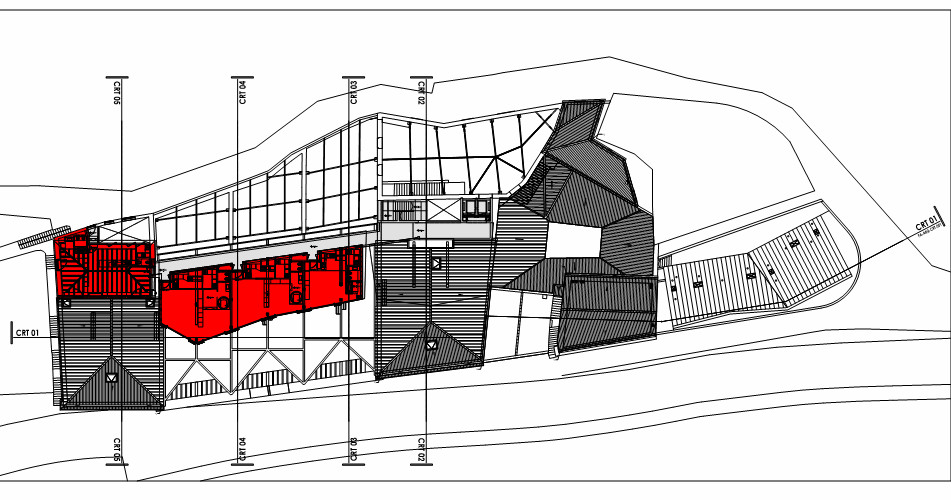

Cais da Fontinha

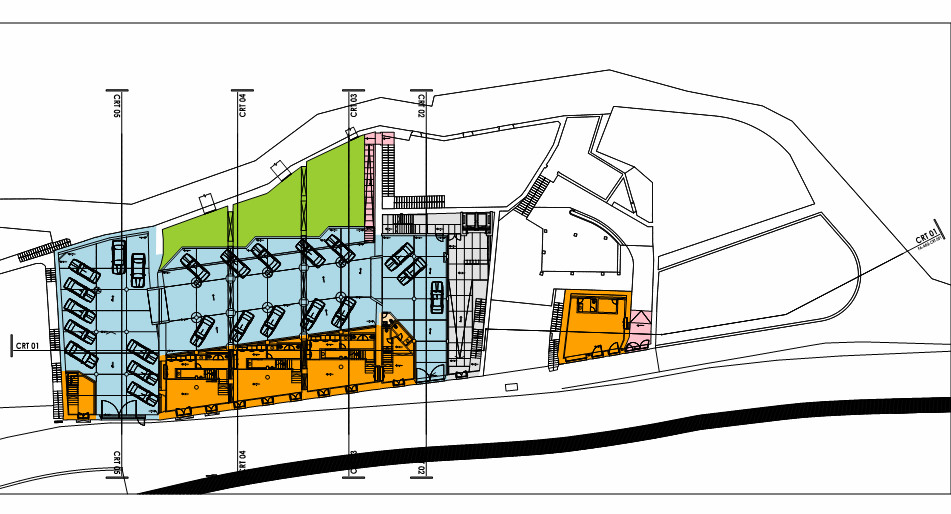

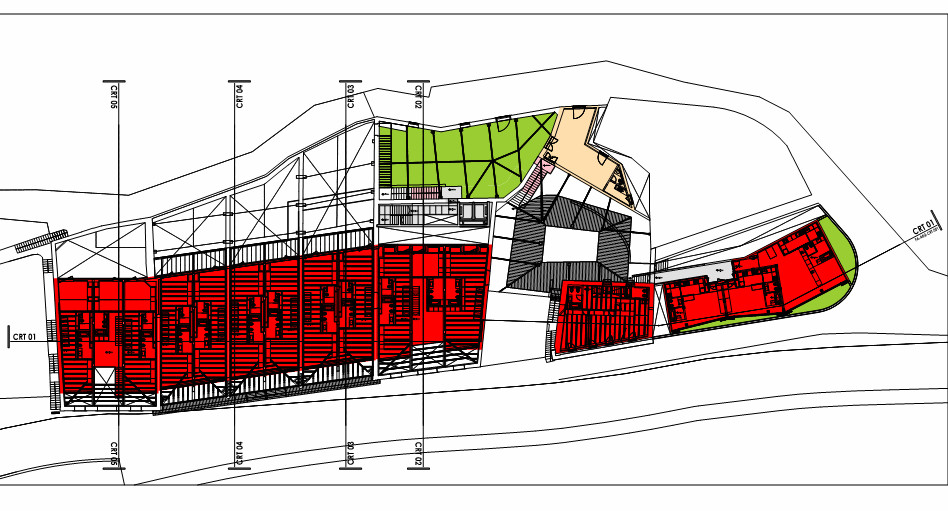

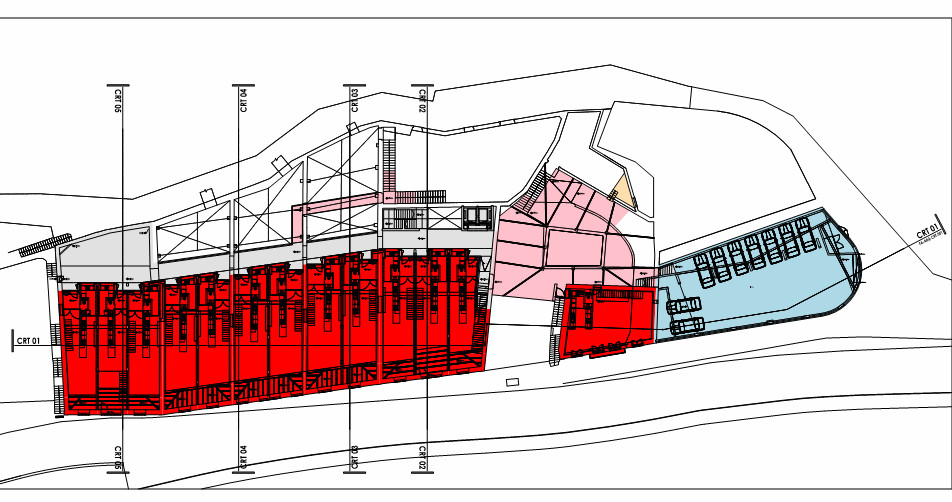

plan 01

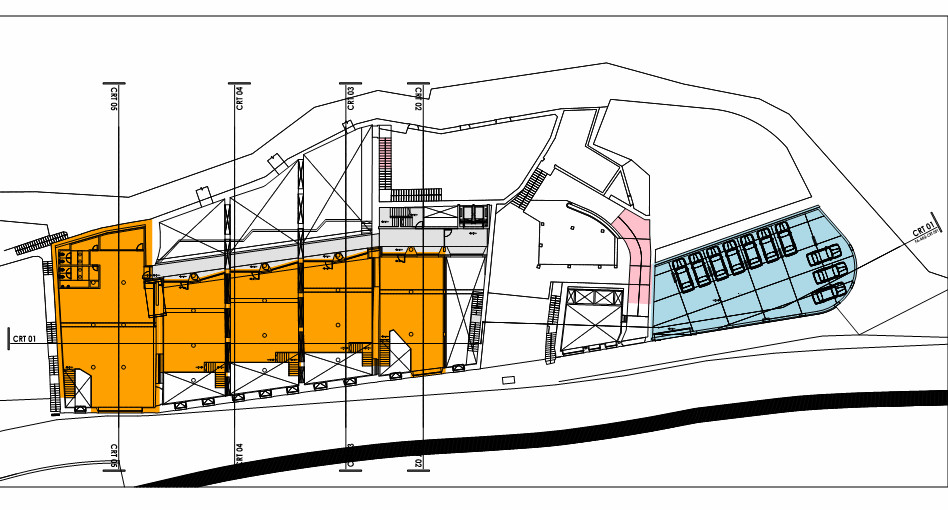

Cais da Fontinha
plan 02
Cais da Fontinha
plan 03
Cais da Fontinha
plan 04
Cais da Fontinha
plan 05
