Hercules Ecosystem Supply Chain

CAPA & Yizhou Design

LEAD ARCHITECTS
Ming Cai, Wei Fang

PHOTOGRAPHS
Tianpei Zeng

LANDSCAPE
Shenzhen Metrostudio Landscape Planning And Design Co.Ltd

DESIGN TEAM
Xintao Ye, Xiongping Li, Jinhao Zhu, Yang Wang, Jianhua Zhong, Fan Ding, Daizhen Huang, Jinhang Zhao, Dafeng Ni, Yuexu Yang, Xihui Liu

ENGINEERING
Shenzhen Capa, Yizhou Design Institute

CLIENT
Shenzhen Hercules Logistics Co.Ltd

AREA
83990 m²

YEAR
2018

LOCATION
Shenzhen, China

CATEGORY
Office Buildings

Text description provided by architect.

Hercules Ecosystem Supply Chain, located in Yantian District, Shenzhen, leaning against the hill and facing the sea, also has convenient transportation. The site is located in Yantian Comprehensive Bonded Zone and the largest port storage base in South China.

Hercules Ecosystem Supply Chain
interchange in the east side. Image © Tianpei Zeng
Hercules Ecosystem Supply Chain
© Tianpei Zeng

In order to meet the current and future development of the warehousing and logistics industry, the starting point of design is to create a modern new storage building that integrates functions such as warehousing, exhibition and headquarters.

How to achieve this goal? CAPA & Yizhou's design team hopes to respond to the surrounding environment with the iconic architectural style through the language of design, break through the traditional thinking style of“storage building is the warehouse” and create a time-oriented and forward-looking storage and office building, in the densely populated Yantian port.

Hercules Ecosystem Supply Chain
facade. Image © Tianpei Zeng
Hercules Ecosystem Supply Chain
east side. Image © Tianpei Zeng

The architectural style emphasizes industrial aesthetics and reflects the beauty of order. The façade design strives for modern simplicity, dark gray main color, partially matched pure white color, giving the building a simple and outstanding business temperament.

Through the ingenious combination of three-dimensional composition and plane composition, the occlusal and interpenetrating relationship created between the body blocks makes the building shape full of power, with strong visual impact, giving the building a unique temperament and recognition, highlighting the corporate brand personality.

Hercules Ecosystem Supply Chain

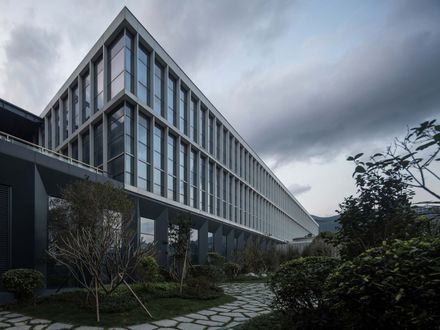

east landscape. Image © Tianpei Zeng
Hercules Ecosystem Supply Chain
interior space. Image © Tianpei Zeng

Combined with the three perspectives of the design, the building has a good visual effect at different angles.

While designing to take into account the functional requirements at this stage, it also opens up possibilities for future iterations of functional enhancements.

Hercules Ecosystem Supply Chain
interior space. Image © Tianpei Zeng
Hercules Ecosystem Supply Chain
track platform. Image © Tianpei Zeng

The main purpose of the current stage of building is warehousing. In the future, it may be due to the change of function in regional planning, which is mainly office,storage as secondary.

The plane depth of the building is controlled at 27 meters, and a spare lobby entrance and exit is reserved for future renovation.

Hercules Ecosystem Supply Chain
unloading area. Image © Tianpei Zeng
Hercules Ecosystem Supply Chain
sky garden. Image © Tianpei Zeng

In the plane vertical traffic design, the requirements for continued use after the spatial function transformation are also met to the utmost.

Maximize the use of the 45-meter limit and ensure that the single-layer height is not less than 5.4 meters, making the building possible with high-quality LOFT after the later transformation.

Hercules Ecosystem Supply Chain
south facade. Image © Tianpei Zeng


Hercules Ecosystem Supply Chain
east bird view. Image © Tianpei Zeng
Hercules Ecosystem Supply Chain
bird view. Image © Tianpei Zeng


Hercules Ecosystem Supply Chain
distant view. Image © Tianpei Zeng
Hercules Ecosystem Supply Chain
between mountain and sea. Image © Tianpei Zeng
Hercules Ecosystem Supply Chain

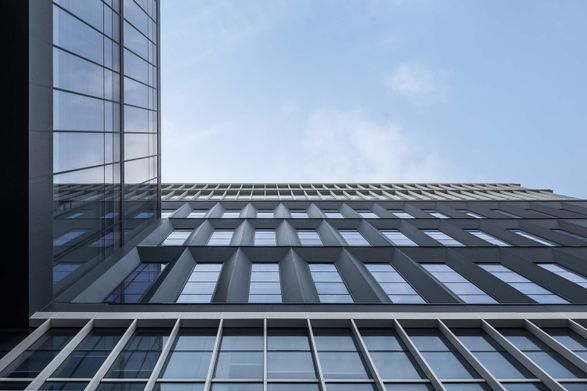

facade details. Image © Tianpei Zeng
Hercules Ecosystem Supply Chain
facade details. Image © Tianpei Zeng


Hercules Ecosystem Supply Chain

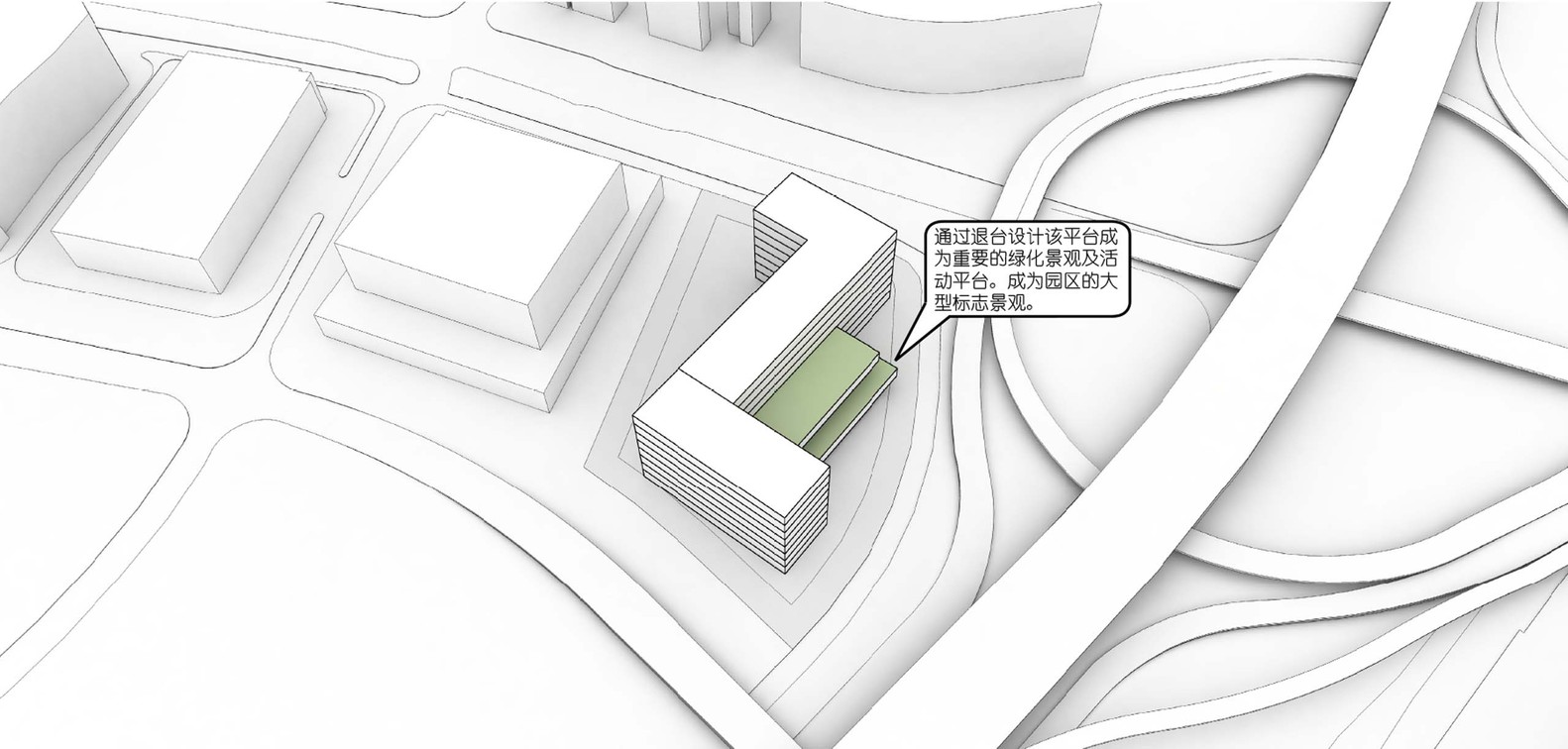

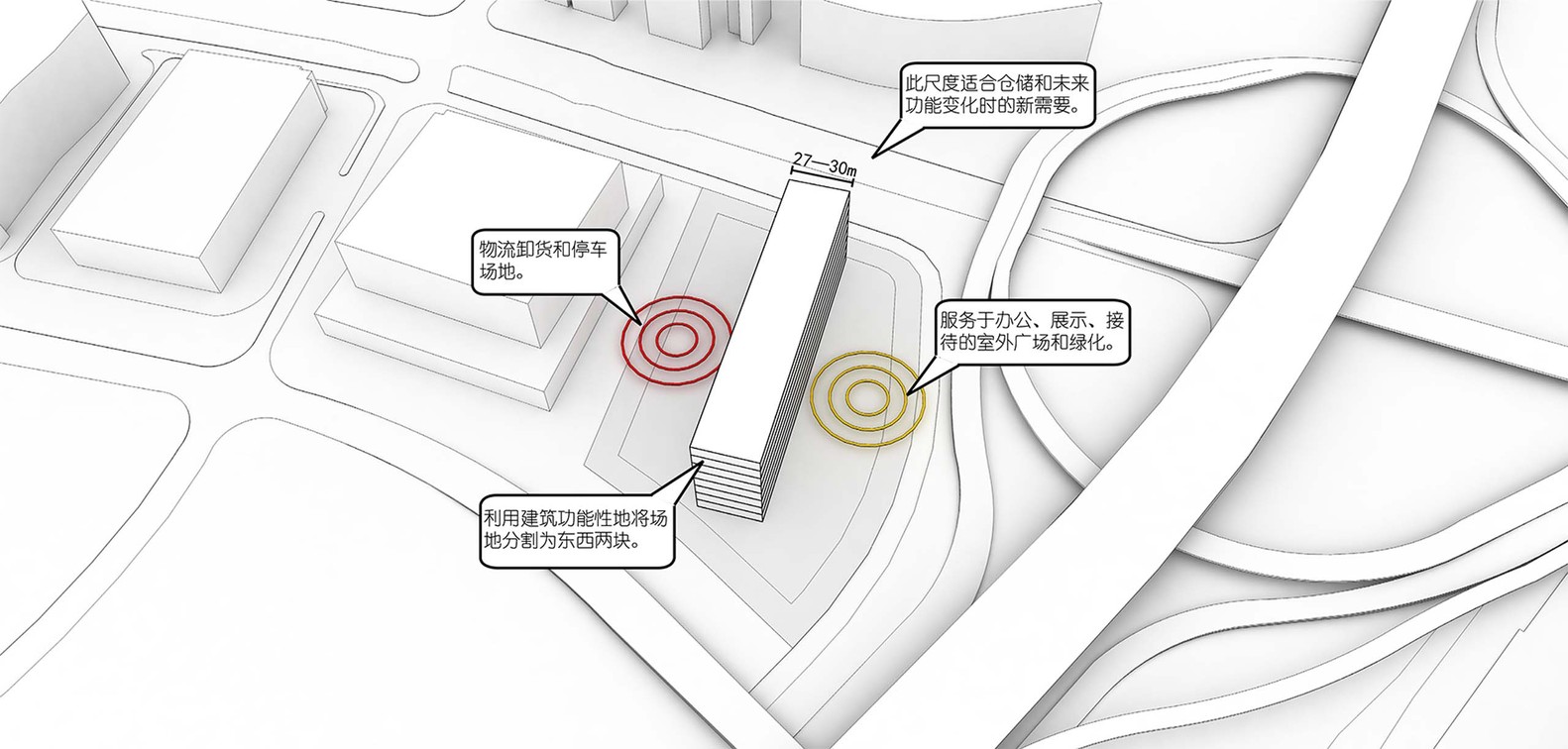

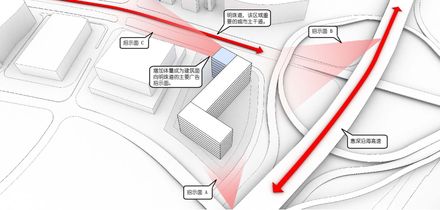

analysis diagram
Hercules Ecosystem Supply Chain
analysis diagram
Hercules Ecosystem Supply Chain
analysis diagram
Hercules Ecosystem Supply Chain
analysis diagram
Hercules Ecosystem Supply Chain
analysis diagram
Hercules Ecosystem Supply Chain
analysis diagram


Hercules Ecosystem Supply Chain
analysis diagram
Hercules Ecosystem Supply Chain
analysis diagram
Hercules Ecosystem Supply Chain
analysis diagram
Hercules Ecosystem Supply Chain
analysis diagram
Hercules Ecosystem Supply Chain
analysis diagram
Hercules Ecosystem Supply Chain
track unload area


Hercules Ecosystem Supply Chain

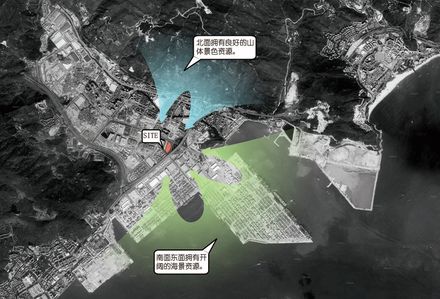

location
Hercules Ecosystem Supply Chain
site plan
Hercules Ecosystem Supply Chain
1F plan
Hercules Ecosystem Supply Chain
3F plan


Hercules Ecosystem Supply Chain
east elevation
Hercules Ecosystem Supply Chain
west elevation
Hercules Ecosystem Supply Chain
section
