Indra Tata Adilaras

Wood Box House

Wood Box House

Wood Box House

Indra Tata Adilaras

PHOTOGRAPHS
Sjahrial Iqbal/ Griya Asri

AREA
334 m²

YEAR
2009

LOCATION
Bogor, Indonesia

CATEGORY
Houses

Text description provided by architect.

Rather than to offer typical layout for the typical plot, the architects first strictly classify programs into two boxes:

a massive box for well partitioned private areas and services that would include bedrooms, kitchen, maid quarter, bathrooms, and a garage and a transparent box for open common areas including the living, dining, studio, and circulation areas.

Wood Box House
Wood Box House
Wood Box House

The massive box is an entirely concrete construction, finely plastered and painted, whereas the transparent box is a steel construction clad with glass and vertical layers of local teak-plants – a common technique in contemporary tropical building construction.

The strategy is to combine the two boxes to form an intermediary space that articulates the transparent box into well defined spaces for various activities.

Wood Box House
Wood Box House

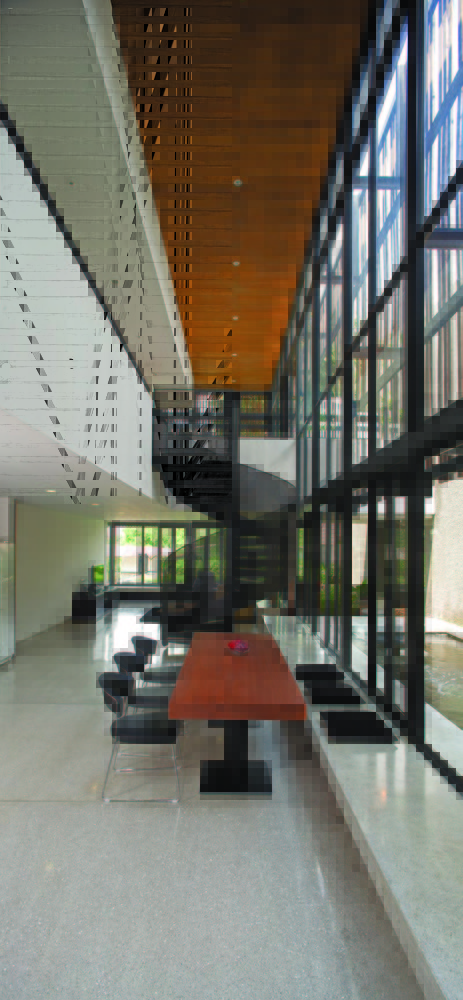

The transparent box is both a double-height interior space for the family to share, as well a shelter for an open-air tropical verandah.

The base of the transparent box is bound by a built-in concrete slab that can perform as a seating platform, table or staircase with built-in storage compartments.

Wood Box House

The platform is integrated with a koi pond and a raised garden to provide a feeling of being slightly underground.


Wood Box House
Wood Box House
Wood Box House
Wood Box House
Wood Box House


Wood Box House

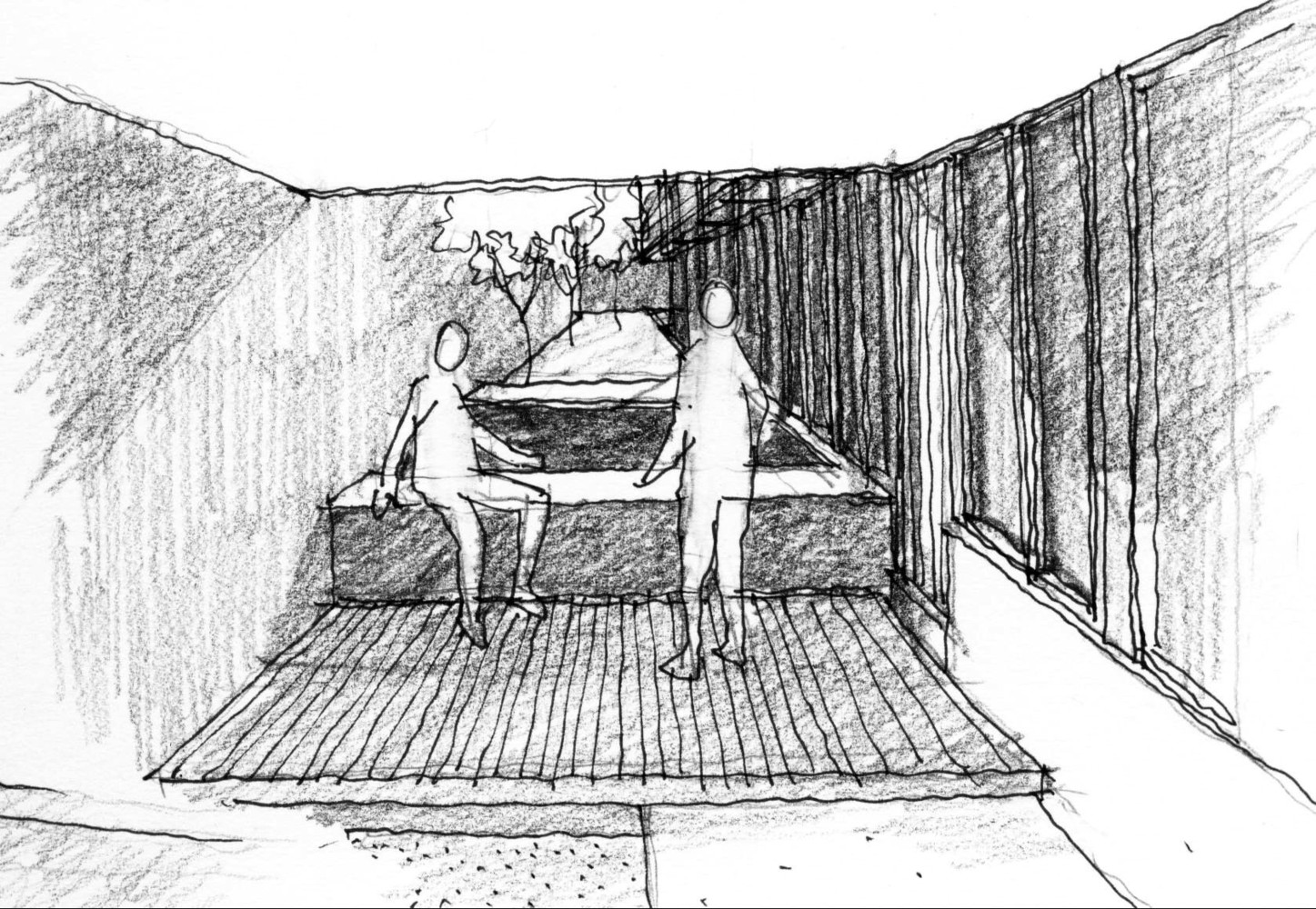

sketch 01
Wood Box House

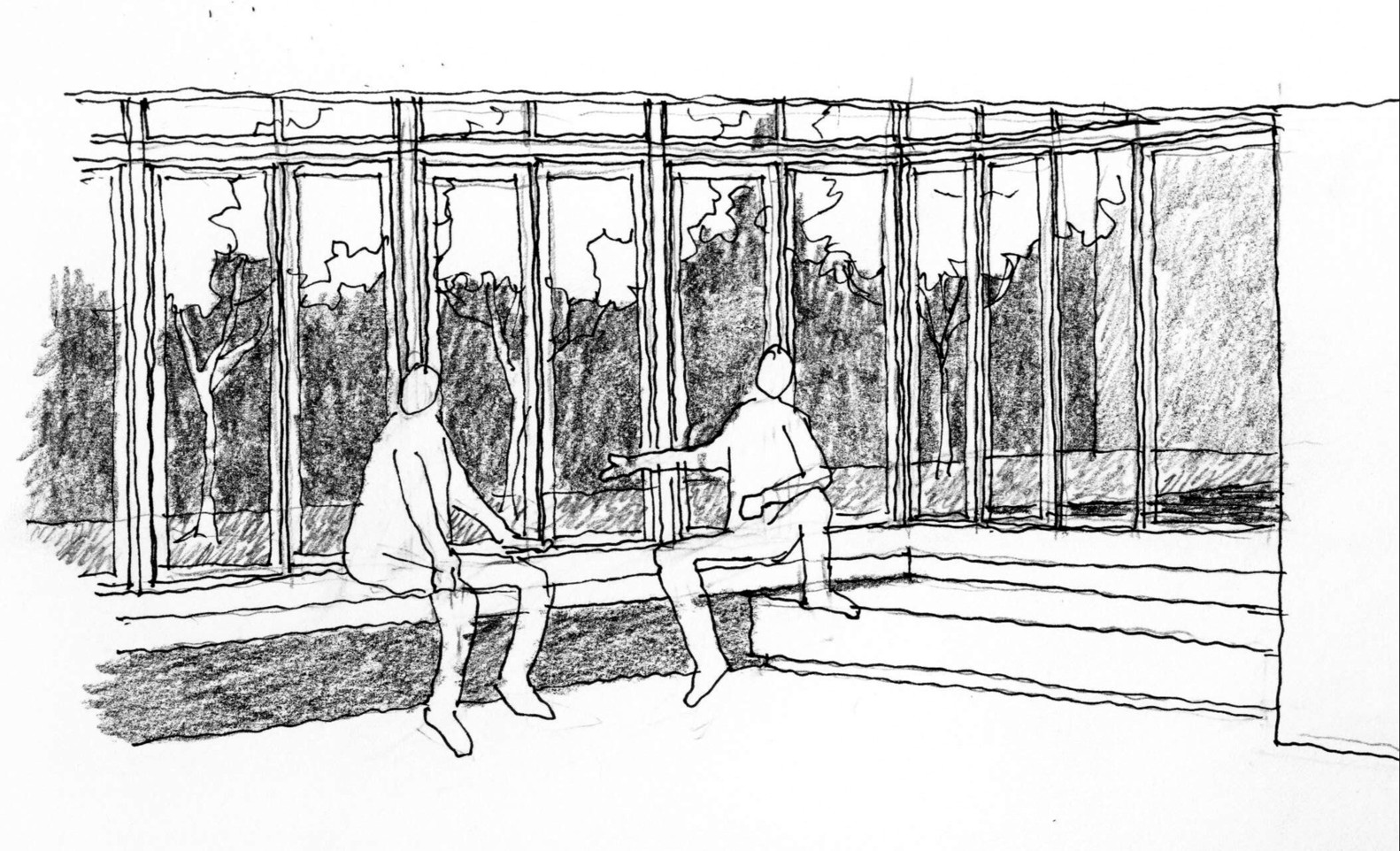

sketch 02
Wood Box House
sketch 03


Wood Box House

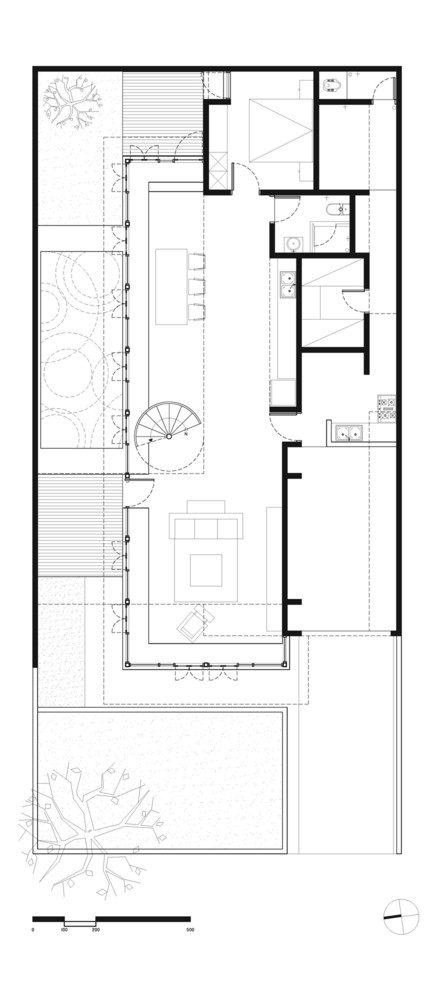

plan 02

Wood Box House

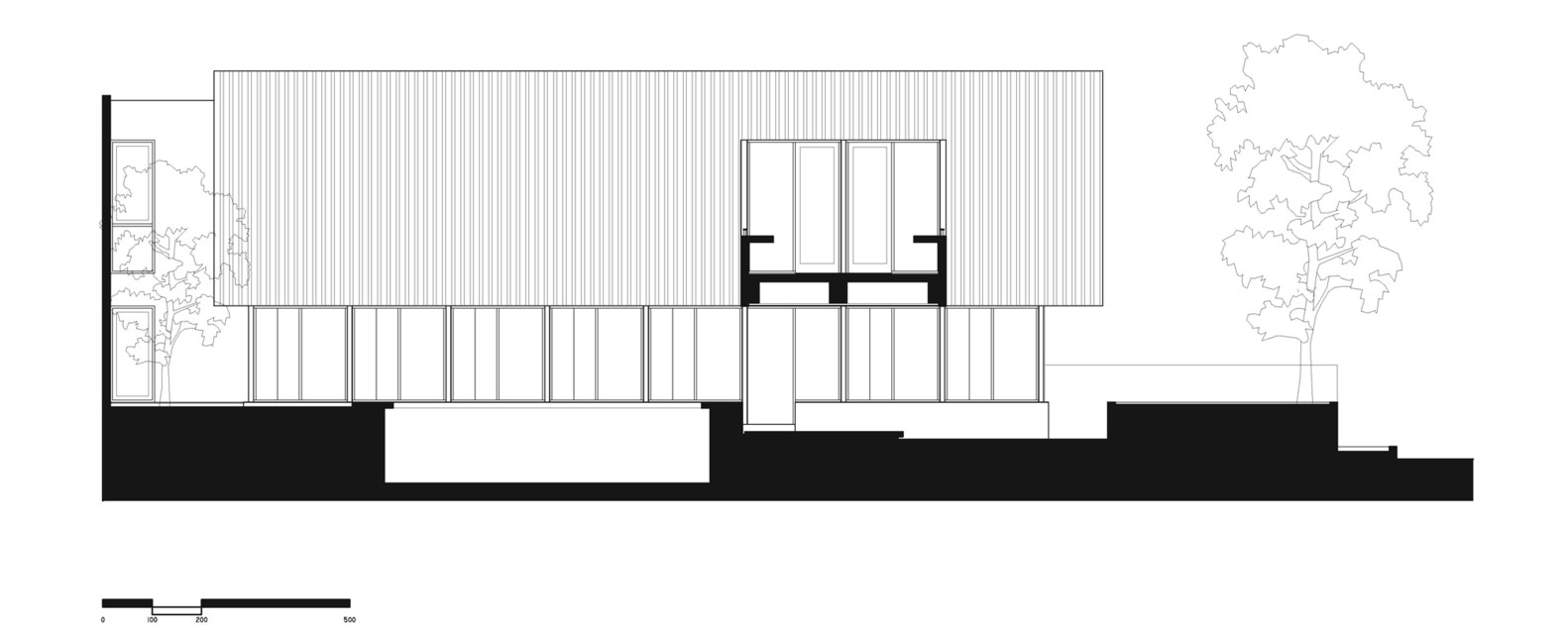

section 02
Wood Box House
section 02


Wood Box House
diagram 01

Wood Box House
plan 01
