Hillside House

Shands Studio

ARCHITECTS
Shands Studio

STRUCTURAL ENGINEER
Fulcrum Engineering

PLANTING CONSULTANT
Doniel Ellis Designs

GENERAL CONTRACTOR
Cove Construction

ACOUSTIC CONSULTANT
Acoustic Frontiers

ENERGY CONSULTANT
Beyond Efficiency Inc.

CIVIL ENGINEER
Ltd Engineering Inc.

AREA
2450 Ft²

YEAR
2013

LOCATION
San Anselmo, United States

CATEGORY
House

Text description provided by architect.

The design for this house was inspired by a desire to engage with the landscape, celebrate the native Oak trees and capture views of Mt. Diablo and the surrounding hills.

Hillside House
© Paul Dyer Photography
Hillside House
© Paul Dyer Photography

Formerly a hunting and summer guest house dilapidated from years of vacancy, the old growth Douglas Fir framing lumber was salvaged for re-use and the 100 year old rock walls that traverse the property were preserved.

Envisioned for direct access to the outdoors and visual connection to the landscape, the house creates an L shape as two perpendicular volumes step down the hill integrating with the existing trees and rock walls.

Hillside House
© Paul Dyer Photography
Hillside House
© Paul Dyer Photography

The materials selected--board formed concrete walls, painted steel and stained western red cedar--were inspired by the natural setting and rugged nature of the site.

Permeability between interior and exterior is achieved by providing sliding glass doors throughout the main level of the house, allowing the patio and cantilevered deck to be an extension of the living spaces.

Hillside House
© Paul Dyer Photography
Hillside House
© Paul Dyer Photography

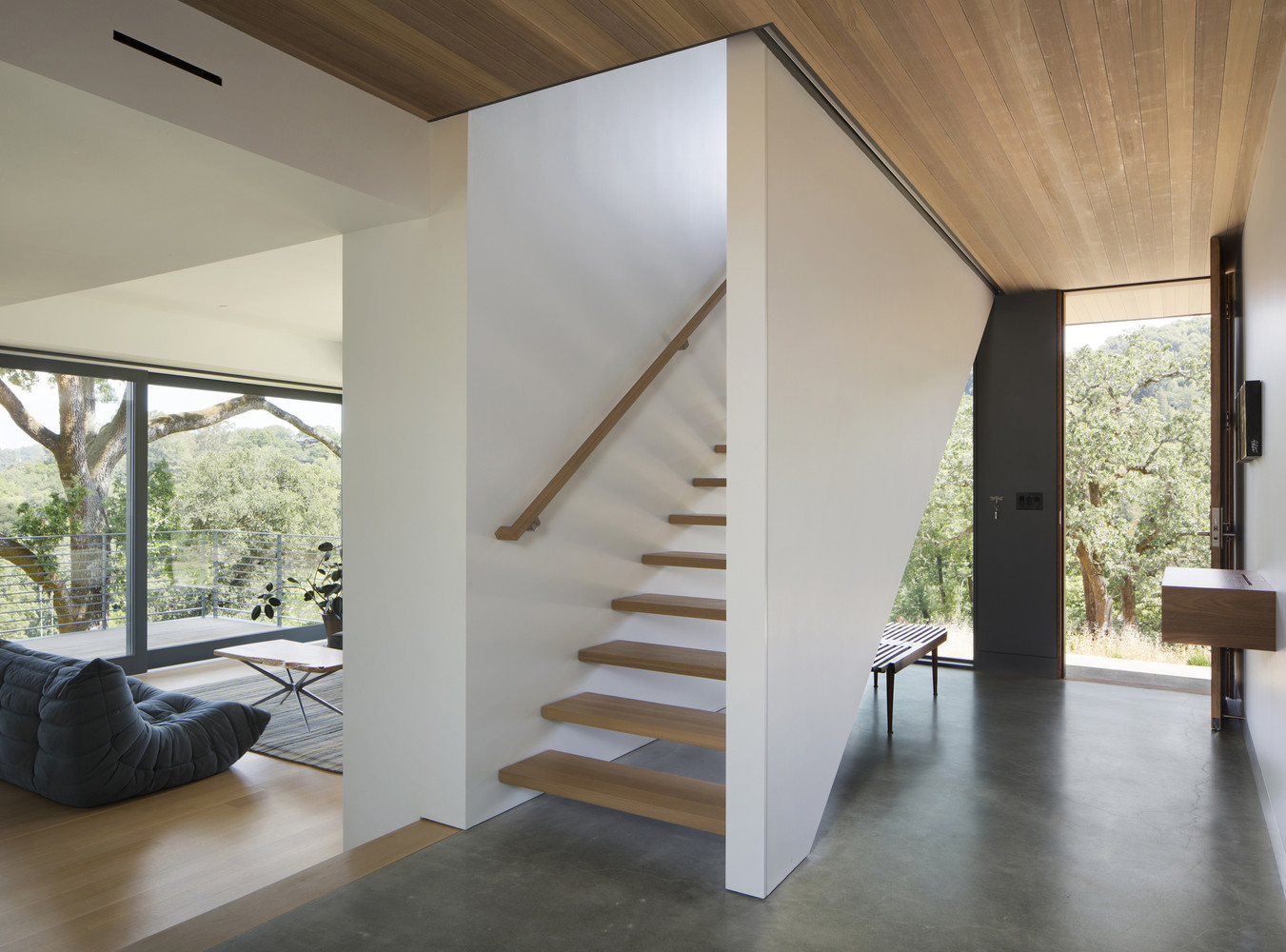

The entry also aligns with the outdoor patio connecting the North and South sides of the property. Floor to ceiling windows frame views of the hills and mountain beyond.

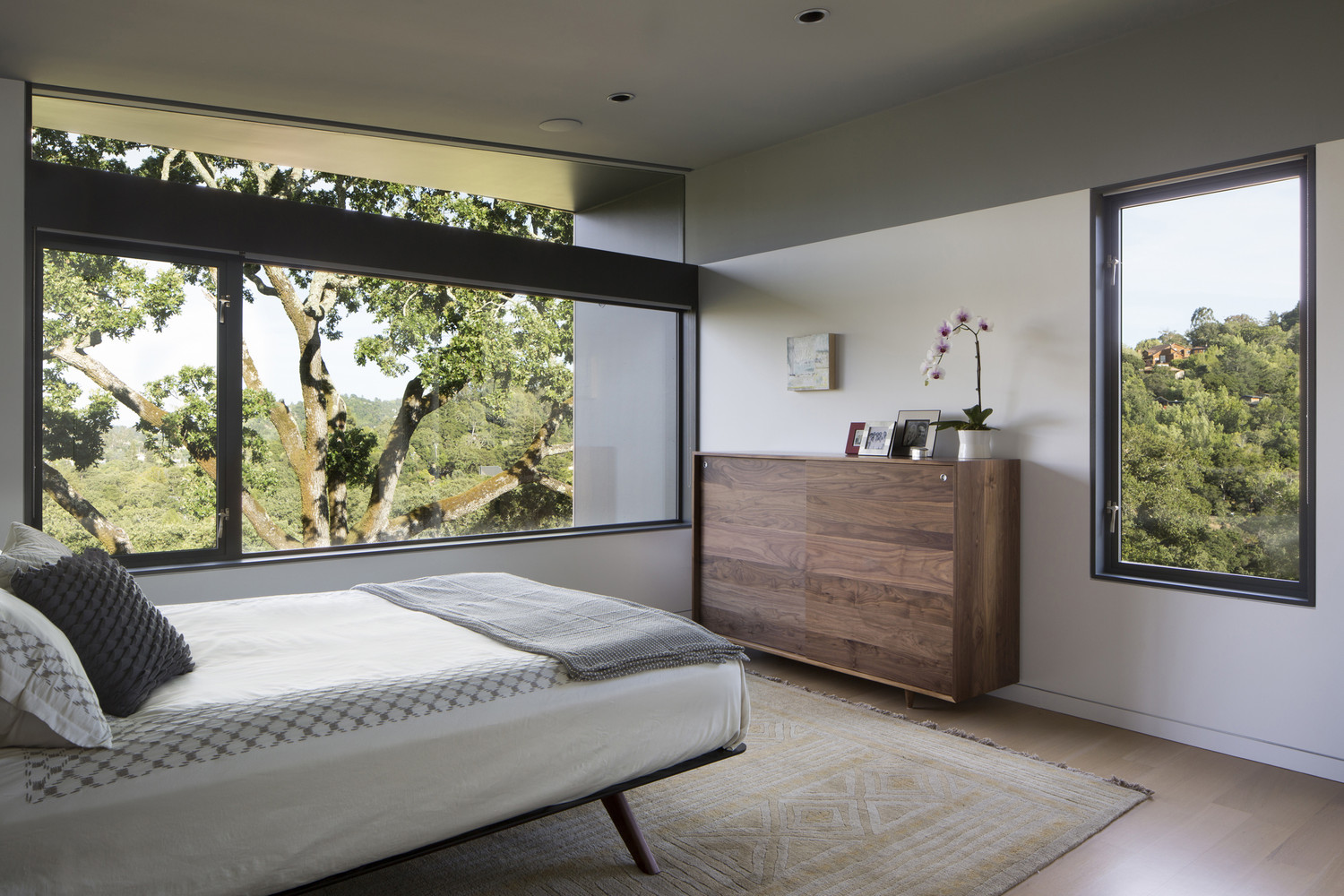

As part of the sustainable design approach, the Upper Level overhangs the Main Level on the South side utilizing passive heating and cooling strategies and Upper Level windows have 6” deep perimeter frames to provide shade during the hottest summer months.

Hillside House
© Paul Dyer Photography
Hillside House
© Paul Dyer Photography

Additionally, the inverted hip roof was designed to maximize exposure for solar panels while visually concealing them from the street.

SUSTAINABILITY FEATURES:

- House was designed for passive heating and cooling. A 4’-0” overhang and 6” deep perimeter frames around the windows were designed to shade the South glazing in the summer while allowing direct sunlight in the winter. The house was also sited to maximize shade from the existing trees on the West side.

Hillside House
© Paul Dyer Photography
Hillside House
© Paul Dyer Photography

- Salvaged and re-used framing lumber from existing dilapidated structure on site. - Re-use of all rocks on site to repair existing rock landscape walls and create new edging. - Concrete walls and foundations composed of 50% Fly Ash. Concrete slabs composed of 30% Fly Ash.

- Wood framing for walls is 24” O.C. to reduce amount of wood used and create 2x6 cavity for insulation providing a more energy efficient envelope.

Hillside House
© Paul Dyer Photography
Hillside House
© Paul Dyer Photography

- Benjamin Obdyke “Home Slicker” rainscreen installed behind cedar siding for ¼” air gap. - Insulation is cellulose and recycled denim (Bonded Logic).

- Heating is supplied using a hybrid system. A high efficiency water heater supplies domestic hot water while also having coils connected to the air handler for forced air heating. This system also provides whole house ventilation throughout the year.

Hillside House
© Paul Dyer Photography
Hillside House
© Paul Dyer Photography

- Over 50% of the light fixtures are LED. - Landscaping designed with all drought tolerant plants. - Photovoltaic solar panels installed on Upper Roof.


Hillside House

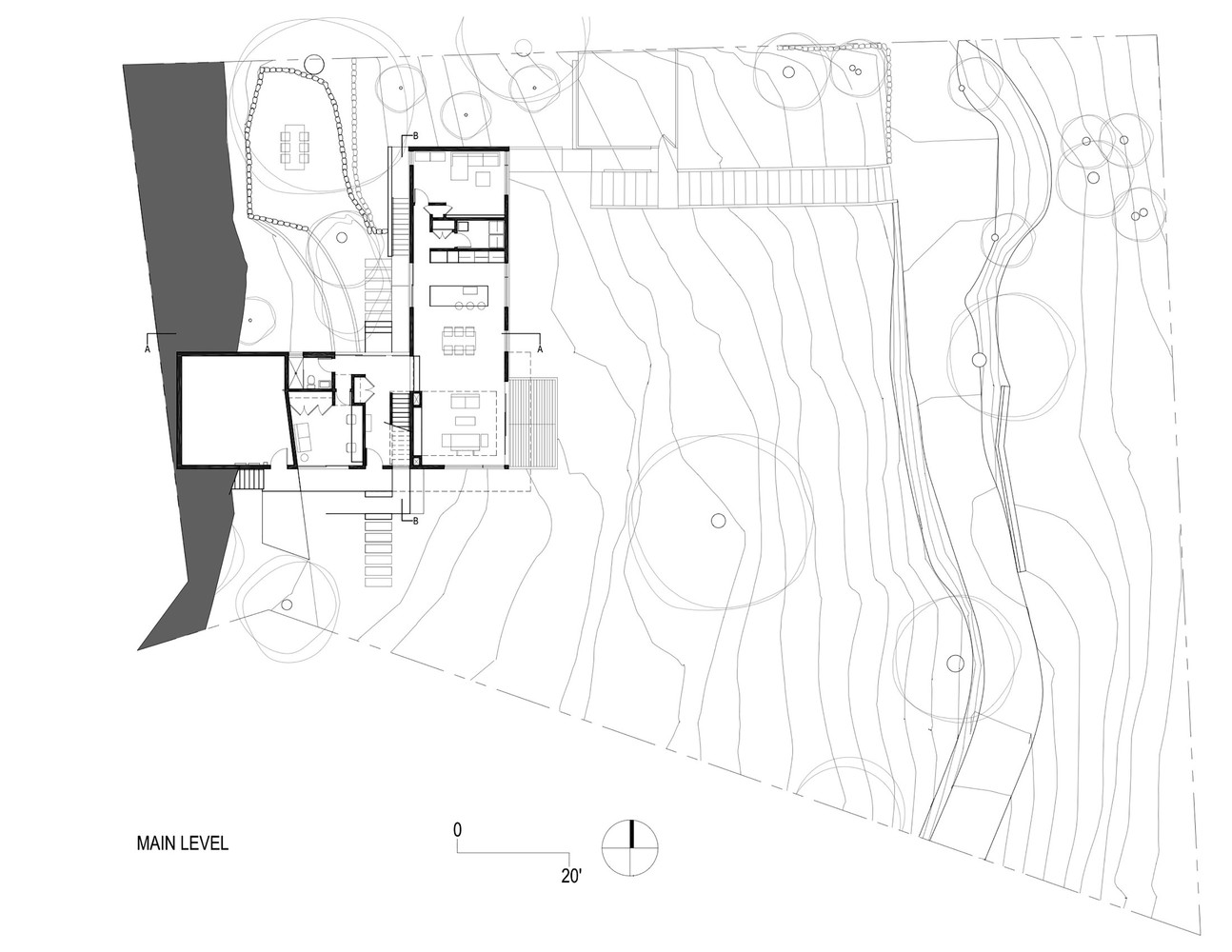

Ground Floor Plan
Hillside House

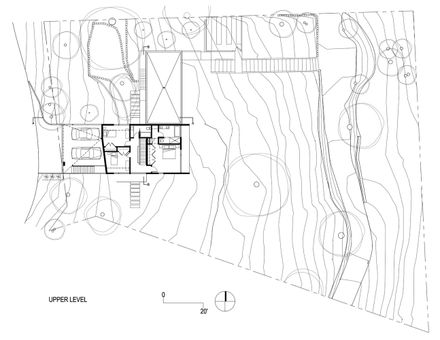

Upper Floor Plan


Hillside House
Section AA
Hillside House
Section BB


Hillside House
East Elevation
Hillside House
West Elevation
Hillside House
South Elevation
