Amunategui Building

Amunategui Building

Alemparte Morelli y Asociados Arquitectos

Amunategui Building
Cortesía de Alemparte Morelli y Asociados Arquitectos

CONSTRUCTION
Echeverría Izquierdo Ingeniería Y Construcción S.a.

MANUFACTURERS
Atika

STRUCTURES
Mujica Y Breschi Ingenieros, Vmb Ingeniería Estructural

PROJECT ARCHITECTS
José Gabriel Alemparte, Patricio Morelli

COLLABORATOR
Jaime Barrientos Marchant

YEAR
2013

LOCATION
Santiago, Chile

CATEGORY
Office Building

Amunategui Building
Cortesía de Alemparte Morelli y Asociados Arquitectos

Text description provided by architect.

The commission was to develop a corporate office building for public services, ministries and public and private institutions that need to have their operations in the historic center of the city where most public institutions and the financial sector of the country are concentrated.

The corner of Hermanos Amunátegui and Agustinas meets these requirements, it is steps away from Plaza de la Constitution, the executive hub, close to the judiciary, with an unbeatable accessibility to public transport and motorways, which reinforces the centrality of its location.

Amunategui Building
Cortesía de Alemparte Morelli y Asociados Arquitectos
Amunategui Building
Cortesía de Alemparte Morelli y Asociados Arquitectos

The local building regulations directs the architecture to a model of continuity and isolated tower; up to 40 meters the continuity of the volume acts as base, which forms the continuous facade of the traditional block in the historic downtown.

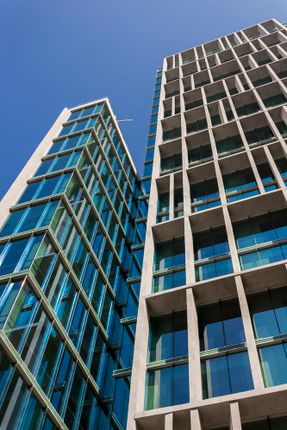

Two bodies as "plates" stick to this model, leaving the center of the facade pass cleanly through the total verticality of the isolated volume, a tower of 21 levels, the ends of the "plate" bodies are constructed with architectural concrete, modulated as overlaps.

Amunategui Building
Cortesía de Alemparte Morelli y Asociados Arquitectos
Amunategui Building
Cortesía de Alemparte Morelli y Asociados Arquitectos

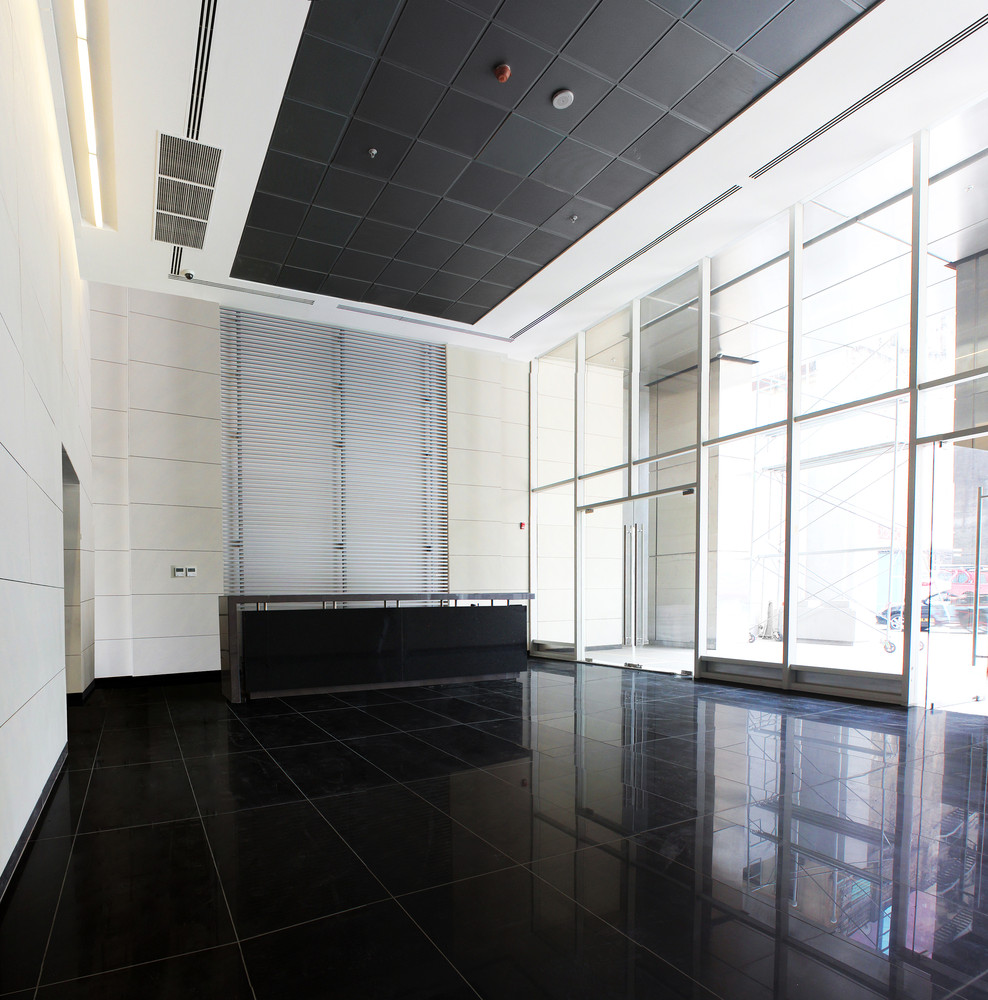

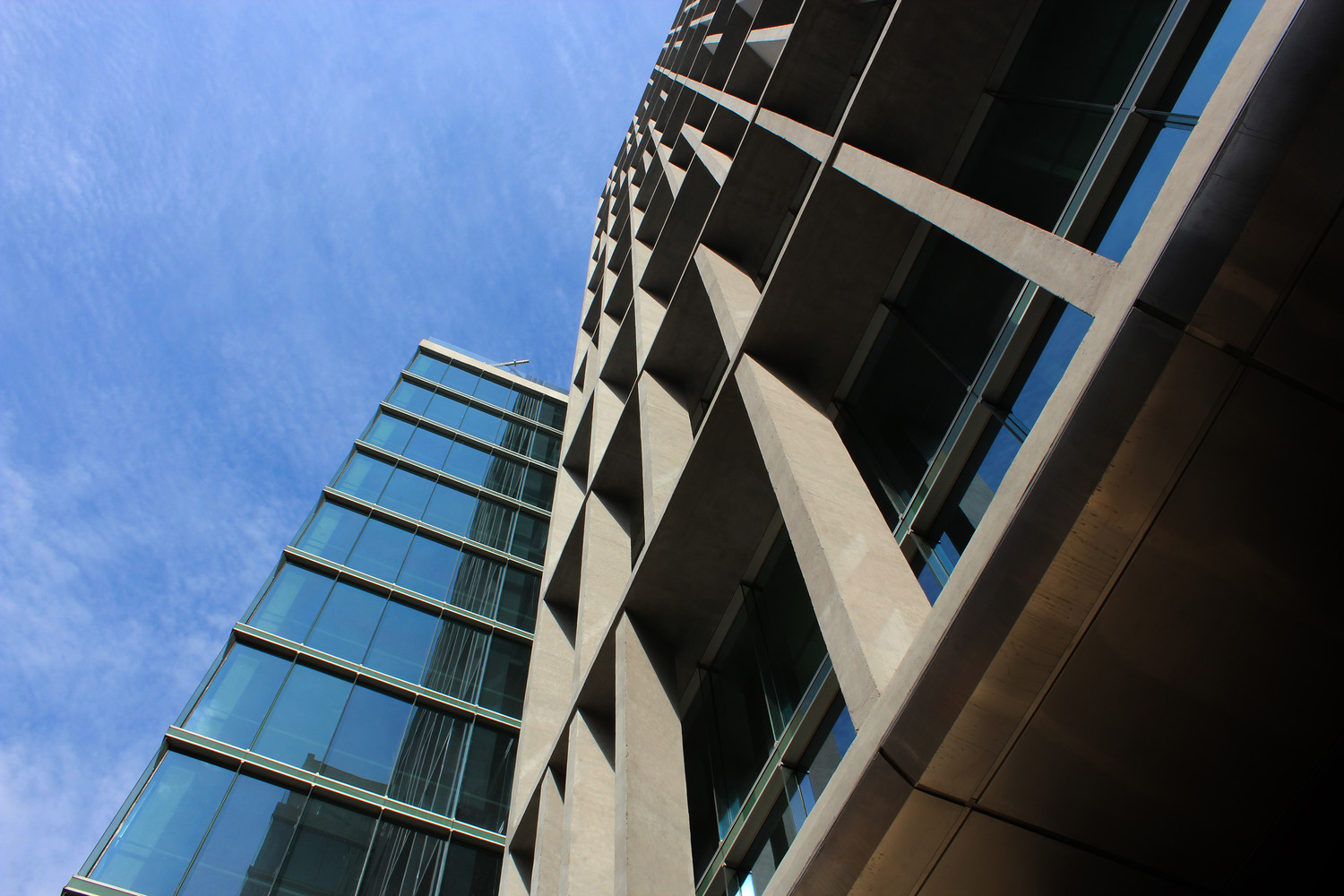

The tower is set back in the front generating a public access atrium, and in the north and south sides, generating a rectangular prism in which the short east and west facades are designed with a screen made of architectural concrete, seeking to control thermal gains by solar incidence of these orientations.

These screens are rotated around their vertical axis to project a larger shadow on the windows.

The vertical circulation core is shifted to the north facade leaving the southern facade, more appropriate due to its even light during the workday, for better livability of work spaces.

Amunategui Building
Cortesía de Alemparte Morelli y Asociados Arquitectos
Amunategui Building
Cortesía de Alemparte Morelli y Asociados Arquitectos
Amunategui Building
Cortesía de Alemparte Morelli y Asociados Arquitectos

The "window ribbon" technique was used to achieve lower costs for the overall envelope, we used an exterior laminated glass ribs system to increase the useful area inside (aluminum mullions were removed).

The building has 6 underground parking levels and a mechanical floor at level 22.


Amunategui Building
Cortesía de Alemparte Morelli y Asociados Arquitectos
Amunategui Building
Cortesía de Alemparte Morelli y Asociados Arquitectos


Amunategui Building
Second Basement Plan
Amunategui Building
Third Basement Plan
Amunategui Building
4th and 5th Basement Plan
Amunategui Building
Sixth Basement Plan


Amunategui Building
First Floor Plan
Amunategui Building
Second Floor Plan
Amunategui Building
Third Floor Plan
Amunategui Building
4th to 11th Floor Plan
Amunategui Building
13th to 20th Floor Plan
Amunategui Building
Mezzanine Floor Plan
Amunategui Building
Mechanical Floor Plan
Amunategui Building
Roof Plan


Amunategui Building
Cross Section BB
Amunategui Building
Cross Section CC
Amunategui Building
Longitudinal Section DD


Amunategui Building
Agustinas Alley Elevation
Amunategui Building
Amunategui Street Elevation
Amunategui Building
North Elevation
Amunategui Building
Souith Elevation
