Grupo Arquitectura

Rancho Los Sauces

Rancho Los Sauces

grupoarquitectura

Rancho Los Sauces
Courtesy of grupoarquitectura

CONSTRUCTION SYSTEM
Metal structure and wood, concrete walls

STRUCTURES
Ing. Enrique Avalos Z.

RESTRICTIONS
Single level, low occupation density

DESIGN TEAM
Erick Rios, Héctor Ferral, Rosa López Susana López, Erick Ríos, Rafael Sánchez, Chantal Stoopen

YEAR
2009

LOCATION
Mexico City, Mexico

CATEGORY
Houses

Rancho Los Sauces
Courtesy of grupoarquitectura

Text description provided by architect.

The property is located on a site with a smooth, continuous slope toward a large valley, it only has trees on the perimeter as it was for agricultural use.

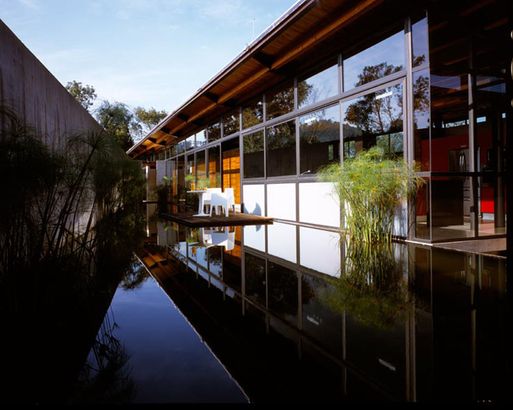

The project of the house is a large space that is laid out in a linear manner with all the spaces towards the view through a terrace.

Rancho Los Sauces
Courtesy of grupoarquitectura
Rancho Los Sauces
Courtesy of grupoarquitectura

Crosswise an intersected body finished in wood controls the side view of the house to the party wall.

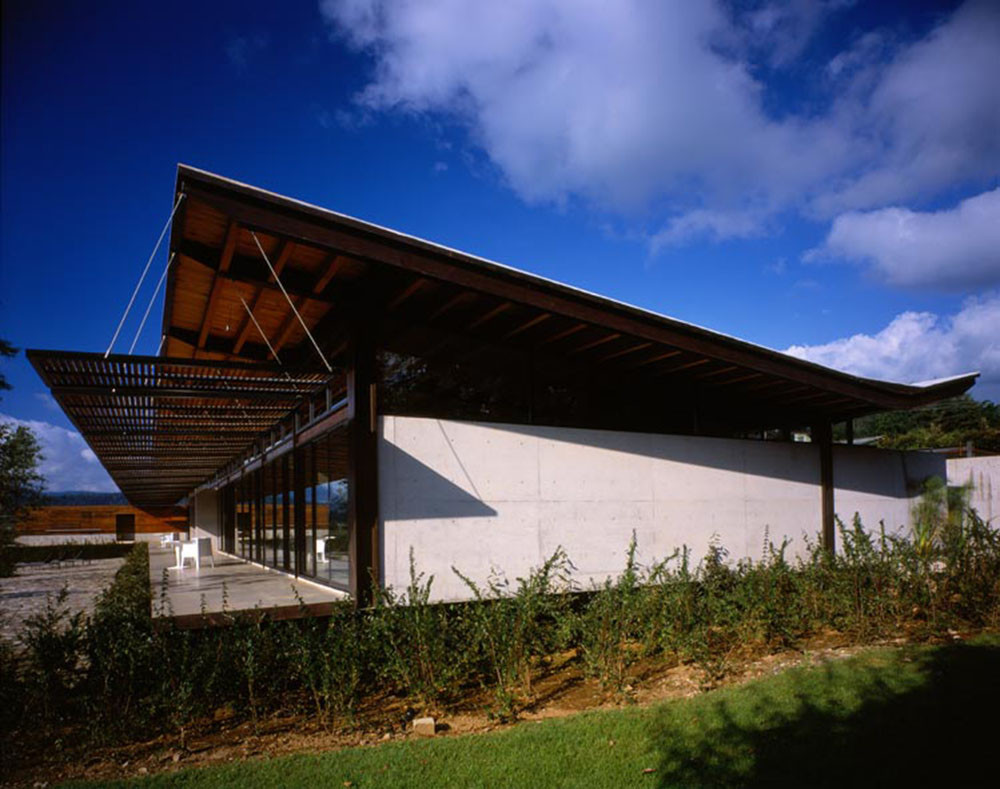

The main structure of the house is made of metal with a very marked rhythm and has a secondary wooden structure which allows it to be totally separated from the ground, allowing the passage of all facilities below the house.

Rancho Los Sauces
Courtesy of grupoarquitectura
Rancho Los Sauces
Courtesy of grupoarquitectura

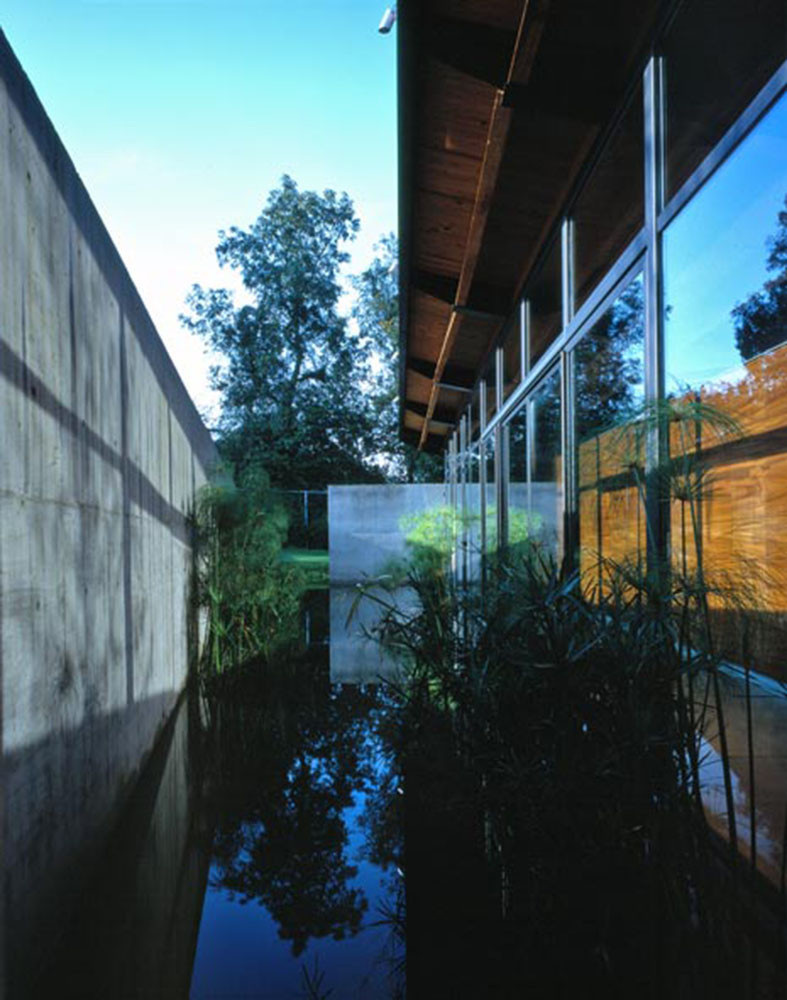

The finishes throughout the house are very homogeneous and simple, without claddings, the floors are made of exposed, polished and waxed concrete, the walls are made of concrete and partitions are made of exposed concrete block. Glass partitions are framed in aluminum and have double glazing for thermal control.

The project has solar systems for water heating, treatment plant and various reservoirs and storage tanks for rainwater.

Rancho Los Sauces
Courtesy of grupoarquitectura
Rancho Los Sauces
Courtesy of grupoarquitectura

Due to the orientation of the house, we designed wooden screens for sun protection.


Rancho Los Sauces
Courtesy of grupoarquitectura
Rancho Los Sauces
Courtesy of grupoarquitectura
Rancho Los Sauces
Courtesy of grupoarquitectura
Rancho Los Sauces
Courtesy of grupoarquitectura


Rancho Los Sauces
Section
Rancho Los Sauces
Section


Rancho Los Sauces
Master Plan
Rancho Los Sauces
Plan
