Regency Dormer

Regency Dormer

Konishi Gaffney Architects

Regency Dormer
© Alan Craigie

ENGINEER
Burnt Siena Structures

CONTRACTOR
Gloss Projects

ZINC
Artisan Roofing

PHOTOGRAPHS
Alan Craigie

YEAR
2013

LOCATION
Edinburgh, United Kingdom

CATEGOERY
Houses, Extension

Regency Dormer
© Alan Craigie

Text description provided by architect.

The project was to extend a small 1st floor flat into the loft and create a new bedroom with dormer.

A simple brief complicated only by the lack of headroom in the loft, the client’s design ambition and conservative planning rules in this conservation area of Edinburgh.

Regency Dormer
© Alan Craigie
Regency Dormer
© Alan Craigie

This street has the densest concentration of listed buildings in Portobello (54 in 120m). The planners were resistant to the idea of a dormer in this location at all but following long negotiations a rear dormer was conceded.

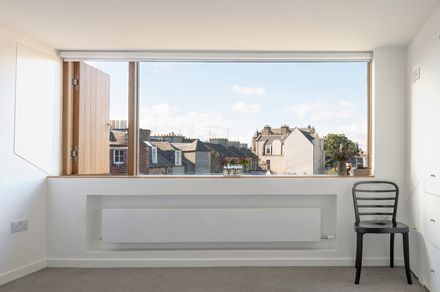

We then made a case for a low profile, long dormer, more than twice as long as is normally permitted. The project allowed a west facing picture window with an unusual view.

Regency Dormer
© Alan Craigie
Regency Dormer
© Alan Craigie

It is clad in anthracite zinc by French artisans and includes an idiosyncratic splay to let afternoon light in, a fixed glass pane and a timber door for ventilation. Because this had less visual impact than a dormer located near the eaves.


Regency Dormer
First Floor Plan

Regency Dormer
Floor Plan


Regency Dormer
Elevation
Regency Dormer
Section
Regency Dormer
Axonometric
