VTN Architects

Farming Kindergarten

Farming Kindergarten

VTN Architects

Farming Kindergarten
© Hiroyuki Oki

ARCHITECTS
VTN Architects

CONTRACTOR
Wind And Water House JSC

PRINCIPAL ARCHITECTS
Vo Trong Nghia, Takashi Niwa, Masaaki Iwamoto

PROJECT TEAM
Tran Thi Hang, Kuniko Onishi

GREEN BUILDING CONSULTANT
Melissa Merry Weather

CFD ANALYSIS
Environment Simulation inc.

GREEN BUILDING CONSULTANT
Melissa Merry Weather

CFD ANALYSIS
Environment Simulation Inc.

CLIENT
POU Chen Vietnam

PHOTOGRAPHS
Gremsy, Hiroyuki oki

AREA
3800 m²

YEAR
2013

LOCATION
Biên Hòa, Vietnam

CATEGORY
Kindergarten

Farming Kindergarten
© Gremsy

Text description provided by architect.

Vietnam historically an agricultural country is facing changes as it moves to a manufacturing based economy, taking its toll on the environment.

Increased droughts, floods and salinization jeopardize food supplies, while numerous motorbikes cause daily congestion and air pollution in the cities.

Farming Kindergarten
© Gremsy
Farming Kindergarten
© Hiroyuki Oki

Rapid urbanization deprives Vietnamese children of green lands and playgrounds, thus relationship with nature.green roof as insulation, green facade as shading and solar water heating. These devices are designed visibly and play an important role in the children’s sustainable education.

Farming Kindergarten is a challenge to counter these issues. Located next to a big shoe factory, and designed for 500 children of the factory's workers, the building is conceived as a continuous green roof, providing food and agriculture experience to children, as well as an extensive playground to the sky.

Farming Kindergarten
© Hiroyuki Oki
Farming Kindergarten
© Hiroyuki Oki

The green roof is a triple-ring shape drawn with a single stroke, encircling three courtyards inside as safe playgrounds. Recently, an experimental vegetable garden was realized on its top.

Five different vegetables are planted in 200m2 garden for agriculture education.The green roof is a triple-ring shape drawn with a single stroke, encircling three courtyards inside as safe playgrounds. Recently, an experimental vegetable garden was realized on its top. Five different vegetables are planted in 200m2 garden for agriculture education.

Farming Kindergarten
© Hiroyuki Oki
Farming Kindergarten
© Hiroyuki Oki

All functions are accommodated under this roof. As the roof lowers to the courtyard it provides access to the upper level and vegetable gardens on top- the place where children learn the importance of agriculture and recover connection to nature.

The building is made of a continuous narrow strip with two side operable windows which maximize the cross ventilation and natural lighting.

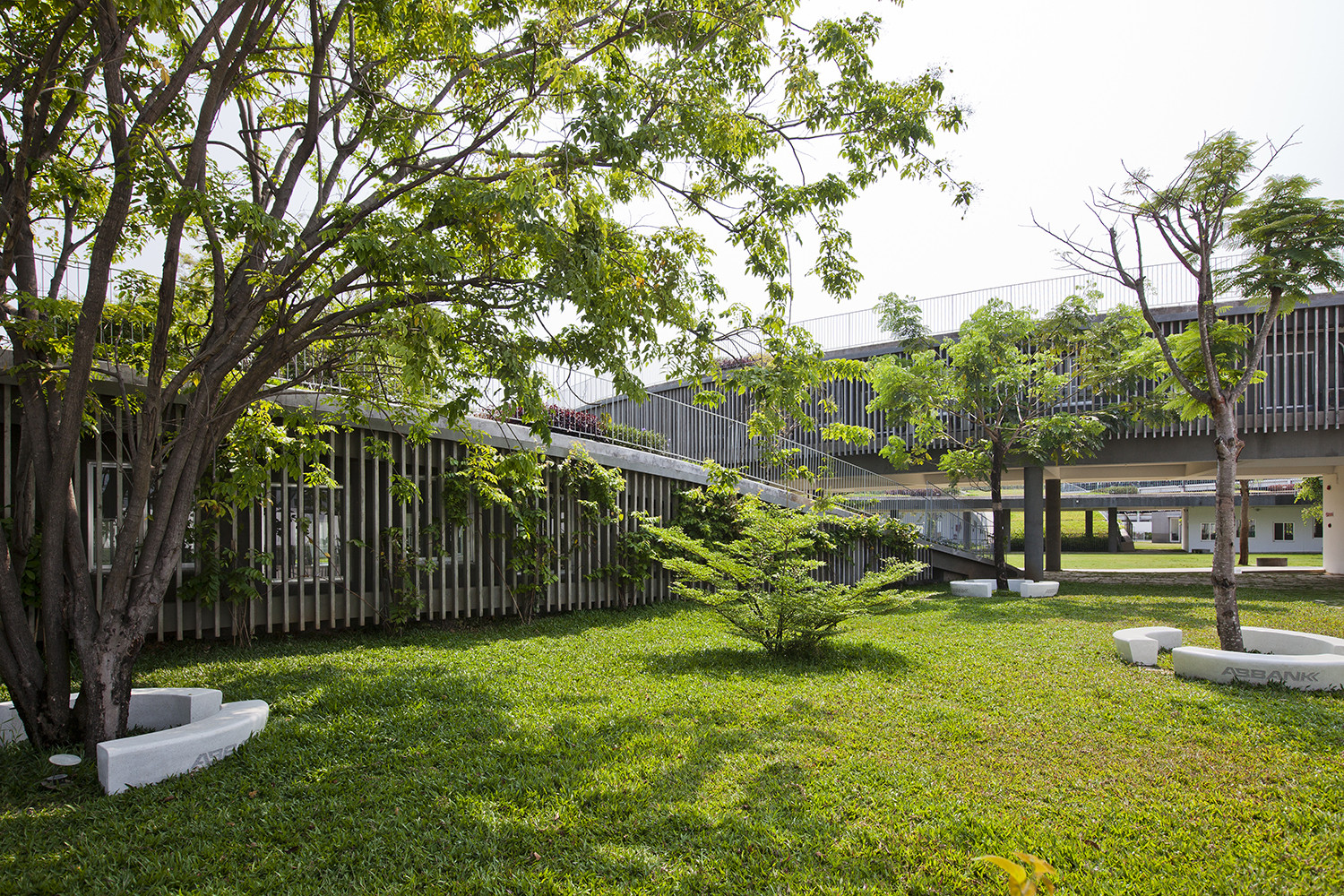

Additionally, architectural and mechanical energy-saving methods are comprehensively applied including but not limited to: green roof as insulation, green facade as shading and solar water heating.

Farming Kindergarten
© Hiroyuki Oki
Farming Kindergarten
© Hiroyuki Oki

These devices are designed visibly and play an important role in the children’s sustainable education. Factory wastewater are recycled to irrigate greenery and flush toilets.

As a result, the kindergarten is operated without air conditioners in the classrooms despite being located in a harsh tropical climate. All functions are accommodated under this roof.

Farming Kindergarten
© Hiroyuki Oki
Farming Kindergarten
© Hiroyuki Oki

According to post-occupancy record issued 10 months after completion, the building saves 25% of energy and 40% of fresh water compared to baseline building performance, reducing its running cost greatly.

The building is designed for low-income factory workers' children, therefore construction budget is quite limited. The building is made of a continuous narrow strip with two side operable windows which maximize the cross ventilation and natural lighting.

Farming Kindergarten
© Hiroyuki Oki
Farming Kindergarten
© Hiroyuki Oki

Therefore, the combination of local materials (ex. bricks, tiles) and low-tech construction methods are applied, which also help minimize the environmental impact as well as promote local industry.

Thanks to simple rigid frame with economical materials, the construction cost per one square meter is only 500 USD including finishes and equipment, which is competitively cheap even within the Vietnamese market.

Farming Kindergarten
© Hiroyuki Oki
Farming Kindergarten
© Hiroyuki Oki

Vietnam historically an agricultural country is facing changes as it moves to a manufacturing based economy, taking its toll on the environment. Green roof as insulation, green facade as shading and solar water heating.

Increased droughts, floods and salinization jeopardize food supplies, while numerous motorbikes cause daily congestion and air pollution in the cities.

Farming Kindergarten
© Hiroyuki Oki
Farming Kindergarten
© Hiroyuki Oki

Farming Kindergarten is a challenge to counter these issues. Located next to a big shoe factory, and designed for 500 children of the factory's workers, the building is conceived as a continuous green roof, providing food and agriculture experience to children, as well as an extensive playground to the sky.


Farming Kindergarten
Section


Farming Kindergarten
Continous Section
Farming Kindergarten
Enviromental Strategies


Farming Kindergarten
Ground Floor Plan
Farming Kindergarten
First Floor Plan
Farming Kindergarten
Site Plan
