FORMa

ARCHITECTS
Forma

ACOUSTIC
Cedia

STABILITY
Bureau D’études Bds

AREA
394 M²

YEAR
2013

LOCATION
Ixelles, Belgium

CATEGORY
Mixed Use Architecture, Housing

Text description provided by architect.

It's about making passive housing affordable, simple and enjoyable.

Serpentin 34
© Georges De Kinder
Serpentin 34
© Georges De Kinder
Serpentin 34
© Georges De Kinder

A feasibility study showed that, given the high land prices, a second housing must be inserted to complete the financing of the building.

The project is based on an eco-nomy-logy: low territorial impact, densification in a neighborhood offering numerous assets in terms of mobility and proximity in a various urban tissue.

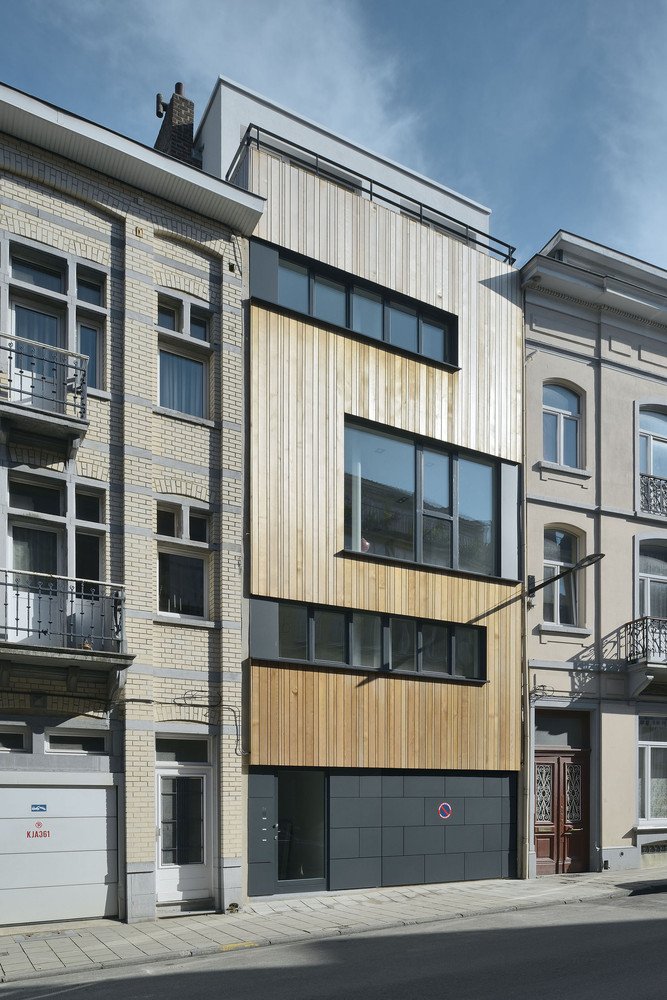

The cramped parcel and the modest carrying capacity of the soil made us choose a light wooden structure.

Serpentin 34
© Georges De Kinder
Serpentin 34
© Georges De Kinder
Serpentin 34
© Georges De Kinder

The floor plates are carried by the sidewalls and one row of intermediate steel columns and beams, positioned in the length direction of the building. Working without structural inner walls will allow an easy adaptation an reconversion of the surfaces.

The ground floor is logically occupied by the public functions: communal spaces, garbage management, bicycles, DIY, an office to rent or a polyvalent space for the residents, lighted by a patio longing the south-oriented adjoining wall.

Serpentin 34
© Georges De Kinder
Serpentin 34
© Georges De Kinder

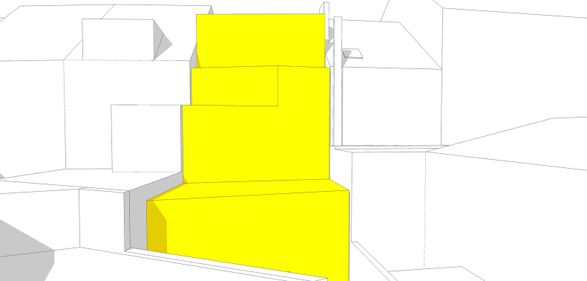

Two passive housings are located on the better lighted higher floors, ranked on each other following the profiles of the neighbor buildings, respecting their views and sun exposure.

The living rooms are placed in order to enjoy the full width of the parcel, taking profit of the enlargement behind. The triplexes living room crosses the building and occupies a completely open space.

Serpentin 34
© Georges De Kinder


Serpentin 34
© Georges De Kinder
Serpentin 34
© Georges De Kinder
Serpentin 34
© Georges De Kinder


Serpentin 34
Section
Serpentin 34
Elevation


Serpentin 34
Ground Floor Plan
Serpentin 34
First Floor Plan
Serpentin 34
Second Floor Plan
Serpentin 34
Fourth Floor Plan
Serpentin 34
Site Plan


Serpentin 34
Diagram 1
Serpentin 34
Diagram 2
Serpentin 34
Diagram 3
Serpentin 34
Diagram 4
