Prinz-Eugen-Park Residential Complex

Prinz-Eugen-Park Residential Complex

Rapp Architekten

Prinz-Eugen-Park Residential Complex
© Conné van d´Grachten

LEAD ARCHITECTS
Daniel Maier

MANUFACTURERS
Graphisoft, Gerflor, Knauf, Parador, Renz Briefkästen, Binderholz Bausysteme, Jet Tageslicht& Rwa, Warema Renkhoff Se Sonnenschutz

CLIENTS
Blaustein, Gwg München, Müllerblaustein

CONSTRUCTION MANAGEMENT
A2 Freising

ENGINEERING
Ulm; Ib Puscher, Tragwerke+, Schelklingen, Müllerblaustein, Reutlingen; Ib Scherraus

DESIGN TEAM
Philipp Rudischhauser, Wolfram Böttiger, Robin Merz, Juan Carlos Daza Penuela

LANDSCAPE
Jühling & Partner, Silands Gresz + Kaiser Landschaftsarchitektur Partg

AREA
8960 M²

YEAR
2019

LOCATION
Múnich, Germany

CATEGORY
Sustainability, Residential

Prinz-Eugen-Park Residential Complex
© Conné van d´Grachten

Text description provided by architect.

The new building on Jörg-Hube-Strasse creates space for 57 apartments of which 45 are socially subsidized apartments and one house for children with six kindergarten groups.

The children's house will be integrated on the ground floor of the building on one level and will be characterized by a protruding base area in the west. All group rooms are oriented towards the garden area, which is located to the west.

Prinz-Eugen-Park Residential Complex
© Conné van d´Grachten
Prinz-Eugen-Park Residential Complex
© Conné van d´Grachten

The staff rooms and side rooms are located to the east and serve as a separation to the living area. The interior corridors and checkroom areas receive daylight through skylights and have multiple views and exits to the garden.

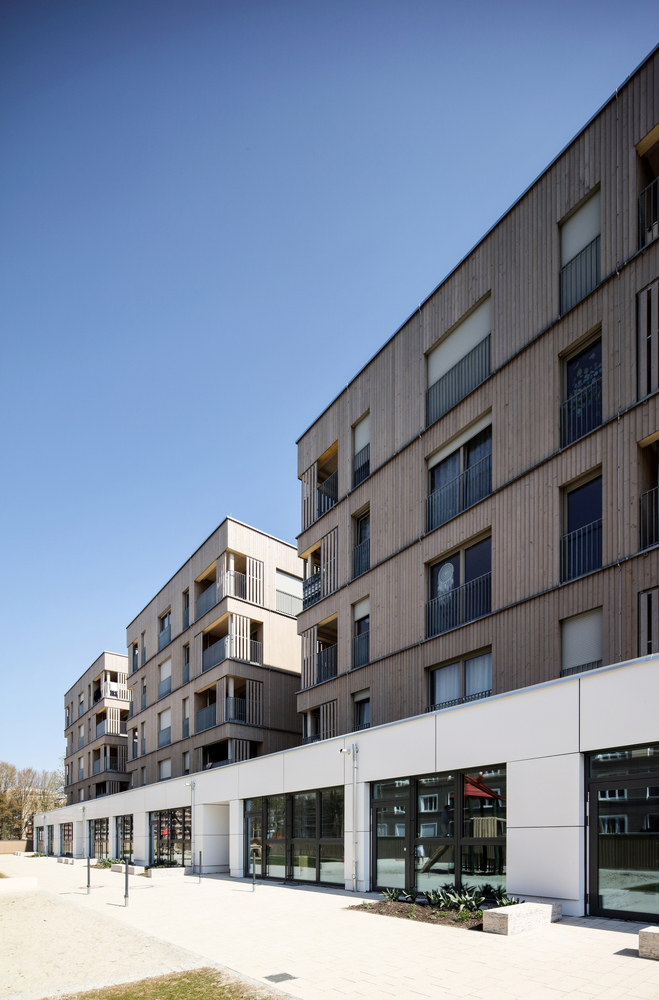

The apartments are placed in four four- to six-story compact volumes above the groundfloor volume. All roof areas are designed as extensive green roofs.

Prinz-Eugen-Park Residential Complex
© Conné van d´Grachten
Prinz-Eugen-Park Residential Complex
© Conné van d´Grachten

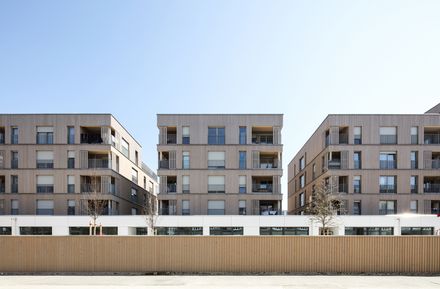

The segmentation into four volumes creates manageable neighborhoods and at the same maximizes the use of daylight in the apartments and the kindergarten.

All apartments are oriented in at least two cardinal points. The entrances to the apartments and the house for children are separated geographically. The apartments are accessed from the east or south, the house for children from the west.

Prinz-Eugen-Park Residential Complex
© Conné van d´Grachten
Prinz-Eugen-Park Residential Complex
© Conné van d´Grachten

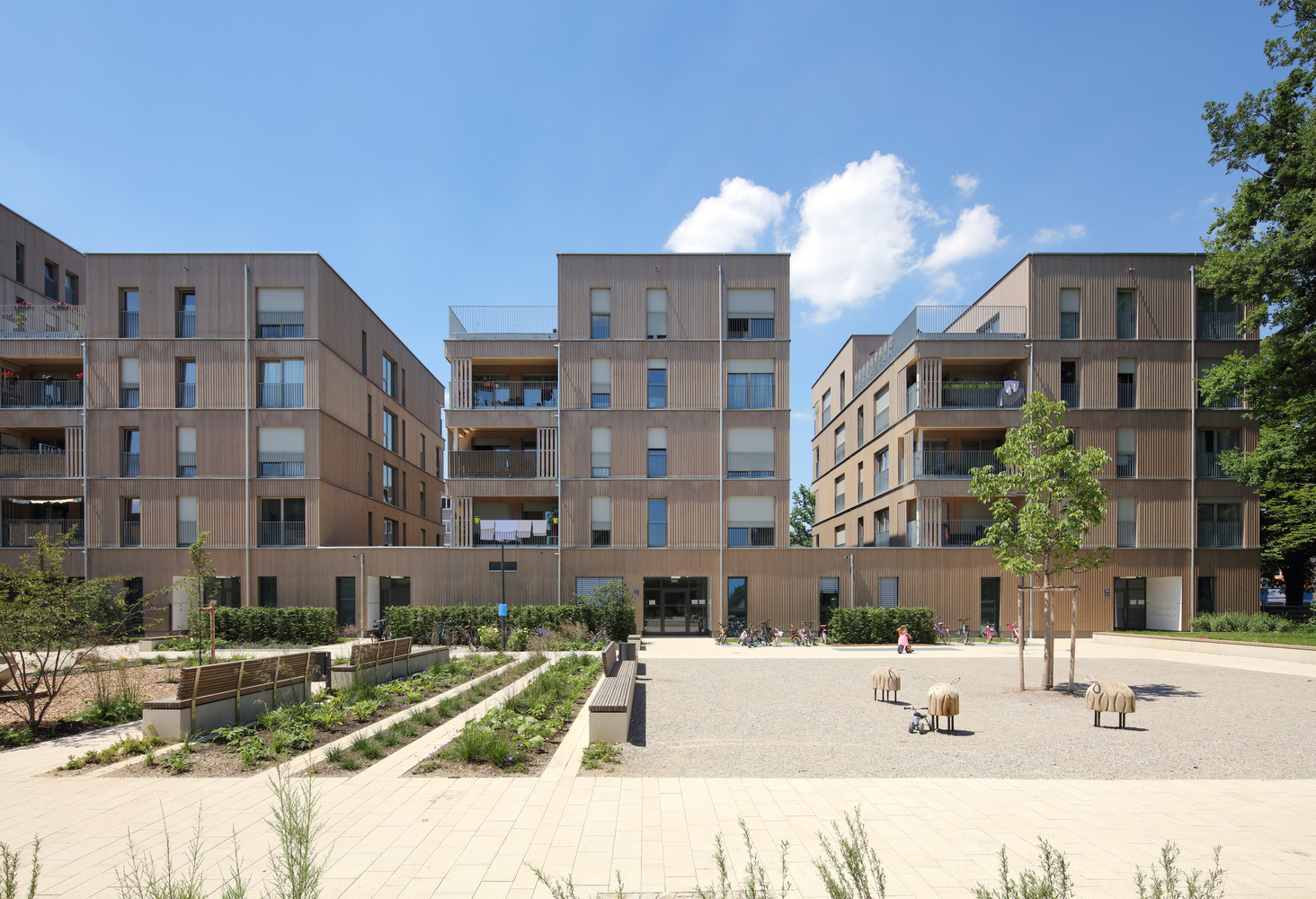

A sequence of differently usable rooms is planned for the residential courtyard: Play areas, lounge/seating areas, urban gardening, neighborhood area for playing boules, parties, etc. In front of the building entrances there are bicycle stands and benches, integrated into a decorative grass band.

The outdoor area of the kindergarten is also a series of diverse, topographically modeled play situations, around which terrace areas and a circular path for scooter/bobby car driving are positioned. To the north, a hiding place and berry garden will complement the play area.

Prinz-Eugen-Park Residential Complex
© Conné van d´Grachten
Prinz-Eugen-Park Residential Complex
© Conné van d´Grachten

The tool storage box at the southern edge of the kindergarden outdoor area forms the back of a small square, which is the prelude to the house for children and is intended to function as a link between the quarter and the public green space in the south.

CONSTRUCTION AND MATERIALS:

The basement and the ground floor up to the upper edge of the floor above the ground floor, as well as the staircases and elevator shafts up to the roof skin are constructed in reinforced concrete.

Prinz-Eugen-Park Residential Complex
© Conné van d´Grachten
Prinz-Eugen-Park Residential Complex
© Conné van d´Grachten

From the upper edge of the ceiling above the ground floor, all 4 building parts are constructed in wood-concrete-hybrid construction.

The ceilings will be erected as full-surface, void-free wood-concrete-composite ceilings with visible wooden soffit on linear wood-concrete-composite girders and the vertical support of the concrete development core.

Prinz-Eugen-Park Residential Complex
© Conné van d´Grachten
Prinz-Eugen-Park Residential Complex
© Conné van d´Grachten

The vertical loads from the wood-concrete-composite girders are transferred floor by floor via internal, visible wooden supports. The horizontal stiffening is done through a continuous concrete disk of the hybrid ceiling-slabs, which are connected to the staircase core.

Supporting interior walls are constructed from cross laminated timber encapsulated with plasterboard, a double-shell version of the cross laminated timber wall is used as an apartment partition wall. Non-load-bearing interior walls are constructed from conventional dry construction system walls.

The exterior walls consist of non-load-bearing, thermally insulated and floor-by-floor prefabricated timber frame components.

The prefabrication includes the construction, windows and sun protection, as well as the complete wooden facade cladding. The facade from the 1st floor upwards will have vertically arranged, pre-grayed and inverted board sheds, which change their inverted direction floor by floor.

Prinz-Eugen-Park Residential Complex
© Conné van d´Grachten
Prinz-Eugen-Park Residential Complex
© Conné van d´Grachten

At the floor transitions, the wooden facade is interrupted by an integrated, horizontally continuous fire protection bar. The facade on the ground floor is made of flame-retardant materials as a panel facade.

PROPORTION OF RENEWABLE RAW MATERIALS:

Renewable materials will be installed in the form of partially visible wooden components of the load-bearing construction from the 1st floor onwards, the outer wall construction, as well as the facade panelling and the interior panels on the first floor.


Prinz-Eugen-Park Residential Complex
Site plan
Prinz-Eugen-Park Residential Complex
Basement plan
Prinz-Eugen-Park Residential Complex
Basement plan
Prinz-Eugen-Park Residential Complex
Ground floor plan


Prinz-Eugen-Park Residential Complex
Standard floor plan


Prinz-Eugen-Park Residential Complex
Cross sections


Prinz-Eugen-Park Residential Complex
Longitudinal section


Prinz-Eugen-Park Residential Complex
Concept

Prinz-Eugen-Park Residential Complex
Prinz-Eugen-Park Residential Complex
Detail
