Cabanon 1005 House

CABANON 1005 HOUSE

Estudio Eyc

Cabanon 1005 House
Cortesía de estudio eyc - Marta Moreno y Ricardo Fernández
Cabanon 1005 House
Cortesía de estudio eyc - Marta Moreno y Ricardo Fernández

ARCHITECTS
Estudio Eyc

LEAD ARCHITECTS
Marta Moreno, Ricardo Fernández

MANUFACTURERS
Autodesk, Louis Poulsen, Grohe, Marset, Mediclinics, Aluminalia, Nebreda Modula,
Rzb Lighting, Robert Mcneel & Associates, Sisven

CONSTRUCTION COMPANY
Nebreda Modula

YEAR
2019

AREA
215 Ft²

LOCATION
Cádiz, Spain

CATEGORY
Installations & Structures, Small Scale, Other Structures

Cabanon 1005 House
Cortesía de estudio eyc - Marta Moreno y Ricardo Fernández

Text description provided by architect.

The Strait of Gibraltar is one of the most special places in the world.

Separates – or better said unites – Africa with Europe and the Mediterranean Sea with the Atlantic Ocean, and for a long time it was the end of the known world, where Hercules’s Columns pointed the “Non Plus Ultra” beyond which live didn’t exist, attracting with its mystery civilizations such as the Paleolithic, Phoenician, Iberian, Roman, Arab and contemporary that occupied that space.

Cabanon 1005 House
Cortesía de estudio eyc - Marta Moreno y Ricardo Fernández
Cabanon 1005 House
Cortesía de estudio eyc - Marta Moreno y Ricardo Fernández

The beach between Torre de Gracia and Cabo de la Plata is a magic place.

In it, the wind, the ties, the capes, the sun, the moon, the lighthouses, Africa, the birds, the tuna…everyday are in war and harmony.

A place where it is possible to see the sunset (and moon setting) all year long over the horizon awaiting the Green Ray or hypnotize by night with the linking of three lighthouses (Trafalgar, Espartel y Camarinal) that guide since yesteryear the ships that cross the Strait and who watch the hut tonight.

Cabanon 1005 House
Cortesía de estudio eyc - Marta Moreno y Ricardo Fernández
Cabanon 1005 House
Cortesía de estudio eyc - Marta Moreno y Ricardo Fernández
Cabanon 1005 House
Cortesía de estudio eyc - Marta Moreno y Ricardo Fernández

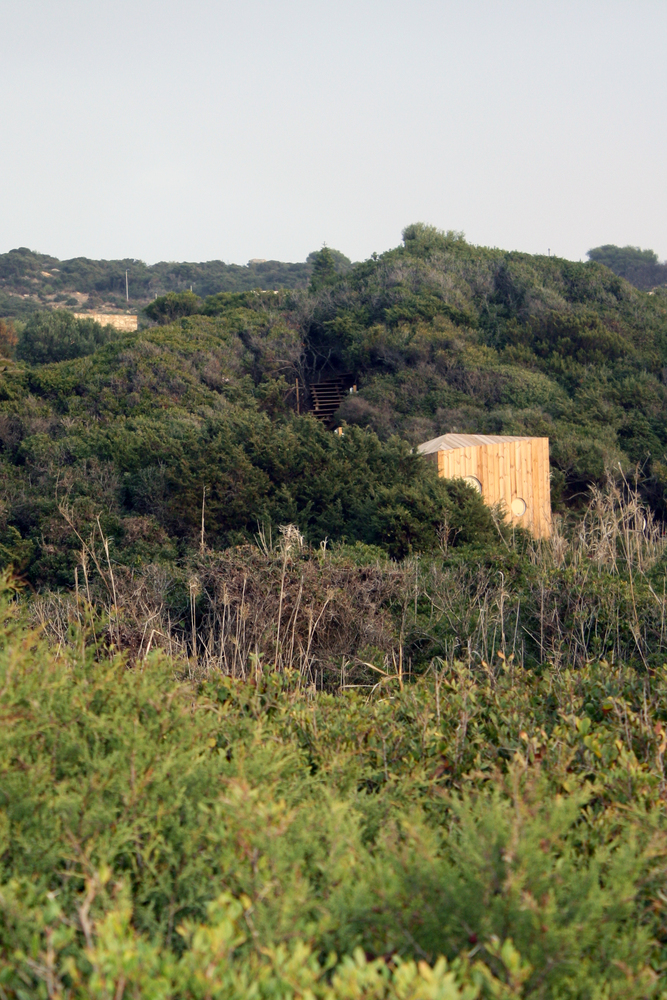

Located in an unbeatable natural setting, the hut is build with the greatest respect and care to the environment in which it is introduced.

Its dimensions and situation are strictly determined by the place and the orientation.

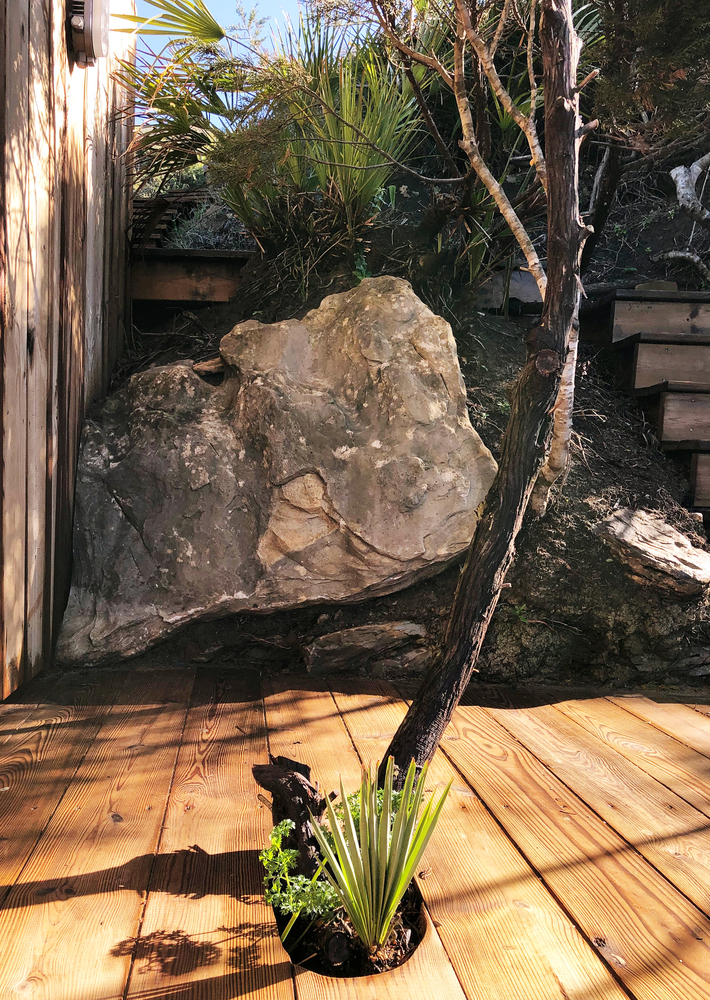

The hut rests on three stones in a 2.40 by 3.00 meters clear of juniper and small palm trees, protected species of the zone which surround the hut in its four sides.

Cabanon 1005 House
Cortesía de estudio eyc - Marta Moreno y Ricardo Fernández
Cabanon 1005 House
Cortesía de estudio eyc - Marta Moreno y Ricardo Fernández
Cabanon 1005 House
Cortesía de estudio eyc - Marta Moreno y Ricardo Fernández

Orientated to the West (265ºN) its position is essential since it is designed as a solar calendar.

Cabanon 1005 is designed as a solar calendar where the path of the san and the sunbeams inclination on the solstices and equinox make the rules for each volumetric decision that it’s made.

Therefore, the sun and the orography (which could interfere the arrival of the sun in the hut) is strictly studied for the exact situation of each of the holes and the inclination of the roof creating a play of light and shadow in the interior.

Cabanon 1005 House
Cortesía de estudio eyc - Marta Moreno y Ricardo Fernández
Cabanon 1005 House
Cortesía de estudio eyc - Marta Moreno y Ricardo Fernández
Cabanon 1005 House
Cortesía de estudio eyc - Marta Moreno y Ricardo Fernández

Wood becomes the central element of the hut for being an efficient, sustainable, recyclable, light, insulating, hard and durable material; considering it the only option to minimize the impact of the construction on its environment.

The woods are carefully chosen for structure, coverings and furniture; the construction is made in-situ in an artisanal way by local carpenters.

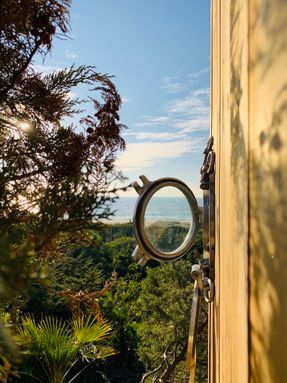

The hut is thermally insulated and has natural ventilation by aluminum portholes one of which is recycled of an antique boat.

Cabanon 1005 House
Cortesía de estudio eyc - Marta Moreno y Ricardo Fernández
Cabanon 1005 House
Cortesía de estudio eyc - Marta Moreno y Ricardo Fernández


Cabanon 1005 House
Mapping
Cabanon 1005 House
Paths Situation


Cabanon 1005 House
Corte
Cabanon 1005 House

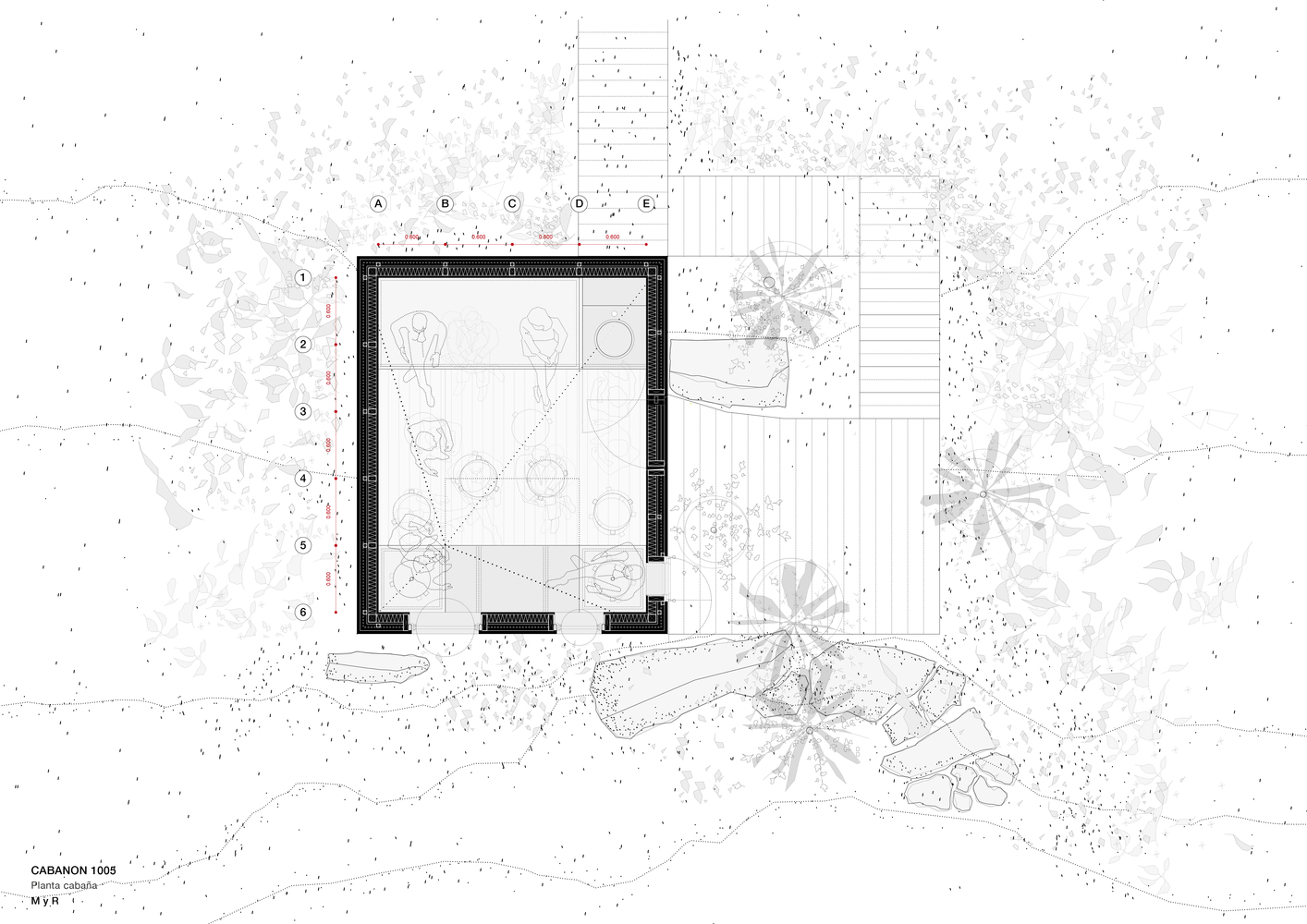

Plan


Cabanon 1005 House
Staking out Situation
Cabanon 1005 House
Architecture Concept


Cabanon 1005 House
Deployable Orography
Cabanon 1005 House

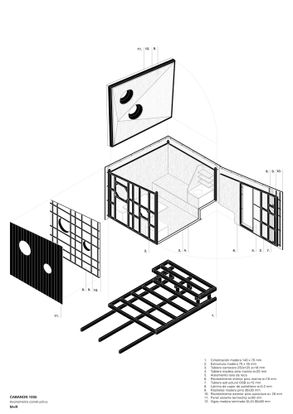

Constructive Axonometry


Cabanon 1005 House
Deployable Detail
Cabanon 1005 House
Solar calendar
