Pingshan Performing Arts Center

Pingshan Performing Arts Center
© Jonathan Leijonhufvud

Pingshan Performing Arts Center

OPEN Architecture

LIGHTING CONSULTANT
United Artists Lighting Design Consultants

PROJECT MANAGEMENT
China Merchants Property Development Co. Ltd

PRINCIPALS IN CHARGE
Hu Li, Wenjing Huang

PROJECT ARCHITECT
Qing Ye, Tingting Zhou

LOCAL DESIGN INSTITUTE
Shenzhen Aube Engineering Design Consultant Co.ltd

CURTAIN WALL CONSULTANT
Schmidlin Façade Consultancy

THEATER CONSULTANT
Jh Theatre Architecture Design Consulting Company

STAGE EQUIPMENT CONSULTAN
Zhejiang Dafeng Architecture And Decoration Co., Ltd

CLIENT
Pingshan Dist. Government, Shenzhen

STAGE EQUIPMENT CONSULTANT
Zhejiang Dafeng Architecture And Decoration Co., Ltd

DESIGN TEAM
Andrea Antonucci, Sabrina Wu, Cynthia Yurou Cui, Angela Nodari, Hangyang Zhang, Ruyi Han,
Shu Xing, Ren Luo, Xinying Sun, Chang Zhang, Han Jia, Hao Zhang

PHOTOGRAPHS
Tianpei Zeng, Jonathan Leijonhufvud

AREA
23542 m²

YEAR
2019

LOCATION
Shenzhen

CATEGORY
Performing Arts Center

In tandem with China’s economic boom and rapid urbanization, theaters have sprung up throughout the country in the past decade.

Most have extravagant exteriors, but are often spatially monotonous and far detached from the general public and everyday urban life, greatly underutilizing the tremendous public resources invested in them.

Pingshan Performing Arts Center
© Jonathan Leijonhufvud
Pingshan Performing Arts Center
© Tianpei Zeng
Pingshan Performing Arts Center
© Jonathan Leijonhufvud

After winning a competition to design the first theater in Pingshan, a new district in the municipality of Shenzhen, OPEN had the opportunity to take a critical look at the past development of theaters in China, and to explore new possibilities for the future.

At its heart is the volume of a 1,200-seat grand theater which is entirely wrapped in dark-red-toned wood panels.

Despite many examples to the contrary, we do not believe a theater building necessarily requires a “dramatic” form. “Drama Box” was intentionally designed to be cubical in form and rich in spatial experiences.

Pingshan Performing Arts Center
© Jonathan Leijonhufvud
Pingshan Performing Arts Center
© Jonathan Leijonhufvud

With tremendous support from the client, we ‘re-designed’ the original program which only called for a grand theater — performing-arts-related educational and social programs were added, as well as a restaurant and a café.

A public promenade and a series of gardens accessible to all were designed to be interwoven with the architecture. In breaking away from the mono-function Cultural Landmark typology.

Pingshan Performing Arts Center
© Tianpei Zeng
Pingshan Performing Arts Center
© Jonathan Leijonhufvud

The building not only becomes much more sustainable in daily operation, but also sets a new example of social inclusivity for civic buildings. Serving as a new cultural hub, it also provides the non-theater-going public with an exceptional and unusual urban space.

Visible both from inside the building and on the roof — the fly gallery penetrates the roof and manifested itself as the backdrop for the roof garden.

Pingshan Performing Arts Center
© Jonathan Leijonhufvud
Pingshan Performing Arts Center
© Jonathan Leijonhufvud

Flanking the grand theater is a variety of smaller functional spaces accessible both by a separate circulation system inside the building and through an outdoor meandering public promenade — so they can be conveniently used by the general public even when the grand theater is closed.

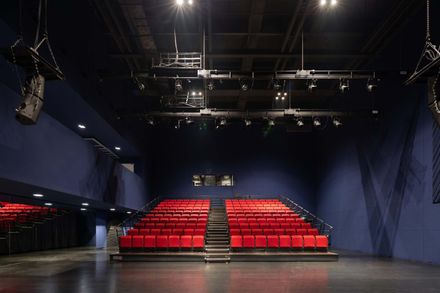

Blurring the boundary of the building and city, the promenade links together a café, a black box theater, teaching spaces, rehearsal rooms, informal outdoor theater, and outdoor gardens on different levels.

Pingshan Performing Arts Center
© Jonathan Leijonhufvud
Pingshan Performing Arts Center
© Tianpei Zeng

This interweaving of architecture and nature gradually reveals surprises and colors to visitors who stroll the promenade’s length from the ground floor plaza to the roof garden.

As a result, the performing arts center brings together a series of seemingly opposite elements: the formal and the informal, the elite and the mass, the traditional and the experimental; resulting in rich and exciting experiences both spatially and functionally.

Pingshan Performing Arts Center
© Tianpei Zeng
Pingshan Performing Arts Center
© Jonathan Leijonhufvud

Within and around this porous “drama box”, the introduction of a variety of vegetation in outdoor gardens on different levels of the building creates a comfortable environment for people. The planted roof also greatly reduces the heat load of the building.

The façade is a direct response to the local climate, with the outer skin made of precision-engineered perforated aluminum V sections, both protecting the building from sub-tropical sun exposure and enhances natural ventilation.

Pingshan Performing Arts Center
© Tianpei Zeng
Pingshan Performing Arts Center
© Tianpei Zeng

Lots of efforts put into the design to help this performing arts center break away from the conventional notion of theater as high energy consuming building typology.


Pingshan Performing Arts Center
© Tianpei Zeng
Pingshan Performing Arts Center
© Tianpei Zeng
Pingshan Performing Arts Center
© Jonathan Leijonhufvud
Pingshan Performing Arts Center
© Tianpei Zeng
Pingshan Performing Arts Center
© Tianpei Zeng
Pingshan Performing Arts Center
© Jonathan Leijonhufvud
Pingshan Performing Arts Center
© Tianpei Zeng
Pingshan Performing Arts Center
© Jonathan Leijonhufvud


Pingshan Performing Arts Center
© Jonathan Leijonhufvud
Pingshan Performing Arts Center
© Jonathan Leijonhufvud
Pingshan Performing Arts Center
© Jonathan Leijonhufvud
Pingshan Performing Arts Center
© Jonathan Leijonhufvud
Pingshan Performing Arts Center
© Jonathan Leijonhufvud
Pingshan Performing Arts Center
© Jonathan Leijonhufvud


Pingshan Performing Arts Center
2F plan
Pingshan Performing Arts Center
3F plan
Pingshan Performing Arts Center
5F plan


Pingshan Performing Arts Center
axonometric
Pingshan Performing Arts Center
section


Pingshan Performing Arts Center
unfolded section
Pingshan Performing Arts Center
drama box diagram

Pingshan Performing Arts Center

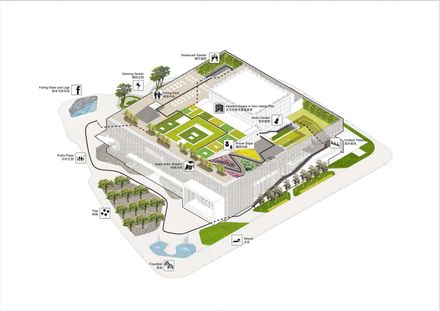

circulation diagram
Pingshan Performing Arts Center
site plan
