BP TOWER

Cadaval & Solà-morales

LEAD ARCHITECTS
Eduardo Cadaval & Clara Solà-morales

STRUCTURAL ENGINEERING
Alonso Y Asociados

CLIENT
Marhnos Habitat

COLLABORATORS
Eduardo Alegre, Alberto García Garrido, Tereza Díaz, Lara Alcaina Pozo, Othmane Laraki, Angie Oteiza, Berta Marti, Adria Matarranz. Gala Nuñez, Joan Gallego, Miguel Angel Carrasco, Helena Sanjuan, Hugo Martínez

PHOTOGRAPHS
Sandra Pereznieto, Paul Citron

AREA
10500 M²

YEAR
2019

LOCATION
Mexico City, Mexico

CATEGORY
Apartments

Text description provided by architect.

The towers and the patio The Building is located in Polanco, one of the centers of greatest urban intensity in Mexico City.

Bp Tower
© Sandra Pereznieto
Bp Tower
© Sandra Pereznieto

It consists of 3 independent towers that are articulated to generate a central patio that allows the construction of a community space that constitutes the identity of the complex and is qualified by its friendly proportions for the scale of the building.

The patio allows all units to have a double orientation, and therefore the ensures cross ventilation of the apartments, and with it, the possibility of thermal control with passive systems.

Bp Tower
© Sandra Pereznieto
Bp Tower
© Sandra Pereznieto

The building was born from the desire to be a project open to the city. Generating the maximum number of linear meters of façade, and trying to ensure that they have the best possible orientation to guarantee the best possible thermal and light contribution to each and every one of the departments.

At the same time, the will to define an efficient and economic construction system, based on the definition of dimensions that avoid large gaps and therefore structural cost overruns.

Bp Tower
© Sandra Pereznieto
Bp Tower
© Sandra Pereznieto

Each of the 10 plants of the project has 4 departments; Along with two apartments that enjoy a private patio on the ground floor, the project has a total of 40 units.

The apartments are distributed around the central patio, totally consolidating its north facade, and opening to the south.

Bp Tower
© Sandra Pereznieto
Bp Tower
© Sandra Pereznieto

The location of two vertical cores, as efficient in their operation as possible, act as a hinge between the departments.

APARTMENTS

The design of the apartments seeks the construction of the quality of each of the spaces of that integrates them based on their spatial, light and view qualities and not on the finishes.

Thus, the apartments are designed to make the public spaces of the home as transparent and open as possible. The distribution of the departments is designed to concentrate the downspouts and ventilation at specific points, in order to grant maximum flexibility to future alterations to the distribution.

Bp Tower
© Sandra Pereznieto
Bp Tower
© Sandra Pereznieto
Bp Tower
© Sandra Pereznieto

Finally, the project seeks to maximise the distribution of the units, and uses the more public spaces in the apartments as distributors, thus avoiding the existence of corridors.

ROOF GARDEN AND COLLECTIVE AREAS

The roof has a big pergola that unifies the experience of the terrace and shade the area.

Different areas are proposed, characterized by small provisions for the whole. Thus there is an area for barbecue grills and an area with tables. The vegetation foreseen on the roof aims to add quality and comfort to the terrace. The patio is a catalyst of light, heat and views for all the apartments, but it is also the heart of the project: what will build the identity of the place.

Bp Tower
© Sandra Pereznieto
Bp Tower
© Sandra Pereznieto
Bp Tower
© Sandra Pereznieto

This central zone has an extension of vegetation and trees; Being a private and interior area, isolated from the street, it can be a rest and play area for children, as well as a small lung for the whole complex.

The gymnasium and a small rest or reception area open onto this central space, Which is projected as an area of vegetation and color that also serves as a connection to the access area of the building.


Bp Tower
© Sandra Pereznieto
Bp Tower
© Sandra Pereznieto
Bp Tower
© Sandra Pereznieto


Bp Tower
Diagram
Bp Tower
Diagram


Bp Tower
Ground floor plan
Bp Tower

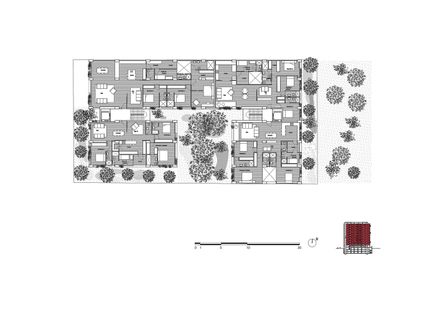

Type floor plan
Bp Tower
Terrace floor plan
Bp Tower
Roof floor plan


Bp Tower
Basement floor plan
Bp Tower
Basement floor plan
Bp Tower
Basement floor plan
Bp Tower
Site plan


Bp Tower
Street elevation
Bp Tower
South elevation
Bp Tower

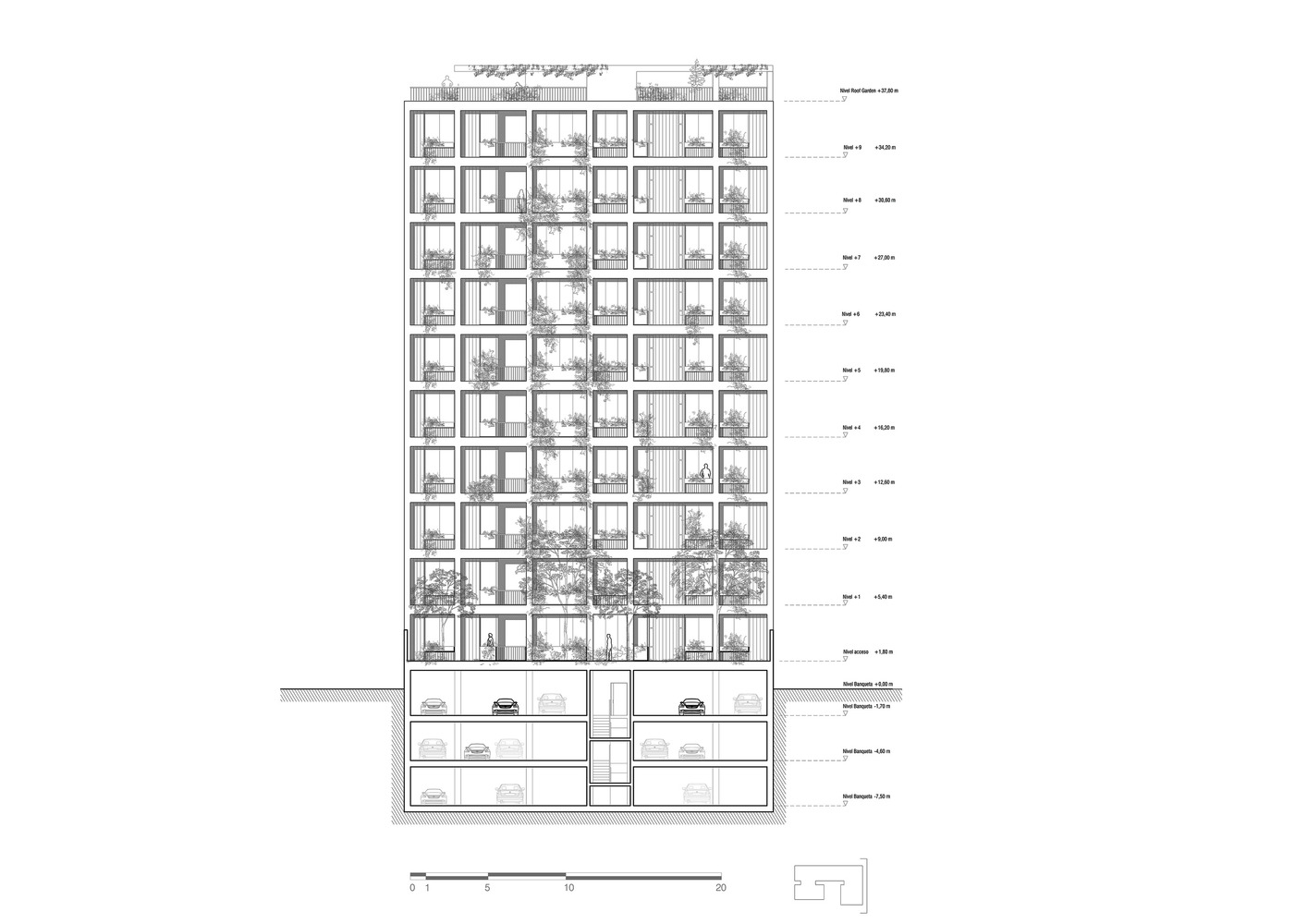

Back elevation
Bp Tower

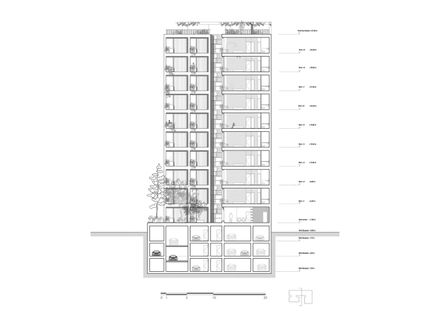

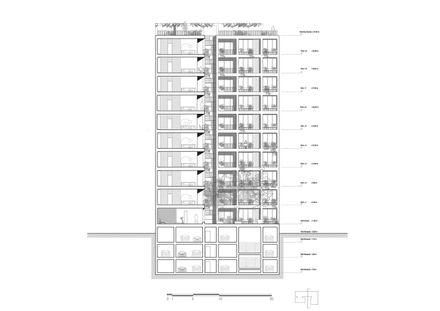

Patio section
Bp Tower
Patio section
Bp Tower
Central section


Bp Tower

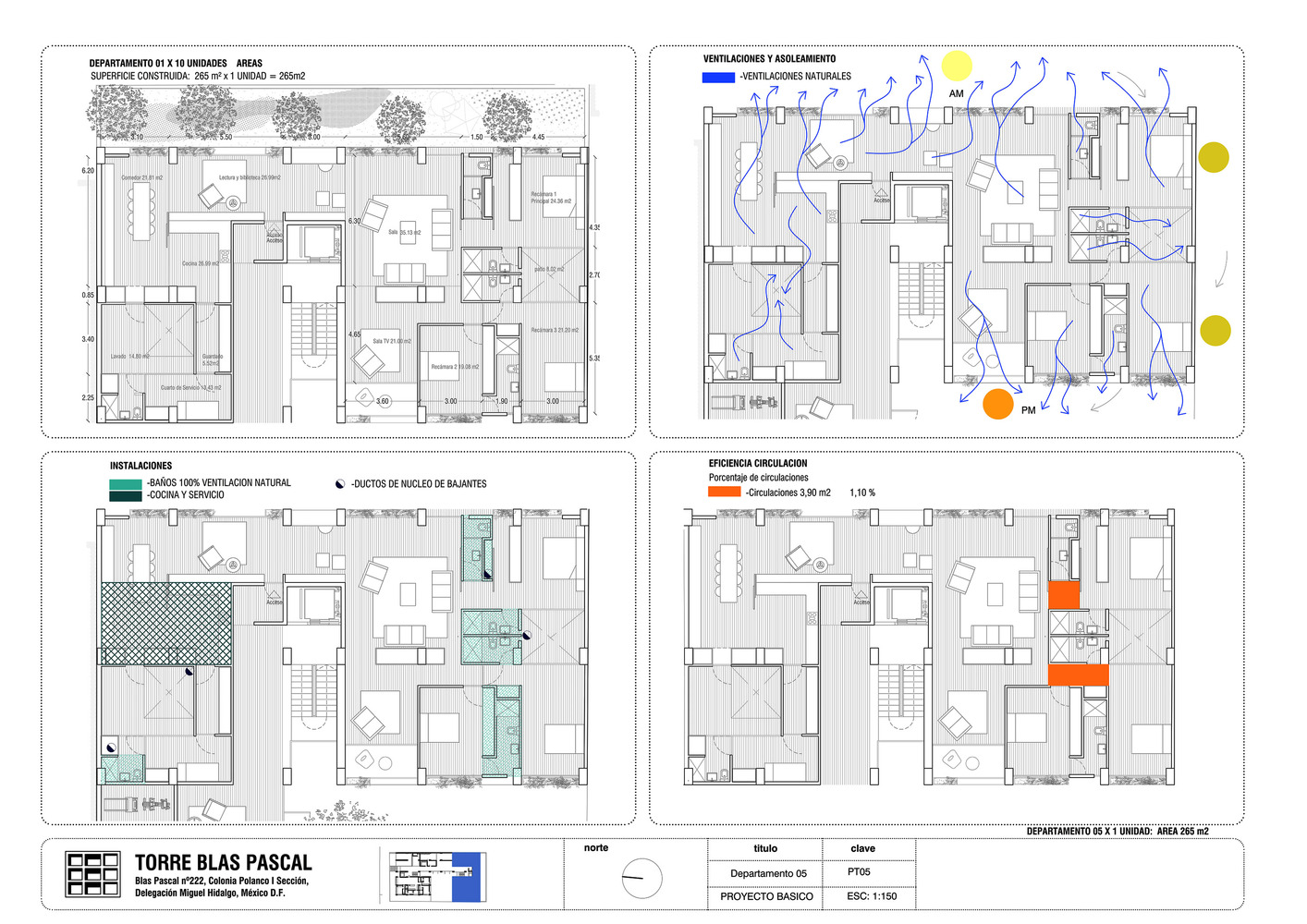

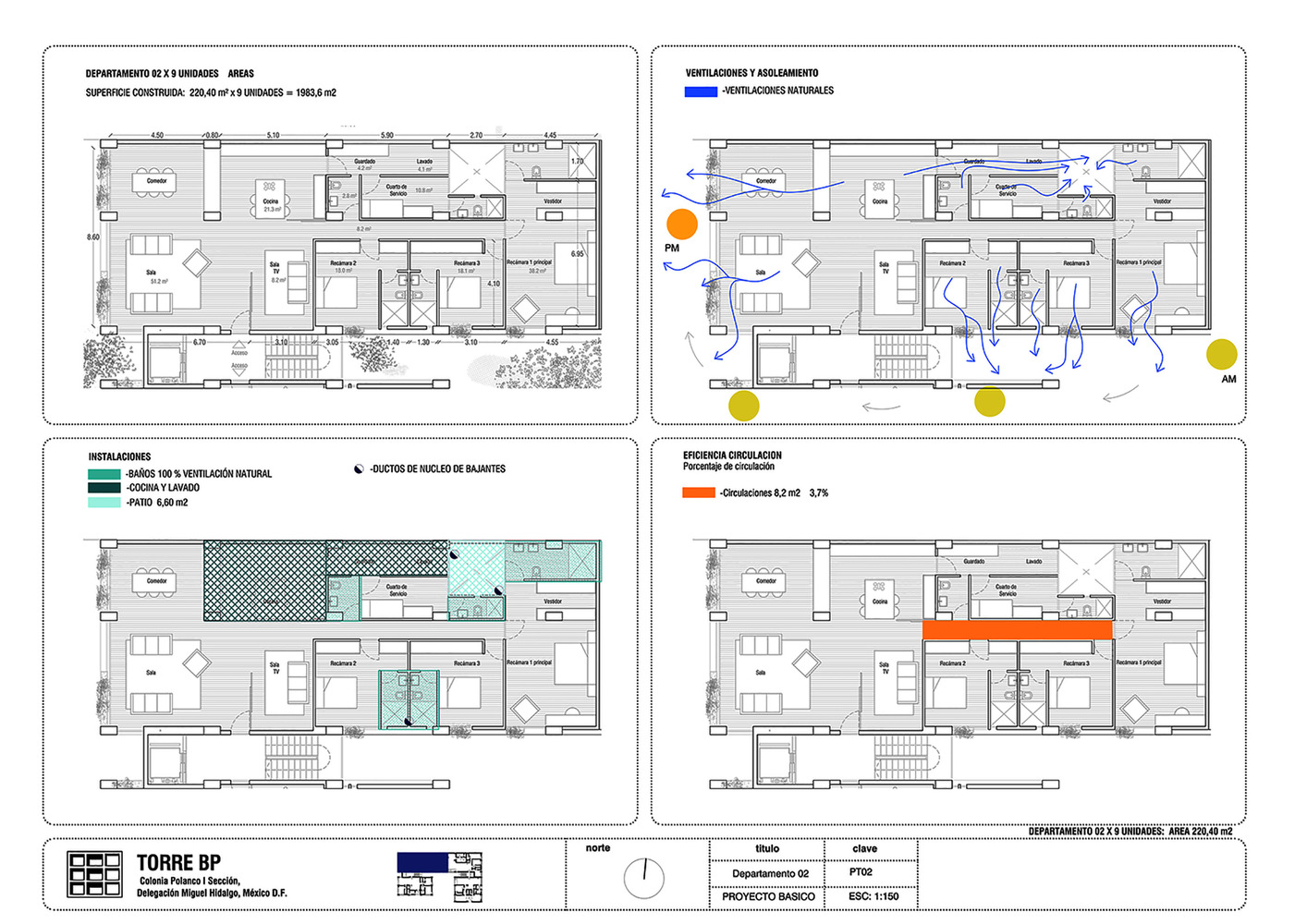

Apartment
Bp Tower
Apartment
Bp Tower
Apartment
Bp Tower
Apartment
Bp Tower
Apartment
Bp Tower

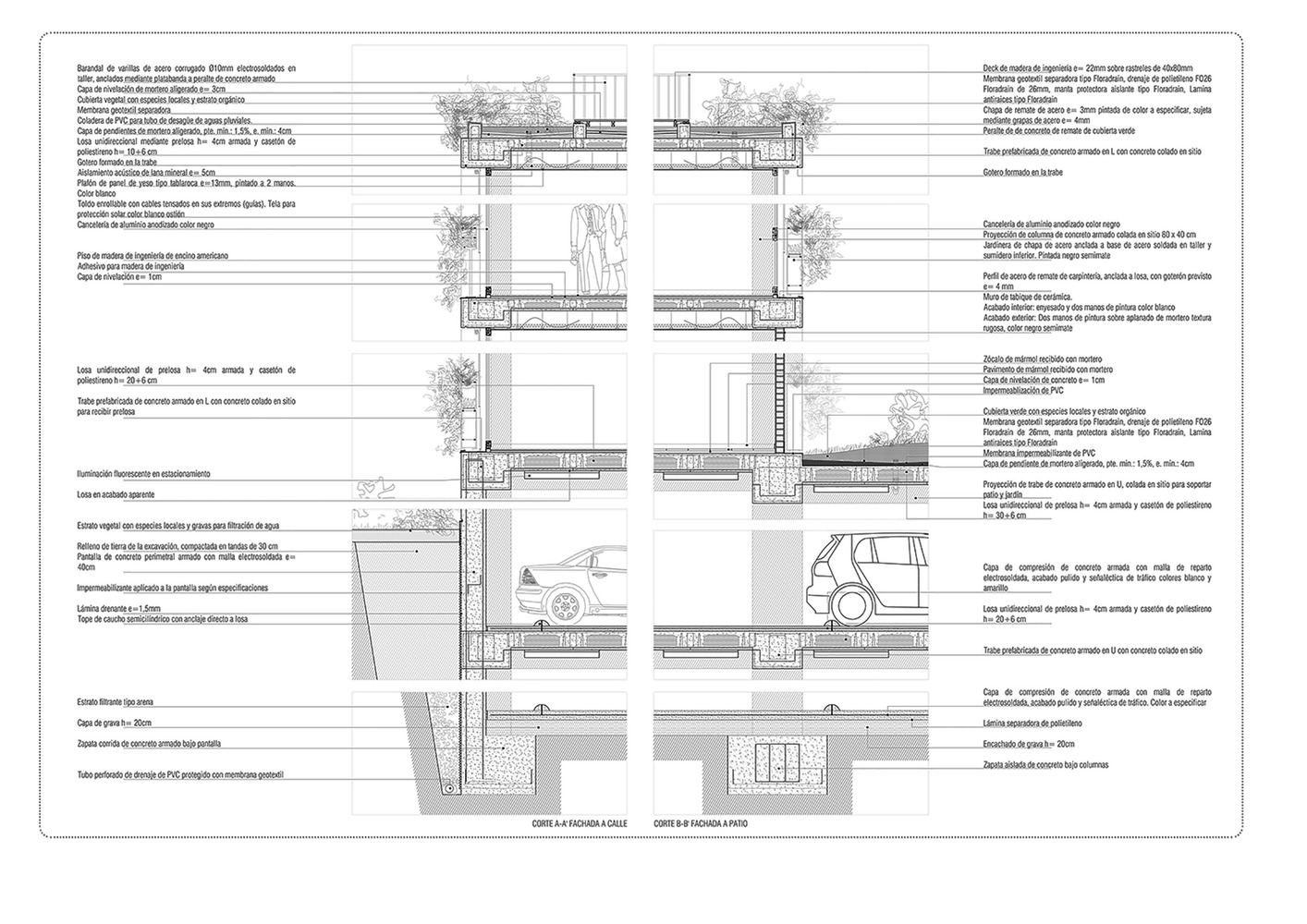

Constructive section
