Text description provided by architect.

The project is located on the west side of the main axis of Xi Li University Town in Nanshan, Shenzhen. It is located in the Nanshan High-tech Development Zone and is the starting point of the new scientific research experimental area on campus.

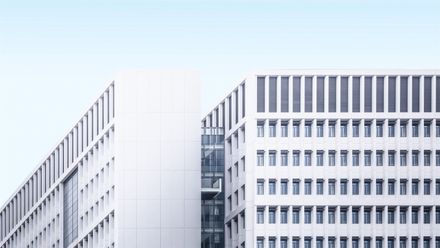

Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao

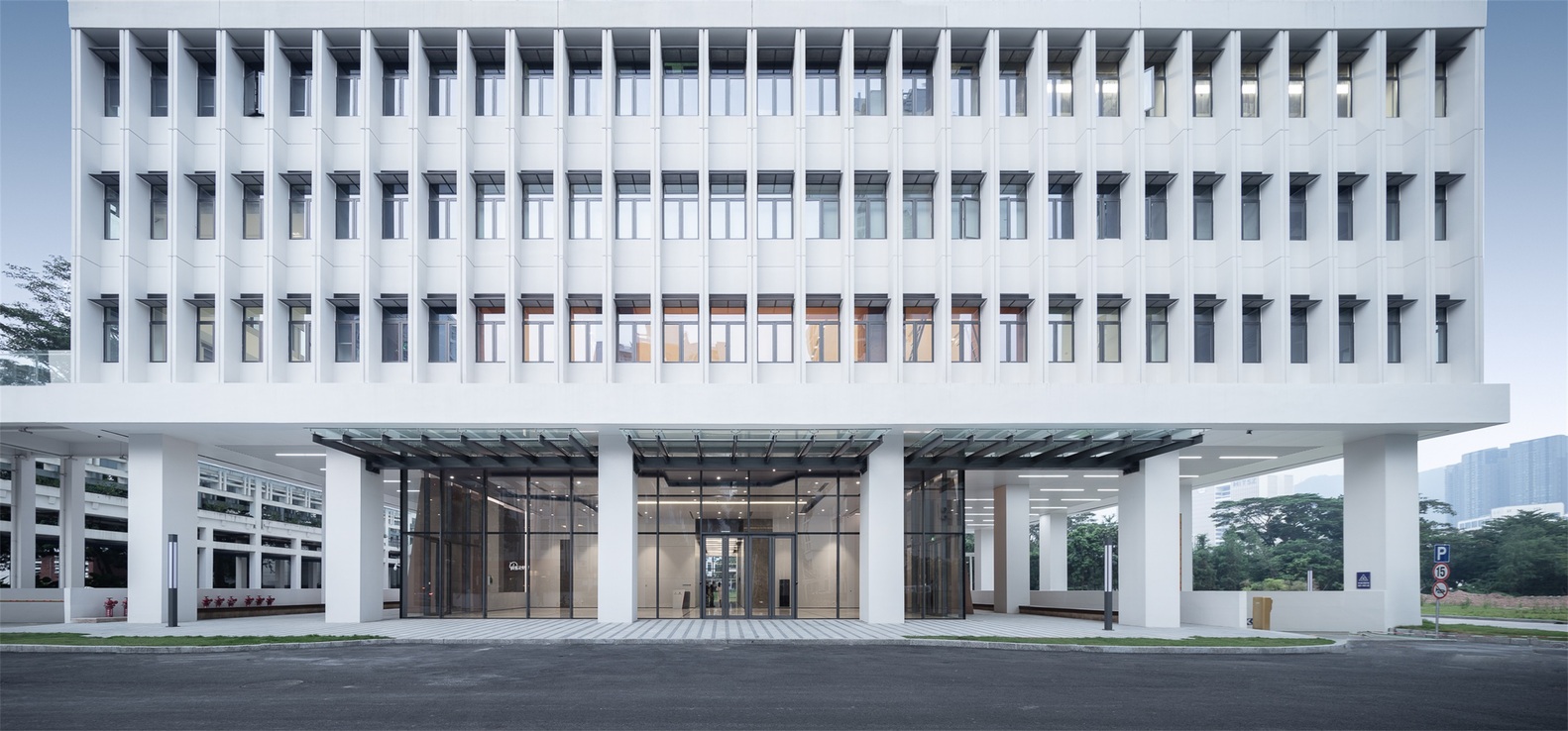

Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao

The architecture integrates the functions of education, research, industry-university-research integration, and international exchanges.

It is a model of the perfect combination and application of two emerging technologies of BIM and assembly.

Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao
Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao

It is committed to creating a third-generation laboratory building that is open and active, and encourages subject exchange and sharing.

Under the guidance of product research, the building is divided into two major functional forms: office and experiment, which neither breaks the existing spatial scale, but also reasonably divides the plane functions.

The tower is further divided into high and low areas, the low area is adjacent to the pleasant lakeside landscape, and the high area rotates 90° to face the landscape to the south to obtain a broad view.

Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao
Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao

The two retreat designs in the southeast and northwest corners weaken the sense of oppression brought by high-rise buildings and make the buildings better integrate into the campus.

In the space setting, a simple, orderly, open and diverse design system has always been run through.

Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao
Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao
Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao

The design introduces the central shared space system, which runs through all scientific research spaces, and each three-story unit is given different themes to form the most dynamic social place.

In addition, in the concise form, the facade elements are cleverly extracted from the red brick and white walls of Tsinghua University over the past century, and are adapted to the southern climate. The iconic architectural language has become the memory of students.

Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao
Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao

In order to meet the changeable characteristics of scientific research work and realize the high flexibility of the building, the design has been combined with construction effects from the planning stage, and the modular design system and new assembly technology have been introduced.

Zero standard floor, 54 prefabricated component connection points, component design drawings are 5 times the conventional project, countless model previews, material selection, and construction site communication.

Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao
Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao

Perseverance in every detail is dedicated to reshaping the beauty of order. With the help of BIM forward design, the building realizes the integrated innovative design of structural system, electromechanical system and building.

It creates adaptability for scientific research space to the greatest extent, and finally realizes high-quality construction, the perfect meeting of function and beauty.

Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao
Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao

The achievement of Shenzhen's first application of PC technology This is also the first high-rise educational building to achieve full life cycle BIM design and application.


Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao
Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao
Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao
Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao
Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao
Shenzhen Tsinghua University Graduate School Innovation Center
© Feng Shao


Shenzhen Tsinghua University Graduate School Innovation Center
East elevation
Shenzhen Tsinghua University Graduate School Innovation Center
West elevation
Shenzhen Tsinghua University Graduate School Innovation Center
South elevation
Shenzhen Tsinghua University Graduate School Innovation Center
North elevation


Shenzhen Tsinghua University Graduate School Innovation Center
Second floor plan
Shenzhen Tsinghua University Graduate School Innovation Center

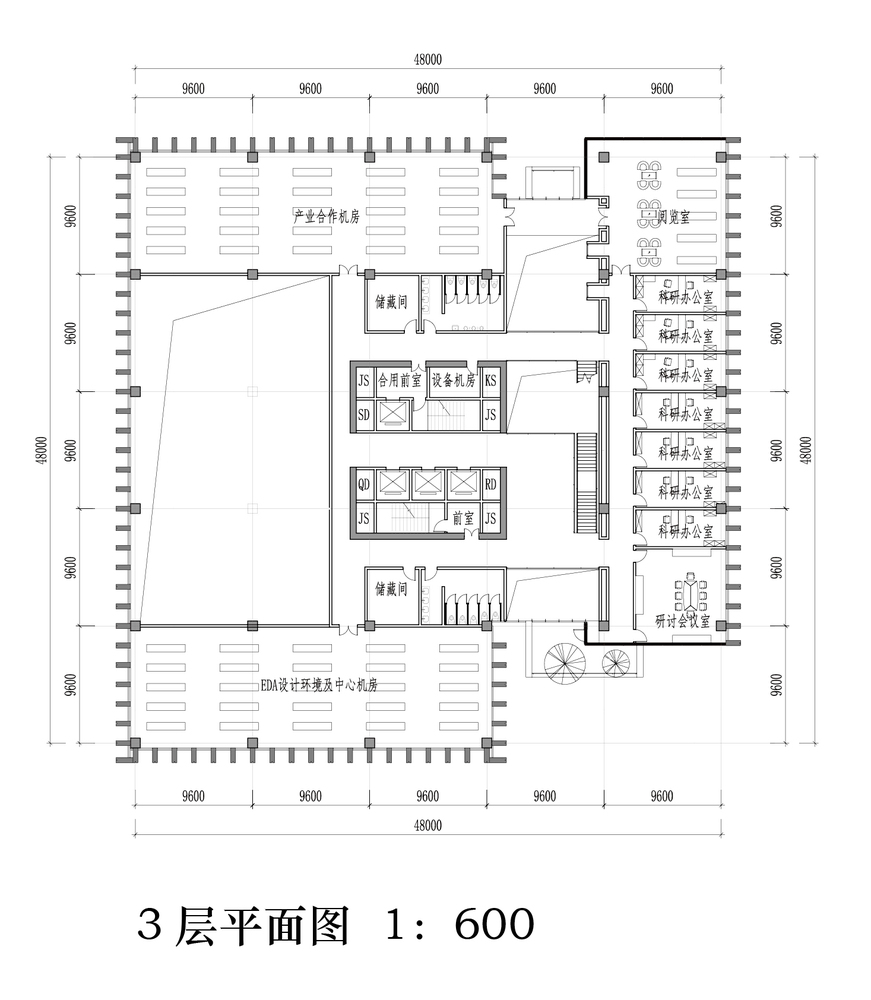

Third floor plan
Shenzhen Tsinghua University Graduate School Innovation Center
Fourth floor plan


Shenzhen Tsinghua University Graduate School Innovation Center
Modular constructive detail
Shenzhen Tsinghua University Graduate School Innovation Center
Design concept
Shenzhen Tsinghua University Graduate School Innovation Center
Site plan


Shenzhen Tsinghua University Graduate School Innovation Center

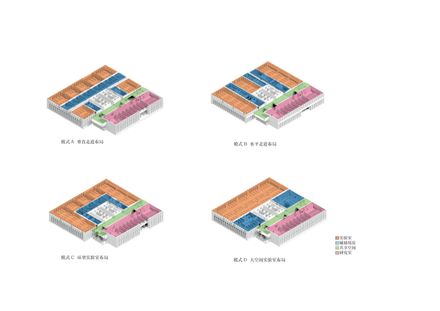

Diagram
