Meditation Space Quincho Moholy

Meditation Space Quincho Moholy
© Sebastián Aguilar
Meditation Space Quincho Moholy
© Sebastián Aguilar

Meditation Space Quincho Moholy

José Peña

ARCHITECTS
José Peña

COLLABORATORS
Diego Navarrete, Marcos Aravena

CLIENTS
Helen Martin

ENGINEERING
German Spoerer

LEAD ARCHITECTS
José Peña

MANUFACTURERS
GRAPHISOFT, Autodesk Media and Entertainment, CHC, Cbb ReadyMix, MK

BUILDER
Ciclo Construcción

PHOTOGRAPHS
Sebastián Aguilar

AREA
42 m²

YEAR
2019

LOCATION
Pucon, Chile

CATEGORY
Houses, Other Structures

Text description provided by architect.

The project is located in the foothill of the Villarica Volcano, close to Pucón, in the Araucanía Region of Chile.

Meditation Space Quincho Moholy
© Sebastián Aguilar
Meditation Space Quincho Moholy
© Sebastián Aguilar

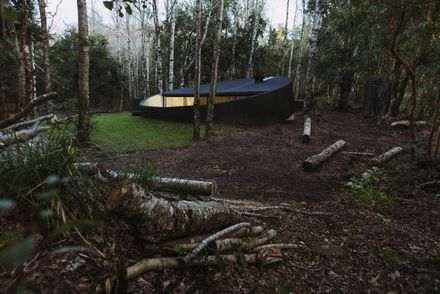

The site has half a hectare and it is almost entirely covered with young oaks and some volcanic rocks that emerge due to volcanic activity.

Besides the existing house, there is an empty space: a forest glade in which the project -a new barbecue area for the owners- was chosen to be placed.

Meditation Space Quincho Moholy
© Sebastián Aguilar
Meditation Space Quincho Moholy
© Sebastián Aguilar

The client's requirement was to develop a nature-connected simple-lines reflection space for meditation.

In the search of these sensations, a suprematist-art language was reached, inspired by the artist Moholy Nagy.

Meditation Space Quincho Moholy
© Sebastián Aguilar
Meditation Space Quincho Moholy
© Sebastián Aguilar

Through these connections and exploración of proportions exploration, we created our own painting that highlight different spatial intentions, in which the shapes don't deny the fullness that surround them, but are part of them, with only a couple of subtle lines that grant the function of inhabiting.

The gestures are divided in five parts. First, looking upwards reveals the forest glade. Second, trace a wall that limits the view to the vehicular road also dividing the interior space in two: the pool area and the barbecue area.

Meditation Space Quincho Moholy
© Sebastián Aguilar
Meditation Space Quincho Moholy
© Sebastián Aguilar

Third, a wall is placed blocking the view to the adjoining terrain and divides the public and private areas: the barbecue with kitchen and bathroom.

Fourth, the cylinder is then tilted, creating the main access and making the rain water pour into the warm-water pool.

Meditation Space Quincho Moholy
© Sebastián Aguilar
Meditation Space Quincho Moholy
© Sebastián Aguilar

Fifth, the terrains existing rocks are placed surrounding the project, in an area that yuxtaposes with the cylinder in a modulated order.

This space with rocks grants an extension in case of hosting events with a large number of guests. The structure is an element that starts as a wall that elevates to work as a 1.6-meters- high beam, supported only in it's keystone, and when it reaches the floor, it's resistant foundation transforms into the pool's base.

Meditation Space Quincho Moholy
© Sebastián Aguilar
Meditation Space Quincho Moholy
© Sebastián Aguilar

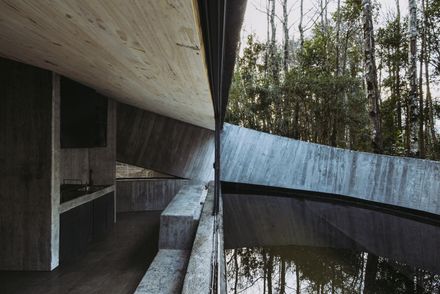

The walls provide support and at the same time mutate into interior-use furniture.

The result is a project that, when entering, the exterior road and adjoining site lines disappear, highlighting its semi-circular pool, where the nearby trees are reflected in its interior ,thus generating a real continuity that does not turn its surroundings, but makes them part of itself, and in consequence it immerse into nature.

Meditation Space Quincho Moholy
© Sebastián Aguilar


Meditation Space Quincho Moholy
Roof plan
Meditation Space Quincho Moholy
Plan


Meditation Space Quincho Moholy
East elevation
Meditation Space Quincho Moholy

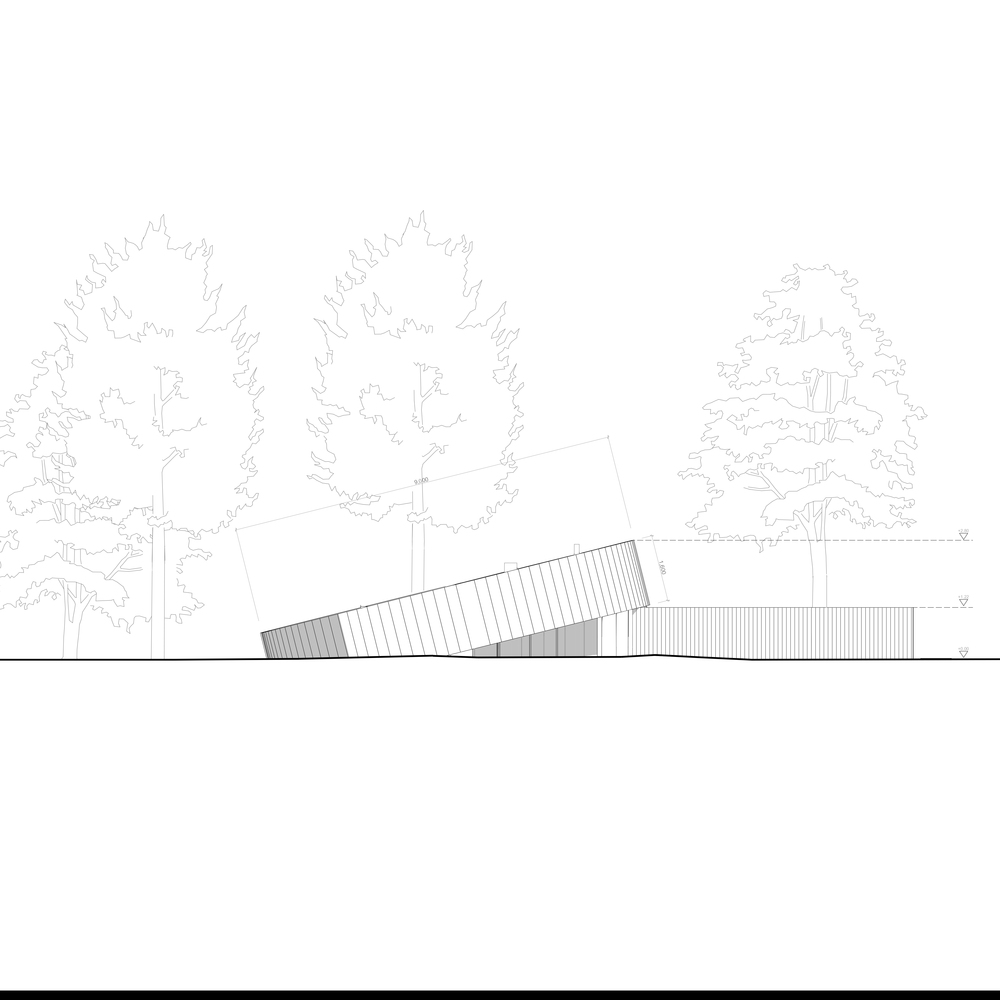

West elevation
Meditation Space Quincho Moholy
South elevation
Meditation Space Quincho Moholy
North elevation


Meditation Space Quincho Moholy
Section A
Meditation Space Quincho Moholy
Section B
Meditation Space Quincho Moholy
Section C
Meditation Space Quincho Moholy
GIF - Axonometric section


Meditation Space Quincho Moholy
Scantling
Meditation Space Quincho Moholy
Bathroom detail


Meditation Space Quincho Moholy
Axonometric section 01.b
Meditation Space Quincho Moholy
Axonometric section 02.b
Meditation Space Quincho Moholy
Axonometric 01
Meditation Space Quincho Moholy
Axonometric 02


Meditation Space Quincho Moholy
2 Step- wall 1
Meditation Space Quincho Moholy
3 Step - wall 2
Meditation Space Quincho Moholy
4 Step - Privacy
Meditation Space Quincho Moholy
5 Step - tilt
Meditation Space Quincho Moholy
6 Step - water
Meditation Space Quincho Moholy
6 Step- sun
Meditation Space Quincho Moholy
7 Step - rocks
Meditation Space Quincho Moholy
8 Step
Meditation Space Quincho Moholy
GIF 1m 5seg


Meditation Space Quincho Moholy
Painting intention quincho-by Ignacio Peña
Meditation Space Quincho Moholy
Axonometric color
