Text description provided by architect.

Situated in a green avenue of KC Layout, Mysore. The house is set in the NW quadrant of a 8000sqft site, leaving a considerable Lung Space for fruit trees, vegetable garden and landscape.

Cuboid Fractal
© Somsundar
Cuboid Fractal
© Somsundar

Entrance of the house is through a generous verandah, a series of louvered teak wood doors open into an Internal Courtyard around which a succession of spaces are arranged.

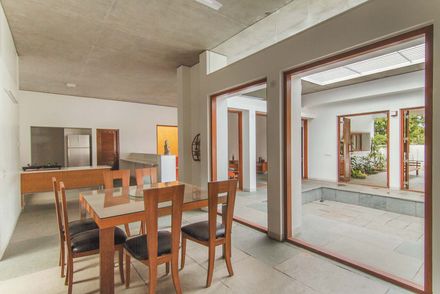

The Living, Kitchen and Dining flow into each other by the virtue of an open plan. The private spaces namely the two bedrooms are set in the corners.

Cuboid Fractal
© Somsundar
Cuboid Fractal
© Somsundar

The Living and dining are flanked by more courtyard spaces on their other side.

These courtyard with pergolas, bring in different light and shadow into these spaces and offer an introvert response to this urban house.

Cuboid Fractal
© Somsundar
Cuboid Fractal
© Somsundar

In contrast the verandah lends the extrovert experience to the residents

The Structure with its expansive cantilever in form finish concrete forms the unique simple expression of the residence.

Cuboid Fractal
© Somsundar
Cuboid Fractal
© Somsundar

Other materials used are grey Kota stone floor, Oxide finish walls, broken china tile work.


Cuboid Fractal
Elevation
Cuboid Fractal

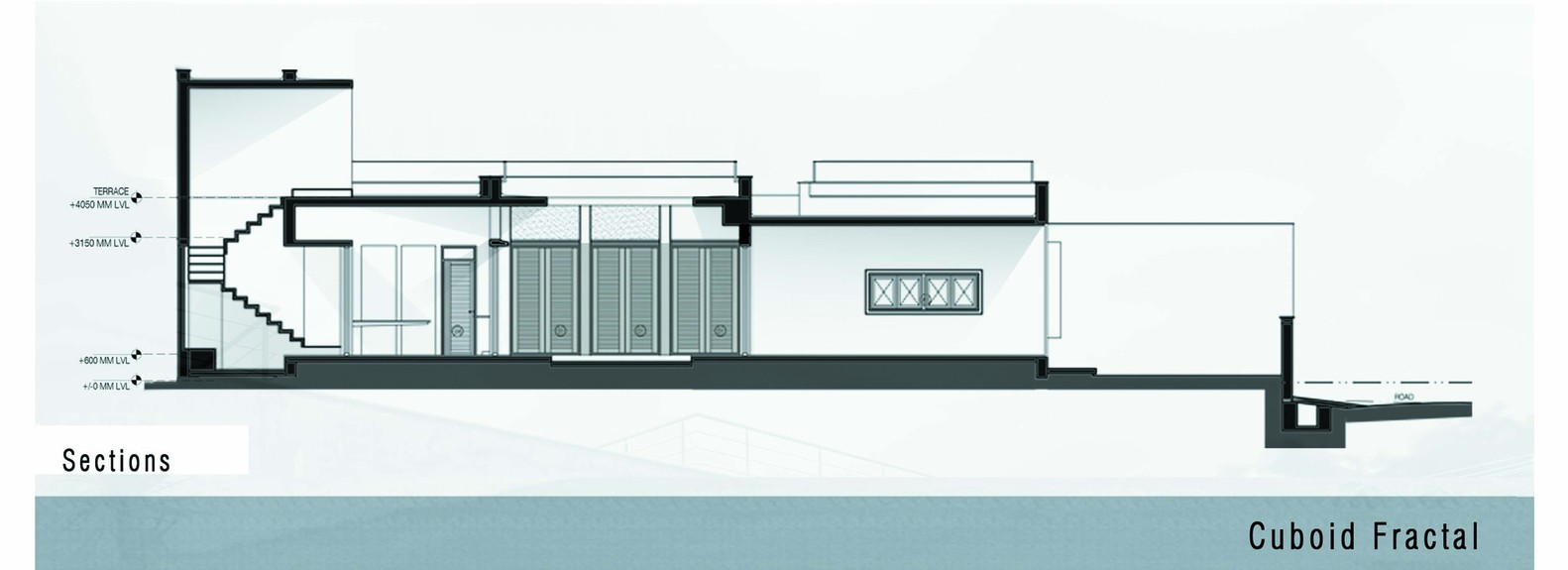

Section


Cuboid Fractal
Floor Plan
