Bates Masi + Architects LLC

Pierson’s Way

PIERSON’S WAY

Bates Masi Architects

Pierson’s Way
© Michael Moran

PHOTOGRAPHS
Michael Moran

AREA
688 M²

MANUFACTURERS
B-k Lighting, Benjamin Moore, Boffi, Delta Light, Elp, Edge, Insinkerator, Kallista, Kohler,
Miele, Rab Lighting, Rajack, Rocky Mountain Hardware, Stone Source, Subzero/wolf, Techlighting, Toto,
Walker Zanger, Waterworks, Westhampton Glass & Metal.

YEAR
2013

LOCATION
East Hampton, United States

CATAGORY
Houses

Pierson’s Way
© Michael Moran

Text description provided by architect.

Located within a private oceanfront community established in the 19th century, this residence is for a young couple looking for a home that would accommodate their growing family and reflect their modern lifestyle.

Due to its history, most houses in the neighborhood are more conservative in design and scale than surrounding contemporary oceanfront communities. As a result, the clients desired a modern home that would fit within it’s historic context while embracing the modest scale of the property.

Pierson’s Way
© Michael Moran
Pierson’s Way
© Michael Moran

The design meets these goals by referencing the nearby agrarian vernacular buildings, specifically gabled potato barns embedded in the ground.

A unique structural system was employed to create a false ground plane that slopes up from grade to the second floor, masking the scale of the house when viewed from the street.

Pierson’s Way
© Michael Moran
Pierson’s Way
© Michael Moran

The structure consists of 7” thick glue-laminated wood beams supported by steel girders and columns. This structure eliminates the necessity of traditional wood framing and structural elements and was left exposed as the finished ceiling surface throughout the ground level spaces.

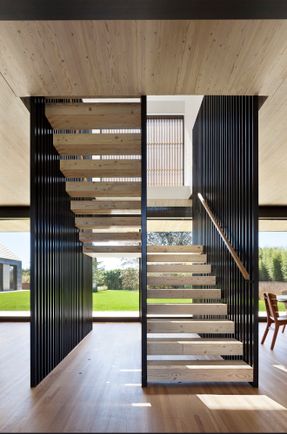

The unique structure allows for a number of design opportunities: the material transitions seamlessly from inside to outside as a 12’ by 90’ long cantilever, stairs treads are cut from the same material to express its thickness, and cylindrical recesses are carved out of the wood ceiling to transform surface mounted fixtures into unique lighting elements.

Pierson’s Way
© Michael Moran
Pierson’s Way
© Michael Moran
Pierson’s Way
© Michael Moran

This method of carving continues throughout the design as casework and custom furniture. Most notably, the Family Room sofa is fabricated out of the massive glue-laminated wood beams and carved out to create side tables and drink rails.

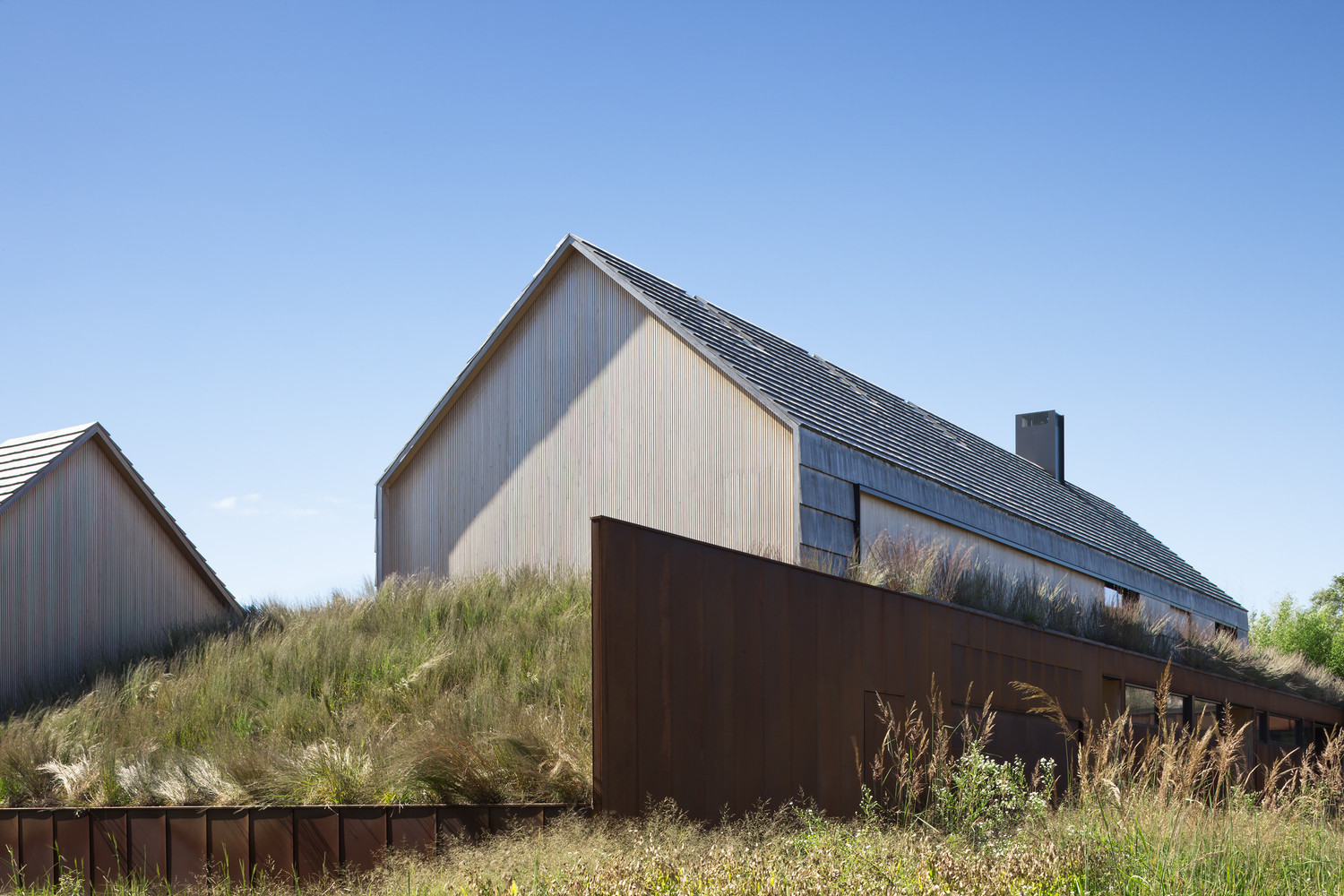

While the first floor is dedicated to guests and entertaining, the second floor is reserved for the family. The elevated ground plane that surrounds the family bedrooms is planted with native grasses.

Within the plantings, intimate outdoor spaces are carved for small gatherings, including a fire pit and spa with views of the ocean.

Pierson’s Way
© Michael Moran
Pierson’s Way
© Michael Moran
Pierson’s Way
© Michael Moran

Sloping portions of the elevated ground plane include paths to connect the family areas with the more public entertaining areas on grade.

Materials traditionally used on agricultural buildings are selected for their low maintenance, durability, and ability to gracefully weather over time. Cedar and weathering steel are executed in nontraditional ways. Alaskan yellow shakes monolithically clad the roof and sidewalls.

The shake coursing exposure is four times larger than the typical coursing to reduce the apparent scale of the house. The weathering steel references the corrugated steel often used on barn roofs.

Pierson’s Way
© Michael Moran
Pierson’s Way
© Michael Moran

Weathering steel self seals to create a durable, low maintenance cladding. The warm, earthy tones of these materials blend with the weathered landscape that surrounds it.

Surrounding contemporary oceanfront communities are becoming known for their overdevelopment and disconnect from their surrounding environment.

Pierson’s Way
© Michael Moran
Pierson’s Way
Floor Plan

By referencing the local vernacular and elevating the ground plane, this large house is rooted within the landscape and becomes a cohesive addition to the neighborhood.
