Sports Center of Jinhua City

Sports Center of Jinhua City
Main stadium. Image © Zhang Yong

Sports Center of Jinhua City

The Architectural Design and Research Institute of Zhejiang University

PHOTOGRAPHS
Zhang Yong

AREA
98183 M²

YEAR
2013

LOCATION
Jinhua, China

CATEGORY
Stadiums

Text description provided by architect.

Jinhua City Sports Center is located in the southern second ring road to the north facing the city gate, in the north lies the beautiful scenery of the Lake Water Park, the water floats from southeast, which is virtually the main vein through the city, to form a clear and vivid space axis.

Sports Center of Jinhua City
Aerial view. Image © Zhang Yong
Sports Center of Jinhua City
Aerial view. Image © Zhang Yong

Combined with the project of "sports building" features, the design refined "jump" as the overall design of the theme image.

Which forms shape and landscape design of the main elements throughout the architectural design to form a beautiful curve and surface, in order to present the cultural image of Jinhua Wu and express the strength and spirit temperament of Sport Buildings.

Sports Center of Jinhua City
Main stadium. Image © Zhang Yong
Sports Center of Jinhua City
Plaza. Image © Zhang Yong

The plan includes one stadium containing the total seats of 30130, and one gym with 5987 seats, and one swimming pool with 1616 seats.

The three main buildings are designed in the layout design like Chinese ”pin”, which forms a central square by centripetal approach. The structure and the site are designed together by two spatial spindles and a circular secondary shaft.

Sports Center of Jinhua City
Main stadium. Image © Zhang Yong
Sports Center of Jinhua City
Swimming center. Image © Zhang Yong

On the east side of the main city road, the city is equipped with an open and sunken leisure Plaza facing the city. It combines the green space and the surface of the water to create the main entrance image.

The stadium canopy adopts the curved spatial structure system, which uses the truss arch structure and the shell combines, the horizontal projection is crescent shape.

Its length is 263 meters, the maximum cantilever structure is 44.5 meters, the highest point of structure is 42.4 meters. The gymnasium is consisted by the two parts; they are the contest hall and the exercise hall.

There are 4549 fixed seats and 1438 movable sports seats in the contest hall, on the first floor, the two independent halls are set up respectively.

Sports Center of Jinhua City
Gymnasium interior. Image © Zhang Yong
Sports Center of Jinhua City
Main stadium. Image © Zhang Yong
Sports Center of Jinhua City
Trusses. Image © Zhang Yong

The swimming pool includes a 50X25 meter match pool, and one 50X20 meter training pool and one playing pool. From which, there are 803 fixed seats and 813 movable seats in the contest pool.

The training pool has wide vision and good lighting equipment; It can be used as children's swimming, teaching and entertainment places.

Through the finite element analysis of the whole structure, we put the steel truss face to main vertical force We used the V- shaped column as an important structural element of the building for these three venues, in order to pursue the rich rhythm and dynamic at the same time, and use the concrete pouring to reflect its premium, its solid weight and stable component itself.

Sports Center of Jinhua City
V-shaped columns. Image © Zhang Yong
Sports Center of Jinhua City
V-shaped columns. Image © Zhang Yong

It has the obvious contrast against the lightness of the arched roof of the three gymnasiums.- V - shaped columns; makes the structural mechanics combined with the concepts of the sports building movement.

Through the finite element analysis of the whole structure, we put the steel truss face to main vertical force component - V - shaped columns; makes the structural mechanics combined with the concepts of the sports building movement.

Sports Center of Jinhua City
PLAZA. IMAGE © ZHANG YONG
Sports Center of Jinhua City
Main stadium. Image © Zhang Yong

In the course of construction, the spatial coordination and the angle of reinforcing bars of each steel bar are determined by space modeling, and the construction quality of the local reinforced bar region are ensured.


Sports Center of Jinhua City
Detailed drawing
Sports Center of Jinhua City
Details


Sports Center of Jinhua City
Section
Sports Center of Jinhua City

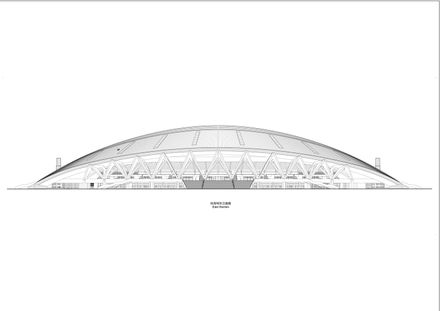

Elevation

Sports Center of Jinhua City
Plan & elevation
Sports Center of Jinhua City
Masterplan
