Wind House

Wind House
Courtesy of OPENSPACE Design
Wind House
Courtesy of OPENSPACE Design

Wind House

Openspace Design

LEAD ARCHITECTS
Chakrawan Smatasoraboosya, Monthon Sanguanpog, Songpon Jirayasin

MANUFACTURERS
Evalon Sheet, Sunwood

AREA
675 M²

YEAR
2013

LOCATION
Bangkok, Thailand

CATEGORY
Houses

“Wind House” was created as “Resort Space” which was the owner’s preference style regarding the site conditions.

Wind House
Courtesy of OPENSPACE Design
Wind House
Courtesy of OPENSPACE Design

As it was located on the edge of the housing estate project’s boundary, it gained the view of big natural green area beside and certainly, the atmosphere of tranquility.

The house planning started from the idea - “How to live comfortably with nature?”. Therefore,the building orientation and the space of the house should allow the wind to flow through and allow natural light to shine in without too much heat.

Wind House
Courtesy of OPENSPACE Design
Wind House
Courtesy of OPENSPACE Design

At the same time, the users inside could be able to see nice garden view outside as well.

The house was designed in C-Shape providing big courtyard on the right side, close to big green area beside, where every function from 3 sides could really share this pleasant courtyard together.

Wind House
Courtesy of OPENSPACE Design
Wind House
Courtesy of OPENSPACE Design

The building itself could provide privacy to the users as neighbors would not be able to look into the center of the house.

The technique to draw the wind flowing through the house perfectly was to provide some big voids of the building mass aligned to the courtyard which were also used as circulation core, stair and relaxation corner.

Moreover, even some details such as doors, fences, sunlight screen patterns, etc. were meticulously designed to utilize the wind more efficiently for ventilation purpose.

Wind House
Courtesy of OPENSPACE Design
Wind House
Courtesy of OPENSPACE Design

One of the most significant design strategies was to create “Seamless Boundary” between building and nature, indoor and outdoor.

All of the common area as well as circulation were treated as “Semi-Outdoor” space, under the roof but without walls, connecting to the courtyard harmoniously.

Wind House
Courtesy of OPENSPACE Design
Wind House
Courtesy of OPENSPACE Design

In addition, some enclosed functions were still optional to get fresh air sometimes by sliding full-height partitions to the sides.

These would enable the house space to look wider, more airy and definitely, to welcome the delightful wind to be “Wind House”.

Wind House
Courtesy of OPENSPACE Design


Wind House
Courtesy of OPENSPACE Design
Wind House
Courtesy of OPENSPACE Design
Wind House
Courtesy of OPENSPACE Design
Wind House
Courtesy of OPENSPACE Design
Wind House
Courtesy of OPENSPACE Design
Wind House
Courtesy of OPENSPACE Design


Wind House
First Floor Plan
Wind House
Second Floor Plan


Wind House

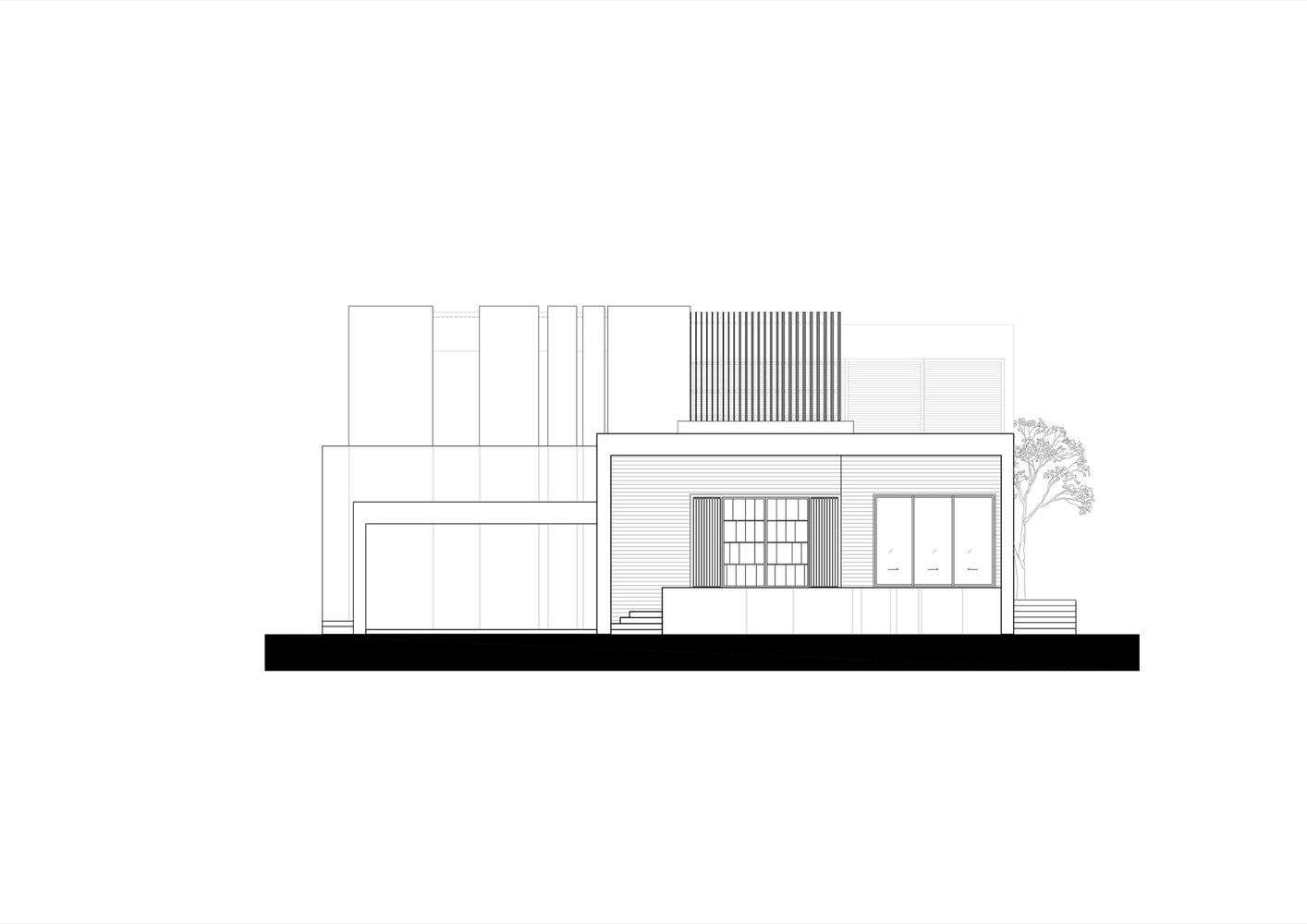

Elevation
Wind House
Section
