Oito Building

Oito Building
© Fernando Guerra | FG+SG

OITO BUILDING

Isay Weinfeld

ARCHITECTS
Isay Weinfeld

GENERAL CONTRACTOR
R. Yazbekl

MANUFACTURERS
Atlas Concorde, Panoramah!®, Hafele, Bmc Construções Metálicas, Cecrisa, Companhia De Iluminação, Deca,

MANUFACTURERS
Di Mármore, Dorma, Ecopietra, Eleve, Icc, Jatobá, Kits Aero, Kyn (Linha Única Alcoa), La Fonte, Laboratório Da Luz,

MANUFACTURERS
Light Tech, Movarte, Ngk, +3

DESIGN TEAM
Sebastian Murr |eva Tsouni Danilo Zamboni | Flavia Oide |danilo Hideki

DESIGN TEAM
Marcelo Alvarenga | Manoel Maia |alan Chu | Sara Leitão |katherina Ortner |

AUTHOR
Isay Weinfeld

PROJECT MANAGER
Monica Cappa

INTERIOR DESIGN
Carolina Miranda

PROJECT MANAGEMENT
Addor & Associados

INTERNS
Daniel Arce | Marcelo Ribas

ALUMINIUM WINDOW SYSTEM
Arqmate

AIR CONDITIONING
Teknika Projetos E Consultoria Ltda.

VISUAL COMMUNICATION DESIGNER
Roberto Cipolla

WATERPROOFING CONSULTING
Proassp Assessoria E Projetos

BEGINNING OF PROJECT
June 2010

FLOORS
5 Subsolos / Térreo / 7 Pavimentos E Cobertura

BEGINNING OF BUILDING
May 2012

STRUCTURAL ENGINEERING
Kurkdjian & Fruchtengarten Engenheiros Associados Hr Projetos

LANDSCAPE DESIGN
Rodrigo Oliveira Paisagismo | Instituto Cidade Jardim

FOUNDATION ENGINEERING
Apoio Assessoria E Projeto De Fundações S.s

ELECTRICAL, PLUMBING AND TELEPHONE SYSTEM ENGINEEERING
Tesis

1º / 2º BASEMENT UNIT
549,64 m²

1º TO 7º FLOOR UNITS
421,31 m²

AMOUNT OF UNITS
8

PLOT AREA
1.556,50m²

AREA
73065 ft²

YEAR
2014

LOCATION
São Paulo, Brazil

CATEGORY
Residential

Oito Building
© Fernando Guerra | FG+SG

Text description provided by architect.

Oito Building is set on a sloping plot in Vila Madalena, facing two streets, and with a 15-meter rise between both ends.

A small square sits across from the building, and further away a series of low-rise houses extends down the sloping contour to Pinheiros River.

Oito Building
© Fernando Guerra | FG+SG
Oito Building
© Fernando Guerra | FG+SG

Given the personality of the plot and the city’s building code, we chose to set the ground level of the building (its main access) on the higher end, erecting eight levels above it, and another five levels below.

The contour allowed the levels beneath the ground floor, albeit semi-buried, to always feature three façades open to the views.

From the street, a marquee leads to the main lobby of the building that, set 20 meters above the lower end of the land, offers sweeping views of the surroundings.

Oito Building
© Fernando Guerra | FG+SG
Oito Building
© Fernando Guerra | FG+SG

The building itself consists of a metal frame, made of a modulated orthogonal mesh.

A central axis assembles the vertical circulation (staircases and lifts), leaving all surrounding space free.

Oito Building
© Fernando Guerra | FG+SG
Oito Building
© Fernando Guerra | FG+SG
Oito Building
© Fernando Guerra | FG+SG

In the apartment units above street level, any of the three alternative layouts has the living and dining room facing West, overlooking the square, sleeping quarters to the East, to a quieter street (less traffic), and the service areas to the North, to the building’s side setback.

In the basement duplex, the difference is that both social areas and bedrooms enjoy views to the square.

Oito Building
© Fernando Guerra | FG+SG
Oito Building
© Fernando Guerra | FG+SG
Oito Building
© Fernando Guerra | FG+SG

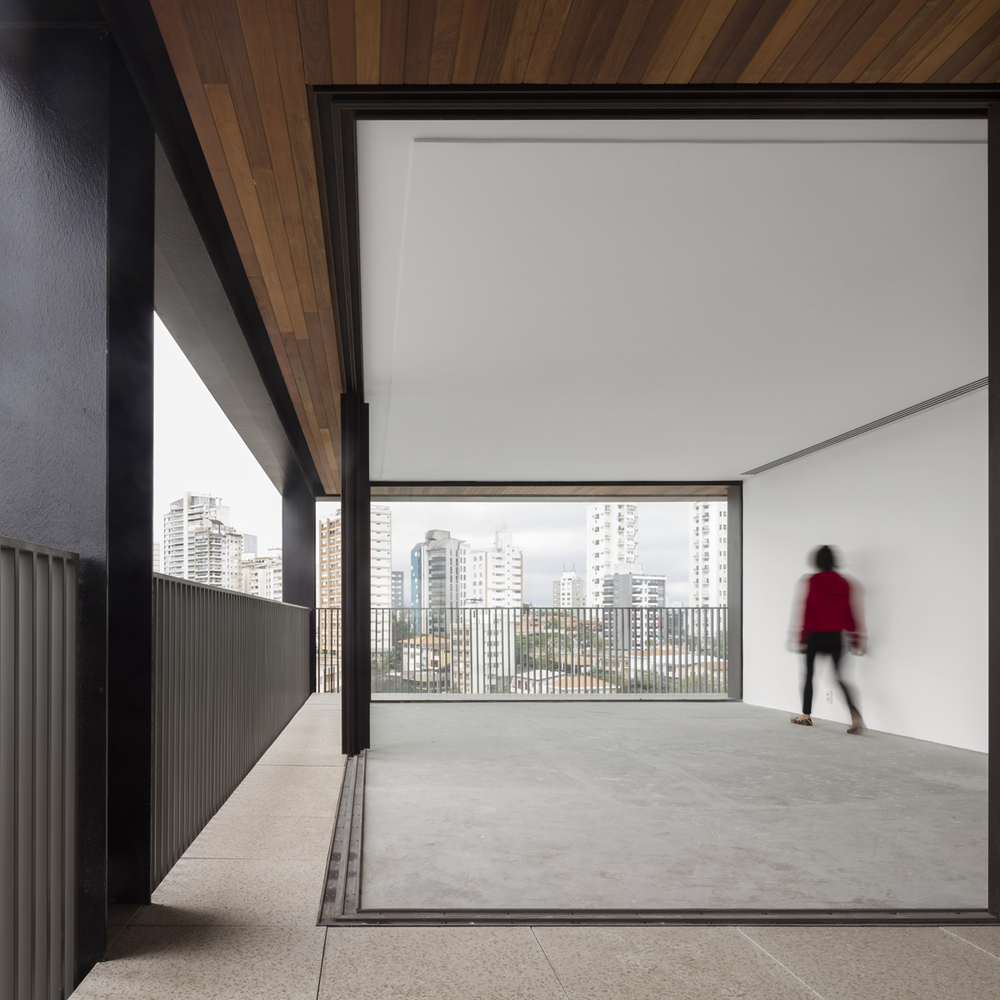

On all levels, a full perimeter balcony provides all rooms with a small out-of-doors expansion.

Not only that; it also removes all enclosed areas from the façade, whether transparent (as the social areas) or solid (bedrooms and service rooms).


Oito Building
first Basement Plan
Oito Building
second Basement Plan
Oito Building
Third Basement Plan
Oito Building
Fourth Basement Plan
Oito Building
Fifth Basement Plan
Oito Building
Ground Floor Plan
Oito Building
First Floor Plan


Oito Building
Second and Third Floor Plan
Oito Building
Implantation


Oito Building
Section
Oito Building
Section
Oito Building
Elevation
