INTENDENTE 57 BUILDING

Ana Costa, Arquitectura E Design Ida

INSPECTION
Rockbuilding

CONSTRUCTION
Cari Construtores

PROJECT MANAGEMENT
Square View

LEAD ARCHITECT
Ana Costa

MANUFACTURERS
Mosaic Del Sur, Thpg, Viúva Lamego, Water Evolution, Carpilux, Les Acrobates, Luminária Tubo, Secco Os2

STRUCTURES
Betar - Eng. Miguel Villar

LANDSCAPING
F|c Arquitectura Paisagista

AIR CONDITIONING AND THERMAL
Get - Eng. Raul Bessa

ELECTRICAL INSTALLATIONS
Ohm-e - Eng. Fernando Silva Gusmo

DESIGN TEAM
Ana Mafalda Lacerda, Ana Florêncio, Inês Reis, Inês Cruz, Sara Santos, Maria Carvalho, Gonçalo Pereira, Fernando Freire, Carlos Cruz, Ricardo Mesquita

YEAR
2020

LOCATION
Lisboa, Portugal

CATEGORY
Residential

Text description provided by architect.

Located at Largo do Intendente 57, this renovation project gave the building back its residential use, ensuring a more permanent one which contributed to the revitalization of this neighborhood.

Intendente 57 Building
© Fernando Guerra / FG+SG
Intendente 57 Building
© Fernando Guerra / FG+SG

This area of the city had been abandoned for a long time, resulting in the degradation of many buildings.

In this case, the building interior had already been fully demolished and only the West and South facades remained.

Intendente 57 Building
© Ricardo Oliveira Alves
Intendente 57 Building
© Fernando Guerra / FG+SG

This renovation was considered essential for the composition of the consolidated image of the “Largo”- Square of Intendente.

For the new construction, a U-shaped layout was proposed, consisting of a central volume in direct relation to the existing facade to the West and two lateral volumes, one to the north and the other to the south, facing the stairs of “Beco do Benformoso”.

These volumes enclose a space of gardens and patios maintaining the natural scopes of the terrain.

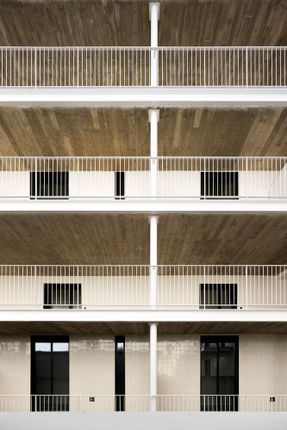

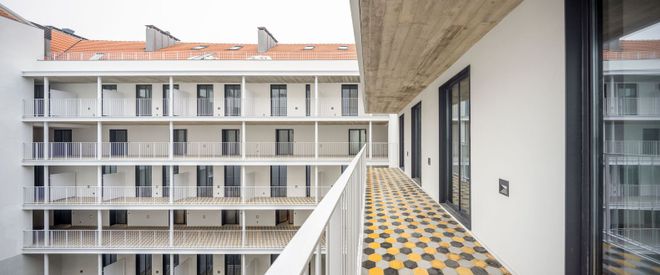

Therefore, and because the eastward orientation made it natural, a metal structure front was created to support the new balconies and access galleries to the apartments, as well as function as a shade element.

Intendente 57 Building
© Fernando Guerra / FG+SG
Intendente 57 Building
© Fernando Guerra / FG+SG
Intendente 57 Building
© Fernando Guerra / FG+SG

In the same way that the design of the original facade was maintained, keeping as many characterizing elements as possible (such as spans, finishing materials, stonework, cornices, and balusters), the design of the new facade also intends to create a language that was not dissonant with the rest of the building.

In addition to being something characteristic of Lisbon's backyards, this reticulated structure makes it possible to establish the relationship between the new construction and the existing facades.

Regarding the roofs, it is proposed to maintain the original gable morphology, in the red clay tile.

Intendente 57 Building
© Fernando Guerra / FG+SG

The functional organization of this set was developed based on a program of 49 small typologies with areas between 80m2 and 120 m2.

It is important to mention that access to the apartments located on the 0th floor is made directly from the street, to keep within maintaining the characterization of the doors, therefore enhancing the relationship with the street.

Intendente 57 Building
© Fernando Guerra / FG+SG
Intendente 57 Building
© Fernando Guerra / FG+SG
Intendente 57 Building
© Ricardo Oliveira Alves
Intendente 57 Building
© Ricardo Oliveira Alves
Intendente 57 Building
© Ricardo Oliveira Alves

The remaining typologies are distributed over the other floors, taking advantage of the differences in height of the surroundings, creating duplex typologies that allow better use of these relationships.

Intendente 57 Building
© Ricardo Oliveira Alves
Intendente 57 Building
© Ricardo Oliveira Alves
Intendente 57 Building
© Fernando Guerra / FG+SG
Intendente 57 Building
© Fernando Guerra / FG+SG

In the typologies, this dimension of the “volume” allows for a perception of more space.


Intendente 57 Building
© Fernando Guerra / FG+SG
Intendente 57 Building
© Ricardo Oliveira Alves
Intendente 57 Building
© Fernando Guerra / FG+SG
Intendente 57 Building
© Fernando Guerra / FG+SG
Intendente 57 Building
© Fernando Guerra / FG+SG


Intendente 57 Building
Plan - IImplantation
Intendente 57 Building
Plan - Basement
Intendente 57 Building
Plan - Ground floor
Intendente 57 Building
Plan - 1st floor
Intendente 57 Building
Plan - 2nd floor
Intendente 57 Building

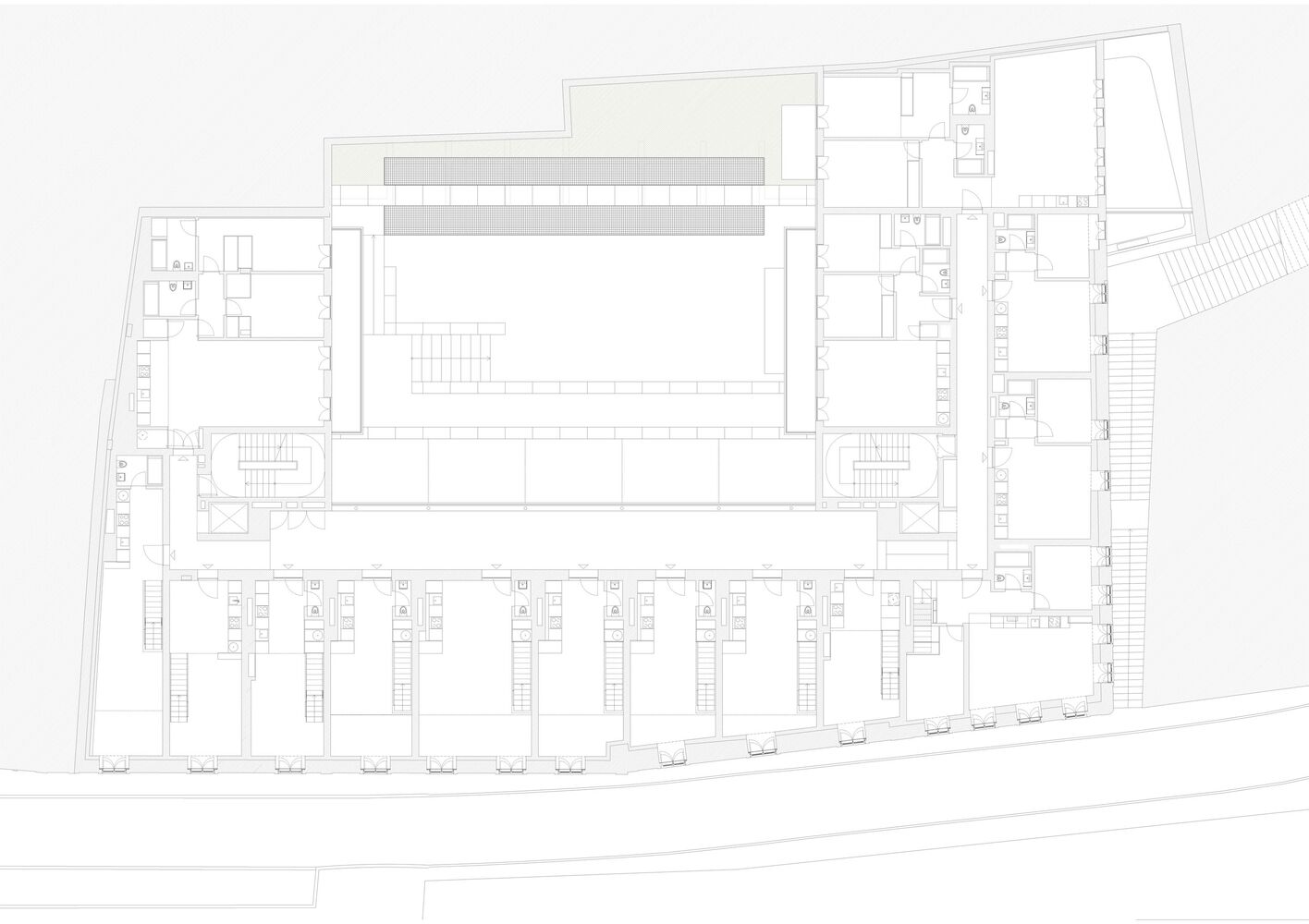

Plan - 3rd floor
Intendente 57 Building
Plan - 4th floor
Intendente 57 Building
Plan - 5th floor


Intendente 57 Building
West elevation
Intendente 57 Building
South elevation


Intendente 57 Building
Constructive section 01
Intendente 57 Building
Constructive section 02


Intendente 57 Building
Section
Intendente 57 Building
Model
