PACAEMBU HOUSE

DMDV arquitetos

ARCHITECTS
DMDV arquitetos

MANUFACTURERS
Atlas Concorde, Armatex, Colormix, Jmar, Monet, Tronco


AREA
500 m²

LANDSCAPING PROJECT
KM arquitetura Paisagistica

STRUCTURAL AND FOUNDATION PROJECTS
LHG

FACILITIES PROJECT
Ramoska & Castellani

PHOTOGRAPHS
Maira Acayaba

BUILDING CONSTRUCTION
Edificon

TEAM
André Dias Dantas, Bruno Vitorino, Renato Dalla Marta, Maíra Baltrusch, Rafhael Silva, Fernanda Miguel, Victor Vernaglia, Aline Pinheiro, Ronielle Laurentino e Fabiana Kalaigian.

CATEGORY
Houses

LOCATION
São Paulo, Brazil

YEAR
2016

Text description provided by architect.

The starting point of this project was the analysis of the feasibility of maintaining the original construction in the lot, considering a deep reform, or the complete demolition to build a new residency.

Pacaembu House
© Maira Acayaba
Pacaembu House
© Maira Acayaba
Pacaembu House
© Maira Acayaba

After studying the brief desired by the future residents, the implantation of the old house and the analysis of the structural system of the existing construction that did not allow great interventions, we concluded that we would achieve a better result considering the conception of a new residence.

Decision taken, we seek to use part of the materials of the old construction in the new house.

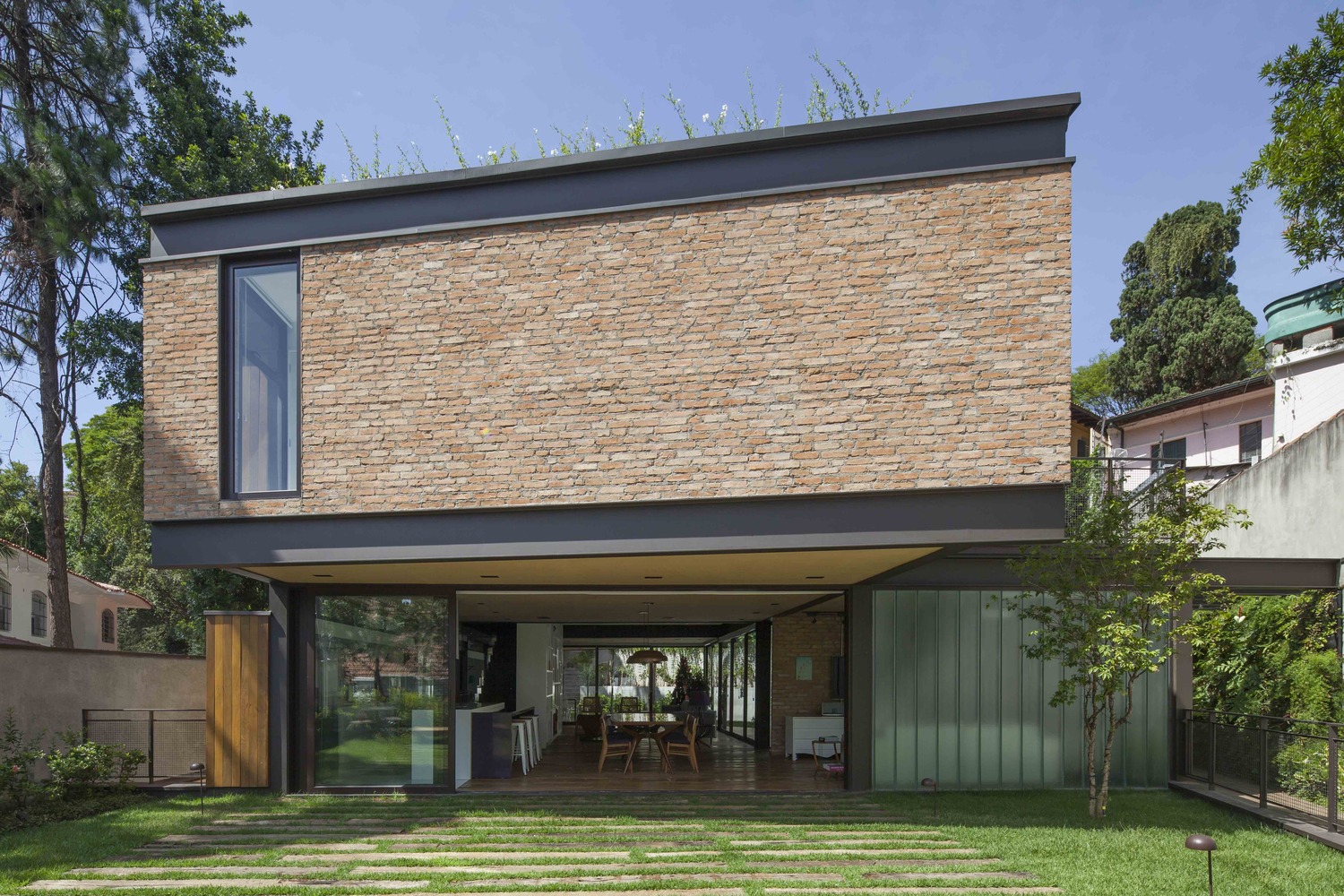

The bricks that can be seen apparent on the facades, the floor stones that compose the landscaping and part of the woodwork of the old construction were stored and reused in the new construction.

Pacaembu House
© Maira Acayaba
Pacaembu House
© Maira Acayaba
Pacaembu House
© Maira Acayaba

The irregular and accentuated geometry lot, as well as the solar analysis, were determinant in the distribution of the program and in the spatial organization of the project.

In order to reduce the execution time, we opted to the use of a metallic structure, a solution that enabled greater spans, delivering the ground floor from structural interferences and allowing the "balances" that constitute protected interconnected spaces with the external gardens.

The lower floor, at street level, houses the garage for 4 cars, laundry, warehouses and technical areas. Being partially buried, this is the only concrete floor.

Pacaembu House
© Maira Acayaba
Pacaembu House
© Maira Acayaba

The lighting and ventilation of these environments are made through small garden openings that houses the central heaters and a cistern buried to capture the rainwater that is reused by the automatic irrigation system of the gardens.

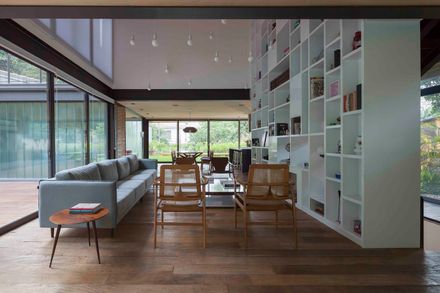

In the upper floor, which we call ground floor, is the main living, interaction and leisure area of the family, consisting of living room, dining room, kitchen and TV room.

Pacaembu House
© Maira Acayaba
Pacaembu House
© Maira Acayaba

The integration of the internal areas with the external gardens were prioritized through the adoption of glass closures around the perimeter.

The outdoor areas have been separated into two gardens: one in the front portion of the lot, connected to the kitchen and dining area, and the larger one to the bottom that houses the pool and wooden deck, and connects to the porch and barbecue, as well as the shed, A box covered with wood that has two floors composed by the toy room and library that open to the garden, and on the same, the space for sauna and rest.

Pacaembu House
© Maira Acayaba
Pacaembu House
© Maira Acayaba

In the first floor are the three dormitories, the two front ones are separated from the couple dormitory in the posterior portion by the emptiness of the high ceiling of the living room.

To protect the frames of the setting sun, we used muxarabis of cumaru wood to protect the sealing glasses, improving thermal comfort.

On the last floor, from where we can see the Pacaembu valley, we located the office, also protected from the sun by vertical bricks of cumaru wood and connected to 2 open terraces permeated by bins integrated to the metallic guardrails.

Pacaembu House
© Maira Acayaba


Pacaembu House
© Maira Acayaba
Pacaembu House
© Maira Acayaba
Pacaembu House
© Maira Acayaba
Pacaembu House
© Maira Acayaba


Pacaembu House
Section
Pacaembu House
Section


Pacaembu House
Floor Plans
Pacaembu House
Basement Floor Plan
Pacaembu House
Ground Floor Plan
Pacaembu House
1st Floor Plan
Pacaembu House
2nd Floor Plan
