Guwol Multi-Family House & Commercial Stores

Guwol Multi-Family House & Commercial Stores
© Roh Kyung

GUWOL MULTI-FAMILY HOUSE & COMMERCIAL STORES

Seoga Architecture

LEAD ARCHITECTS
Park Haesun, Oh Seunghyun

DESIGN TEAM
Kim Yoobin

MANUFACTURERS
Namsun, ENG1, JIHO

STRUCTURE ENGINEER
Thekujo, Byungsoon Park

CONSTRUCTION
Nurim Construction Engineering

MECHANICAL ENGINEER
Chunglim Technical Construction

ELECTRICAL ENGINEER
Kuk-dong Munwha Engineering

AREA
558 m²

PHOTOGRAPHS
Roh Kyung

YEAR
2016

CATEGORY
Mixed Use Architecture, Apartments

LOCATION
Guwol-dong, South Korea

Guwol Multi-Family House & Commercial Stores
© Roh Kyung
Guwol Multi-Family House & Commercial Stores
© Roh Kyung

SITE

Guwol district is under a limited housing development of maximum five-household building to create a low-density residential area. Located at the corner of an intersection, the site is fully exposed to the main roads.

Guwol Multi-Family House & Commercial Stores
© Roh Kyung
Guwol Multi-Family House & Commercial Stores
© Roh Kyung

Thus the site is assured of a high commercial value, however, we had to seek for a key strategy to provide a cozy living environment away from the two exposed sides facing the busy roads.

FIVE HOUSEHOLDS

As Guwol is a neighborhood full of young families, we planned the size of each house accordingly.

Guwol Multi-Family House & Commercial Stores
© Roh Kyung
Guwol Multi-Family House & Commercial Stores
© Roh Kyung
Guwol Multi-Family House & Commercial Stores
© Roh Kyung

The main challenge was to distribute the whole area into five individual houses. The building consists of five households; one loft, two three-bedroom apartments, and two with an attic.

Each house differs according to the relationships with the street and level differences. The second floor would hardly have a privacy so we planned a balcony for a more secure dwelling.

Spacing the bricks on the façade enables light to travel but blocks the view from the outside, functioning like a curtain.

Guwol Multi-Family House & Commercial Stores
© Roh Kyung
Guwol Multi-Family House & Commercial Stores
© Roh Kyung
Guwol Multi-Family House & Commercial Stores
© Roh Kyung

On the loft, we made sure the window was high enough to ensure the privacy. On the other hand, the 3rd floor is provided with large windows creating openness since it is already relatively private, away from the street.

The top floor has an attic to complement the small living area due to the right to light regulations.

Guwol Multi-Family House & Commercial Stores
© Roh Kyung
Guwol Multi-Family House & Commercial Stores
© Roh Kyung

The housing is surrounded by buildings of various forms and materials. The whole façade is finished with rough cement bricks with slight touch in details considering the proportion and lighting.

DEEP WINDOWS

The seemingly banal arrangement of windows actually gives different atmosphere from the interior and the depth of the windowsills vary from one another.

One of the deepest horizontally narrow window would draw multiple shadows over changing time and seasons. And during the night time, each glowing windows would create another form of a spectacular façade.

Guwol Multi-Family House & Commercial Stores
© Roh Kyung
Guwol Multi-Family House & Commercial Stores
© Roh Kyung


Guwol Multi-Family House & Commercial Stores
© Roh Kyung
Guwol Multi-Family House & Commercial Stores
© Roh Kyung
Guwol Multi-Family House & Commercial Stores
© Roh Kyung
Guwol Multi-Family House & Commercial Stores
© Roh Kyung
Guwol Multi-Family House & Commercial Stores
© Roh Kyung
Guwol Multi-Family House & Commercial Stores
© Roh Kyung
Guwol Multi-Family House & Commercial Stores
© Roh Kyung
Guwol Multi-Family House & Commercial Stores
© Roh Kyung
Guwol Multi-Family House & Commercial Stores
© Roh Kyung


Guwol Multi-Family House & Commercial Stores

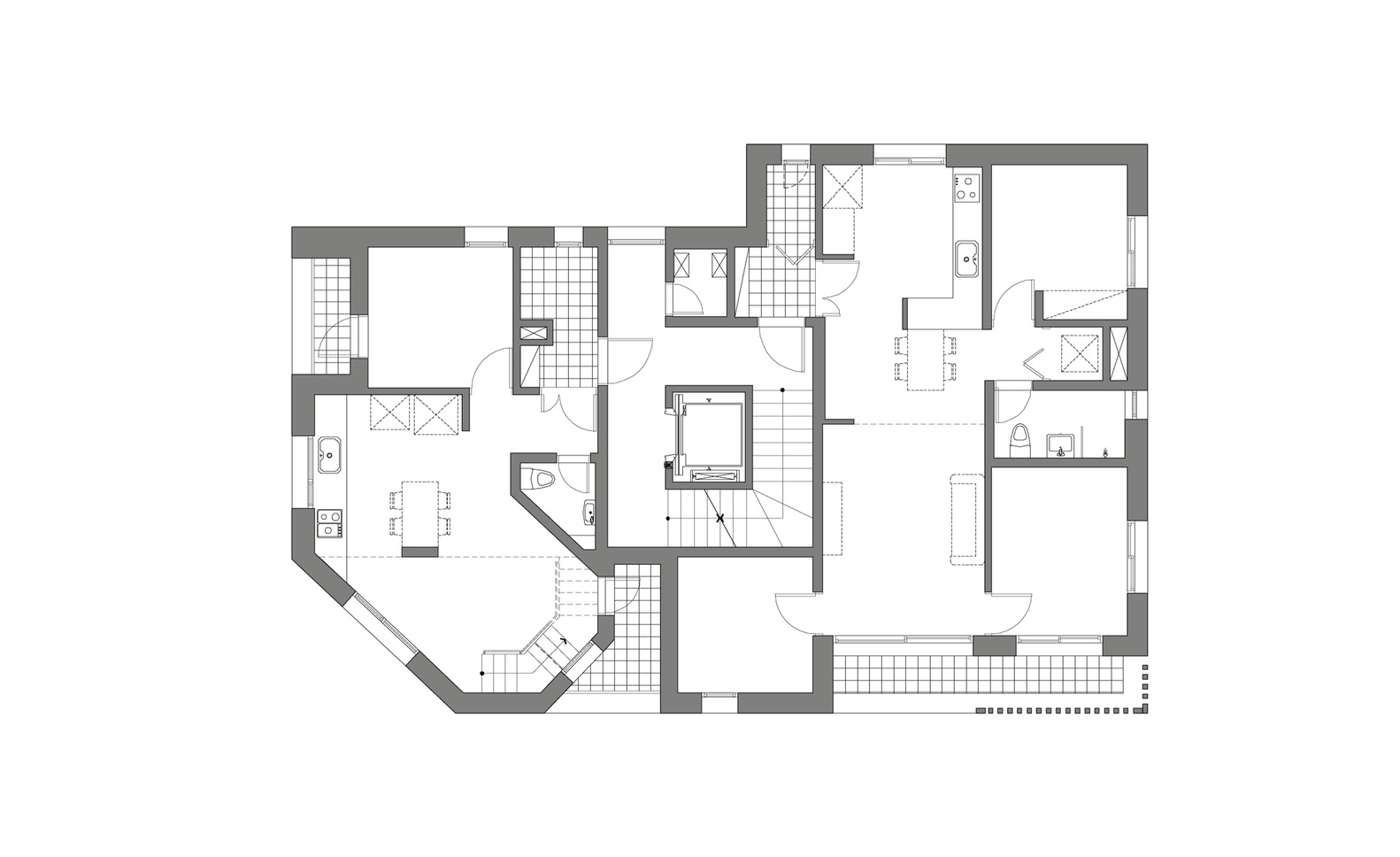

First Level Plan
Guwol Multi-Family House & Commercial Stores
Second Level Plan
Guwol Multi-Family House & Commercial Stores
Third Level Plan
Guwol Multi-Family House & Commercial Stores
Fourth Level Plan
Guwol Multi-Family House & Commercial Stores
Site Plan
Guwol Multi-Family House & Commercial Stores

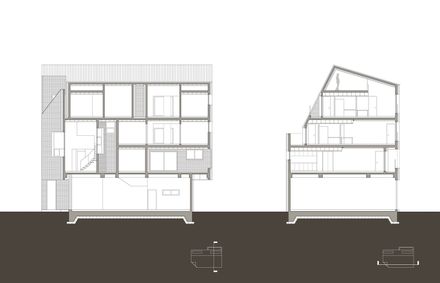

Section
