Taller De Arquitectura Mauricio Rocha, S.C.

Cacamatzin 34

CACAMATZIN 34

tallerdea

Cacamatzin 34
© Onnis Luque

ARCHITECTS
Tallerdea

AREA
3268 M²

YEAR
2012

PHOTOGRAPHS
Onnis Luque, Moritz Bernoully

MANUFACTURERS
Cemex, Colorines, Comex, Cuprum, Interceramic, Novaceramic

ARCHITECTS IN CHARGE
René Caro, Jesús López

CATAGORY
Social Housing

LOCAION
Mexico

PROJECT TEAM
Héctor López, Antonio Rivas, Paloma Morales

CLIENT
Desarrolladora Inmobiliaria Welt

Cacamatzin 34
© Onnis Luque
Cacamatzin 34
© Onnis Luque

Located a few meters from the ancient Calzada México-Tacuba, in a traditional neighborhood known long ago as Barrio de Santa Julia.

Cacamatzin 34 was inserted in a very complex urban context, containing many examples of eclectic 19th century villas and early-20th century vecindades (social housing).

We developed a new model for the insertion of social housing into urban heritage value areas.

This new model is based on a strategy of acknowledgement and recycling the place pre-existences and the heritage of the neighborhood.

On the site were found original vestiges of an old 19th century villa and a couple of superb trees -a walnut and an ash tree.

Those trees were part of the original garden of the villa -soon after we visited the place we decided to keep everything.

Cacamatzin 34
© Onnis Luque

The design strategy was solved with a central patio to embrace the trees, achieving to tense and join the street, the villa and the 40 apartments that integrate the housing complex altogether.

The result: a friendly, diverse and wide open space that is now used by the inhabitants of the building as a place for gathering and coexistence.

Cacamatzin 34
© Onnis Luque
Cacamatzin 34
© Onnis Luque

The project explores and includes diverse housing typologies, from 45 to 65 sq meters, in one or two floors, all the typologies combine double height spaces, patios, terraces and balconies. This helps to diversify the supply for different users and above all, it provides the possibilities for the house to adapt and grow according to the users’needs.


Cacamatzin 34
Basement Floor
Cacamatzin 34
First Floor
Cacamatzin 34
Second Floor
Cacamatzin 34

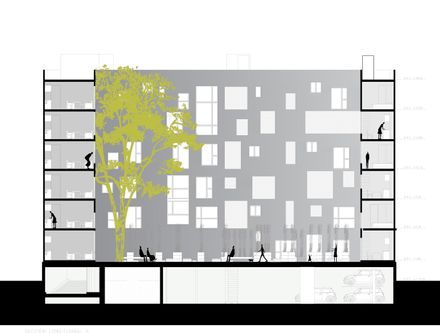

Section
Cacamatzin 34

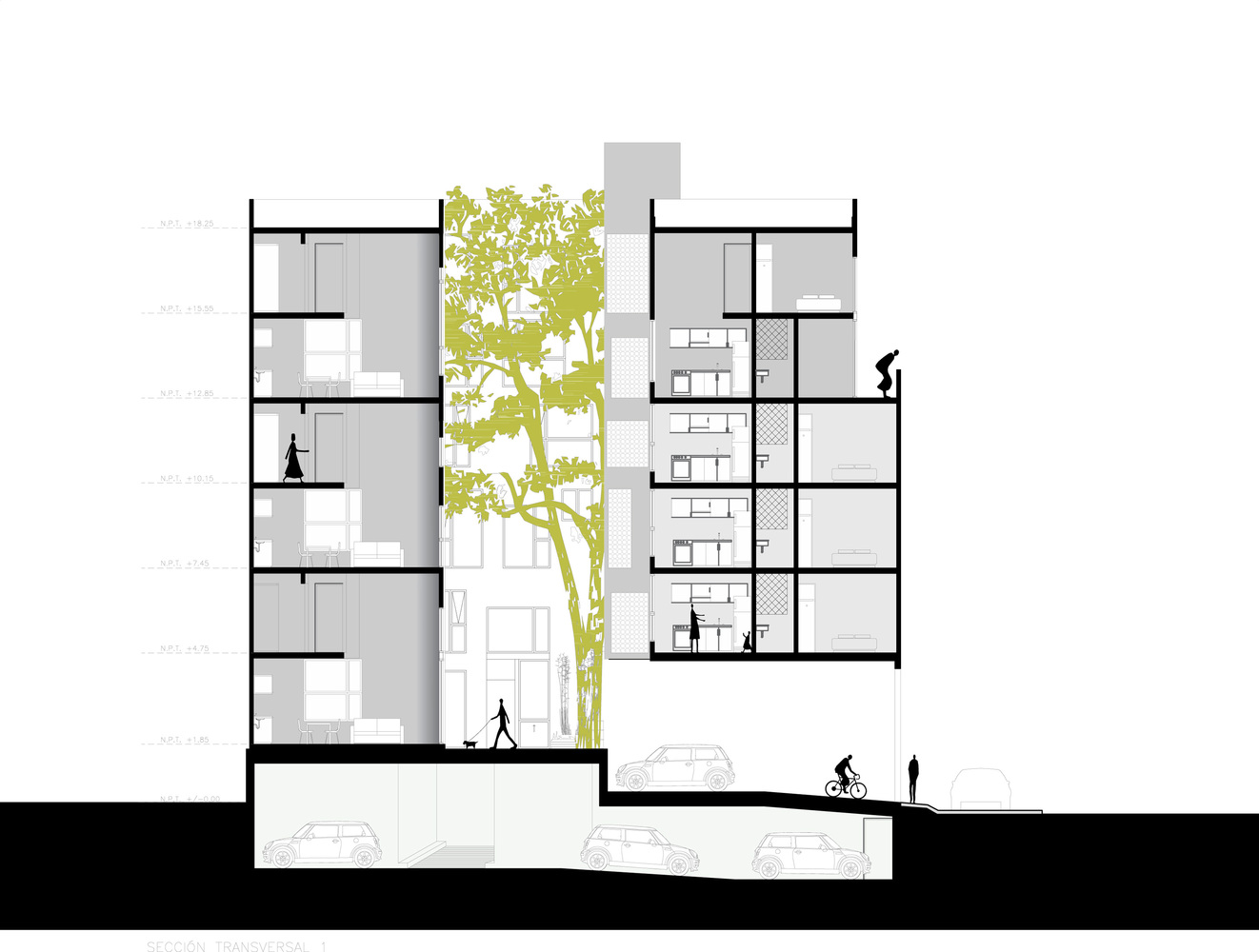

Section
Cacamatzin 34
Section
Cacamatzin 34
Elevation
Cacamatzin 34
Site Plan
Cacamatzin 34
Axonometric
Cacamatzin 34
Diagram
