Bachledka – Summit Facilities

Compass Atelier

ARCHITECTS
Compass Atelier

PHOTOGRAPHS
Boysplaynice

YEAR
2019

MANUFACTURERS
Aluprof, Novabell, Ton, Dolka, Domark, Formdesign, Philips

AREA
2275 M²

DESIGN TEAM
Juraj Benetin, Matej Grébert, Roman Janata

CLIENT
Bachledka Ski&sun

CATEGORY
Hospitality Architecture, Apartments

STATICS
Polivka, Hörmann & Partners

LOCATION
Ždiar, Slovakia

INTERIOR DESIGNER OF APARTMENTS
Miroslava Gašparová

RESTAURANT INTERIOR CONSTRUCTION PROJECT
Inar

Text description provided by architect.

The site is located at the top of Mala Poľana on the ridge of Spišská Magura. The area provides a variety of activities such as skiing, hiking, biking, and a sightseeing route - The Treetop Walk. Up to 6,000 visitors a day come here on certain days.

Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice

The aim of the proposal was to provide facilities for these activities. Access to the site is provided by the tourist route or by three cableways from adjacent villages, Bachledova dolina, Malá Franková, and Jezersko.

We tried to minimize the mass at the top of the hill, leaving only the necessary cableway control and the treetop walk exit object.

Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice

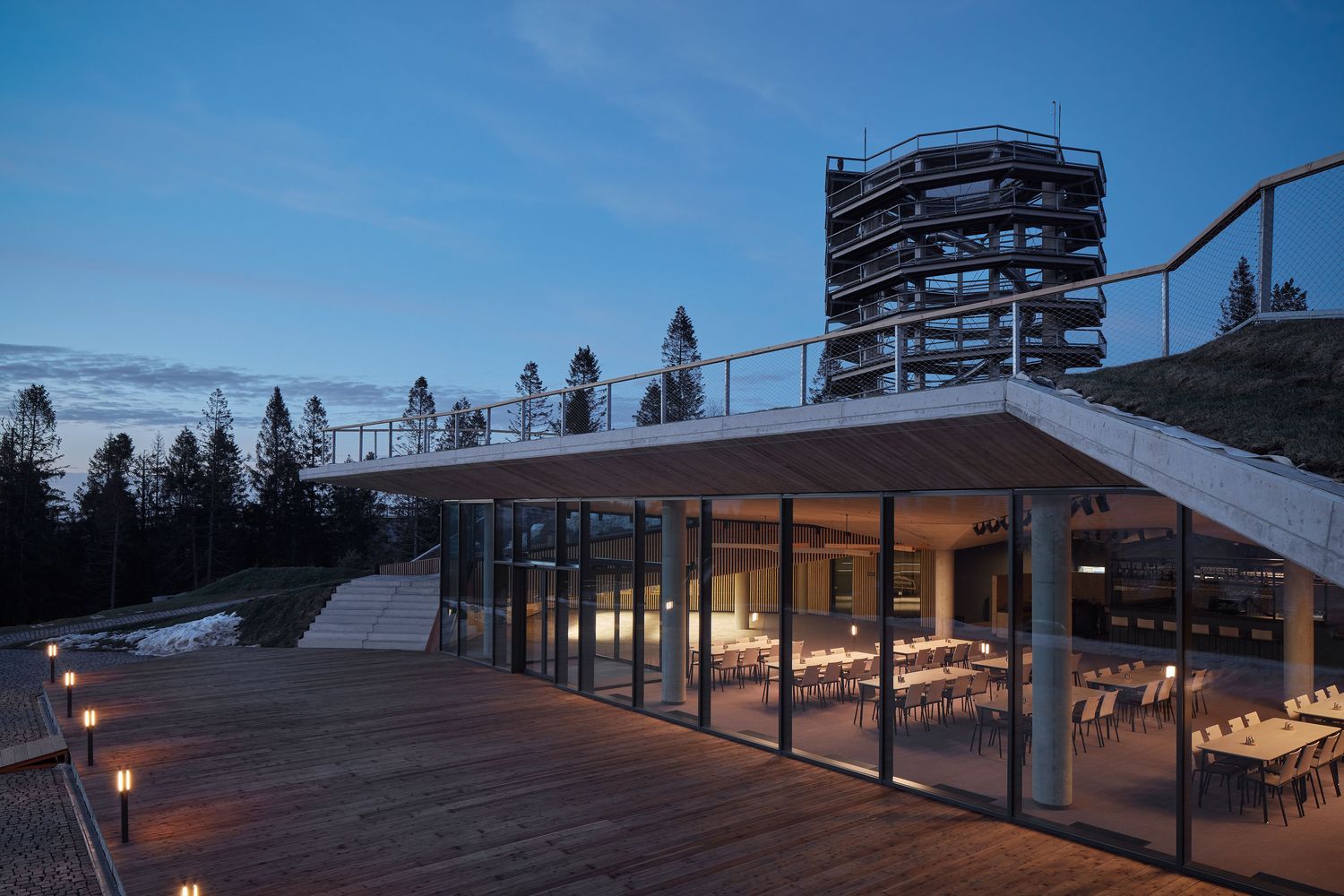

The rest of the building is embedded into the hillside and the only visible facades are those glazed, providing light and a view of the mountains.

This was made possible by the ideal shape of the terrain - the slope is oriented to the south towards the Belianske Tatry.

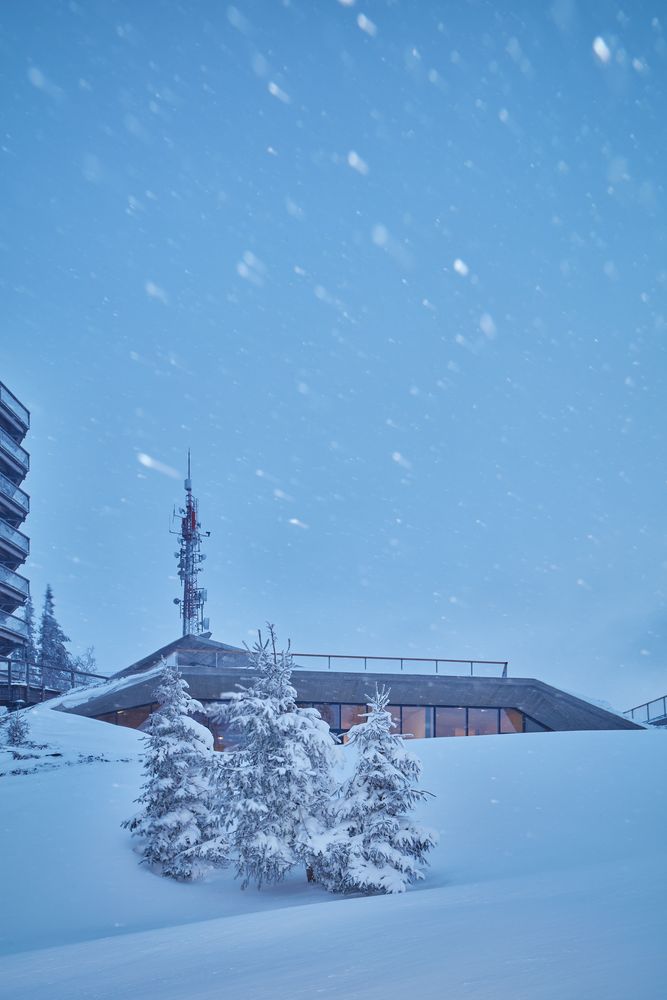

We achieved blending with the surrounding terrain with a green and sloped roof at the level of the hill plateau.

Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice

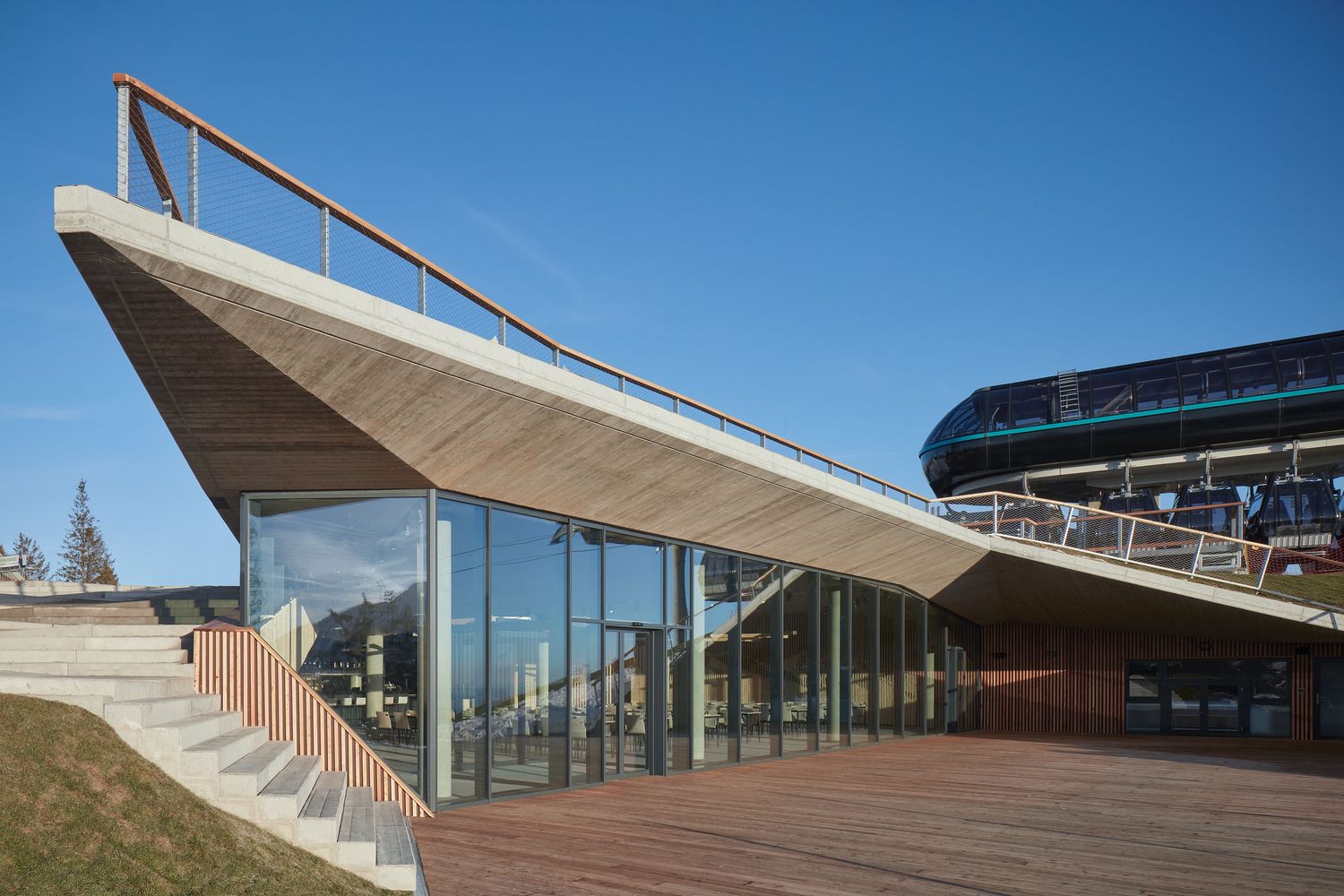

A big challenge was to get barrier-free access from the upper plateau to the lower level of the restaurant terrace and further to the treetop walk entrance.

We achieved this by using an exterior staircase through which a ramp traverses.

Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice

Such a solution saved a lot of space on the most important southern facade.

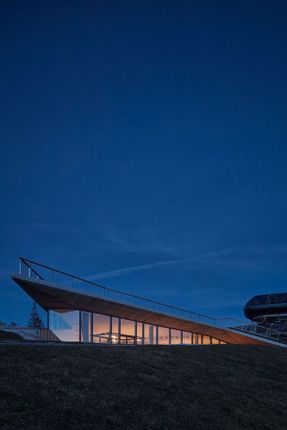

The repeated detail of the "ramp stairs" also minimizes the number of prefabricated concrete parts. Due to the shortening of the length of the "ramp stairs", the entire roof-plateau is sloped towards it.

Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice

The broken and sloping ceiling in the interior is therefore derived from the need to merge with the terrain and from getting fluent pedestrian paths.

The central position on the south facade of the “ramp stairs” allowed direct walking route and it divided the main facade into two parts- the restaurant and the apartments.

The lowered space under the "staircase" was used as an indoor play area. A universal space for play resembling a forest was created with the help of birch trunks and nets

Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice

The great depth of the underground space required the use of skylights.

We also combined them with a bench to protect the glass from skiers. The basic surface materials are concrete and wood.

Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice

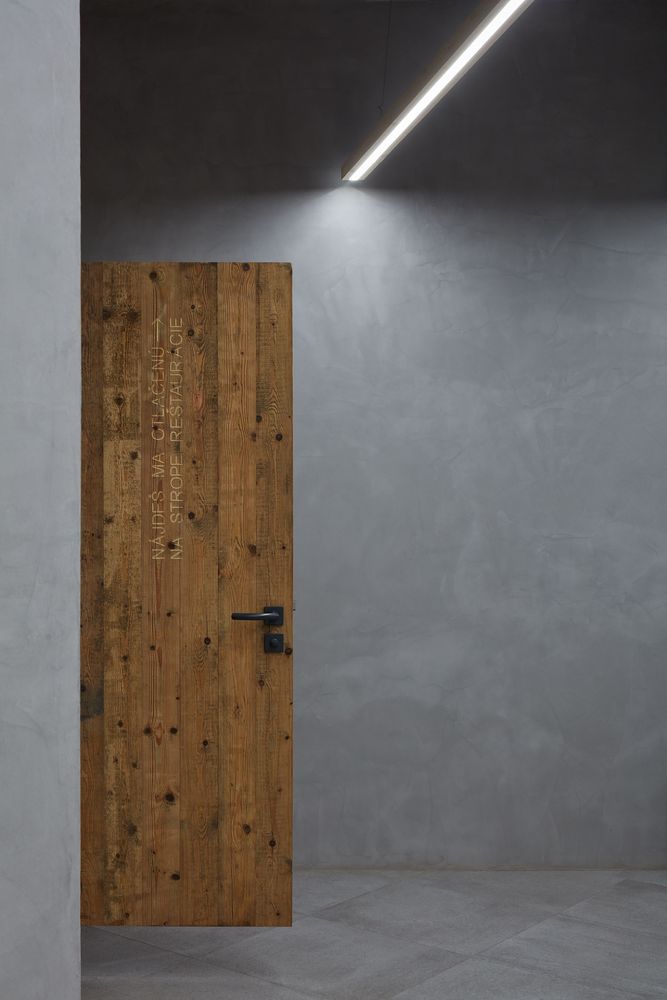

The local spruce boards were used for the formwork of the ceiling, which made it possible to layout complex shapes and at the same time it matches the spruce cladding on the walls. Part of the formwork boards was reused as the toilet partition walls.

The restaurant consists of the seating area, central bar, and self-service space able to cover the demand of about 180 indoor + 350 outdoor seats.

Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice

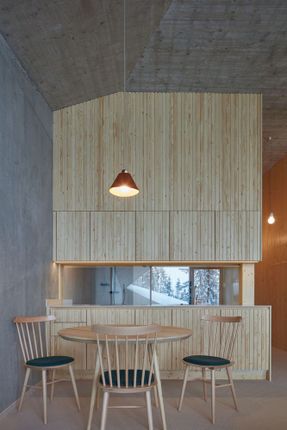

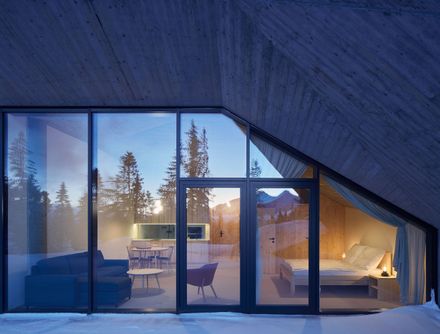

Three almost identical apartments are oriented more to the west. Each contains a living room with a kitchenette, a toilet, a bathroom, and two double bedrooms connected by a walk-in closet.

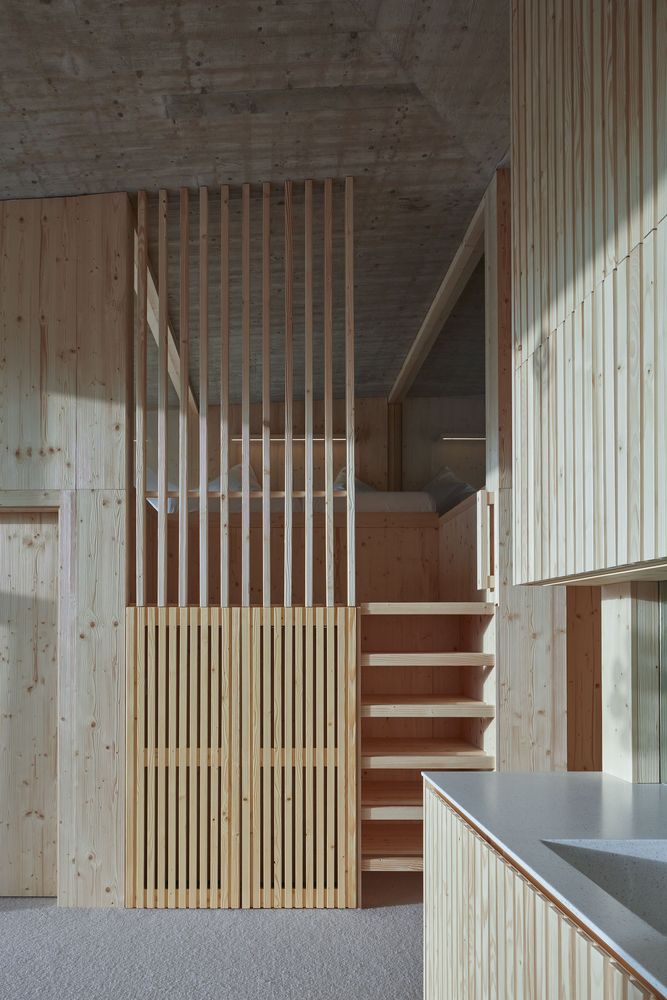

Above the closet, there is an additional mezzanine bed accessible with the ladder. The natural lighting of the rooms further from the facade is achieved by transom windows.

Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice

The apartments are accessed through a multipurpose room, which can be used for breakfast, games, or TV. If needed, it can be quickly transformed into an environmental classroom or conference room.


Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice
Bachledka
© BoysPlayNice


Bachledka
Map
Bachledka
Site plan
Bachledka
Ground floor plan
Bachledka
Upper ground floor plan


Bachledka
Sections


Bachledka
Sketches
Bachledka
Sketches
Bachledka
Sketches


Bachledka
Elevation
