Austinmer Beach House

Text description provided by the architects.

A low ecological impact family home by the beach that minimised operational and embodied energy, efficiently captured and re‐use water, encouraged bio‐diversity and is also be a healthy home for a family to enjoy.

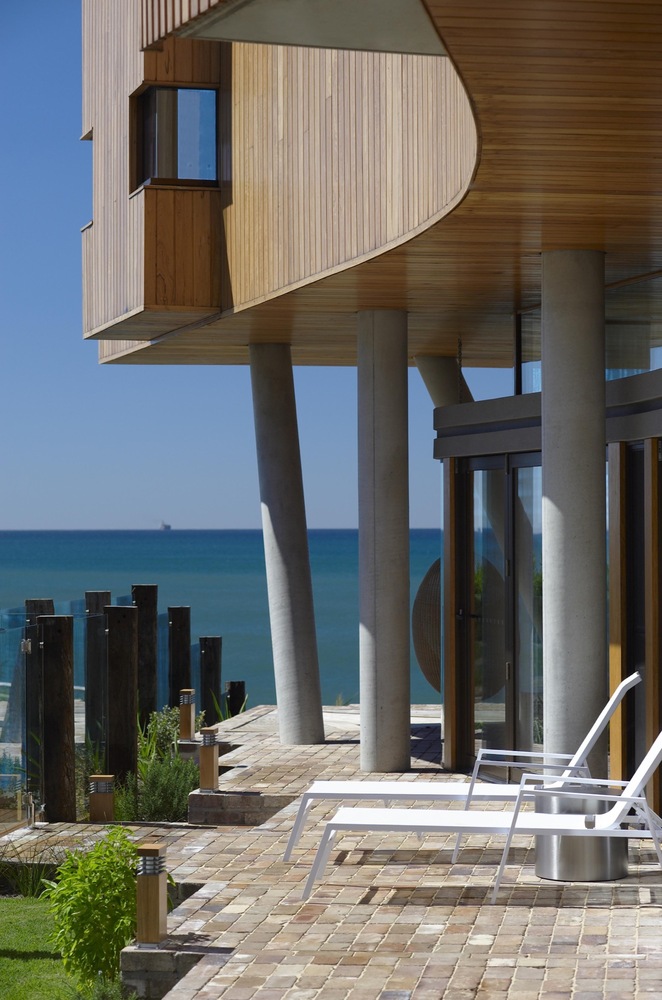

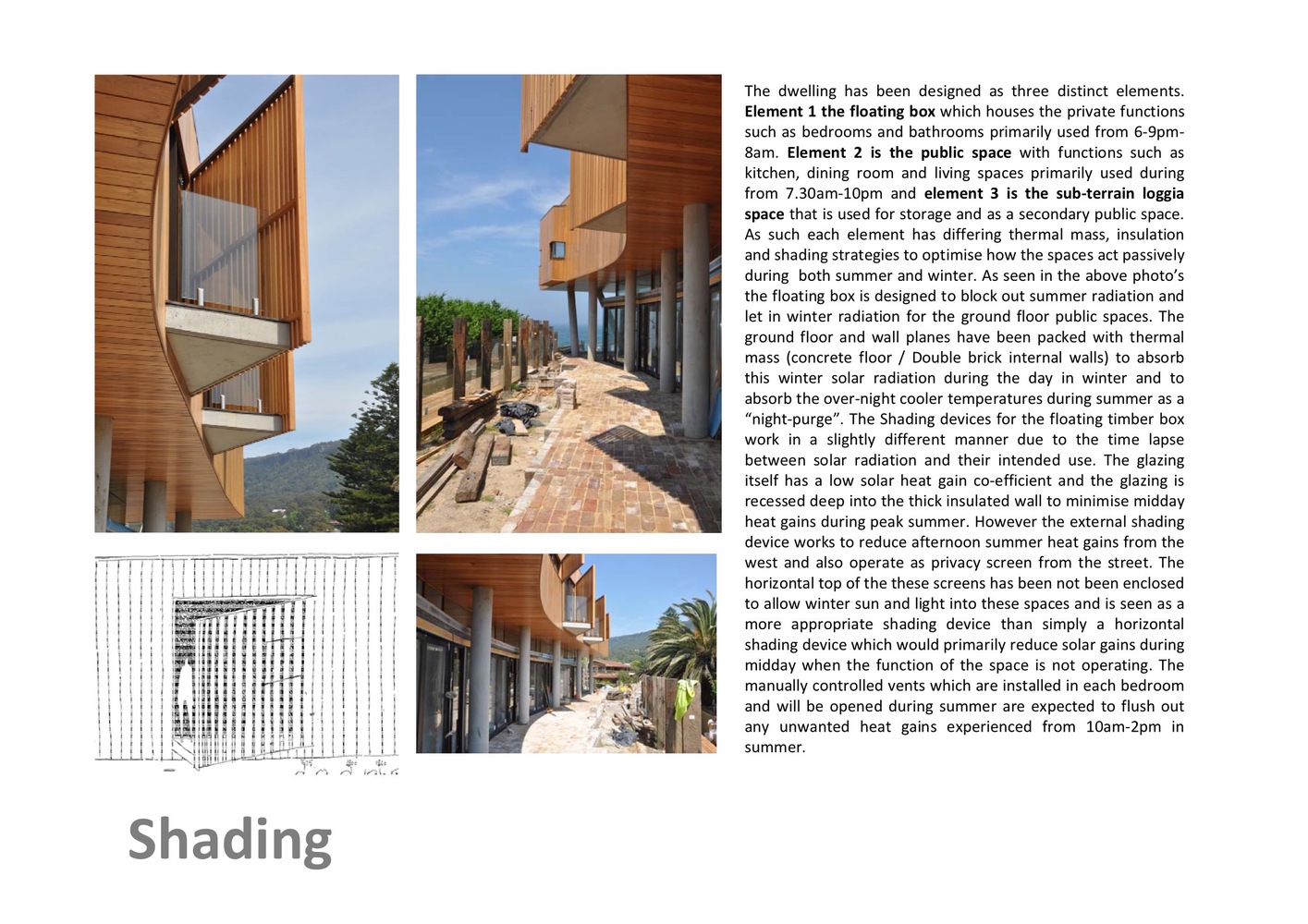

The dwelling has been designed as three distinct elements. Element 1 is the floating box which houses the private functions such as bedrooms and bathrooms. Element 2 is the ground floor that connects with the surrounding environment and Element 3 is the sub‐terrain loggia space that is used for storage and as a secondary communal space during inclement weather.

Each element is performs a different function and as such has differing thermal mass, insulation and shading strategies to optimise how the spaces act passively during both summer and winter.

Therefore an electronic updatable home user guide that is linked to the owners computer and can be accessed via the internal communications dashboard informs the occupant of which windows and at what time of the year and day a purge should be implemented.

Similarly the home user guide reminds the owner when the building requires a high pressure hose down to prolong life of he external cladding materials in the harsh salt spray environment and what the number of the tradesperson is to do it.
