Dra. Campoy Dental Clinic

Dra. Campoy Dental Clinic
© David Frutos

Dra. Campoy Dental Clinic

Jaime Sepulcre Bernad

MANUFACTURES
Finsa, Polyrey, Saint-gobain

PHOTOGRAPHS
David Frutos

AREA
225 m²

YEAR
2012

LOCATION
Murcia, Spain

CATEGORY
Clinic

Text description provided by architect.


On a perfectly square diaphanous room -15 x 15 m- with four central pillars, the project proposes the structuring of the future clinic in three programmatic bands of very similar proportions:

Dra. Campoy Dental Clinic
© David Frutos
Dra. Campoy Dental Clinic
© David Frutos

WAITING AREA

The first band is the most public, which is accessed and basically contains the reception and a large waiting room.

All this generous space of reception and waiting opens its views towards an outer square through the great circles that make up the facade.

The reception, organized in a circular piece of furniture, becomes the centerpiece of this first space and from it is controlled its operation.

Dra. Campoy Dental Clinic
© David Frutos
Dra. Campoy Dental Clinic
© David Frutos

After the reception, there is a small administration office and a small relaxation room.

DENTAL SPACE

The most intimate and protected part of the clinic is the properly clinical band that appears alongside the back facade facing a boulevard.

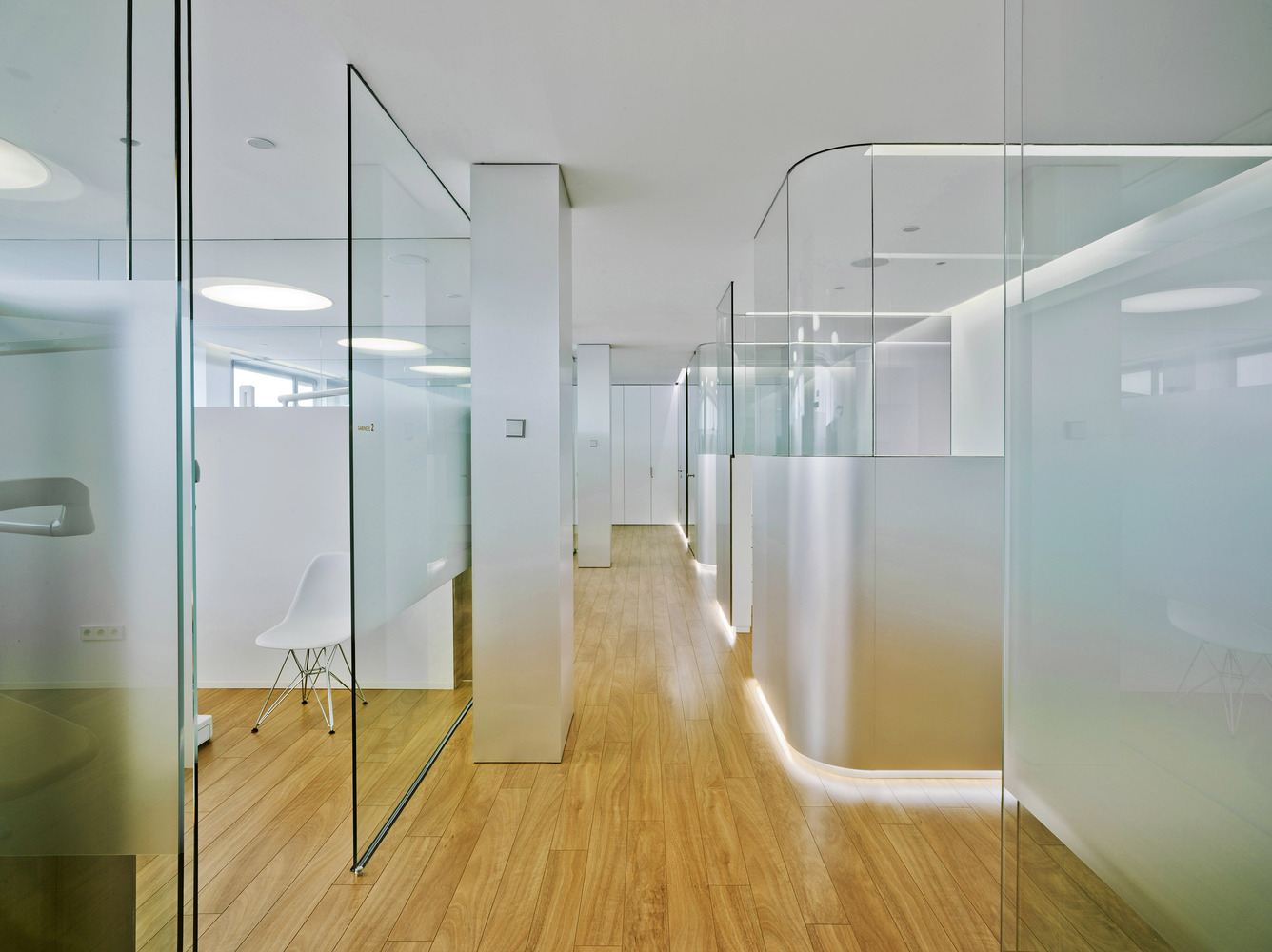

This dental care space is composed of a battery of five cabinets connected to each other visually. In this band also appears a secondary access for exclusive use of the personnel.

Dra. Campoy Dental Clinic
© David Frutos
Dra. Campoy Dental Clinic
© David Frutos

SERVER AREA

Finally, between the most extrovert and the more introverted space appears an intermediate band that makes of filter and that contains all the uses properly servants.

This servant band is carried out by the sterilization room around which the functioning of the dental offices gravitates.

Dra. Campoy Dental Clinic
© David Frutos
Dra. Campoy Dental Clinic
© David Frutos

In this band are also the ray room, the laboratory, the engine room, the staff room, the wardrobe, the office of the doctor and the toilets for patients.

THREE MATERIALS

Three material ideas formalize this space with vocation of continuous space - constant height 2.70 m.

Dra. Campoy Dental Clinic
© David Frutos
Dra. Campoy Dental Clinic
© David Frutos

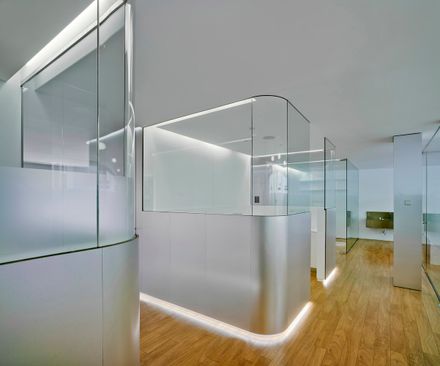

1 / The idea of ​​achieving maximum transparency through the use of "glass"; 2 / The idea that the only pieces that appear loose are the three boxes that make up the intermediate band and that materialize like metal boxes, of "aluminum"; And 3 / the idea that the whole plane of the ground is a single material, continuous, and warm, human, "wood" - which is finally a good laminate-. And the rest, white.

URBAN LOGO

The idea for the facade was to take a fragment of the logo of the clinic and expand it to scale city. The new facade therefore relies on a corporate image that was already consolidated and now acquires an urban scene size.

Dra. Campoy Dental Clinic
© David Frutos


Dra. Campoy Dental Clinic
© David Frutos
Dra. Campoy Dental Clinic
© David Frutos
Dra. Campoy Dental Clinic
© David Frutos
Dra. Campoy Dental Clinic
© David Frutos


Dra. Campoy Dental Clinic
Sections
Dra. Campoy Dental Clinic
Floor Plan
Dra. Campoy Dental Clinic
Diagram
