Daniel Arev Architecture

N.Z House No.1

N.Z House No.1
© Daniel Arev

N.Z House No.1

Daniel Arev Architecture

ARCHITECT IN CHARGE
Daniel Arev

CONSTRUCTION DESIGN
Iyad Herzallah

CARPENTRY
Arkadi Baskin, Global Carpentry

METAL WROK
Itay Shamban, A Different Angle Metal Shop

ALUMINUM
Element

CONSTRUCTION
Sade Mari

ELECTRICIANS
Lev Amit

MANUFACTURERS
Cortizo

GARDEN DESIGN AND CONSTRUCTION
Adi & Eyal

PHOTOGRAPHS
Daniel Arev

AREA
300 m²

YEAR
2018

LOCATION
Ness Ziona, Israel

CATEGORY
Houses, Houses Interiors

A 350 sq ”m plot located on a slope overlooking a lovely scenic view, led to strategic positioning the house with a clear axis leading to the view from the entrance door, through the ground floor, to the rear glass facade.

N.Z House No.1
© Daniel Arev
N.Z House No.1
© Daniel Arev

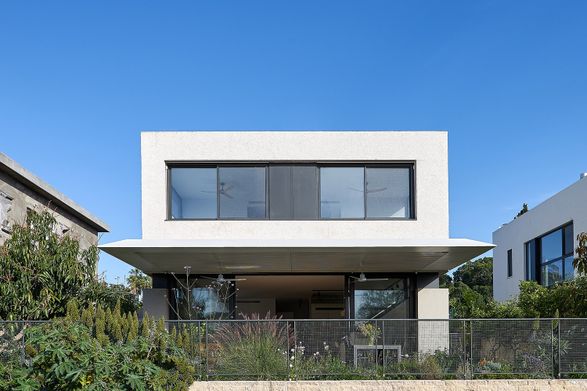

The front facade, facing the street, was kept relatively closed, mainly to keep the occupants' privacy, but also as a means of keeping the wonderful rear view, a pleasant surprise once entering the house.

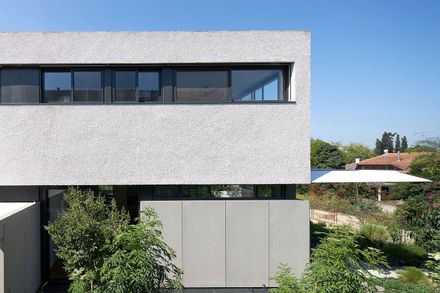

The ground floor was cladded with gray colored fiber cement boards, which creates a “breathing” facade, contributing to the thermal insulation of the house by allowing an “air pocket” between the outer clad and the concrete walls, to naturally ventilate the trapped air.

N.Z House No.1
© Daniel Arev
N.Z House No.1
© Daniel Arev

A 50 m ”m super insulating plaster was applied to the first floors' facade and then a rough textured white mineral plaster was added to it, in order to keep the direct sun radiation minimal.

The use of these materials helped to emphasize the main design theme of clear separation of the ground and the- “white box” first floor above it.

N.Z House No.1
© Daniel Arev
N.Z House No.1
© Daniel Arev
N.Z House No.1
© Daniel Arev

All windows of the house are made out of an advanced, double glazed and double faced, highly insulating aluminum system, which allows the outside views to be enjoyed while keeping out the heat and cold.

External electrical Venetian blinds were installed to give extra protection to the windows, providing versatile control over the direct sun rays penetrating the house during the daytime.

N.Z House No.1
© Daniel Arev
N.Z House No.1
© Daniel Arev

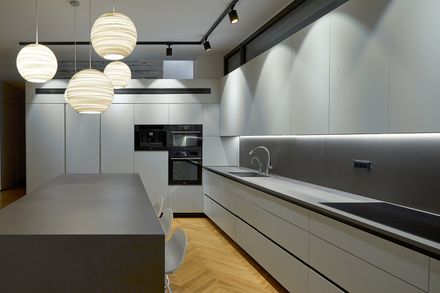

Although the site is relatively compact, the layout of the floors creates a cozy family home with room for all of the clients' demands.


N.Z House No.1
© Daniel Arev
N.Z House No.1
© Daniel Arev
N.Z House No.1
© Daniel Arev
N.Z House No.1
© Daniel Arev
N.Z House No.1
© Daniel Arev
N.Z House No.1
© Daniel Arev


N.Z House No.1
© Daniel Arev
N.Z House No.1
© Daniel Arev
N.Z House No.1
© Daniel Arev
N.Z House No.1
© Daniel Arev
N.Z House No.1
© Daniel Arev
N.Z House No.1
© Daniel Arev
N.Z House No.1
© Daniel Arev
N.Z House No.1
© Daniel Arev


N.Z House No.1
Ground Floor Plan
N.Z House No.1
First Floor Plan
N.Z House No.1
Second Floor Plan
N.Z House No.1
Sections
