Teacher Training Center
TEACHER TRAINING CENTER
Ramón Fernández-Alonso
LOCATION
Granada, Spain
YEAR
2012
CATEGORY
University, Other Facilities
ARCHITECTS
Ramón Fernández-alonso
ILLUMINATION
Anton Amann, Arq., Mikel Juarrero, Ing. Als Lighting
MANUFACTURERS
Akaba, B.lux, Lopez Soto
PROPERTY DEVELOPER
Arzobispado De Granada
TECHNICAL ARCHITECTS
Miguel Ángel Jiménez Dengra, Rafael Palma Moyano Y Francisco Torres Ramirez
CERAMIC
Cumella. Decorativa
FURNITURE MANUFACTURATED BY
Decofisur. Juan José Fernández
ELEMENTS OF ILLUMINATION
B.lux
COST
14.919.265,26 Euros
CONTRACTOR
Construcciones Calderón S.l.
Text description provided by architect.

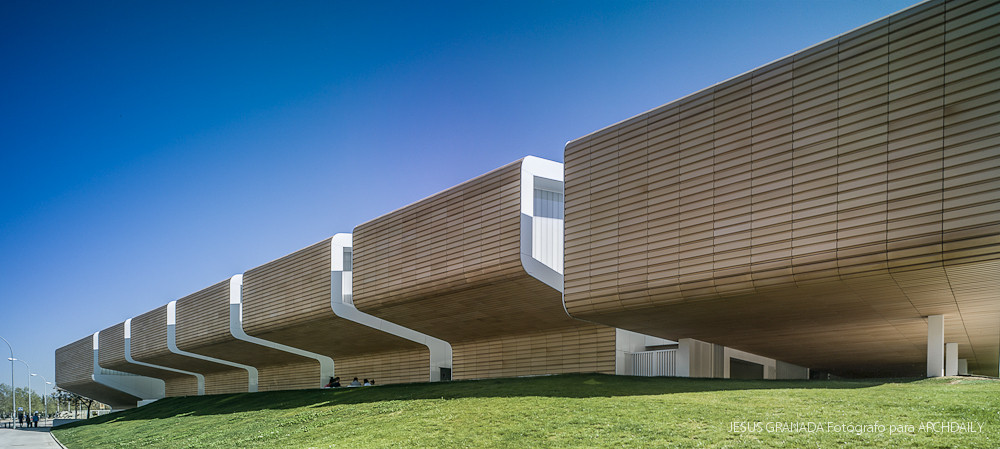

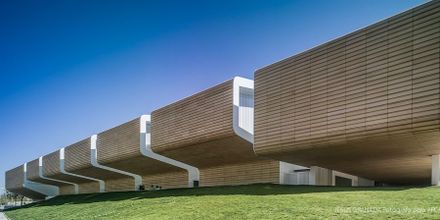

The initial idea of providing an architecture close, almost family both in the composition of spaces as in the treatment of light and texture that providing ceramic skin.
The materiality of this building is linked from the beginning to the argument of the project process. Ground floor is projected as a threshold space compressed by the building itself its upper floors.
We can say that the building’s project is the ceramic enclosure of their classrooms that hangs over the city map.
This basic approach results from the structural solution adopted by this project based on the study of the section:
a roof truss, containing the two upper floors of classrooms and departments, supported by two lines of brackets, saving a long distance, under which common areas are developed in continuity with the outside landscaped terraces and protected by a powerful cantilever.
The building is conceived structured in four levels: two below ground, for parking and three above ground containing the program divided into six areas:
Common areas, located on the ground floor and composed mainly of following areas: vestibular areas, cafeteria, library, auditorium, gymnasium, stationery, photocopying.
Teaching area, located on the first floor and part of the second floor, comprising classrooms and workshops for students.
Departmental area, consists of the offices and meeting areas and consultation teacher, on the second floor.
Management and secretarial area, located on the ground floor.
Parking area, located in the semibasement and basement of the building, has 300 spaces for vehicles. Church, with separate entrance from the outside.
The initial idea of providing an architecture close, almost family both in the composition of spaces as in the treatment of light and texture that providing ceramic skin.
The materiality of this building is linked from the beginning to the argument of the project process. Ground floor is projected as a threshold space compressed by the building itself its upper floors.
One can say that this building project is the ceramic surround their classrooms that hangs over the city map.
This basic approach results in the structural solution adopted for this project based on the study of the section: a roof truss, containing the two upper floors of classrooms and departments, supported by two lines of media saving a long span, under which common areas are developed in continuity with the outside areas of landscaped terraces and protected by a powerful cantilever.
