SENTIDOS VETERINARY CLINIC

Ocre Arquitetura

PHOTOGRAPHS
Cristiano Bauce

CLIENTS
Clínica Veterinária Sentidos

LEAD ARCHITECTS
Diego Flamia / Thiago Yuuki Kajiwara

MANUFACTURERS
Am Decor, Alumividro, Deca, Esquadrias Finestra, Esquadrias Moschetta, Molder Estruturas

AREA
2045 ft²

ENGINEERING
Molder / Fundacorp

LANDSCAPE
Ocre Arquitetura

LOCATION
Bento Gonçalves, Brazil

YEAR
2019

CATEGORY
 Veterinary Clinic

Sentidos Veterinary Clinic
© Cristiano Bauce
Sentidos Veterinary Clinic
© Cristiano Bauce

Text description provided by architect.

The project for a veterinary clinic with area of ​​approximately 190m² is located in Bento Gonçalves, in Rio Grande do Sul.

Sentidos Veterinary Clinic
© Cristiano Bauce
Sentidos Veterinary Clinic
© Cristiano Bauce

To include the entire clinic program, the project was implemented in order to occupy the site up to its side borders.

In this way, internal gardens were created to integrate the work rooms with the vegetation from the outside providing natural lighting and ventilation through floor ceiling wide windows.

Sentidos Veterinary Clinic
© Cristiano Bauce
Sentidos Veterinary Clinic
© Cristiano Bauce

The access to the clinic is made through a side corridor, marked by an inclined plane of exposed concrete blocks.

Concrete is also visible in the precast structure of beams, columns and closing panels.

Sentidos Veterinary Clinic
© Cristiano Bauce
Sentidos Veterinary Clinic
© Cristiano Bauce

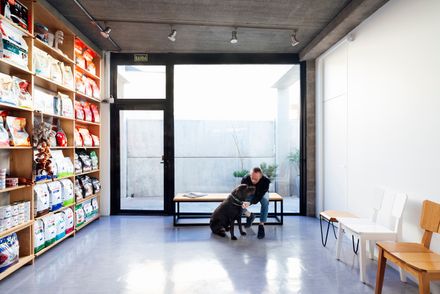

From the reception there is access to the examination rooms that are located in the frontal portion of the building.

These rooms overlook the street through the main façade, which is protected by a vertical wooden brise that provides security and privacy.

Sentidos Veterinary Clinic
© Cristiano Bauce
Sentidos Veterinary Clinic
© Cristiano Bauce

A secondary entrance was designed for the access of the team and has a direct connection with the restricted areas of the clinic, such as surgery and hospitalization.

This project was developed throughout the year 2018 with the premise of executing a quick work, with industrialized elements and components, all designed by the architectural team.

During the execution in 2019, the design strategies made it possible to minimize construction activities on site, resulting in a rational, economically sustainable work, with low waste and greater construction precision.

Sentidos Veterinary Clinic
© Cristiano Bauce


Sentidos Veterinary Clinic
© Cristiano Bauce
Sentidos Veterinary Clinic
© Cristiano Bauce
Sentidos Veterinary Clinic
© Cristiano Bauce
Sentidos Veterinary Clinic
© Cristiano Bauce


Sentidos Veterinary Clinic
© Cristiano Bauce
Sentidos Veterinary Clinic
© Cristiano Bauce
Sentidos Veterinary Clinic
© Cristiano Bauce
Sentidos Veterinary Clinic
© Cristiano Bauce
Sentidos Veterinary Clinic
© Cristiano Bauce


Sentidos Veterinary Clinic
© Cristiano Bauce
Sentidos Veterinary Clinic
© Cristiano Bauce
Sentidos Veterinary Clinic
© Cristiano Bauce
Sentidos Veterinary Clinic
© Cristiano Bauce


Sentidos Veterinary Clinic
Longitudinal section
Sentidos Veterinary Clinic
Cross section


Sentidos Veterinary Clinic
North elevation
Sentidos Veterinary Clinic
South elevation


Sentidos Veterinary Clinic
Plan
Sentidos Veterinary Clinic
Axonometric
Sentidos Veterinary Clinic
Constructive detail
