ADELFAS RESIDENTIAL BUILDING

Ruiz Larrea Y Asociados

YEAR
2019

LEAD ARCHITECT
Gorka Álvarez Ugalde

CLIENT
Acciona Inmobiliaria

MANUFACTURERS
Cifre Cerâmicas, Guardian Glass, Kommerling, Pamesa Ceramica, Placo, Rockwool, Soprema, Uponor, Arcelor Mittal, Berkosan Iberica, Cristalerías Y Aluminios Luncrist, Danosa, Hulk Soft, Ideal Standard, Lg, Neopor, Revestech, Rockwool Peninsular, Siber, Suelo Radiante Uponor, VSL Construction Systems.

ENGINEERING
Plenum Ingenieros

CONSULTANTS
Lac Consultores De Estructuras

DESIGN TEAM
César Ruiz-larrea, Antonio Gómez, Gorka Álvarez, Miguel Díaz, Paula Ferruz, Margarita Álvarez Blanco, Juan Hernández Torres, Javier De Andrés De Vicente, Javier Alejo Ayllón

LOCATION
Madrid, Spain

COLLABORATORS
Julio Pedro González. Atc

CATEGORY
Apartment

Text description provided by architect.

Adelfas 98 was born, from first sketches, with the premise of complying with the highest sustainability criteria through the application of strategies that configure the passive architecture of this building.

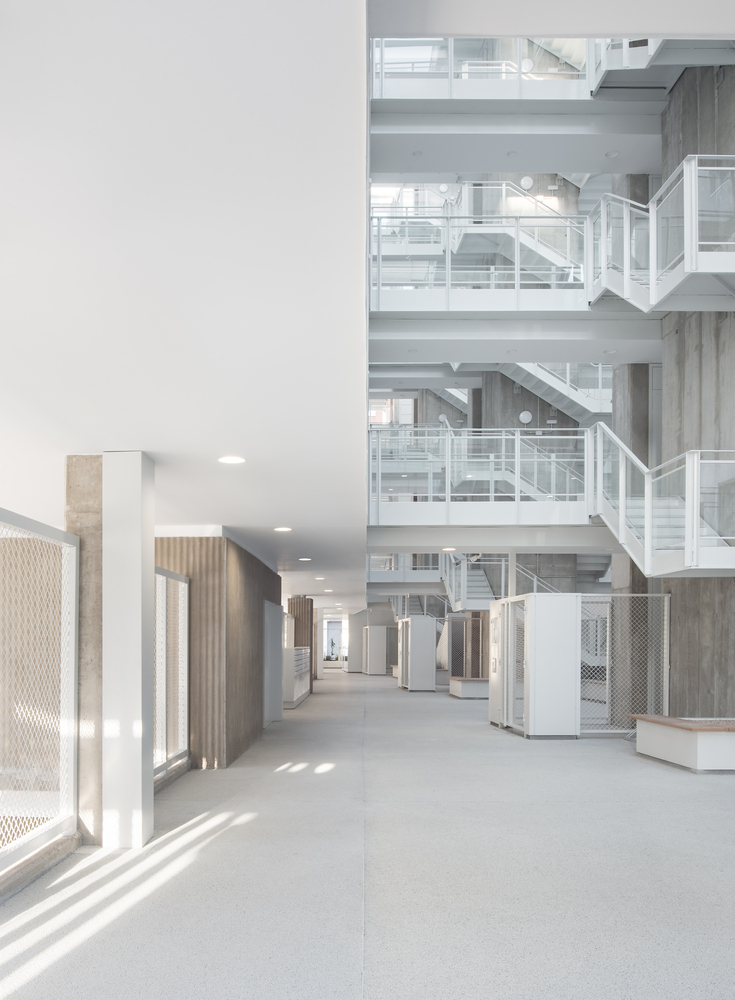

Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui

The freedom emanated from the regulations to realize the establishment, bring us to analyze the plot under energy optimization criteria to define the optimal volumetry, guaranteeing the maximum number of dwellings with the right natural lighting.

The block is divided in two volumes, generating alignments to the largest plot´s sides, creating an inside crack of light and ensuring that all homes will be sequenced level with north-south orientation.

Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui

In that solution takes precedence the horizontal-shaped holes thinking about the relation between those spaces with the green areas that enclose the building.

There is a differentiation between the exterior volume skin, resolved by 10cm rockwool insulation ventilated façade, where vertical holes dominates, and the interior skin, realized with 14cm rock wool SATE system.

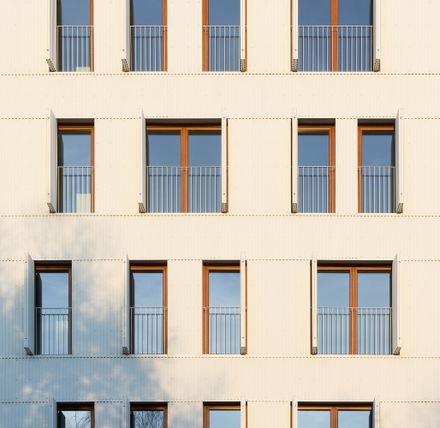

Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui

A continuous isolation that include the entire skin to avoid the thermal bridge and the “solar gains”, increasing with that rip in the two-pieced volume, the façade surface which receives solar radiation directly.

On the other hand, we realize a distinction between facades.

Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui

Those sustainability strategies are based on the one hand; on the “shape factor” study of the volume just for ensure that it is the best which take advantage of the climatic conditions of the place and its relation with the environment.

At the same time, we have decided to design a volumetry aligned to M-30 Street, improving the building presence in its surroundings, collaborating in addition to maintain the street alignment.

Adelfas Residential Building
© Lucía Gorostegui


Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui
Adelfas Residential Building
© Lucía Gorostegui


Adelfas Residential Building
Gif - 01
