NEW PASTORALISM LECTURE HALL

SYN architects

ARCHITECTS
Syn Architects

ARCHITECT IN CHARGE
Yingxi Zou

CONSTRUCTION
Huacheng Boyuan Construction Engineering Co.ltd.

CILENT
New Pastoralism Investment Co.ltd.

DESIGN TEAM
Jiansheng Liu, Yang Xie

MANUFACTURERS
Novofibre

PHOTOGRAPHS
Benmo Studio / Ming Yan

AREA
1618 m²

YEAR
2014

LOCATION
China

CATEGORY
Auditorium

Since ancient times, Chinese writers and poets have shown a deep appreciation for bamboo. By praising the beauty of exquisitely crafted gardens, these gentlemen created an extensive cultural history immersed in a unique richness of textures.

New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan
New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan

New Pastoralism’s Lecture Hall sits at Yangshan –a town close to the city of Wuxi– and uses bamboo as the main building element in its design.

PROJECT LOCATION

New Pastoralism’s Complex at Yangshan, Wuxi, is the first pastoral complex in China. Located in Jiangsu –a province in Southern China–, Yangshan town is famous for growing delicious honey peaches in the suburbs of the renowned city of Wuxi, along the coast of the Taihu Lake.

New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan
New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan

As the landmark of the complex, New Pastoralism’s Lecture Hall stands at the heart of the park, perfectly integrated into the pastoral scenery, almost like growing naturally from within.

Given that the location was originally a bamboo forest; the architect Mr. Zou Yingxi respected the foundations of the area, to establish a dialogue between the Lecture Hall and the surrounding environment through the use of ecological materials, expressing and strengthening the meaning behind the “Site of the Pastoralism’s Declaration”, in the features of the building.

New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan
New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan

Composed by three distinctive areas, the venue’s indoors, the outdoors recreation area and an extension towards a vast green landscape; the construction covers an area of 1,618 square meters.

Given that the location was originally a bamboo forest; the architect Mr. Zou Yingxi respected the foundations of the area, to establish a dialogue between the Lecture Hall and the surrounding environment through the use of ecological materials, expressing and strengthening the meaning behind the “Site of the Pastoralism’s Declaration”, in the features of the building.

THE STRUCTURE

The building displays an irregular triangular shape. Observed from a distance, its body integrates the indoor and outdoor sections of the Lecture Hall into a grey structure that sits in the middle of the view to the park.

New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan
New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan
New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan

At the same time, the contour of the area occupied by the structure equals the hypotenuse of its triangle.

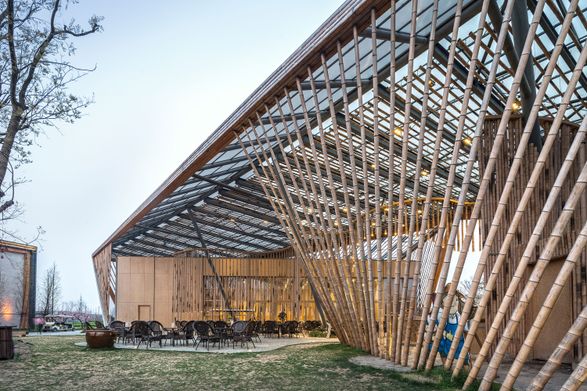

The upper and lower sections are connected with bamboo stems, as crossed elements that form a hyperbolical shape designed to penetrate the line of vision, forming a transparent space with a pulsating atmosphere. In this way, from every angle, the Lecture Hall presents unique and properly balanced modeling characteristics.

THE MATERIALS

“Lightness” is one of the distinctive features of the Lecture Hall – light materials, nimble structure.

New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan
New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan
New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan

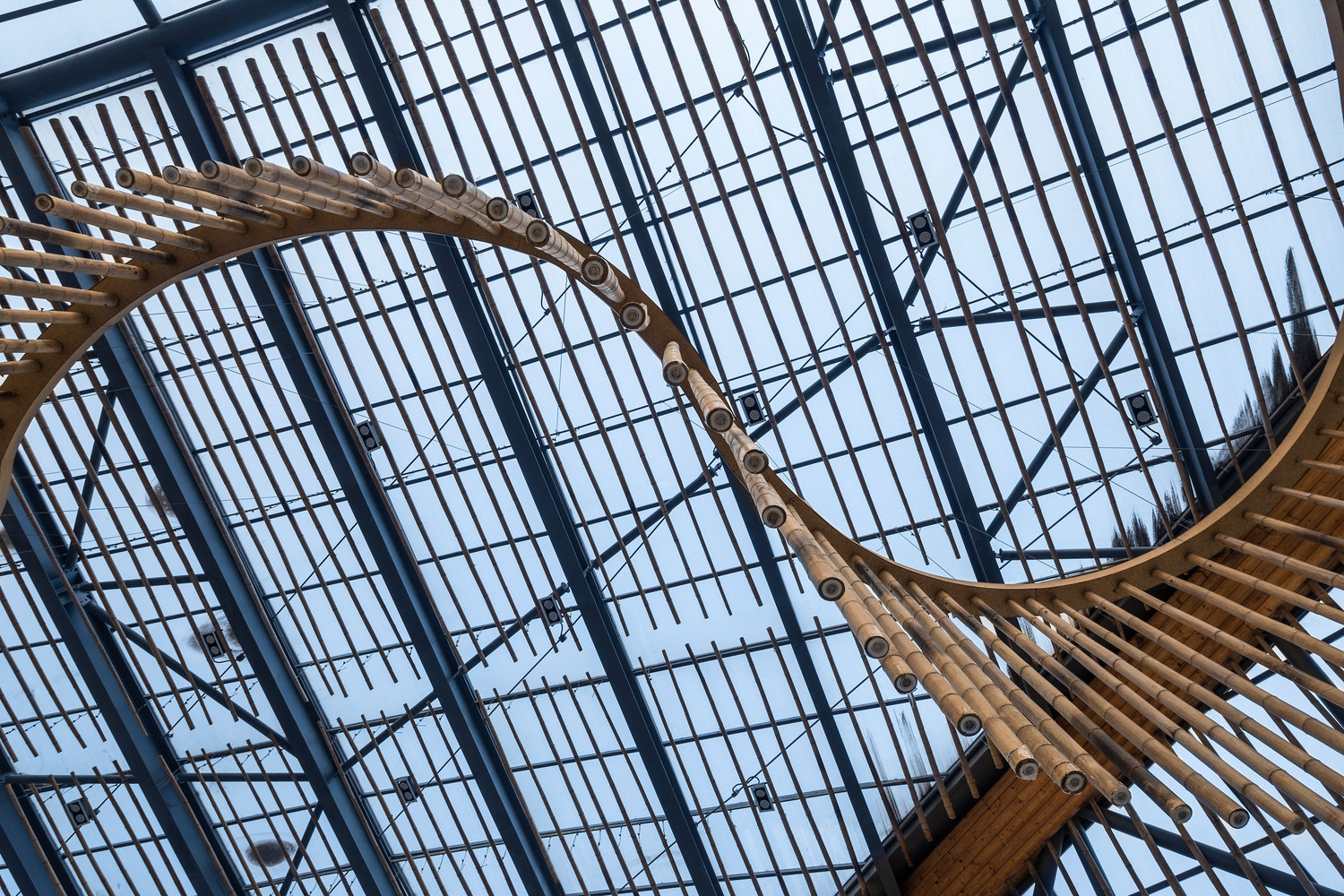

On the one hand, the building is made of a steel structure; the arched elements on the upper level make the roof even more transparent to “give way to” the sky.

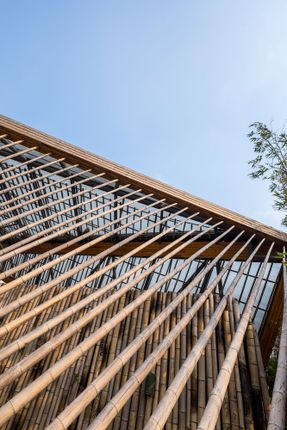

On the other hand, the building uses bamboo as a protective system. Its vertical support arrangement shows a rich and beautiful sequence, equivalent to a rope structure that creates reverse tension, eventually achieving proper balance of contrary forces to offset the structure.

MATERIALS SELECTION

The entire project is based on the concept of “integration”, of interpreting landscapes, people and architecture, people and the environment, as well as materials and landscape.

New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan
New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan
New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan

The large number of bamboo elements does not affect air circulation or air penetration, as the holes between the bamboo stems and their thin dimensions produce effects of “permeability” and “integration”, making the pastoral scenery harmonize with the structure, giving the sensation of an open space.

Undoubtedly, bamboo magnificently represents dialogue with the surrounding area, delivering a sense of security, without compromising the appreciation of the visual atmosphere, granting the Lecture Hall with a unique aura, almost as if it were growing from the soil itself, as a natural and unobtrusive living being.

New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan
New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan

Undoubtedly, bamboo magnificently represents dialogue with the surrounding area, delivering a sense of security, without compromising the appreciation of the visual atmosphere, granting the Lecture Hall with a unique aura, almost as if it were growing from the soil itself, as a natural and unobtrusive living being.

The architect transforms bamboo, from a simple local material, into the very definition of an expressive language for sustainability in buildings.

New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan
New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan

In fact, the bamboo used in the project was treated with specialized processes including straitening by drying, lacquering, etc., to improve the quality and durability of the material, extensively reducing maintenance costs.

Additionally, the floor of the Lecture Hall uses recycled floor tiles, showing respect for Nature through the appliance of recycled materials, as one of the principles of the architect is to be responsible for the future, “allowing architecture to interact with its surrounding environment over the course of time.”

New Pastoralism Lecture Hall
© BenMo Studio / Ming Yan
New Pastoralism Lecture Hall
Elevation

“The final interpretation of a building can only be achieved through the provision of definite content into its empty spaces.

In this case, this implies the use of natural materials that portray real space on empty spaces, while every notion of reality serves emptiness at the same time.”

New Pastoralism Lecture Hall
Elevation
New Pastoralism Lecture Hall
Section

When the designer harmoniously unifies incompatible design philosophies with the ideology of pastoralism, the result is an amazing example of unification between urban and rural dimensions, generating a new concept of sustainable architecture.


New Pastoralism Lecture Hall
Site Plan
New Pastoralism Lecture Hall
Site Plan
New Pastoralism Lecture Hall
First Floor Plan
New Pastoralism Lecture Hall
Roof Plan
New Pastoralism Lecture Hall
Skin Roof Plan
New Pastoralism Lecture Hall
Concept Diagram
