Small earth house with local wood, clay and traditional techniques in contemporary environment performance.

Shell House
© Tono Mirai Architects
Shell House
© takeshi noguchi

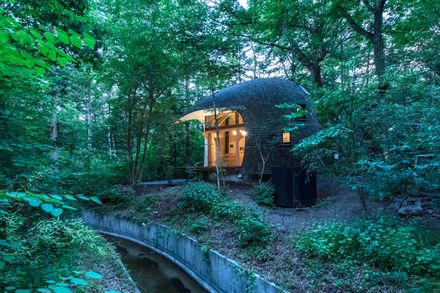

It is a small villa in the forest of Nagano Pref. located centre of Japan.

A client's request that "architecture that is unusual, beautiful, and does not make you feel old in time" and strict condition of the retreat line by the landscape regulation and the building volume ratio of 20% of 290M2 site were design requirements.

Shell House
© takeshi noguchi
Shell House
© takeshi noguchi

Following that, close the north / west side that lots of passengers, waterway flows, and a large opening to take in sunlight and heat.

Think about the organic shape of "totally blend into the surrounding forest" which it has on the east and south side. To be a model of house less environmental impact, with local FSC wood, earth and people's hands without petrochemical materials.

Shell House
© takeshi noguchi
Shell House
© takeshi noguchi

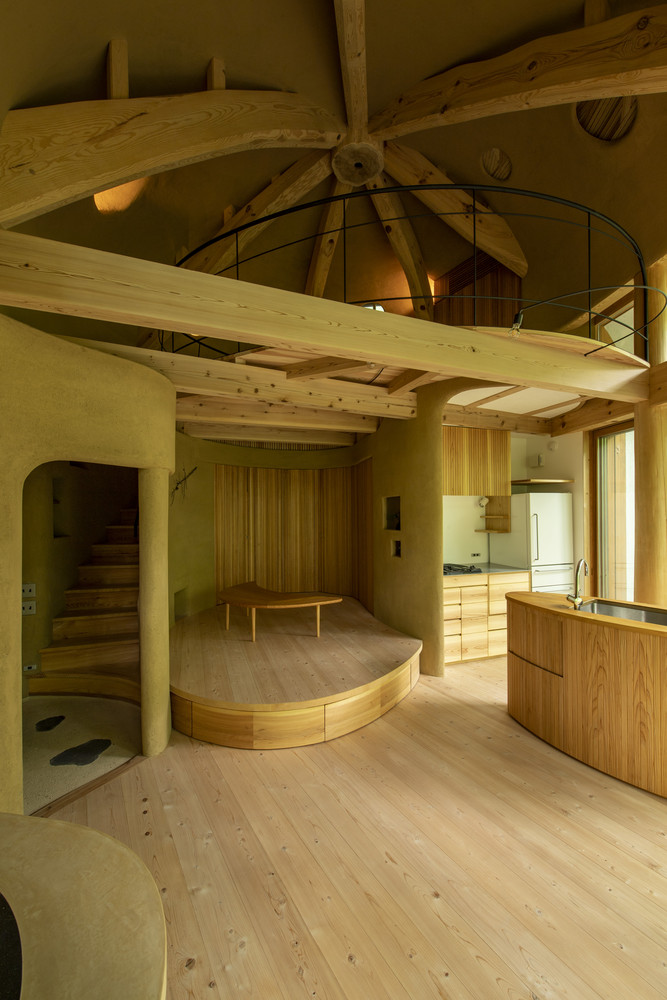

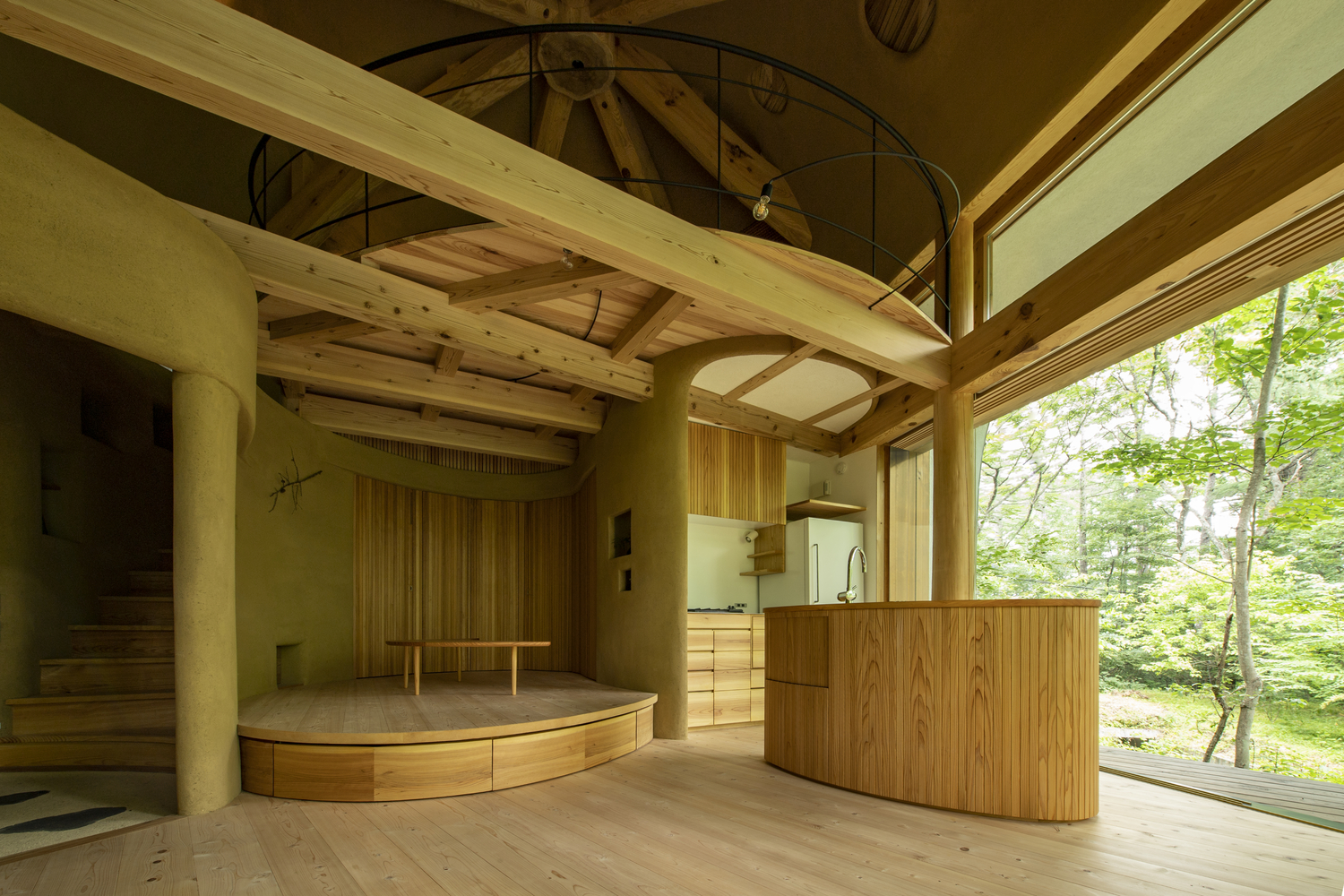

All the interior rooms are finished with local earth and wood. The earth wall of the curved surface gently stretches across the whole. When drawing in the southeast wooden fittings, it becomes integrated with the forest through the wood deck.

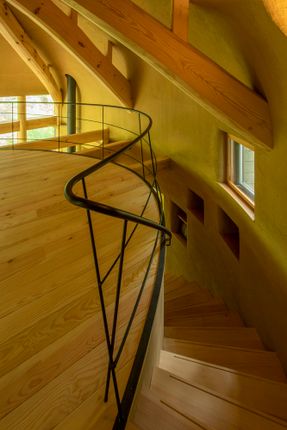

On the first floor, change with a stepped up, with sanitary and restroom in the back of continuous wooden doors.

Shell House
© takeshi noguchi
Shell House
© takeshi noguchi

This house is designed according to passive design. Outside wall, roof and ceiling average heat transmission coefficient UA = 0.49.

(W/m2K), Japanese environmental assessment CASBEE S ☆ ☆ ☆ ☆ ☆ and satisfying the primary energy consumption standards in Japan reduction of 11%. The earth wall is combined with 180 mm wool insulation U = 0.207 (W/m 2 K).

Shell House
© takeshi noguchi
Shell House
© Tono Mirai Architects

Seven beams born from the organic earth wall are expressed the cycle of life of the human and universe.

And the two inscribed circles represent the correspondence of them. It is the architecture talked to human born from and return to Earth.

Shell House
© takeshi noguchi
Shell House
© takeshi noguchi
Shell House
© takeshi noguchi


Shell House
© takeshi noguchi
Shell House
© takeshi noguchi
Shell House
© takeshi noguchi
Shell House
© takeshi noguchi
Shell House
© takeshi noguchi
Shell House
© takeshi noguchi
Shell House
© takeshi noguchi
Shell House
© takeshi noguchi


Shell House
© takeshi noguchi
Shell House
© takeshi noguchi
Shell House
© takeshi noguchi
Shell House
© takeshi noguchi
Shell House
© takeshi noguchi
Shell House
© takeshi noguchi
Shell House
© takeshi noguchi
Shell House
© takeshi noguchi
Shell House
© takeshi noguchi


Shell House
© takeshi noguchi
Shell House
© takeshi noguchi
Shell House
© takeshi noguchi
Shell House
© takeshi noguchi


Shell House
© Tono Mirai Architects
Shell House
© Tono Mirai Architects


Shell House
First Floor Plan
Shell House
Second Floor Plan
Shell House
Roof Plan


Shell House
Site Plan
Shell House
Site Plan
Shell House
Plan


Shell House

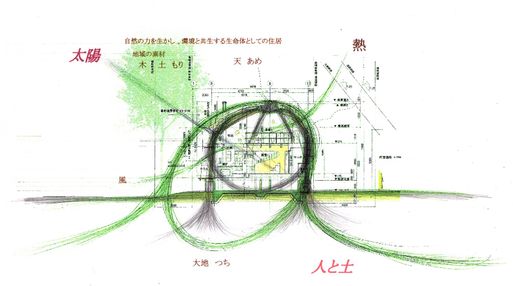

Concept 01
Shell House
Concept 02


Shell House

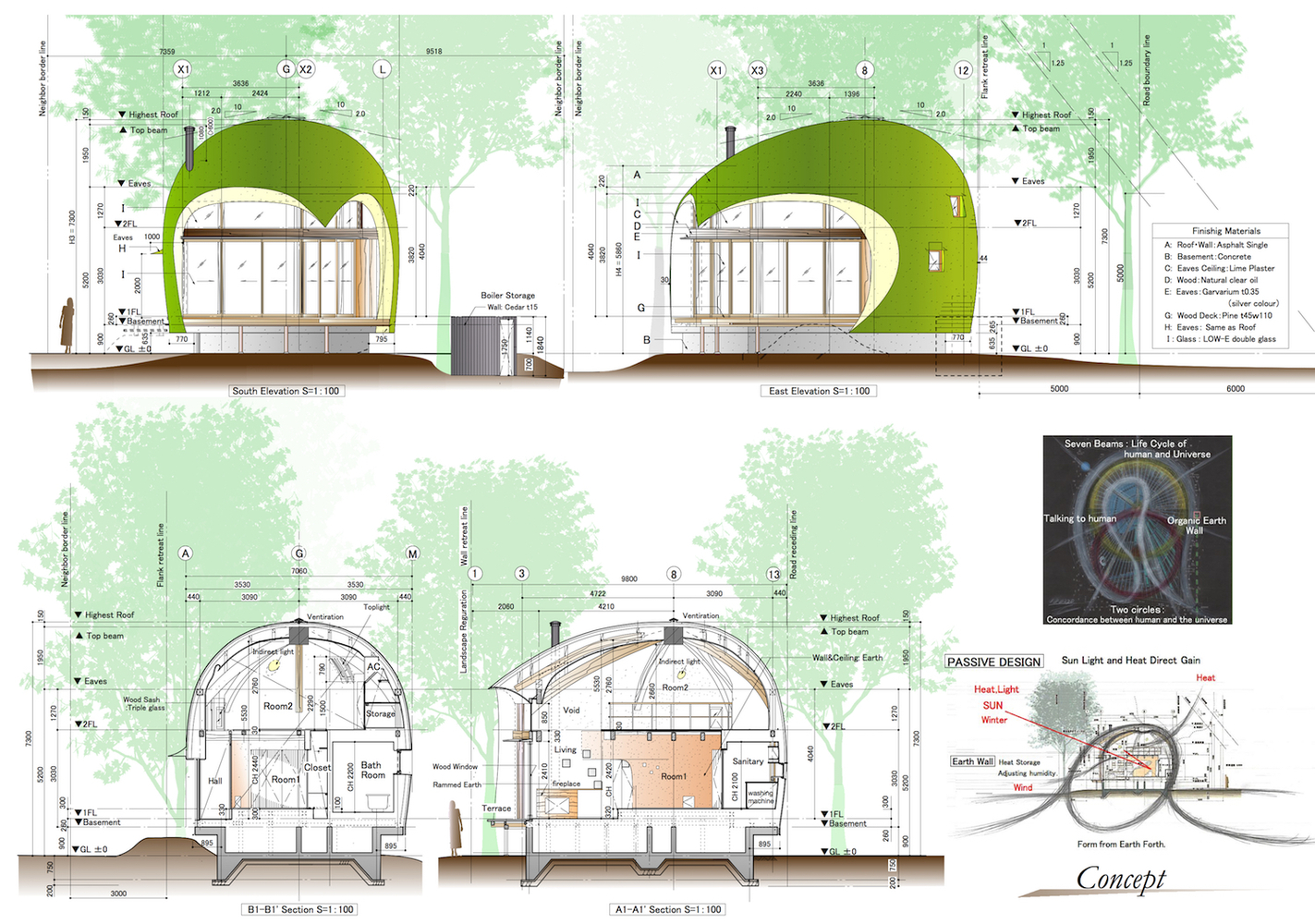

Sections and Elevations
