Sai Gon Thuong Mai Hotel

SAI GON THUONG MAI HOTEL

H2 Arch

Sai Gon Thuong Mai Hotel
© Quang Dam

ARCHITECTS
H2 Arch

PHOTOGRAPHS
Quang Dam

LEAD ARCHITECTS
Tran Van Huynh, Nguyen Thi Xuan Hai

MANUFACTURERS
Caesar, Phu Gia Khang, Tacera, Whetstone

COLLABORATOR
Viet Nguyen Architect

YEAR
2014

AREA
849 m²

LOCATION
Thành Phố Vinh, Vietnam

CATEGORY
Hotel

Sai Gon Thuong Mai Hotel
© Quang Dam
Sai Gon Thuong Mai Hotel
© Quang Dam

Text description provided by architect.

The hotel is located in the center of Vinh - the area happens much commercial and travel activities. It was rebuilt from the old one which has a curved surface in shape.

The curved surface made the front of the building seem to occult by others. Quality of covered materials and furniture in the hotel also reduced. The running function was not suitable for use necessaries.

The task for architects to solve out first is making a brand new facade that is more exciting and easy to recognized by pedestrians. Second, the function and interior need to be reset for more effective using.

Sai Gon Thuong Mai Hotel
© Quang Dam
Sai Gon Thuong Mai Hotel
© Quang Dam
Sai Gon Thuong Mai Hotel
© Quang Dam

Besides, getting natural wind and sunlight is also an important point to design the place while contributing interesting scenes. Last but not least, the building tends to be made up with sustainable and green materials aesthetically.

The architects of H2 Arch worked with the locals to understand the resource out there and knew that it’s so abundant in wood. So the wood product is also made with a large amount involving many joinery shops waste lots of wood slab.

That made the concept of using small wooden pillars be born. We collected the wood slab, planned and rolled them into many small wooden pillars with same size combining with iron frames to set some kinds of the module.

Sai Gon Thuong Mai Hotel
© Quang Dam
Sai Gon Thuong Mai Hotel
© Quang Dam
Sai Gon Thuong Mai Hotel
© Quang Dam

That made the concept of using small wooden pillars be born. We collected the wood slab, planned and rolled them into many small wooden pillars with same size combining with iron frames to set some kinds of the module.

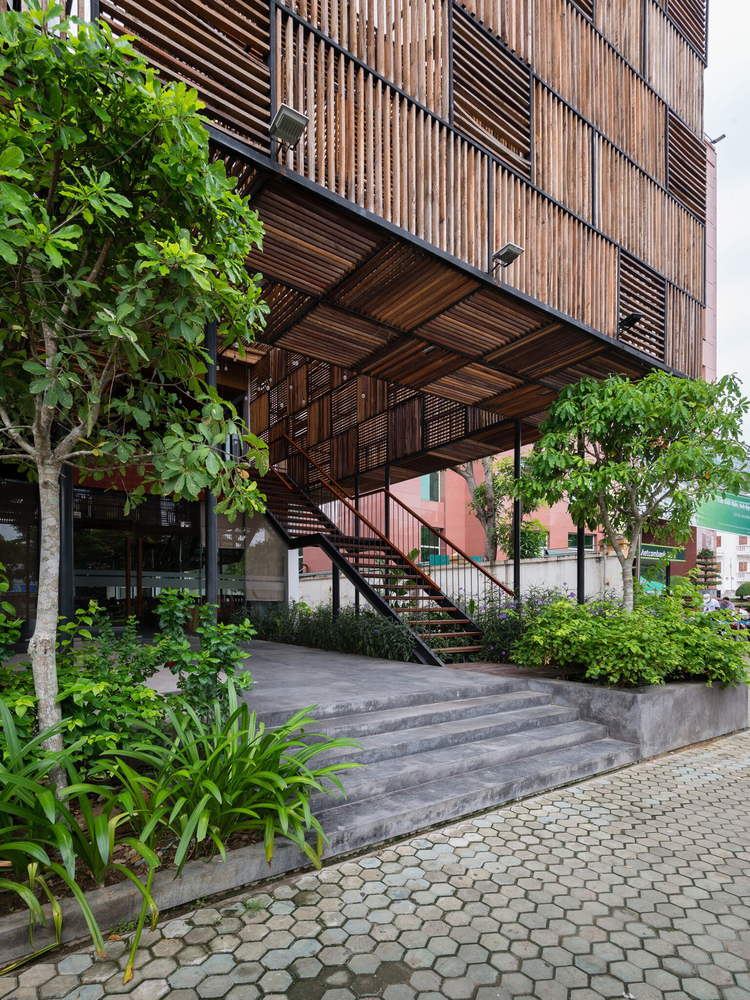

Then we changed their axis and established a new facade outstretching the street more prominently. The wooden pillars both solve the front issue and get natural wind and sunlight for inside. We reset the function for more effective using.

Sai Gon Thuong Mai Hotel
© Quang Dam
Sai Gon Thuong Mai Hotel
© Quang Dam

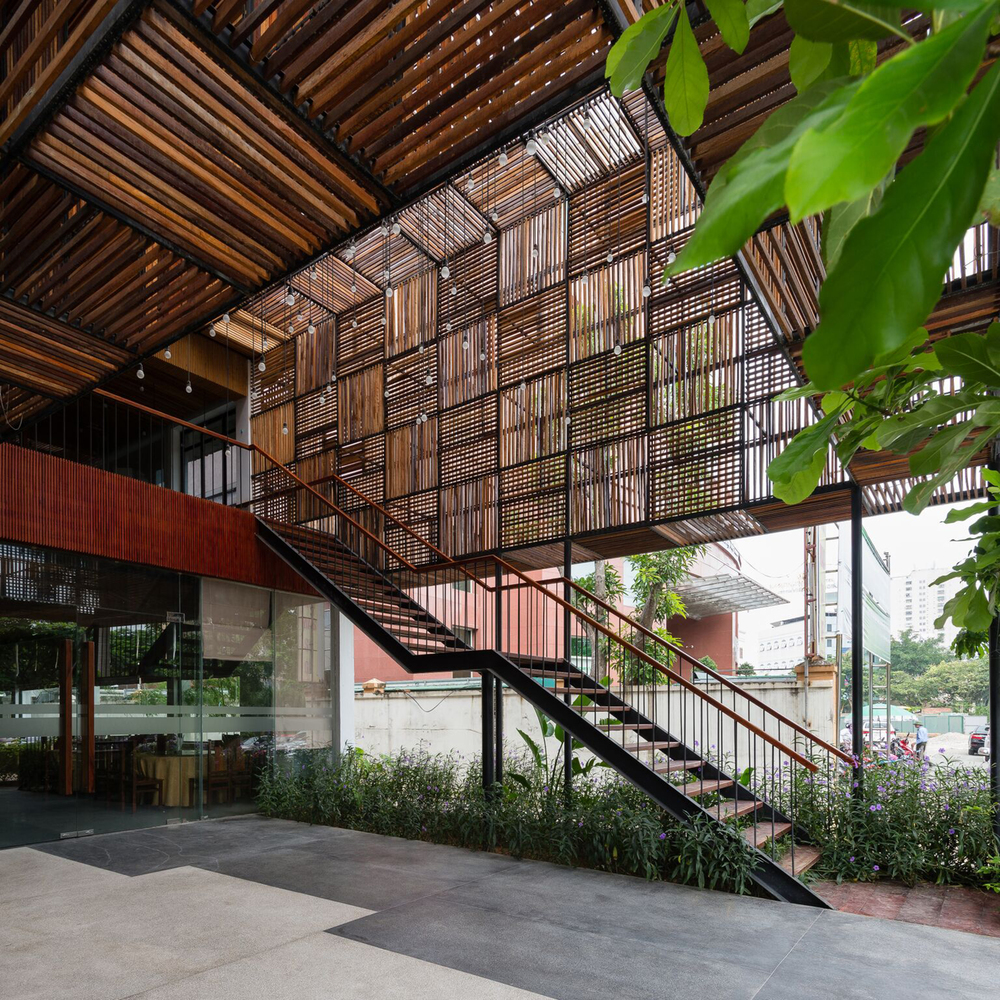

The wood slab was used thoroughly to form small wooden pillars to cover the ceiling, wattle wall, and interior in lobby and reception area. The space was designed friendly with simple and natural material as wood, wood pillars, and whetstone floor. Wood was saturated with cashew oil, the local resource that can protect wood from vermiculating.

We respected the main structure of the building, just changed architecture by a brick wall, iron stair and frame and cover with wood. The solution is easy to execute, economical and suitable with the new facade.

Sai Gon Thuong Mai Hotel
© Quang Dam
Sai Gon Thuong Mai Hotel
© Quang Dam

We developed and made more water and tree element inside the hotel to help to design interesting views and refresh the microclimate, make the air purer. All solution in terms of tree, water, getting natural wind and sunlight contribute to saving electricity.


Sai Gon Thuong Mai Hotel
Ground Floor Plan
Sai Gon Thuong Mai Hotel
Second Floor Plan
Sai Gon Thuong Mai Hotel
Third Floor Plan
Sai Gon Thuong Mai Hotel
4,5,6th Floor Plan


Sai Gon Thuong Mai Hotel
Concept Diagram


Sai Gon Thuong Mai Hotel
East Facade
Sai Gon Thuong Mai Hotel
North Facade
Sai Gon Thuong Mai Hotel
Section
