BATHROOM PAVILLION FLOR DE BAMBÚ

Fabrikg

ARCHITECTS
Fabrikg

LEAD ARCHITECT
Gonzalo Elizarraras, Maria Manuel Ponte

CLIENTS
Puerto Raíz

LANDSCAPING
Fabrikg

MANUFACTURERS
Autodesk, Bambusoluciones, Bambucid, Band It, Fierro, Robert Mcneel & Associates, Sayer

DESIGN TEAM
Gonzalo Elizarraras, Maria Manuel Ponte, Alejandro Martinez, Martin Cesena, Ángel Máximo, David Campos

PHOTOGRAPH
Daniela Fernández del Busto

AREA
127 M²

YEAR
2019

LOCATION
San José Del Cabo, Mexico

CATEGORY
Installations & Structures, Other Structures, Sustainability

Text description provided by architect.

Located within the northern perimeter of the Estero de San José del Cabo (BCS Mexico), “Flor de Bambú” is the first materialization of a series of natural constructions that will compose the “Puerto Raíz” Project, a property created for the realization of events.

Bathroom Pavillion Flor de Bambú
© Daniela Fernández del Busto
Bathroom Pavillion Flor de Bambú
© Daniela Fernández del Busto

"Flor de Bambú" (Bamboo Flower) is generated with the idea of a courtyard as a starting point that welcomes visitors and distributes them in space, directing them to the private areas - the female or male bathrooms.

A small courtyard protected by an ovoid-shaped wall of reed naturally follows the movement of the outer reed and contains the space without separating it from the natural environment.

The planters create privacy and extend the natural envelope to the interior, creating the sensation of the continuation of the same natural environment.

Bathroom Pavillion Flor de Bambú
© Daniela Fernández del Busto
Bathroom Pavillion Flor de Bambú
© Daniela Fernández del Busto
Bathroom Pavillion Flor de Bambú
© Daniela Fernández del Busto

The two ramps start the path to the bathrooms, leading visitors to lose themselves between the vertical bamboo strips that form the private cubicles and the textured wall of the urinals;

A fine and elegant finish that form various elements integrally from walls, luminaires, to the structure itself.

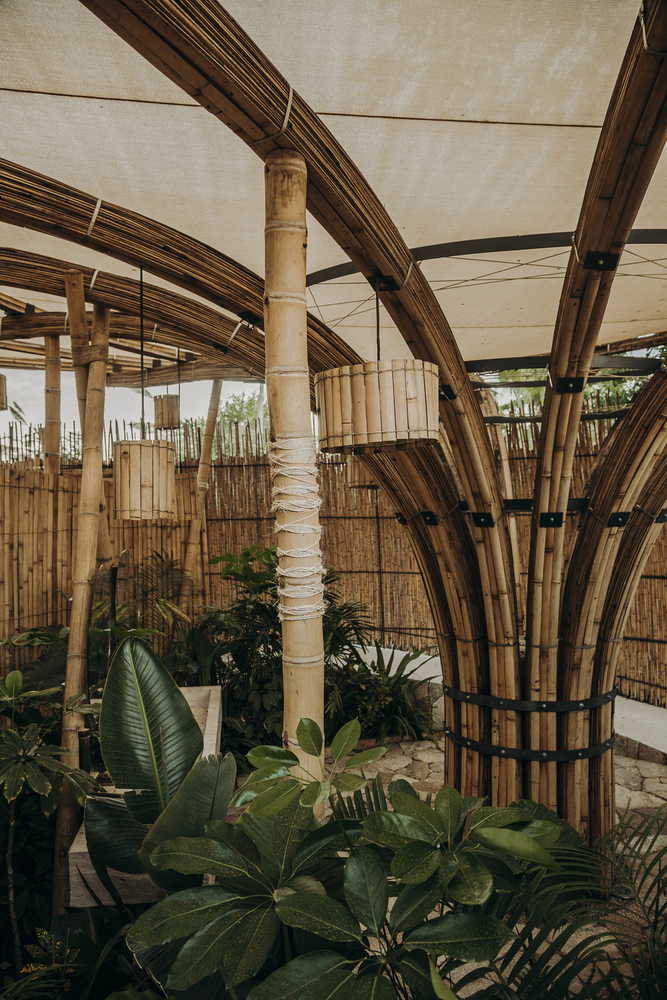

Several bamboo columns form the central flower that opens up to the limits of the reed wall and, together with the horizontal rings, create a mesh of structural interdependence.

Bathroom Pavillion Flor de Bambú
© Daniela Fernández del Busto
Bathroom Pavillion Flor de Bambú
© Daniela Fernández del Busto

Since being a sanitary installation, a micro plant for wastewater treatment was incorporated in order not to create organic sludge and allowing the purification of wastewater by finishing the cycle in an existing natural pond, creating a biological purifying filter enabling the future use of the water for irrigation and at the same time regenerating the natural environment and activating the ecosystem.

On the other hand, the history of strong winds and hurricanes in the area determined the materialization of this structure that sought to be as permeable as possible.

Bathroom Pavillion Flor de Bambú
© Daniela Fernández del Busto
Bathroom Pavillion Flor de Bambú
© Daniela Fernández del Busto

Thus, the shade mesh is easily removable so that the wind can pass between the organic elements without any impediment, and the flexibility of the bamboo itself allows it to move without collapsing.

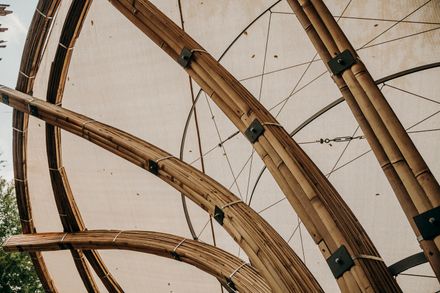

A central concrete column roots and balances the structure. The metal hoops with tensioners are shaped like a mandala, allowing cooperation and balance between the different elements.

Bathroom Pavillion Flor de Bambú
© Daniela Fernández del Busto
Bathroom Pavillion Flor de Bambú
© Daniela Fernández del Busto

Vertical bamboo poles help to support the entire fabric sideways, creating rhythm and disorder at the same time, almost as if they had grown there.

Since located next to Estero Josefino, a protected natural wetland area with a high risk of flooding, the structure was raised 1m from ground level with a stone base to avoid damage in case of flooding.

Bathroom Pavillion Flor de Bambú
© Daniela Fernández del Busto
Bathroom Pavillion Flor de Bambú
© Daniela Fernández del Busto

On the other hand, the incorporation of bamboo as the main theme seeks to promote the use of this natural resource present in the region, but not yet exploited as a noble construction material, seeking a change of the paradigm on a local level.

The materials evoke the local construction tradition and dignify its use today, in a harmonious composition between traditional and modern techniques of bio-construction using mostly elements that are part of the vernacular construction of Baja California Sur (reed, bamboo, wood).

Bathroom Pavillion Flor de Bambú
© Daniela Fernández del Busto
Bathroom Pavillion Flor de Bambú
© Daniela Fernández del Busto

The incorporation of metal in the connections allows a dialogue between traditional and industrial techniques, a dichotomy that promotes the revitalization of traditional construction techniques, preventing them from disappearing.

Bathroom Pavillion Flor de Bambú
© Daniela Fernández del Busto
Bathroom Pavillion Flor de Bambú
© Daniela Fernández del Busto


Bathroom Pavillion Flor de Bambú
Section AA
Bathroom Pavillion Flor de Bambú
Section BB


Bathroom Pavillion Flor de Bambú

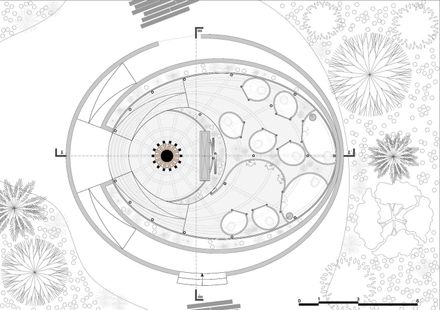

Ground Floor
Bathroom Pavillion Flor de Bambú
Rooftop
Bathroom Pavillion Flor de Bambú
Location


Bathroom Pavillion Flor de Bambú
Detail
Bathroom Pavillion Flor de Bambú
Elevation


Bathroom Pavillion Flor de Bambú
Scheme
