Olson Kundig

Martin’s Lane Winery

Martin’s Lane Winery
© Nic Lehoux

MARTIN’S LANE WINERY

Olson Kundig

ARCHITECTS
Olson Kundig

PHOTOGRAPHS
Nic Lehoux

AREA
34816 ft²

TEAM CREDITS
Tom Kundig, Steve Grim, Michael Picard, Wonsik Lee

CONTRACTOR
PCL Construction

INTERIORS
GCA Architects

MANAGER
Michael Picard

CONSULTANTS
Meiklejohn Architects Inc, CTQ, S & A Falcon Engineering, Rocky Point Engineering Ltd., Glotman Simpson Consulting Engineers, Paul Sangha Landscape Architecture, Niteo

CATEGORY
Winery

LOCATION
Kelowna, Canada

YEAR
2016

Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux

Text description provided by architect.

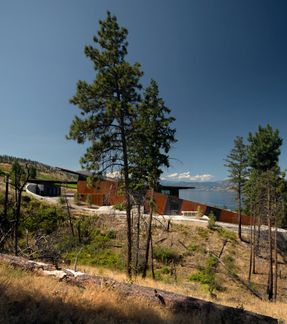

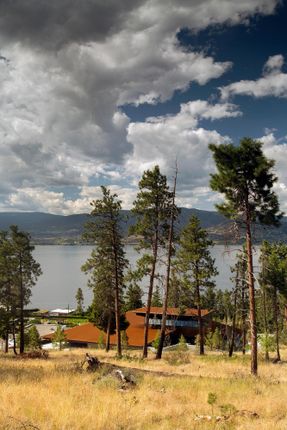

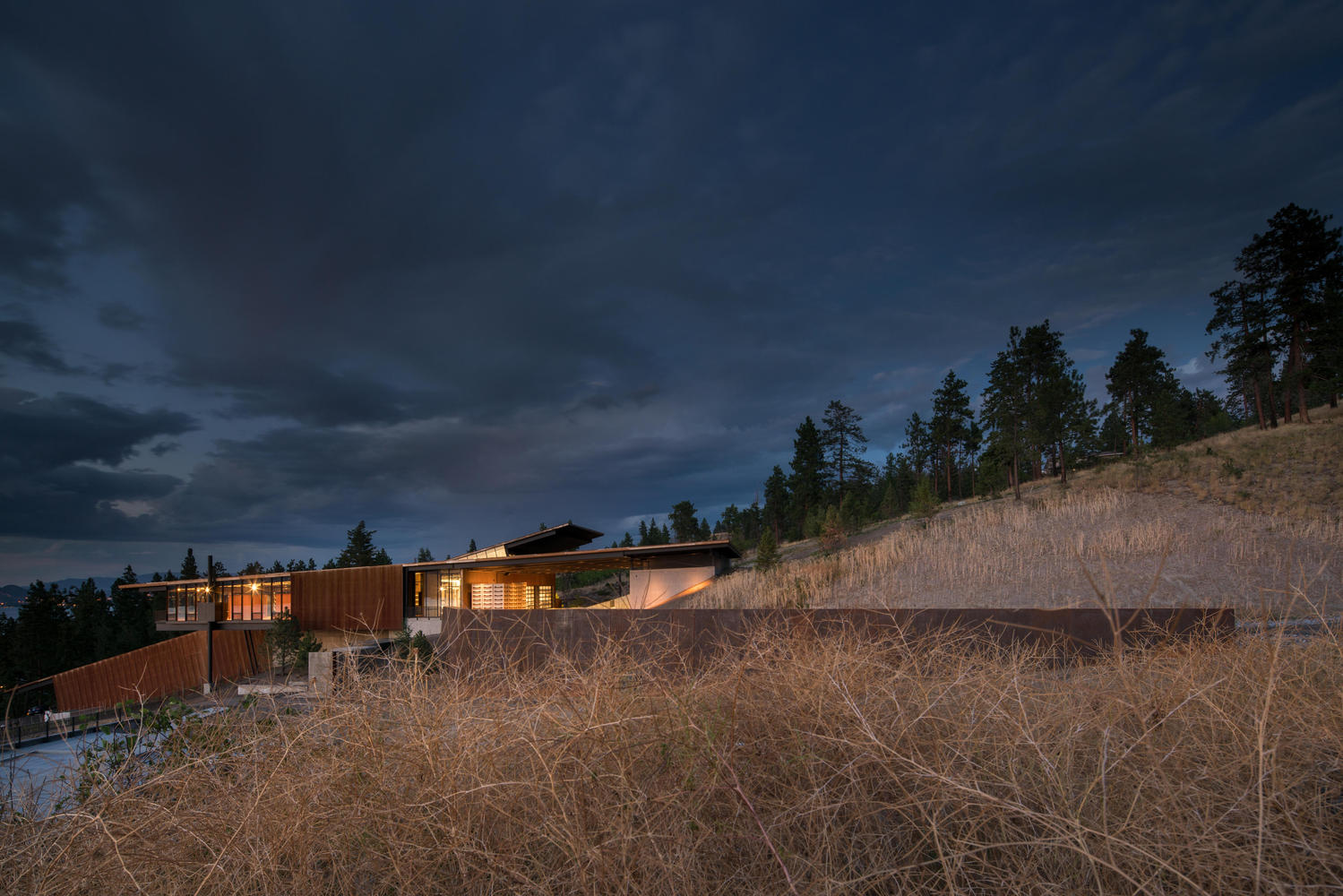

Tucked into a hillside in Kelowna, British Columbia, the design of the newest von Mandl Family Estates winery draws a close parallel between the topography of the land and the gravity-flow winemaking process taking place inside.

Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux

Conceived of as a simple rectangular form with a central split or “fracture” down the middle, the production side of the building follows the direction of the site, utilizing the downhill slope for its gravity-flow process.

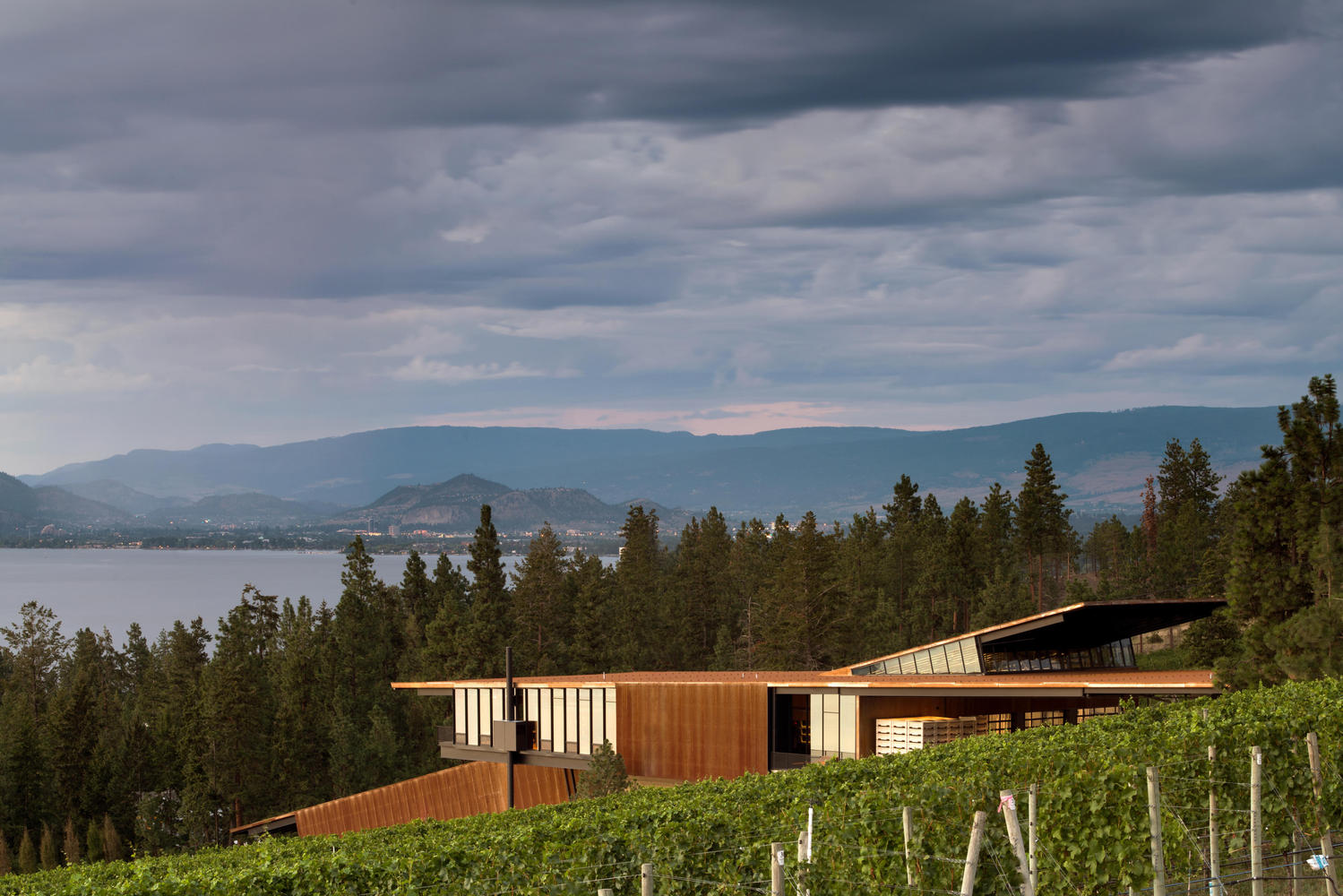

The other half containing the visitor area cantilevers out over the vineyards, offering sweeping views of nearby Okanagan Lake and the iconic belltower of Mission Hill Winery, von Mandl’s first winery in the region, also designed by architect Tom Kundig.

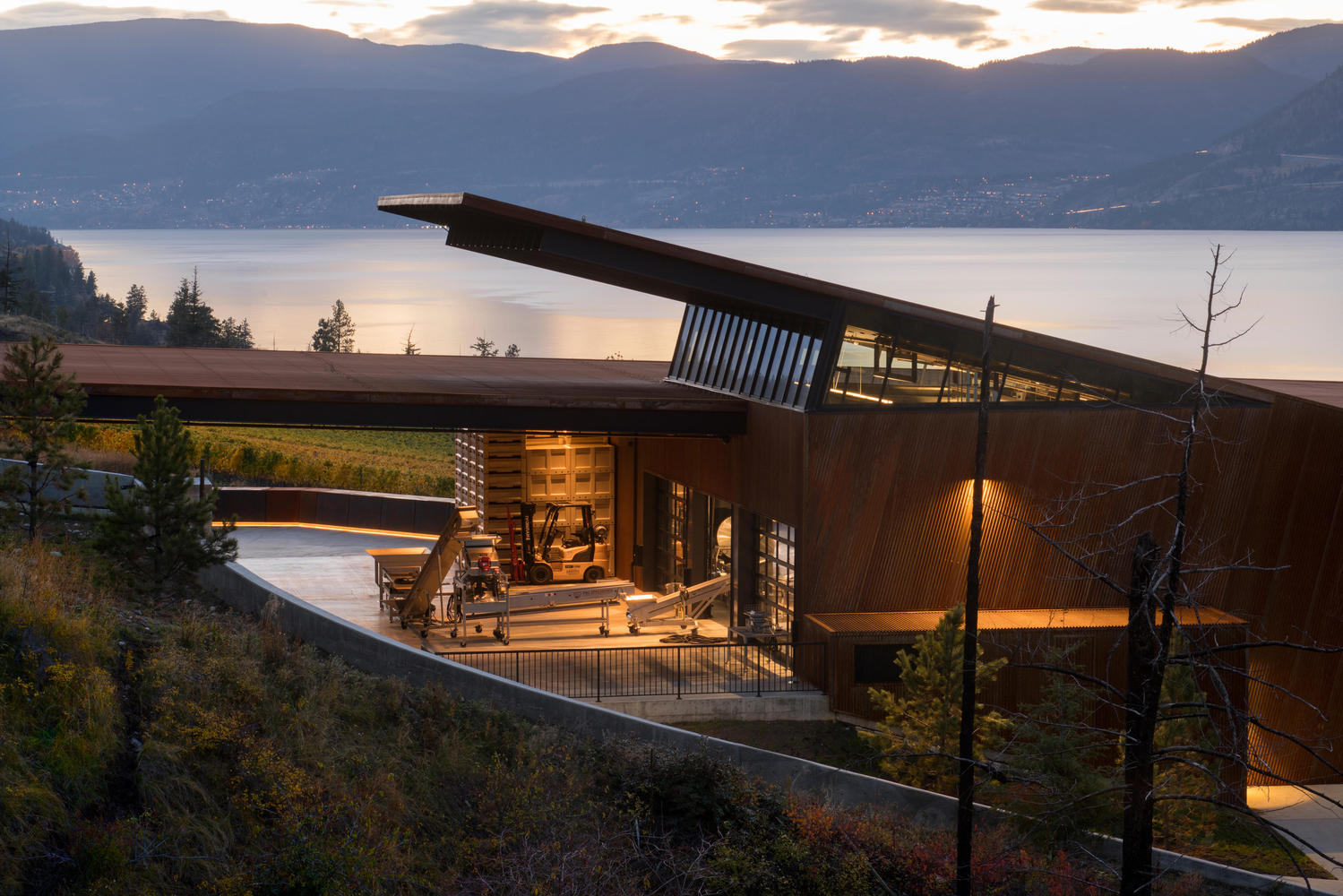

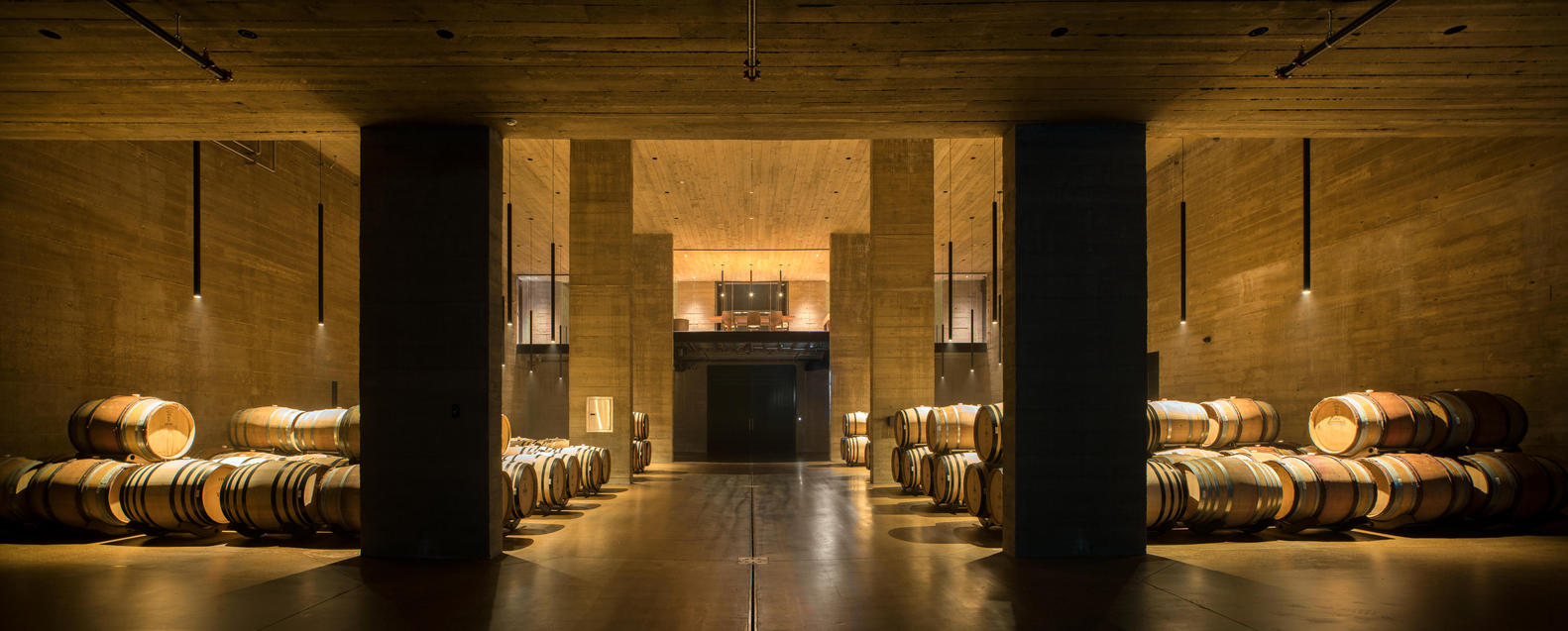

The functional areas of Martin’s Lane step down the hillside, from the grape-receiving area at the top, through fermentation and the settling room, down to the bottling room on the above ground level, and finally the below-ground barrel storage area.

Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux

Throughout its 34,800 square feet, the winery’s office, wine lab and visitor spaces are woven into the manufacturing areas, including a tasting room, dining room, and visitor walkways that offer intimate glimpses of the production process.

The design’s central “fracture” allows for an expansive line of clerestory windows here, increasing natural daylight intake into the production areas, as well as opening impressive views of the surrounding vineyards and natural landscape.

The building’s exterior is cladded with obsidian-painted structural steel, while rusted corrugated steel is used for siding and roof overhangs.

Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux

Siding panels are tilted downhill to visually underscore the story of the gravity-flow process.

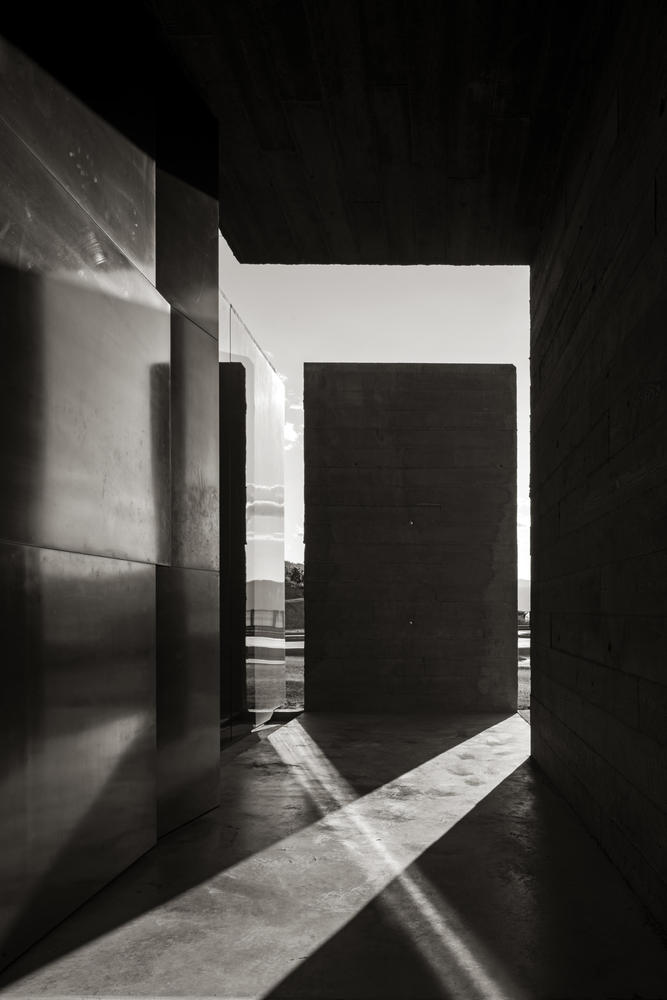

Guided tours bring visitors into the facility through a rough formed concrete tunnel and then to a private tasting room accented by a glass and perforated-steel wall that overlooks the barrel storage area.

Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux

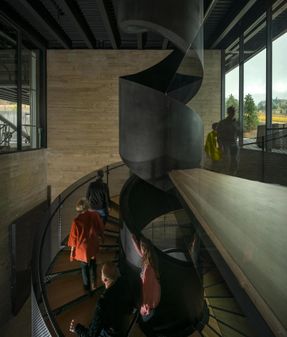

A custom-designed and fabricated spiral steel staircase leads up to a larger tasting room and visitor experience area with perforated steel on the outside and solid steel inside.

The form of the staircase was inspired by the stainless steel filtering equipment used in the wine industry, as well as by the Fibonacci sequence that reflects how grapevines propagate. Much like the building itself, interior details tell the story of the meticulous winemaking process that VMF Estates has worked for generations to refine.

Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux


Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux


Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux


Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux
Martin’s Lane Winery
© Nic Lehoux


Martin’s Lane Winery
West and East Elevation
Martin’s Lane Winery

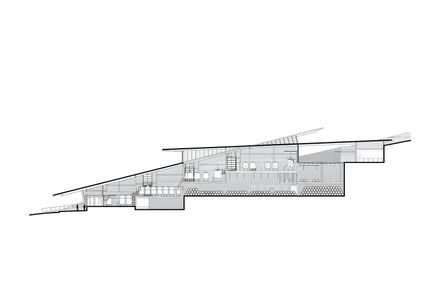

Section 01
Martin’s Lane Winery
Section 02
Martin’s Lane Winery
Section 03


Martin’s Lane Winery
Main level plan
Martin’s Lane Winery

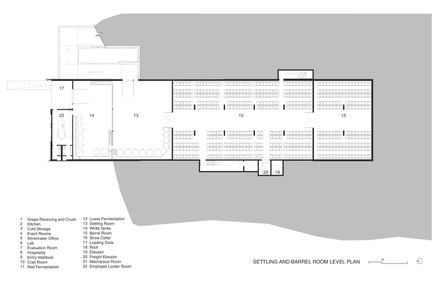

Settling and barrel room level plan
Martin’s Lane Winery
Lower fermentation and show cellar level plan
