MARINA PARK PAVILION

DRTAN LM Architect

CLIENTS
3C Marina Park Sdn. Bhd.

DESIGN TEAM
DRTAN LM Architect

STRUCTURAL ENGINEER
Perunding SHDE

LANDSCAPE DESIGN
WAA Design Sdn Bhd

MECHANICAL AND ELECTRICAL ENGINEERING
MNE Consultant

CIVIL ENGINEER
Perunding SHDE

MANUFACTURERS
AutoDesk, Keyline, Roca, Trimble Navigation, Walls & Floors

CONTRACTOR
Pamir Development Sdn. Bhd

C&S ENGINEER
Perunding SHDE

ARCHITECT IN CHARGE
Tan Loke Mun

AREA
1063 m²

YEAR
2018

CATEGORY
Pavilion, Houses

LOCATION
Nusajaya, Malaysia

Marina Park Pavilion
© H.LinHo Photography
Marina Park Pavilion
© H.LinHo Photography

Text description provided by architect.

The Marina Park Pavilion located in Puteri Harbour, Johor was designed as a modernist rectangular “jewel box” to showcase the quality of living spaces within the new master-planned urbanist city.

Marina Park Pavilion
© H.LinHo Photography
Marina Park Pavilion
© H.LinHo Photography

The two shorter ends of the box are colossal billboards for outdoor movies and projection showcasing the development content to be appreciated from both within or from the pleasure of the surrounding lawns.

To keep the attention of visitors on the exhibits on display, the architecture is kept intentionally simple and muted, defined only by a clean white rectilinear box with a steel framed entrance porte cochere attached.

Marina Park Pavilion
© H.LinHo Photography
Marina Park Pavilion
© H.LinHo Photography

The jewel box contains an internal glass box space and an external hidden conservatory garden with preserved old kayu arang trees directly facing the marina.

Visitors meander through the private garden, with its shrubs and trees that poke past oculi in the roof, to access or simply browse the delicately crafted living and working spaces encased in the glazed envelope.

Marina Park Pavilion
© H.LinHo Photography
Marina Park Pavilion
© H.LinHo Photography
Marina Park Pavilion
© H.LinHo Photography

In this way, the jewels of the Marina Park lifestyle become both displays and living samples, and the landscape becomes a transition zone as visitors go from one showpiece to the next, amidst the backdrop of the Tebrau Straits.

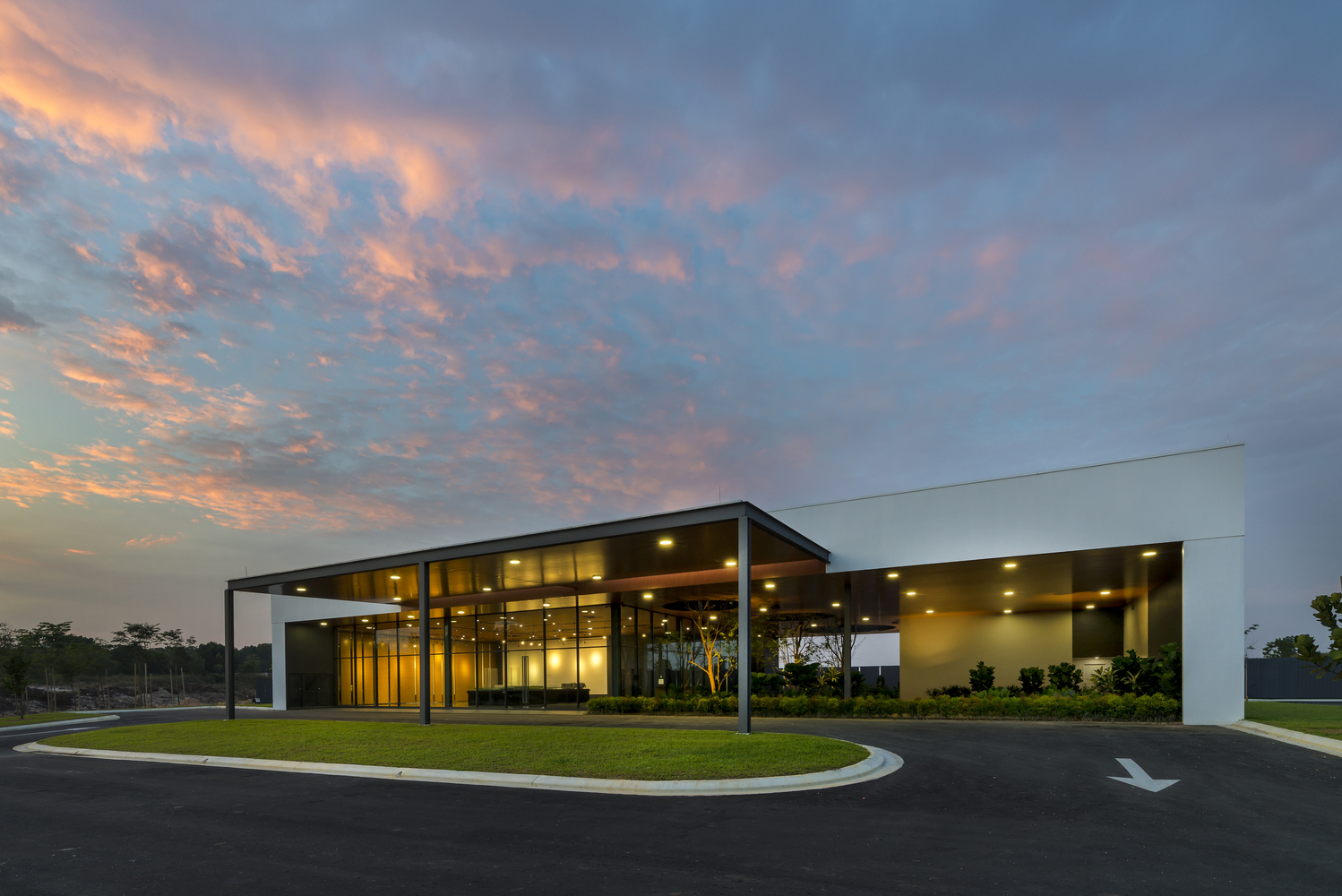

At dusk the jewels within the box glitter. Warm lights reveal the rich texture of the teak timber clad ceiling and walls, creating a striking cozy amber contrast to the rest of the structure’s envelope finished in smooth composite white panels.

Marina Park Pavilion
© H.LinHo Photography
Marina Park Pavilion
© H.LinHo Photography

Inside the main exhibition space, a towering scale model of the development stands between the reception counter and the discussion area.

A green haven of landscape with trees escaping through its top serves to explain how the development intertwines with nature and ecology.

Marina Park Pavilion
© H.LinHo Photography
Marina Park Pavilion
© H.LinHo Photography
Marina Park Pavilion
© H.LinHo Photography


Marina Park Pavilion
© H.LinHo Photography
Marina Park Pavilion
© H.LinHo Photography
Marina Park Pavilion
© H.LinHo Photography
Marina Park Pavilion
© H.LinHo Photography
Marina Park Pavilion
© H.LinHo Photography
Marina Park Pavilion
© H.LinHo Photography


Marina Park Pavilion
Left Elevation
Marina Park Pavilion
Rear Elevation
Marina Park Pavilion
Front Elevation
Marina Park Pavilion

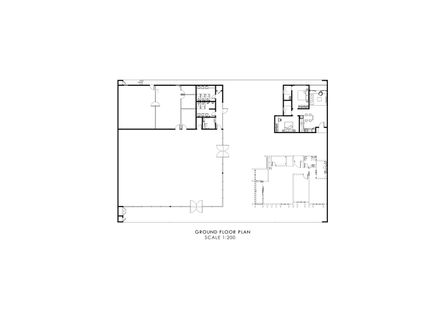

Ground Floor Plan
