ZHANGRUN OFFICE BUILDINGS

Scenic Architecture Office

LOCATION
Shanghai, China

AREA
62439 m²

CATEGORY
Mixed Use Architecture, Office Buildings, Commercial Architecture

YEAR
2018

LANDSCAPE DESIGN
Shanghai Difu Architecture and Urban Planning Design Ltd.

INTERIOR DESIGN
MRT Design

DESIGN TEAM
Xiaofeng Zhu, Xinjia Zhuang, Yan Zhou, Tai Sheng, Shigang Du, Xing Meng, Pablo Gonzalez Riera

LDI
Shanghai Zhongjian Architectural Design Institute Co.Ltd

MANUFACTURERS
VELUX Commercial, VMZINC, Velux

PHOTOGRAPHS
Shan Liang

CLIENT
Shanghai Zhangrun Property Co.Ltd

Text description provided by architect.

Designof High-rise buildings often brings up questions about the relationship between “Tower” and “Podium”. This pre-conceived classification comes from their obvious difference in height.

Zhangrun Office Buildings

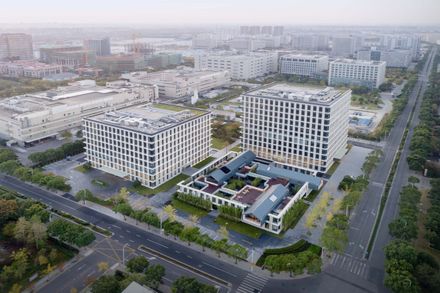

aerial view. Image © Shan Liang
Zhangrun Office Buildings
aerial view. Image © Shan Liang

Zhangrun Office Buildings is located in Zhangjiang High-tech Park, Shanghai. Besides 42,000-square-meter research and development office, the project also houses 1,500-square-meter commercial facilities.

In this project, we tried to change the typical Form-type of tower and podium to improve customer experience and bring extra value to the client.

Zhangrun Office Buildings
aerial view. Image © Shan Liang
Zhangrun Office Buildings
commercial courtyard. Image © Shan Liang

We avoided designing a podium to house the commercial facilities like many other typical office projects. On the contrary, we separate the office tower and the commercial facility.

Standing independently, the commercial building can offer a spatial experience that is different and complementary to that of the office tower.

Zhangrun Office Buildings
eastern view. Image © Shan Liang
Zhangrun Office Buildings
facade of commercial courtyard. Image © Shan Liang

Therefore, the square site is quartered, and two office towers sit at the north-east and the south-west corner and semi-enclose the other two corners.

The south-east corner is unoccupied and serves as a public green space, and the north-west corner is occupied by the commercial courtyard.

Zhangrun Office Buildings

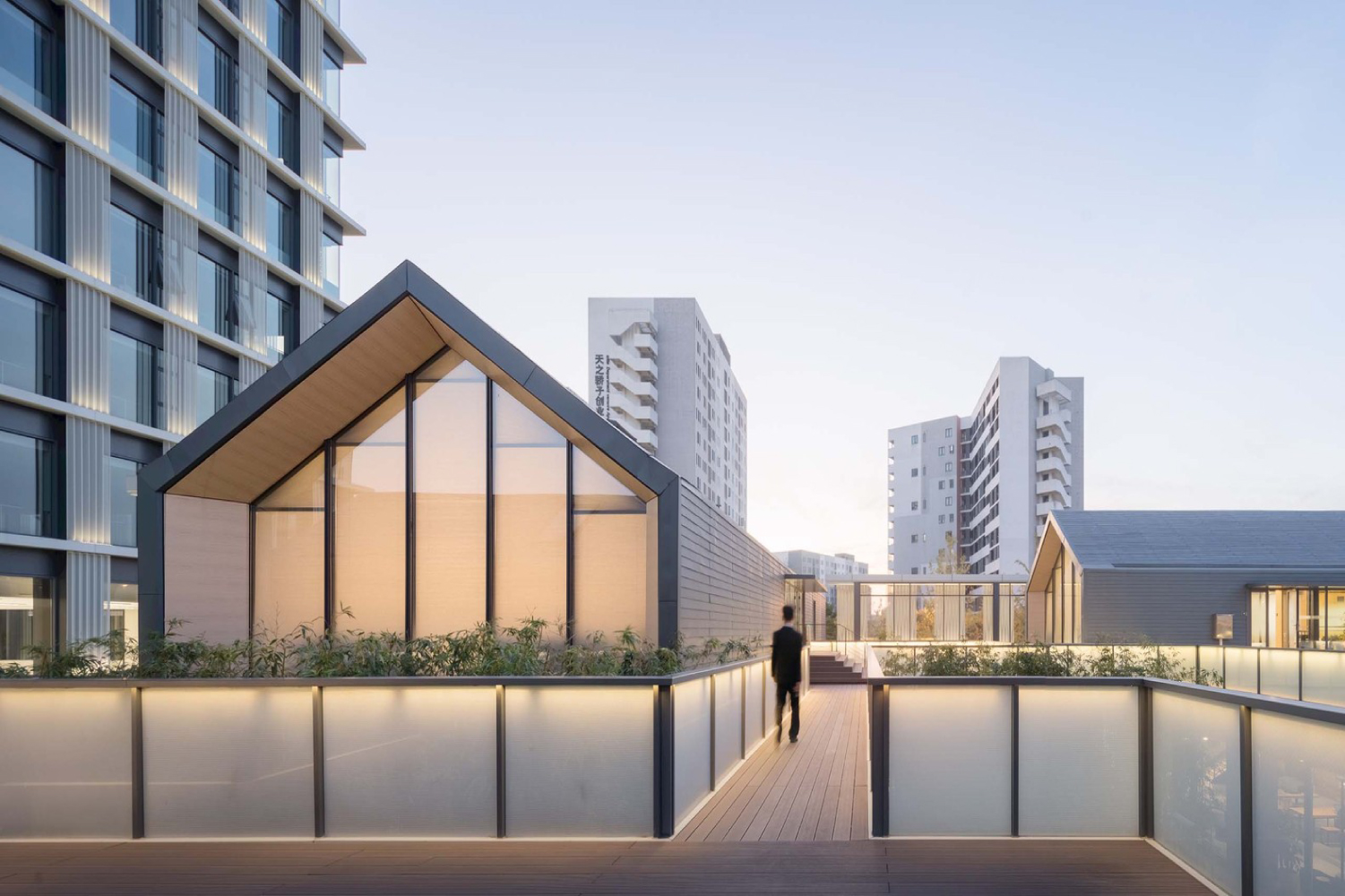

terrace of commercial courtyard. Image © Shan Liang
Zhangrun Office Buildings
office tower and commercial courtyard. Image © Shan Liang

The 4.4-meter-high standard office space required by the client is the main space for lease and sale.

Therefore, the two office towers follow the typical Form-type of core tube configuration with one-span’s depth at the northern, eastern and western sides and two spans’ depth at the southern side to provide more flexible spaces for future use.

Zhangrun Office Buildings
passage and waterscape. Image © Shan Liang
Zhangrun Office Buildings
commercial courtyard. Image © Shan Liang

To make the most of the space alongside the exterior walls, the columns and window frames are all aligned with the outer side of the walls, and the corner columns and frames are avoided to maximize openness of the corner space.

The floor slabs are overhung at each floor, and the pressed perforated aluminum sun shields are fixed between them.

Zhangrun Office Buildings
facade of commercial courtyard. Image © Shan Liang
Zhangrun Office Buildings
details of office towers. Image © Shan Liang
Zhangrun Office Buildings
corner of office tower. Image © Shan Liang

The sun shields are wider on the east and west facades than that on the south and north facades to balance shading and getting sunlight according to different directions.

We kept the facades of the commercial courtyard in consistency with that of the office towers, and designed them as translucent walls.

Zhangrun Office Buildings
lobby of office towers. Image © Shan Liang
Zhangrun Office Buildings
lobby of office towers. Image © Shan Liang

This harmonizes the outlook of the two-story commercial building with that of the office towers.

In the commercial courtyard, convenient stores, coffee shops, joint offices and gyms occupy the “boxes” on the ground floor and the “cottages” on the first floor.

Zhangrun Office Buildings
interior of office tower. Image © Shan Liang
Zhangrun Office Buildings

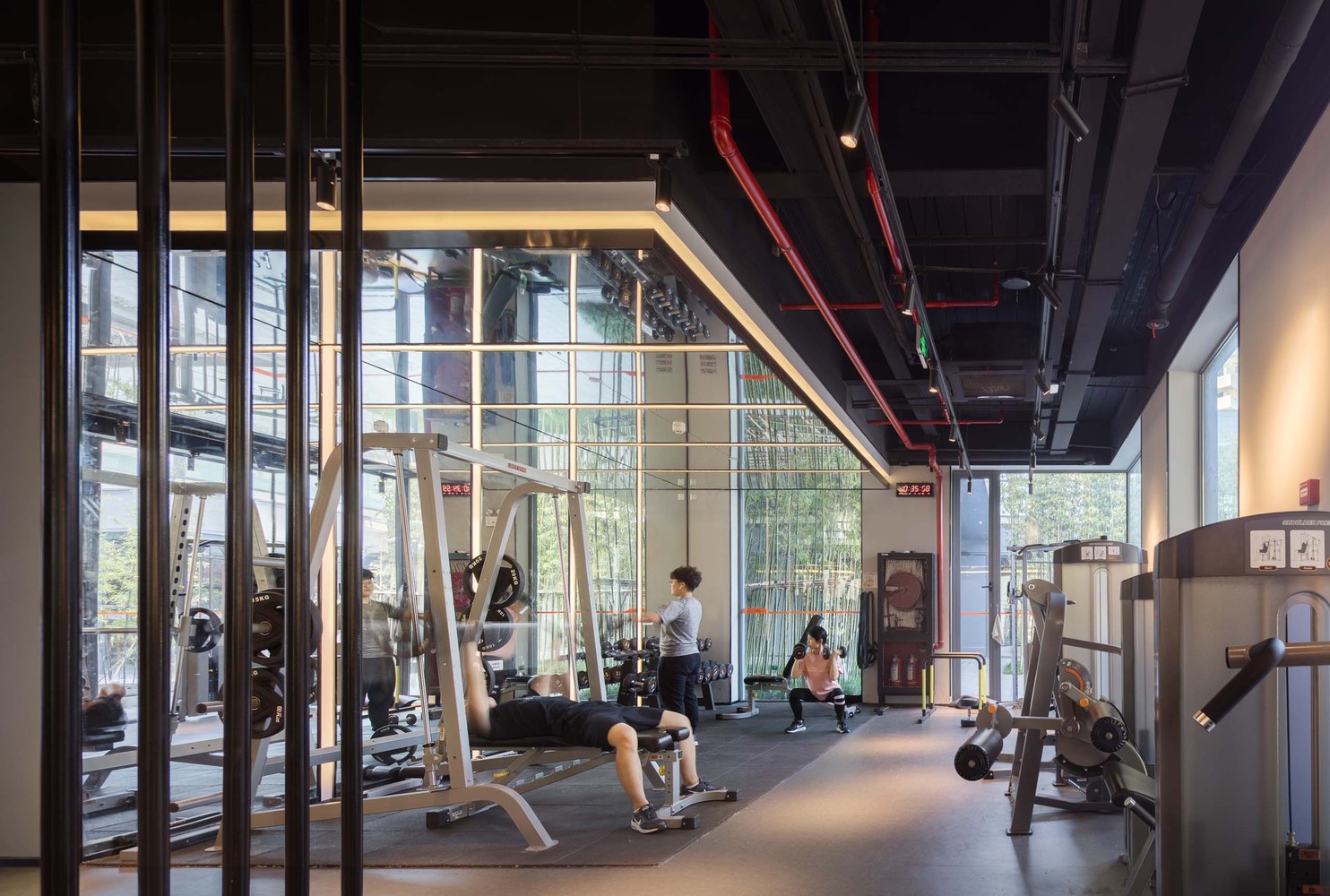

gym. Image © Shan Liang

With the bamboo courtyards and wooden terraces, the commercial courtyard boasts its friendly scale and natural environment and creates a complementary and balanced relationship with the office towers.

Leaded by the notion of technology innovation and healthy life, people are experiencing ever-changingworking life, social communication and environmental relationship, which will definitely provoke new urban and architectural Form-type.

Zhangrun Office Buildings
interior of cottage. Image © Shan Liang
Zhangrun Office Buildings

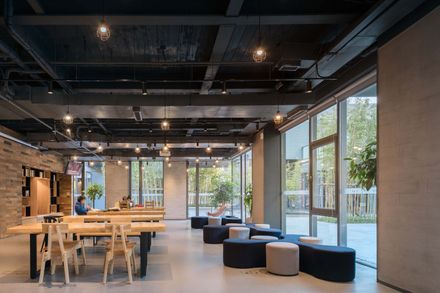

cafe. Image © Shan Liang

Zhangrun Office Buildings is a step taken in this process of upgrading.


Zhangrun Office Buildings
details of office towers. Image © Shan Liang
Zhangrun Office Buildings
details of commercial courtyard. Image © Shan Liang
Zhangrun Office Buildings
details of commercial courtyard. Image © Shan Liang
Zhangrun Office Buildings
terrace and cottage. Image © Shan Liang
Zhangrun Office Buildings
© Shan Liang
Zhangrun Office Buildings
entrance canopy. Image © Shan Liang
Zhangrun Office Buildings
entrance canopy. Image © Shan Liang


Zhangrun Office Buildings

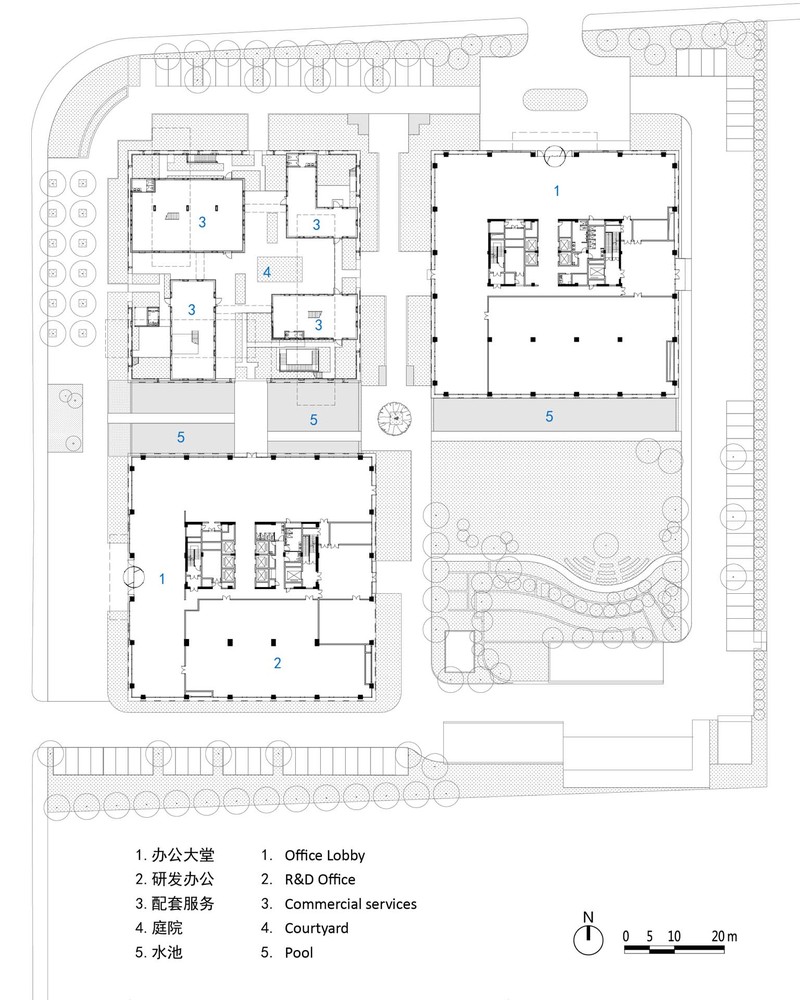

master plan
Zhangrun Office Buildings
GF plan
Zhangrun Office Buildings

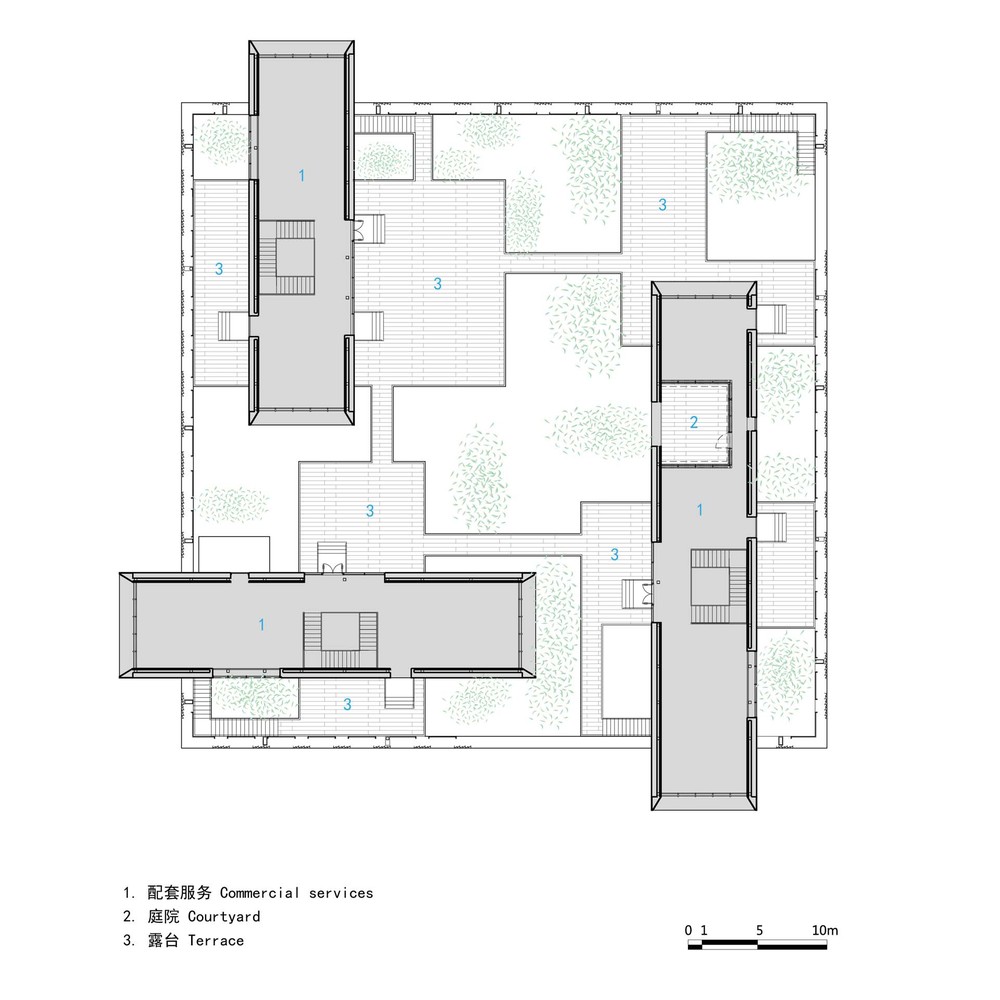

commercial courtyard 2F plan
Zhangrun Office Buildings
typical floor plan


Zhangrun Office Buildings
details
Zhangrun Office Buildings
details


Zhangrun Office Buildings
design concept
Zhangrun Office Buildings
complementary experience
Zhangrun Office Buildings
Section
