United Design 10 Atelier 一合建筑设计研究中心U10建筑工作室

HaiLongtun Management Room

HAILONGTUN MANAGEMENT ROOM

United Design U10 Atelier

HaiLongtun Management Room
© Guangyuan Zhang

AREA
1880 m²

PHOTOGRAPHS
Guangyuan Zhang

YEAR
2014

MANUFACTURERS
Anji Meixi, Parsi, Yucheng Ruixin

LOCATION
China

CATEGORY
Visitor Center, Exhibition

HaiLongtun Management Room
© Guangyuan Zhang

Text description provided by architect.

Hai Long tun relics between the mountains located in the north of Gui Zhou. From the five dynasties to the Ming dynasty, the leader family ‘Yang’ of this region built the castle defense and palace, governing the north area of Gui Zhou province.

All of these had been burned to ash in many attacks in the 17th century. Today, the remaining stone wall and base will be protected as the common heritage of mankind.

HaiLongtun Management Room
© Guangyuan Zhang
HaiLongtun Management Room
© Guangyuan Zhang

This is a renovation project. Project is a three-floors building with grey tile facing, located at the gateway of Long yan mountain top.

The parapet form is similar to the Great Wall, and the outer arches looks like the caves in miniature., it is very difficult to define the form of this building.

HaiLongtun Management Room
© Guangyuan Zhang
HaiLongtun Management Room
© Guangyuan Zhang

The construction of this building began with the tourism planning few years ago. After completion, this building has not really put into use and been wasted so far.

Our work is to reform it to a multi-purpose temporary building with the functions of relics exhibition, visitor center and office room, as the unique entrance of the ruins of Hai long Tun.

HaiLongtun Management Room
© Guangyuan Zhang
HaiLongtun Management Room
© Guangyuan Zhang

Finally letting everything back to its original appearance and leaving one channel for understanding。 ‘Vanishing’ is a renovation strategy of this project. In addition to the demolition of building, change shape is also a solution to make the building less visible.

We use layer upon layer bamboo wall to parcel the old building as a cocoon, cube shape disappear. After project completion, we planted live bamboo inside bamboo walls, making the facade becomes more exuberant.

HaiLongtun Management Room
© Guangyuan Zhang
HaiLongtun Management Room
© Guangyuan Zhang

We hope using this way to shield the building.

We try to put the new functions together after removing the old wall and attached facilities.

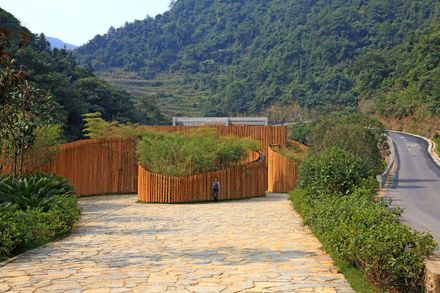

Through the parking lot and entrance courtyard which enclosed by bamboo walls, visitors can slowly go into the interior.

HaiLongtun Management Room
© Guangyuan Zhang
HaiLongtun Management Room
© Guangyuan Zhang
HaiLongtun Management Room
© Guangyuan Zhang

The design of the high pass entrance hall integrates the tourist service functions.

The central hanging box and the only stair leading visitors step into the second floor.

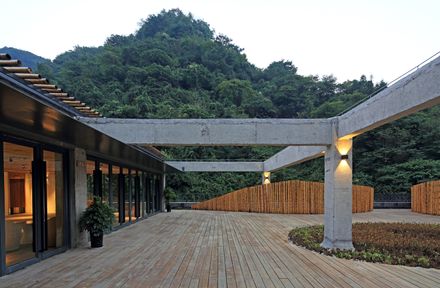

After visiting the relics’ exhibition of Hai Long tun, visitors can come to the third floor lounge, overlooking the magnificent valley landscape and pursuing the memories behind the cloud and fog.

The choice of bamboo becouse of the rich bamboo resources in Chishui, Guizhou and bamboo grow rapidly and it is a very ecological building material.

HaiLongtun Management Room
© Guangyuan Zhang
HaiLongtun Management Room
© Guangyuan Zhang

After drying and anticorrosive treatment, bamboo is uniformly hung on the steel skeleton.

The bamboo wall covers the building skin and spreads into the plaza, ike cocoons, covering the hard building volume, showing a soft natural boundary.

HaiLongtun Management Room
© Guangyuan Zhang
HaiLongtun Management Room
© Guangyuan Zhang
HaiLongtun Management Room
© Guangyuan Zhang


HaiLongtun Management Room
Old Building
HaiLongtun Management Room
New Building Section


HaiLongtun Management Room
New Building Plan
HaiLongtun Management Room
New Building Plan 2
HaiLongtun Management Room
New Building Plan 3
HaiLongtun Management Room
Desaign Progress


HaiLongtun Management Room
Detail Bamboo Plan
HaiLongtun Management Room
Detail Bamboo Section
HaiLongtun Management Room
Detail Bamboo Section


HaiLongtun Management Room
Bamboo Fitting

HaiLongtun Management Room
Bamboo Fitting
