New Forum in Itabuna

NEW FORUM IN ITABUNA

Dendê Arquitetura

New Forum in Itabuna
© Manuel Sá

AREA
2926 m²

PHOTOGRAPHS
Manuel Sá

YEAR
2014

MEP
Senemig Engenharia, Marco Gimenes, Mônica Teixeira da Silva

CONSTRUCTOR
Caaba Engenharia, José Moreira

MANUFACTURERS
Escala Vidros, REFAX

PROJECT MANAGEMENT
Clara Maria Matos Soledade

ARCHITECT IN CHARGE
Maurício Coelho Lins

TEAM
Taís Luz, Fernando Teixeira, Flávio Carvalho, Sílvia Proserpio

CLIENT
Tribunal de Justiça do Estado da Bahia

CATEGORY
Institute

LOCATION
Brazil

STRUCTURE
José Elmo

SUPERVISION
Monte Moryah Engenharia, Alberto Azevedo Jr.

New Forum in Itabuna
© Manuel Sá
New Forum in Itabuna
© Manuel Sá
New Forum in Itabuna
© Manuel Sá

Text description provided by architect.

The building will contemplate the execution of the services in the fraction of 2926.40 m2 with the following functional program:

- Offices for magistrates
- Court Hearing Rooms
- Advisory Rooms
- Legal Office and Secretaries
- Rooms for the judicial bodies (OAB, Office of the Public Defender and Public Prosecutor)

New Forum in Itabuna
© Manuel Sá
New Forum in Itabuna
© Manuel Sá

The program of the New Forum Itabuna is distributed in a 6-storey building (3 underground, ground floor, upper floor and roof ).

The building has 2 accesses: a main access of pedestrians for visitors and employees through the Ground Floor by Santa Cruz Street and another secondary access of vehicles by the underground floor number 02.

New Forum in Itabuna
© Manuel Sá
New Forum in Itabuna
© Manuel Sá

The architectural solution of this building proposes the construction in reinforced concrete, using ribbed slabs molded in place, therefore allowing bigger spans with the same technology employed in the massive slabs, becoming more rational.

This will allow future adjustments, as needed, to the modifications of the jurisdictional system provision.

It was a decision to leave apparent structures, including the ribbed slabs, inserting ceilings only in the wet areas.

New Forum in Itabuna
© Manuel Sá
New Forum in Itabuna
© Manuel Sá
New Forum in Itabuna
© Manuel Sá


New Forum in Itabuna
© Manuel Sá
New Forum in Itabuna
© Manuel Sá


New Forum in Itabuna

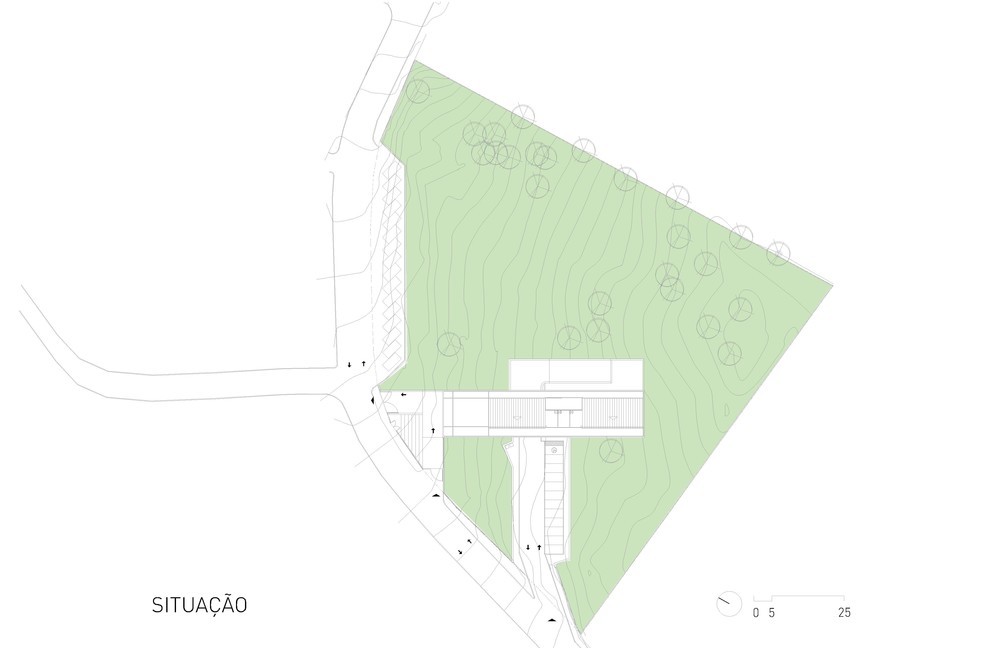

Site Plan
New Forum in Itabuna
Ground Plan
New Forum in Itabuna
Underground Floor
New Forum in Itabuna
Underground Floor


New Forum in Itabuna
Section
New Forum in Itabuna
Section


New Forum in Itabuna
First Floor
