QUESADA 3155 BUILDING

Diego Cherbenco + Gustavo Robinsohn

Quesada 3155 Building
© Albano García

CATEGORY
Apartments

LOCATION
Coghlan, Argentina

PHOTOGRAPHS
Albano García

LEAD ARCHITECTS
Diego Cherbenco, Gustavo Robinsohn

ARCHITECTS
Diego Cherbenco, Gustavo Robinsohn

AREA
750 m²

MANUFACTURERS
Aluar Aluminios, Fv, Horcrisa, Quadri, Roca, Vite

YEAR
2020

Quesada 3155 Building
© Albano García

Located in a Buenos Aires standard land plot with a width of 8.66 meters, the building is divided into two masses revolving around a patio of maximum achievable dimensions, which gives all its units the benefits of a generous amount of lighting and cross ventilation.

Quesada 3155 Building
© Albano García
Quesada 3155 Building
© Albano García

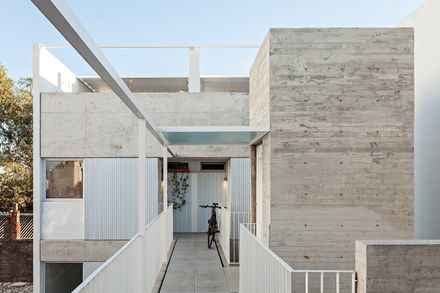

In the courtyard, among trees and varied species of vegetation, some of these elements can be found: the main staircase, open walkways, the elevator piece, and a slab, which on the first floor, creates a common use area.

On the ground floor, a pair of two-story apartments are located, both making use of the back for their gardens, while a potential store is located towards the street and a few cars are parked near the left party wall.

Quesada 3155 Building
© Albano García
Quesada 3155 Building
© Albano García
Quesada 3155 Building
© Albano García

On the 2nd and 3rd floors, the access, kitchens, bathrooms, and balconies are aligned with the central strip of each unit; on a low slab, the horizontal development of the sanitary installation is solved, while defining a smaller spatial scale, clearing the living and bedroom, becoming clean and unitary environments.

Moreover, the 4th-floor units expand wooden decks into their own terraces.

Quesada 3155 Building
© Albano García
Quesada 3155 Building
© Albano García
Quesada 3155 Building
© Albano García

Both front and back structures are designed with inverted beams that, like blind parapets, are built across from party wall to party wall.

Quesada 3155 Building
© Albano García
Quesada 3155 Building
© Albano García

The exposed concrete beams confine aluminum frames and walls covered with panels of extruded white comb-like profiles.

Quesada 3155 Building
© Albano García
Quesada 3155 Building
© Albano García
Quesada 3155 Building
© Albano García
Quesada 3155 Building
© Albano García

Finally, the concrete is textured, the form worked with vertical wooden boards to the front and center of the block, and smoothed with melamine phenolic plates inside the patio area; also the external mostly robust mass, with controlled openings and measured glazed surfaces, avoids energy losses and solar overexposure.


Quesada 3155 Building
Transversal Section
Quesada 3155 Building
Long Section


Quesada 3155 Building
Ground Floor
Quesada 3155 Building
First Floor
Quesada 3155 Building
Second and Third Floor
Quesada 3155 Building
Fourth Floor
Quesada 3155 Building
Roof Floor
Quesada 3155 Building
Axonometry


Quesada 3155 Building
Elevation
Quesada 3155 Building
Elevation
