THE WING OF SWALLOW

Tjad Original Design Studio

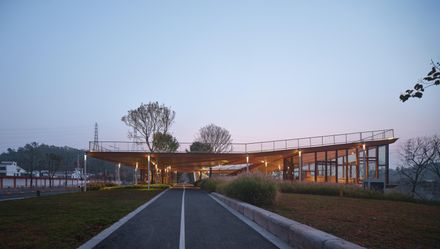

The Wing of Swallow
© ZY Architectural Photography

CATEGORY
Public Space, Park

LOCATION
Shenzhen, China

AREA
940 m²

LEAD ARCHITECTS
Ming Zhang, Zi Zhang, Shu Qin

DESIGN TEAM
Dian Yu (Intern), Yunsong Wu, Xuefeng Li, Zhenqi Jing(Intern)

STRUCTURAL TEAM
Zhun Zhang, Rui Wang, Jinhua Wang

STRUCTURAL ENGINEER
Zhun Zhang, Rui Wang

FACILITY DESIGN
Zhe Shao, Jiabin Sun, Xinyu Ma, Shiguang Zhao

YEAR
2020

THE CLIENT
Water Resources Bureau Of Shen Zhen Municipality

CONSTRUCTION CONTRACTOR
Cr Land Group. Ltd.

The Wing of Swallow
© ZY Architectural Photography

The Wing of Swallow is located on the north bank of the middle section of the Maozhou River in Baoan District, Shen Zhen. With the theme of children's playground, it integrates various functions and landscape venues.It is a three-dimensional amusement park integrating amusement, rest, and viewing.

Its construction is very ingenious: on the one hand, the design draws inspiration from the traditional Chinese intelligence toy "tangram" to form a basic configuration——a swinging column system, while the tangram was called a "Swallow-like Geometries" in the Song Dynasty; on the other hand, the structure is lightly entwined in the woods of the site, with its two corners cocked up like wings that have been raised, so it is named "Wing of Swallow".

The Wing of Swallow
© ZY Architectural Photography
The Wing of Swallow
© ZY Architectural Photography

Construction combined with Culture. The station adopts an innovative swinging column system, with a basic configuration of 3 columns that support corners with each triangular face, which continuously grows within a 36m×40m range.

The structure has good structural construction expressiveness and meets the needs of rapid construction.

The Wing of Swallow
© ZY Architectural Photography
The Wing of Swallow
© ZY Architectural Photography

In order to solve the vertical support stability, we control the length of the triangular members within 11 meters, and design a 160mm diameter shuttle column and a 230×250mm tapered column cap to eliminate the torsion and bending moment, so that the column can only bear axial force.

In order to solve the horizontal stability, we use components with unified form and function, such as the stay cables of the Mami cafe, the load-bearing wall of the public restroom, the outdoor slide, and the steel-wood staircase to control the horizontal stability, so that the diameter of the shuttle-shaped column can be reduced to 160mm.

The Wing of Swallow
© ZY Architectural Photography
The Wing of Swallow
© ZY Architectural Photography

The combination of fusiform columns and triangular roofs "floating" in the waterfront woods gives the crowd an illusion of anti-gravity under the pavilion; the raised corners on both sides of the roof resemble the wings of a bird, realizing the unity between culture (Swallow-like Geometries), construction (swing column) and shape.

Clearly Visible Construction Materials. The original plan uses modern wood structure CLT plywood to make a triangular overall prefabricated plate, which is then optimized to a composite system of outer ring C-shaped steel beam + 400mm high wooden beam + CLT board.

The Wing of Swallow
© ZY Architectural Photography
The Wing of Swallow
© ZY Architectural Photography

All the triangular surfaces are connected by relative articulation.People can clearly see all the materials in the system under the pavilion, which has a good expressive power of construction materials, and realizes the unity between modeling and construction materials.

Architectural and Landscape Integration. The station is located in the waterfront green area on the north bank of the Mao Zhou River, with Yan Yong Road in the north and the box culvert road in the south.

The Wing of Swallow
© ZY Architectural Photography
The Wing of Swallow
© ZY Architectural Photography

There are many trees in good condition growing on the original site. We set up 4 openings on the roof in the form of "tangram", so that the trees on the site can grow luxuriantly in the original location.

The building and the trees are integrated and intertwined, realizing the unity between the building and the landscape.

The Wing of Swallow
© ZY Architectural Photography


The Wing of Swallow
General plan
The Wing of Swallow
Plan


The Wing of Swallow
Section perspective

The Wing of Swallow

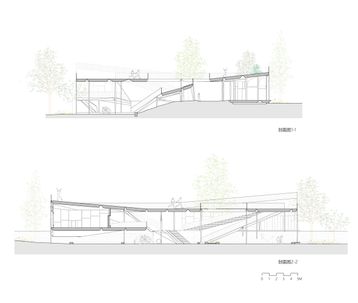

Section


The Wing of Swallow
Perspective view of the roof
The Wing of Swallow
Facade


The Wing of Swallow
Axonometric exploded diagram
The Wing of Swallow
Axonometric drawing
The Wing of Swallow
Axonometric drawing

The Wing of Swallow
Generation diagram
