Sauerbruch Hutton

Universal Design Quarter in Hamburg

Universal Design Quarter in Hamburg
© Jan Bitter

UNIVERSAL DESIGN QUARTER IN HAMBURG

Sauerbruch Hutton

AREA
13510 m²

YEAR
2017

PHOTOGRAPHS
Jan Bitter

MANUFACTURERS
Getzner, Luxsystem

LEAD ARCHITECTS
Jürgen Bartenschlag, Sibylle Bornefeld

ACOUSTICS
Lärmkontor GmbH

HVAC
Volkmarsen, PHA Planungsbüro für haustechnische Anlagen GmbH

BUILDING PHYSICS
Wetzel & von Seht

DESIGN TEAM
Juan Lucas Young; Jürgen Bartenschlag, Felix Xylander-Swannell; Julien Engelhardt, Jin Zhaoyun, Louisa Hutton,

DESIGN TEAM
Matthias Sauerbruch, Juan Lucas Young, Jürgen Bartenschlag, Sibylle Bornefeld, Bettina Magistretti, Jörg Albeke, Jil Bentz, Katja Correll, Daniel Eichenberg, Ben Hansen, Falco Herrmann, Jonathan Janssens, Erik Levander, Isabelle McKinnon, Maria Saffer, Ana Rita Silvestre Caneira, Francesco Tonnarelli, Felix Xylander-Swannell, Julien Engelhardt, Kim Istenič, Anton Leibham, Duarte Mendia Vieira, Leonardo Ottaviani, Jonah Ross-Marrs, Daisy Tickner, Agustin Uliarte, Jin Zhaoyun

STRUCURAL PLANNING
Wetzel & von Seht, Hamburg; Merz Kley Partner, Dornbirn

CLIENT
Primus and Senectus, Dritte PRIMUS Projekt GmbH, Primus, Senectus

FIRE PROTECTION
Bau und Immobilien, DEKRA

TIMBER CONSTRUCTION
Kaufmann Bausysteme GmbH, Reuthe, AT

CONCRETE CONSTRUCTION
August Prien Bauunternehmung Gmbh & Co KG, Hamburg

TRANSOM FACADE (GROUND FLOOR)
BS Metallbau-Schiffsausbau GmbH & Co KG, Lemgo

TIMBER CONSTRUCTION
Kaufmann Bausysteme GmbH, Reuthe, AT

FIRE PROTECTION
Dekra Automobil GmbH Industrie, Bau und Immobilien, Hamburg

STRUCTURAL PLANNING
Merz Kley Partner, Wetzel & von Seht

LANDSCAPE ARCHITECTURE
Sinai Gesellschaft von Landschaftsarchitekten mbH

CATEGORY
Other Facilities, Dorms

LOCATION
Hamburgo, Germany

CONCRETE CONSTRUCTION
August Prien Bauunternehmung Gmbh & Co KG, Hamburg

Universal Design Quarter in Hamburg
© Jan Bitter
Universal Design Quarter in Hamburg
© Jan Bitter

Text description provided by architect.

Currently the world's largest residential building in modular timber construction “Woodie” offers micro-appartments for 371 students.

The building is part of a new residential district in the Wilhelmsburg area of Hamburg, which builds on the experimental character of the 2013 International Building Exhibition and embodies the principles of Universal Design: sustainable, simple and inclusive.

Universal Design Quarter in Hamburg
© Jan Bitter
Universal Design Quarter in Hamburg
© Jan Bitter

Alternating bays and projections articulate this long building so that it fits in with the smaller scale of its surroundings. Its form also continues the rhythm of the neighbouring State Ministry of Urban Development and Housing along a busy route for cyclists and pedestrians.

The purpose and the functional layout of the student hall of residence are clearly expressed on its exterior. The ground floor structure and the three service cores are in conventional reinforced concrete construction with an additional outer shell of exposed concrete.

Simply put, the ground floor structure is a kind of concrete table, on which the 371 residential modules are stacked for five or six floors. Below the cantilevered tabletop at the cores, there are spaces for communal use and gastronomy, which have full-height glazing.

The open-air ground floor space between the cores not only makes the building permeable within the city's built fabric, but also provides covered parking for some four hundred bicycles.

Universal Design Quarter in Hamburg
© Jan Bitter
Universal Design Quarter in Hamburg
© Jan Bitter

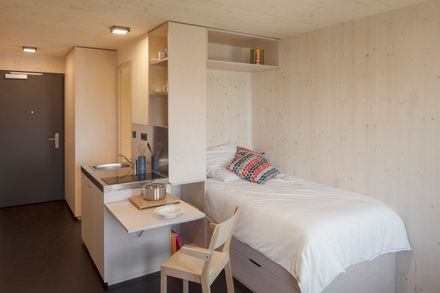

The apartments each have 20 m² floor area and are completely prefabricated from solid wood, including their fixtures. With the exception of the natural rubber floor covering, the wood has been left visible on every surface. This contributes to a comfortable and healthy indoor climate for the residents. The rear-ventilated facade cladding is made of greyed larch wood in prefabricated panels.

The exemptions granted in the fire protection certificate (for producing the load-bearing walls, ceilings and facades in wood) set a precedent in Hamburg that opened the way for a change in the state's building regulations: since November 2016 the city has allowed buildings of up to 22 metres in height to be built of timber.

Universal Design Quarter in Hamburg
© Jan Bitter


Universal Design Quarter in Hamburg
Typical Floor Plan
Universal Design Quarter in Hamburg
Ground Floor Plan
Universal Design Quarter in Hamburg
Site Plan
Universal Design Quarter in Hamburg
assembly


Universal Design Quarter in Hamburg
Concept
Universal Design Quarter in Hamburg
Urban Isometric


Universal Design Quarter in Hamburg
Section
