Comas - Pont Arquitectes, SLP

Psychopedagogical Medical Center

Psychopedagogical Medical Center

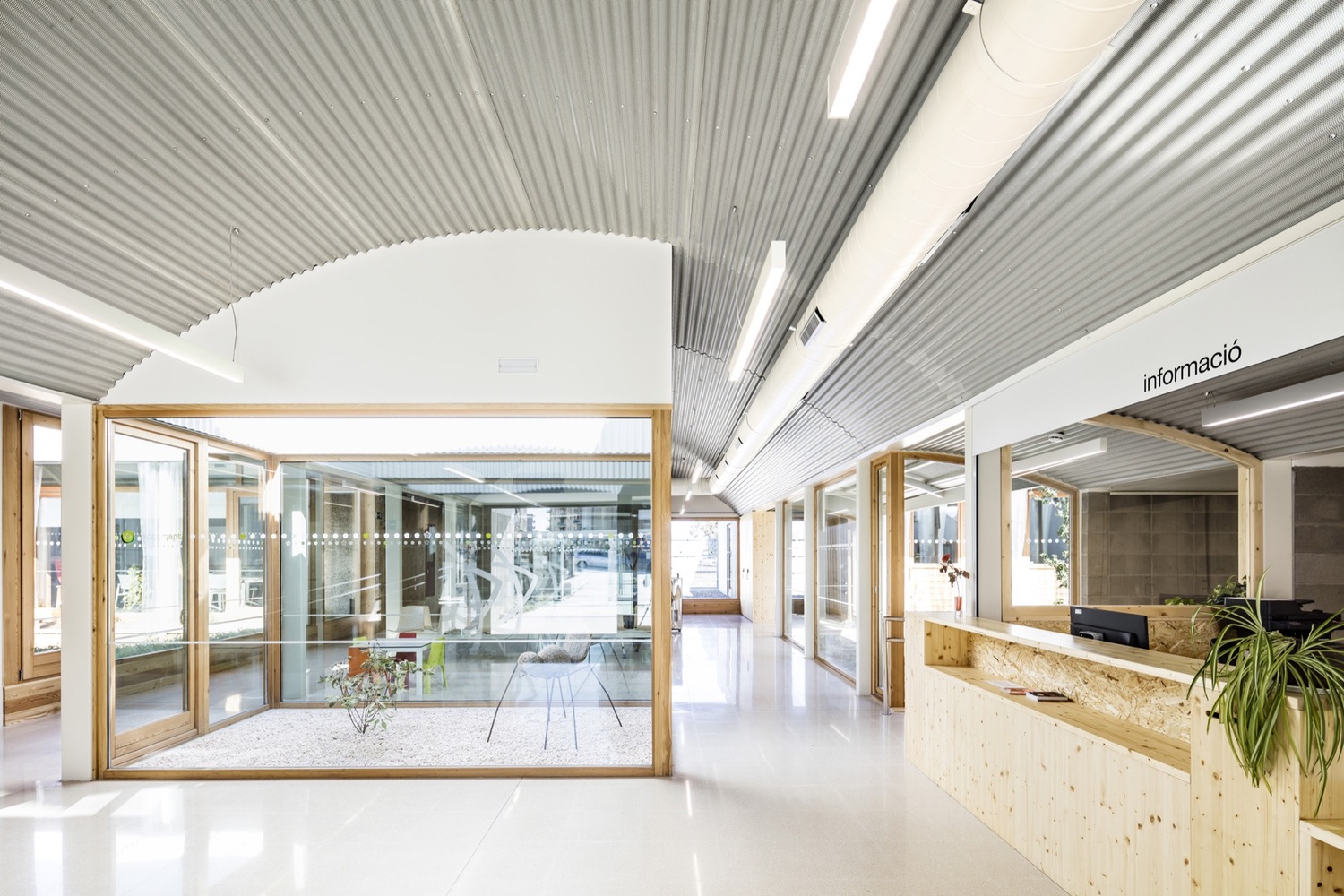

© Adrià Goula

PSYCHOPEDAGOGICAL MEDICAL CENTER

Comas-pont Arquitectos

PHOTOGRAPHS
Adrià Goula

ARCHITECT IN CHARGE
Comas-pont Arquitectos

MANUFACTURERS
Arumí Calefaccions, Construccions Metàl.iques Olot, Fusteria Rovira, Recubriments Granollers, Solermon,sa

AREA
1657 M²

YEAR
2015

CATEGORY
Healthcare Center, Medical Facilities

LOCATION
Vic, Spain

Text description provided by architect.

All rehabilitation services for people with mental illness are grouped in this building. The center is composed by the repetition of a 6m wide space module.

Psychopedagogical Medical Center
© Adrià Goula

A system of economic and energetically sustainable constructions, plus the domestic scale and the warmth of the interior spaces added to the relationship between building and nature, makes this a HEALTHY BUILDING.

The building is placed in the outside of one of the main health centers of the city, surrounded by a park. The programe develops basically on the ground floor to facilitate the mobility of the users.

Psychopedagogical Medical Center
© Adrià Goula

All the rest of pavilions are displaced with their specific programs along a central courtyard adapted to the topography of the original terrain and separated from each other by gardens and orchards.

The interstitial spaces between the access and the perimetral pavilions are occupied by the connecting ramps.

Psychopedagogical Medical Center
© Adrià Goula

The austerity of using a single cladding for facades and roofs contrasts with the appearance of greenhouses in the southern façades as a passive bioclimatic system and the use of wood as the main element in the interior spaces.

The building has an economical, modular and high efficiency energy system that allows to adapt the energy demand according to the interior occupation and the external climate.

Psychopedagogical Medical Center
© Adrià Goula

A light and ventilated cover is proposed over a metallic structure. The roof section allows to ventilate the air chamber in summer and close it in winter to conserve the heat and radiate it in the interior with some automated mechanisms.

The same happens in the south façade where a linear porch with a depth of 1.5m performs the function of a thermal mattress thanks to the greenhouse effect.

These spaces have a practicable closure based on PVC curtains that can be closed in winter to accumulate heat (introduced in the interior through the ventilation system) or opening in summer leaving the porch as a sun protection element.

Psychopedagogical Medical Center
© Adrià Goula

The vegetation in these spaces is cultivated by the patients themselves as part of the rehabilitation therapy.

The sustainability criteria has been essential throughout the construction process. The Energy Certification places the building in the category "A", the most efficient.


Psychopedagogical Medical Center
Cortesía de Comas-Pont arquitectos
Psychopedagogical Medical Center
Cortesía de Comas-Pont arquitectos
Psychopedagogical Medical Center
Diagram

Psychopedagogical Medical Center
Section


Psychopedagogical Medical Center
Site Plan
Psychopedagogical Medical Center
Ground Floor Plan
Psychopedagogical Medical Center
First Floor Plan
