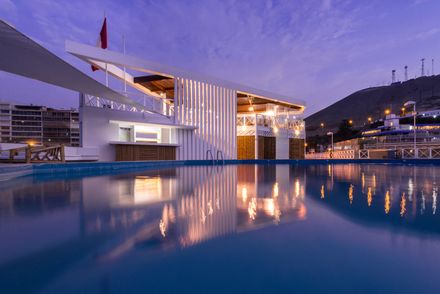

CNA’s Restaurant-Viewpoint and Bar
© Renzo Rebagliati
CNA’s Restaurant-Viewpoint and Bar
© Renzo Rebagliati

CNA’S RESTAURANT-VIEWPOINT AND BAR

MdA Arquitectura

AREA
242 m²

YEAR
2017

PHOTOGRAPHS
Renzo Rebagliati

MANUFACTURERS
AutoDesk, Eglo, Deco Art, Decor Center, Trimble

LEAD ARCHITECTS
Macarena de Almenara

DESIGN TEAM
MdA Arquitectura

CATEGORY
Restaurant, Renovation

CLIENTS
Casino Náutico de Ancón

ENGINEERING
Torres y Basto Engineering

COLLABORATORS
Elizabeth Castillo, Oscar Luyo

LOCATION
Miraflores, Peru

Text description provided by architect.

The project centered around the remodeling of Ancon’s Nautical Casino’s viewpoint (CNA for its initials in Spanish).

The Nautical Casino is a yacht club over 100 years old, which over time has maintained its identity as well as generations of associated families.

CNA’s Restaurant-Viewpoint and Bar
© Renzo Rebagliati
CNA’s Restaurant-Viewpoint and Bar
© Renzo Rebagliati
CNA’s Restaurant-Viewpoint and Bar
© Renzo Rebagliati

Maintaining the architectural identity of the pier and the club’s beach area was crucial to the project strategy.

We designed from the existing textures, materials, and spaces, in order to generate harmony between the remodelled area and the pier in its current state.

The chosen materials were proposed in order to create a warm atmosphere by the dock, while taking into account the allocated budget and the durability of the material, given its proximity to the ocean.

CNA’s Restaurant-Viewpoint and Bar
© Renzo Rebagliati
CNA’s Restaurant-Viewpoint and Bar
© Renzo Rebagliati

The Restaurant - Viewpoint. The new roof is made up of a framework of beams covered in bamboo canes, with a metal perimeter beam covered in white superboard.

The support seeks to go unnoticed in the space, and parts of it also function as the facade of the volume in front of the pool, as well as for the new bar, located on the first level.

CNA’s Restaurant-Viewpoint and Bar
© Renzo Rebagliati
CNA’s Restaurant-Viewpoint and Bar
© Renzo Rebagliati

The wood-like porcelain floor in a gray tone blends in with the polished cement floor by the pier, and adds warmth to the finishing touches due to the wood-like texture and overall shape of the tile.

Similarly, pendant lamps with a texture resembling the bamboo ceiling set the atmosphere and illuminate the restaurant-viewpoint.

CNA’s Restaurant-Viewpoint and Bar
© Renzo Rebagliati
CNA’s Restaurant-Viewpoint and Bar
© Renzo Rebagliati
CNA’s Restaurant-Viewpoint and Bar
© Renzo Rebagliati
CNA’s Restaurant-Viewpoint and Bar
© Renzo Rebagliati

Given the multifunctional nature of the viewpoint (not only a restaurant, but also a social area for youth area at parties and club events), partial translucent enclosures are proposed in order to protect the space from the wind currents without impeding the visual connection with the rest of the pier.

The Bar. The proposal consisted of rehabilitating the existing unused space on the first floor.

CNA’s Restaurant-Viewpoint and Bar
© Renzo Rebagliati
CNA’s Restaurant-Viewpoint and Bar
© Renzo Rebagliati

We proposed making the access independent from the kitchen, and expanding it outwards, generating a covered volume that frames a new space in front of the pool.

The exterior cladding is a lattice of bamboo cane, white painted wood, and navy blue microcement for the interior front of the space.

CNA’s Restaurant-Viewpoint and Bar
© Renzo Rebagliati


CNA’s Restaurant-Viewpoint and Bar
Roof Plan
CNA’s Restaurant-Viewpoint and Bar
Plans


CNA’s Restaurant-Viewpoint and Bar
Sections
