FRANÇOIS MITTERRAND HIGH SCHOOL

Jean Dubus + José Luiz Tabith

CATEGORY
High School

LOCATION
Setor Industrial, Brazil

AREA
12199 m²

ARCHITECTS
Jean Dubus, José Luiz Tabith

YEAR
2016

MANUFACTURERS
Tarkett, thyssenkrupp, A. Pelucio, Alfambra, Ares Line, Belmetal, Deca, Gail, Haiah, Jofel, Luxaflex, Madepar Laminados, Master Frio, Recoma, Tetti, Viapol

STRUCTURE
Alberto Luppi, ACS Engenharia de Estruturas

LANDSCAPING
Fábio Camargo Paisagismo

ACOUSTIC
Lúcia Pirró - Green Consulting Arquitetura e Engenharia Acústica

LIGHTING
Alexandre Giovannetti

ELECTRICAL AND HYDRAULIC
NV Engenharia

ARQUITETURA DE INTERIORES
JT Arquitetura - José Luiz Tabith Jr. e Jean Dubus (authors); François Genouvrier e Ricardo Takashi Minami (coordinators); Nathally Costa Crisostomo, André Tabith Costa, Joyce Santos Alves, Luciana Kimura, Priscila Chu, Markus Thomas Munoz Kampf, Lucas Rigotto, Camila Tannous, Samuel Robinne, Victor Kuhni, Ana Lúcia Rodrigues, Edvaldo Luiz de Jesus

AIR CONDITIONER
JMT Projetos

POOL ART PANEL
José Luiz Tabith e Lucas Rigotto

VISUAL COMMUNICATION
Nathally Costa Crisótomo e José Luiz Tabith

CONSTRUCTION
Grupo Attos

ARQUITETO RESPONSÁVEL
José Luiz Tabith

Text description provided by architect.

As well as being selected for an international competition between Brasil and France that had many minimum criteria, including sustainable architecture and adaption to the site.

François Mitterrand High School
© Nelson Kon
François Mitterrand High School
© Nelson Kon

The project also received 2nd place in the institutional building category in the 6th Saint-Gobain Sustainable Habitat Architectural prize.

Located in the South lake (lago sul) region of Brasilia, the building stands out for the conception that fully utilizes and distributes the construction throughout the territory, with constructed volumes and absence of volumes, which establishes a permanent dialogue between closed and open spaces.

François Mitterrand High School
© Nelson Kon
François Mitterrand High School
© Nelson Kon

The facility is spread over a site of almost 15,000 m³, comprising 2 floors. There is a primary hallway with 4 further internal corridors, through which each wing is accessed and the common spaces are concentrated.

Connected to each hallway are 4 perpendicular appendices with classrooms, interspaced by 3 courtyards. A separate building houses the refectories, gymnasium and indoor swimming pool.

François Mitterrand High School
© Nelson Kon
François Mitterrand High School
© Nelson Kon

This arrangement creates areas of natural coexistence, where fully integrated pedagogical outdoor activities combine with nature.

These square courtyards are areas that allow permanent cross-ventilation between the buildings.

François Mitterrand High School
© Carlos Matheus Oliveira e Rafael Amador
François Mitterrand High School
© Carlos Matheus Oliveira e Rafael Amador

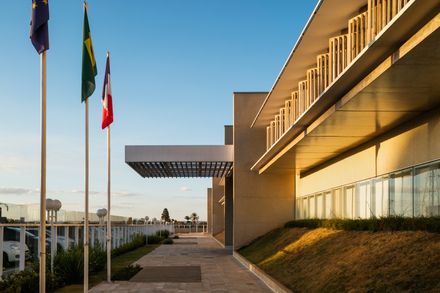

The blocks for teaching allow differing options according to the solar orientation, having glass frames facing the south façade, while the north-facing walls are protected with wooden eaves of 1.5 m and a parasol that is pivoted, enjoying both horizontal and rotational movement, thus allowing additional use as a vertical brise soleil at the rooms at each end of the block.

This same parasol protects the west façade of the main building, which faces the street and car park.

François Mitterrand High School
© Carlos Matheus Oliveira e Rafael Amador
François Mitterrand High School
© Nelson Kon

In these squares, there are raised metallic structures spanning 7.0 m, that support slats of the same sustainable timber, casting shadows across both external and internal environments.

All the roof protection is provided by natural materials, approximately 5,000 m² of green coverage, reducing the need for internal heating, as well as adding considerable improvement on both thermal and acoustic insulation. The sports block is fitted with solar panels, reducing both the carbon footprint and requirement for imported energy.

François Mitterrand High School
© Nelson Kon
François Mitterrand High School
© Nelson Kon

The indoor environments are treated with cross ventilation and computer-controlled humidifiers, negating the need for air conditioning, somewhat unusual for the region; being a warm, dry climate.

The vaporizing elements are strategically located out of reach and close to the openings, to enhance the natural air, humidifying in such a way that no water droplets are formed.

François Mitterrand High School
© Nelson Kon
François Mitterrand High School
© Nelson Kon

The technological systems for the building are concentrated at the ends of each block, which when combined with the peripheral structure of the spaces (in both modular and independent functions), allows the flexibility of internal spaces, compartmentalized with multi-layered gypsum wall coverings.

On the whole, the project integrates harmoniously to the surrounding environment, respecting the template defined by overturning the urban design of Brasilia. It seamlessly presents a modular rhythm in architectural expression and design methods that allow users to observe the ever-changing external landscape, further enhanced by the green areas and sunlight.

François Mitterrand High School
© Nelson Kon
François Mitterrand High School
© Nelson Kon

Building biophilia enhances motivation, improves the mood and performance of the users, without limiting their learning solely to a traditional classroom experience.


François Mitterrand High School
Sections A and B
François Mitterrand High School
Sections C, D and E


François Mitterrand High School

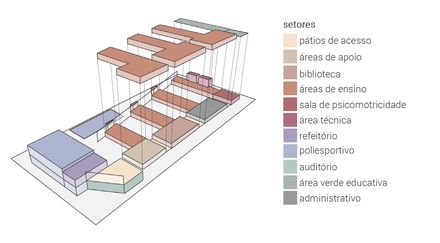

Sectors Scheme
François Mitterrand High School
Circulation Scheme


François Mitterrand High School
Entrance Sketch
François Mitterrand High School
Section Sketch
François Mitterrand High School
Volumetry Sketch
François Mitterrand High School
Sketch
François Mitterrand High School
External Area Sketch
François Mitterrand High School
Sketch


François Mitterrand High School
Underground Plan
François Mitterrand High School
Ground Floor Plan
François Mitterrand High School
Upper Floor Plan
