THE LITTLE ART STUDIO

Chen + Suchart Studio

BUILDER
Verge Design, Joby Dutton, Mike Alexander

MANUFACTURERS
Hansgrohe, Arblu, Arcadia Inc., Soraa, A606

STRUCTURAL ENGINEERING
BDA Design, J. Greg Brickey

PRINCIPALS
Szu-Ping Patricia Chen Suchart, Thamarit Suchart

GRAPHICS & DRAWINGS
Chen + Suchart Studio

COST
Withheld at the Owner’s request

PRIMARY MATERIALS
(6) 36” diameter concrete caissons, (2) W24 X 68’s,

PRIMARY MATERIALS
composite concrete deck, conventional 2X framing (walls and roof), level 5 plaster, 50 mil single ply membrane roof

PRIMARY MATERIALS
4’ x 12’ x 11 ga A606 weathering steel panels, custom 11ga stainless steel countertop @ work sink

PRIMARY MATERIALS
1” insulated glazing (Solarcool Bronze with mirror finish on surface 1 and Solarban 70XL on surface 2,

TEAM
Aaron Bass

PHOTOGRAPHS
Matt Winquist

AREA
16823 ft²

YEAR
2017

LOCATION
Paradise Valley, United States

CATEGORY
Houses

Text description provided by architect.

The Little Art Studio is a 1400SF addition to an existing contemporary stucco and glass residence.

The Little Art Studio
© Matt Winquist
The Little Art Studio
© Matt Winquist

The addition of this project to the site provided a backdrop and bookend to an existing desert courtyard and a gathering area surrounding a fire pit.

In order to distinguish the studio from the existing residence, the design allowed the studio to establish its own identity.

The manner in which the addition meets the ground plane was executed in a way that minimizes the disturbance to the existing desert landscape.

The Little Art Studio
© Matt Winquist
The Little Art Studio
© Matt Winquist

The steel beam floor structure and composite concrete deck, is supported by six 36” diameter concrete caissons allowing the studio to “float” over an existing wash by touching the ground in only these six locations.

By spanning over the wash, the design further distinguishes this new addition in contrast to the conventional slab on grade construction of the existing main residence.

The cladding of the studio is largely comprised of standard 10 gage 4’ X 12’ tall A606 weathering steel panels.

The Little Art Studio
© Matt Winquist
The Little Art Studio
© Matt Winquist

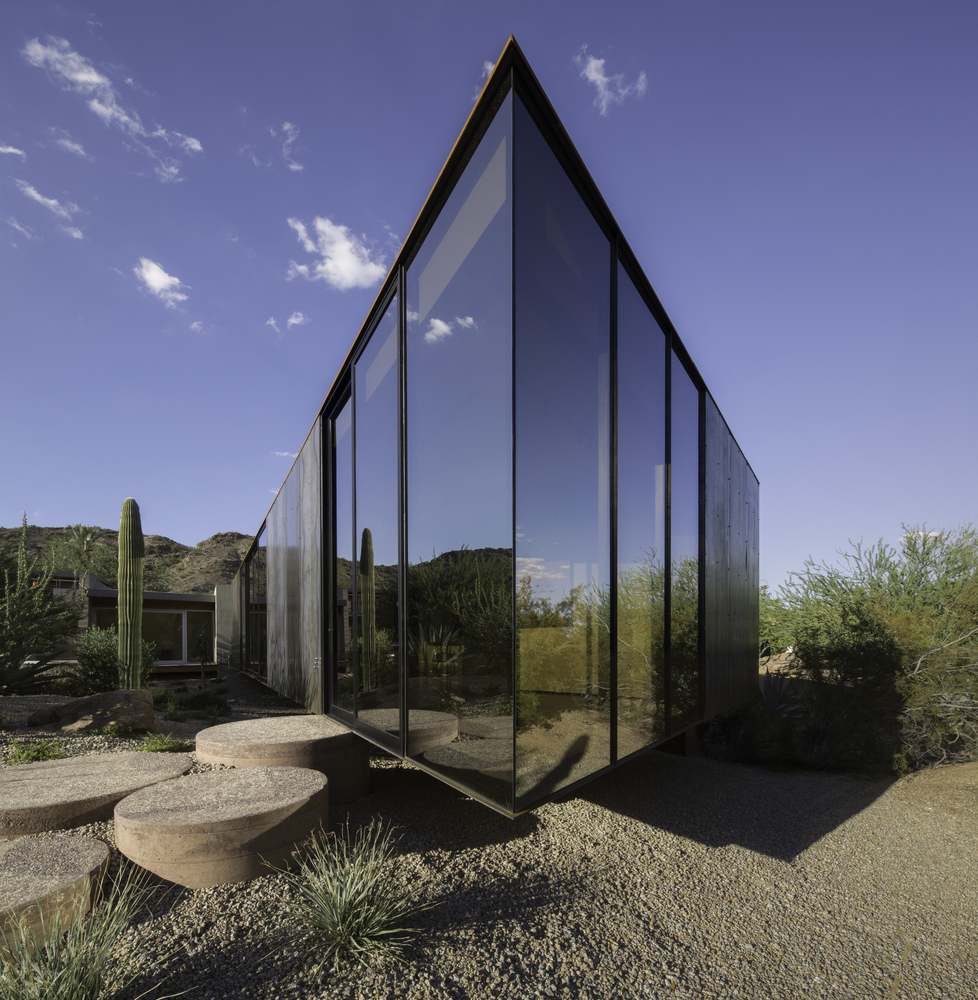

Using the standard module for the steel panels allowed for minimal preparation and fabrication time. High thermal performing reflective insulated glazing is used at all glazing locations for the project.

The insulated glazing is configured with the reflective surface on surface 1 which allows for maximum heat rejection while offering the most reflection.

The Little Art Studio
© Matt Winquist
The Little Art Studio
© Matt Winquist

The combination of these two materials for the cladding is intended to complement, absorb and reflect the existing residence’s landscape. Furthermore, the material palette distinguishes the addition from the existing material palette.

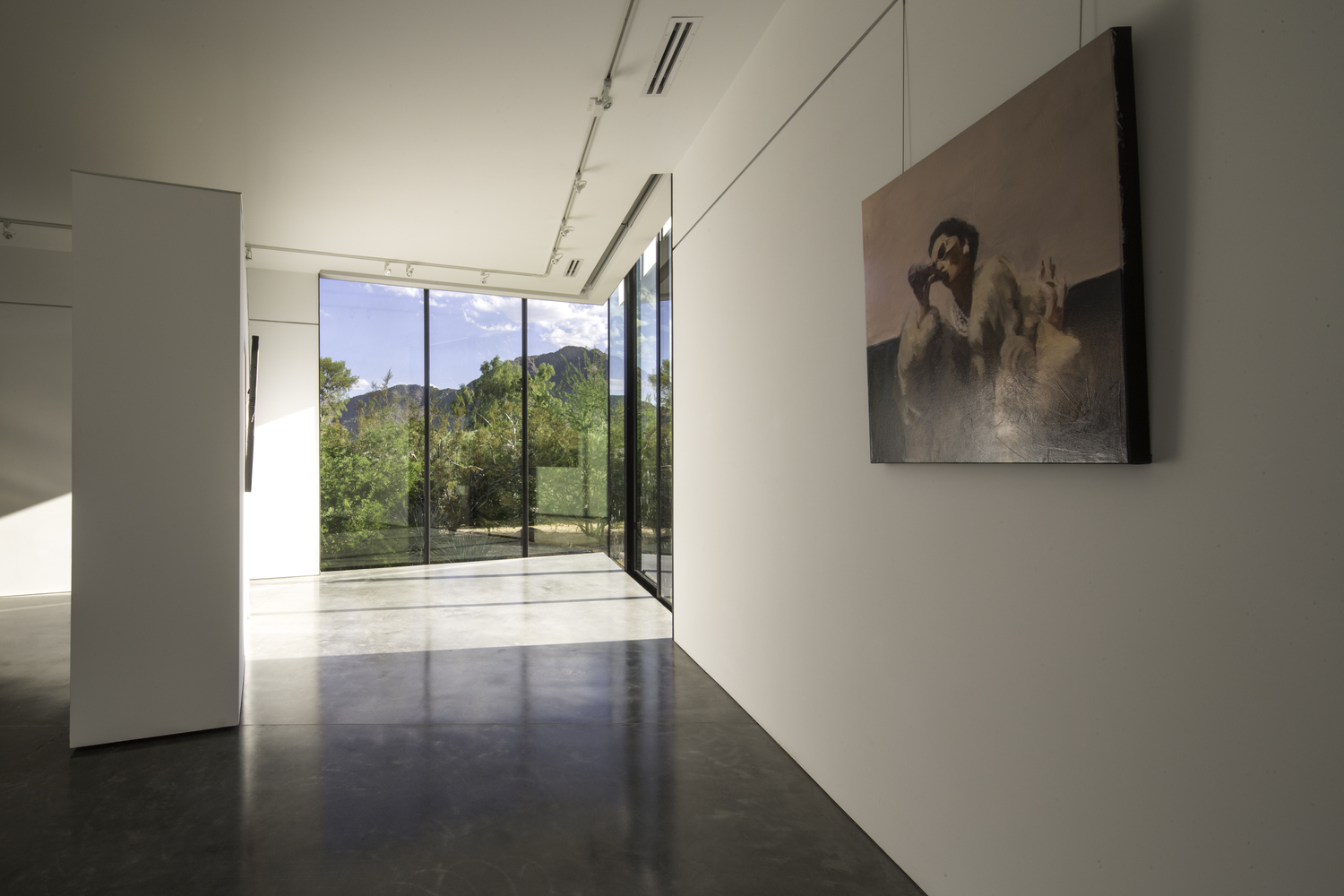

The interior space is configured as an open plan to allow the freedom of the studio to be used as a working artist’s studio or gallery space.

The Little Art Studio
© Matt Winquist
The Little Art Studio
© Matt Winquist

Three large movable partitions can be configured in any manner to allow for spatial diversity and increased surface area for hanging the artist’s work.

An integrated artwork hanging system is embedded and detailed with the drywall to establish a datum in the space for the constant hanging of artwork for review and display.

The Little Art Studio
© Matt Winquist
The Little Art Studio
© Matt Winquist

Bi-parting sliding glass doors are located directly over the wash in order to celebrate a specific moment in the desert landscape.

The configuration of the windows allows views of the existing courtyard and Camelback Mountain.

The Little Art Studio
© Matt Winquist
The Little Art Studio
© Matt Winquist

The Little Art Studio engages the circumstances of the site by deliberately establishing its own language that is at once a clear departure from the language of the existing main residence while maintaining respect for the site’s desert landscape.


The Little Art Studio
© Matt Winquist
The Little Art Studio
© Matt Winquist
The Little Art Studio
© Matt Winquist
The Little Art Studio
© Matt Winquist


The Little Art Studio
© Matt Winquist
The Little Art Studio
© Matt Winquist
The Little Art Studio
© Matt Winquist
The Little Art Studio
© Matt Winquist


The Little Art Studio
West Elevation
The Little Art Studio
Perspective Section


The Little Art Studio
Render / Looking north


The Little Art Studio
Existing Site Plan


The Little Art Studio
New Site Plan
The Little Art Studio
New Site Plan
The Little Art Studio
Floor Plan
