WE - S Architects

House MA

House MA
© Johnny Umans
House MA
© Johnny Umans

House MA

WE-S architecten

AREA
285 M²

YEAR
2019

PHOTOGRAPHS
Johnny Umans

CLIENT
Anke Deschamp

PROGRAM
Dental Practice And Apartment

CATEGORY
Mixed Use Architecture, Dental Clinic, House

LOCATION
Ingelmunster, Belgium

House MA
© Johnny Umans
House MA
© Johnny Umans

Text description provided by architect.

The client wishes to build a dental practice and an apartment on a plot of barely 85m2.

House MA
© Johnny Umans
House MA
© Johnny Umans
House MA
© Johnny Umans

The plot opens up along two sides and has a magnificent view to a new marina to be developed along the channel of Ingelmunster at the back of the site. Stringent building codes dictate a maximum building envelope of 3 storeys.

The dental practice should focus on the marina, the apartment on the Waterstraat.

A two-sided exposure for the dental practice on the one hand, and optimal daylight entering the apartment on the other hand, result in a solution that stacks both programs instead of separating them.

House MA
© Johnny Umans
House MA
© Johnny Umans

The maximum building envelope is manipulated so to provide two south facing terraces for the apartment above.

These manipulations make the building read as a combination of three geometric volumes, stacked gradually on top of each other.

House MA
© Johnny Umans
House MA
© Johnny Umans
House MA
© Johnny Umans


House MA
Plan - Ground floor
House MA
Plan - 1st floor
House MA
Plan - 2nd floor
House MA
Plan - 3rd floor


House MA
Frontal facade
House MA

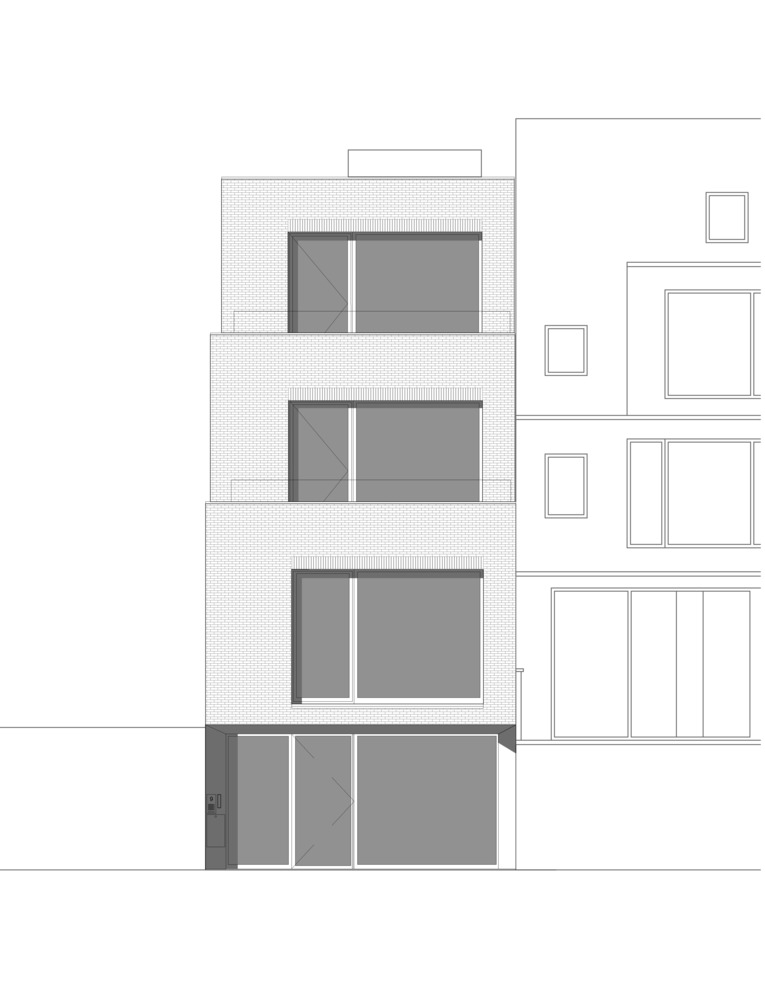

Rear facade


House MA

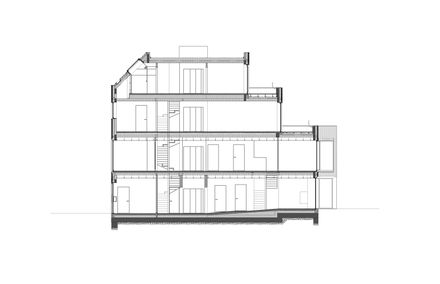

Section AA
House MA
Section BB


House MA

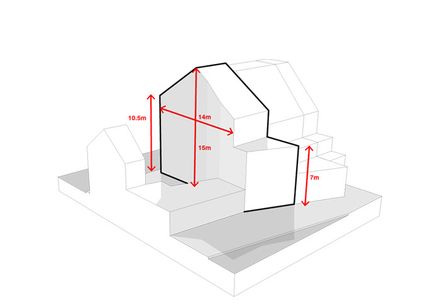

Schemes A
House MA
Schemes B
House MA
Schemes C
House MA

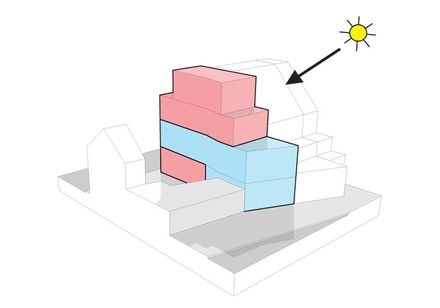

Schemes D
House MA
Section CC
House MA
Schemes E
