YITINGTING COTTAGE

Genarchitects

ARCHITECTS
Genarchitects

AREA
98 m²

YEAR
2019

MANUFACTURERS
Oikos, Apple Tree, Shanghai Rilang Doors & Windows Co., Ltd., Shanghai Yuncheng Industry Co., Ltd., Tiwuworks

PHOTOGRAPHS
Hao Chen

LEAD ARCHITECTS
Zhe Xue, Beilei Fan, Rui Kong

ENGINEERING
Suzao Construction

DESIGN TEAM
Haohui Xian, Shiyu Wang, Jia Qian, Xi Chen, Ao Tao, Lanruo Li, Zhenghao Guo, Fanlang Huang, Mojun Li, Tianyu Yang, Biru Cao

STRUCTURAL CONSULTANTS
Archi-neering Design Institute

STRUCTURAL DESIGN
Zhun Zhang

THE CLIENT
Fengyuzhu Exhibition

LOCATION
Hangzhou, China

CATEGORIES
Restaurant

Text description provided by architect.

Yitingting Cottage is located in Tonglu, Zhejiang. Started in 2019, this building functions as an individual drawing room and a dining room for a rural complex. Originally on the site was a two-story folk house made of rammed earth.

Yitingting Cottage
Image Courtesy of genarchitects
Yitingting Cottage
Image Courtesy of genarchitects

According to the site conditions, the newly built cannot go beyond the original footprint and height. That means the new building can only be the size of a normal living room.

Blocked on all sides, it has little access to scenery, with not too much design potential. Given such a small space, what else can we think of? Village style? Structural expression? Façade mannerism? Furniture selection? It took us some time to realize that it is the wall of the courtyard that is the real boundary of our feelings.

Yitingting Cottage
© Hao Chen
Yitingting Cottage
 Image Courtesy of genarchitects

We do not merely make the room facing the courtyard, but tried to bring the garden inside as part of the drawing-room.

At the ground floor, the building itself is weakened; all things were treated as equal elements: staircase, washroom, dumbwaiter, basin, furniture, plants, soil … and even the flooring and doors.

We studied the placement of these components and made them scattered while holistic. It was a piecemeal feeling. Sliding doors at the front can be all opened, leaving only a screen layer whenever needed.

Yitingting Cottage
© Hao Chen
Yitingting Cottage
© Hao Chen

Due to the limited width of the screen production (i.e. the production size of the screen is smaller than the glazing), two screens were combined with a slightly curved reed-like metal bar as the partition.

Stepping up to the second floor, people are immediately hugged by an identified form in dim light. When dining, only the table itself is illuminated.

Yitingting Cottage
© Hao Chen
Yitingting Cottage
Image Courtesy of genarchitects

A portion of the bamboo grove was cropped out by the window frame, with no beginning or end, taking on an abstract look.

The structure of the second floor is lantern-like. This secondary structure of battens is circled and fixed on the central wooden keels.

Yitingting Cottage
© Hao Chen
Yitingting Cottage
© Hao Chen

The keels are then fastened onto the concrete structure at the top and bottom. insulation material and sound-absorbing cotton are installed in the middle.

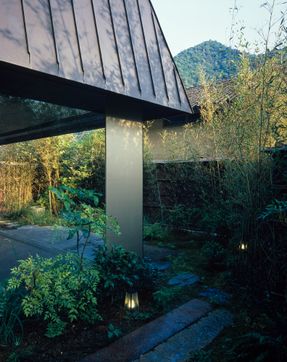

On the ground level, there are two courtyards, the outer one & the inner one. The outer bright one contains a twisted route with saturated plants towards the gate of the pavilion.

Yitingting Cottage
© Hao Chen
Yitingting Cottage
Image Courtesy of genarchitects

The inner shadowy one is a tranquil place at the back. The lounge is surrounded by plants, which are controlled with similar sizes together with other architectural objects. These all, on the ground floor, become a uniform entity.

It is our intention to create two distinct atmospheres in the building, which probably stems from a paranoid image – At the end of a secluded courtyard, there is a “one-story building”, and people outside cannot see what is happening inside the fence. Although this building stands tall, it does not gaze around.

Yitingting Cottage
Image Courtesy of genarchitects


Yitingting Cottage

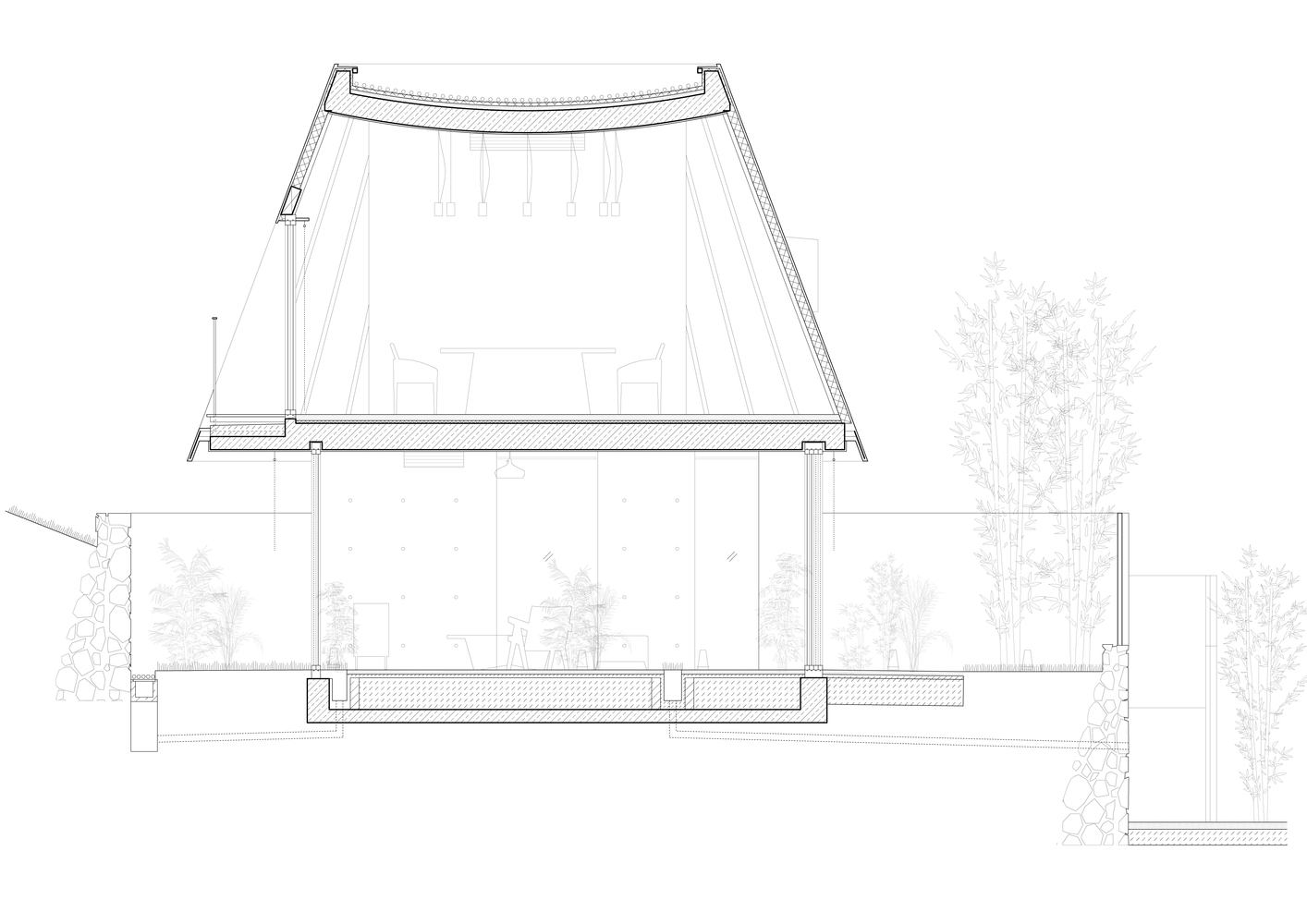

Site section
Yitingting Cottage
Sectional detail


Yitingting Cottage
Site plan
Yitingting Cottage
Master plan
Yitingting Cottage
Plan 1F
Yitingting Cottage
Plan 2F


Yitingting Cottage
Model. Image Courtesy of genarchitects
Yitingting Cottage
Concept model. Image Courtesy of genarchitects


Yitingting Cottage
Garden vegetation

Yitingting Cottage
Structure and envelope

Yitingting Cottage

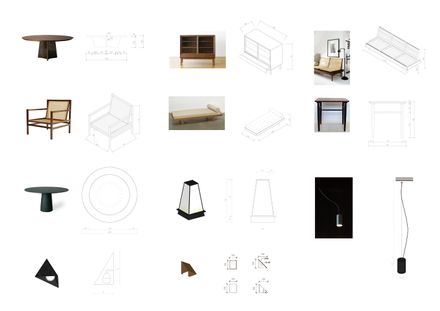

Furniture&lighting customization
