Pardis Khaneh Apartments Building

Pardis Khaneh Apartments Building
© Deed Studio

PARDIS KHANEH APARTMENTS BUILDING

Keivani Architects

AREA
2450 m²

YEAR
2017

PHOTOGRAPHS
Deed Studio

LEAD ARCHITECT
Nima Keivani

PRINCIPAL ARCHITECT
Sina Keivani

PROJECT MANAGER
Rouhollah Amini

SITE MANAGER
Mehdi Khosravani

INTERIOR DESIGNERS
Ladan Mostofi, Akbar Khalaj

GRAPHIC
Sahar Najafi

CONSTRUCTION CONSULTANT
Nima Keivani

CLIENT
Arsess Co.

CATEGORY
Apartments, Residential

LOCATION
Tehran, Iran

Pardis Khaneh Apartments Building
© Deed Studio
Pardis Khaneh Apartments Building
© Deed Studio
Pardis Khaneh Apartments Building
© Deed Studio

Text description provided by architect.

Pardis Khane is a private residential project having 5 stories above ground devoted to 10 units of 120 and 130 square meters. The building has 3 floors below ground.

There is a watchman room in first basement and also two levels for parking area. The sport facilities like the swimming pool, Jacuzzi and gym are located in the third basement.

Pardis Khaneh Apartments Building
© Deed Studio
Pardis Khaneh Apartments Building
© Deed Studio
Pardis Khaneh Apartments Building
© Deed Studio

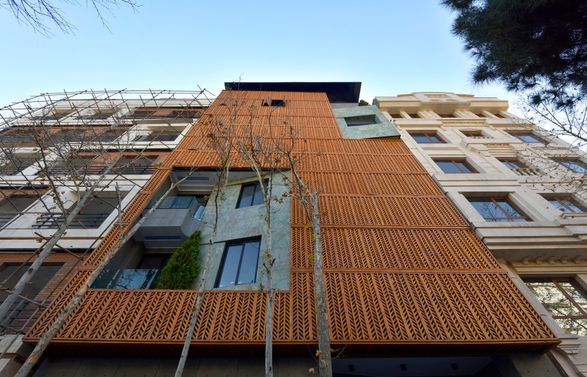

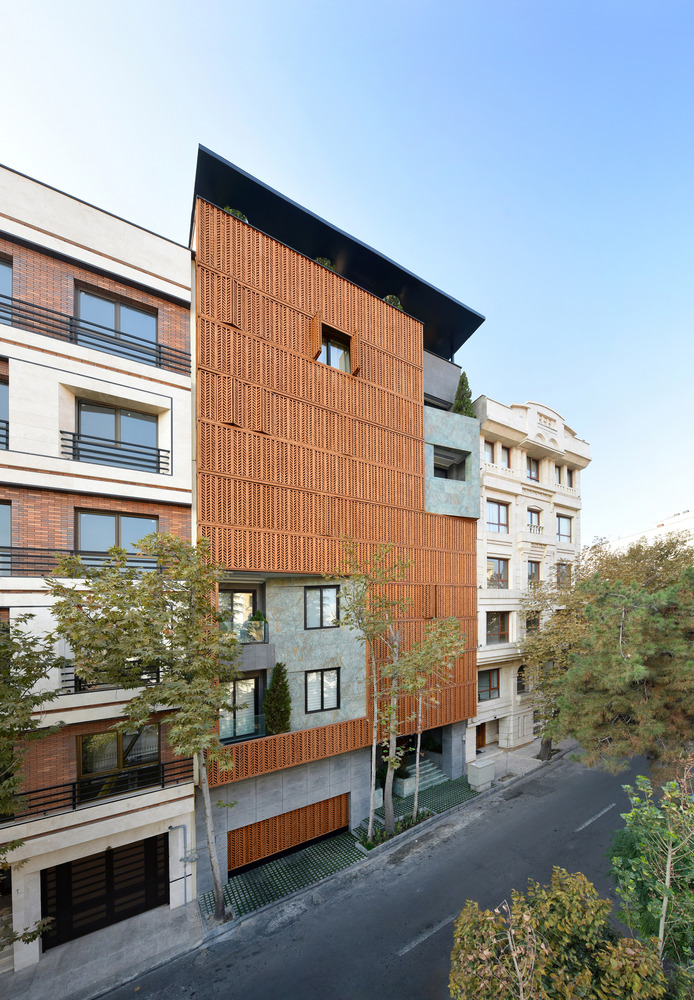

The facade is a combination of a simple planar surface that completely encloses a volume by making diagonal section cut.

The main surface is a lattice made of wood carving which is cut in some points to reveal the stone volume.

The wooden surface has special pattern deign inspired by the growth of plant’s leaves, a local Iranian material with its unique color that has always had significant role in Iranian gardens either used as tiles or the existence of water itself.

Pardis Khaneh Apartments Building
© Deed Studio
Pardis Khaneh Apartments Building
© Deed Studio

The mentioned concept in volume design, the diagonal section cut, is also reflected in interior spaces like walls of corridors or leaving rooms.

The terraces covered by turquoise stone have created a link between the outer and inner space, they are all made of glass enabling the residents to have the entire view of green outer space besides the joy of attractive patterns created by sunlight.

Pardis Khaneh Apartments Building
© Deed Studio
Pardis Khaneh Apartments Building
© Deed Studio
Pardis Khaneh Apartments Building
© Deed Studio
Pardis Khaneh Apartments Building
© Deed Studio

The resident can simply go on the balcony and touch a tree in marked height. Like the main planting pattern of hanging garden, there have been cedar trees on the facade planted on the 1st, 2nd and 5th floor.

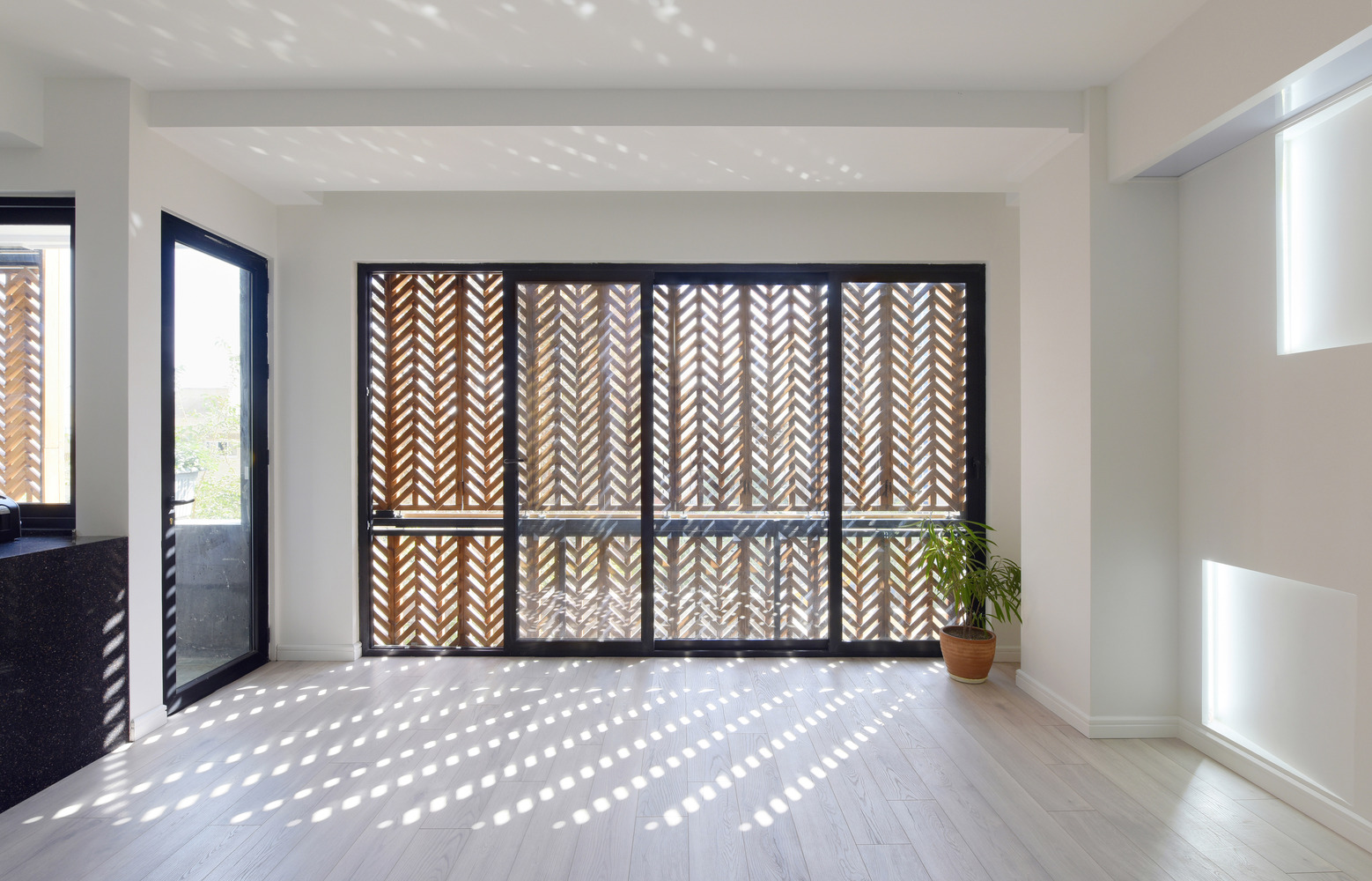

The dynamic wooden lattice is so flexible that can be opened or closed by users to adjust privacy. Moreover, the play of sunlight during sunrise and also sunset creates soothing atmosphere in the home originated from Iranian traditional architecture which makes it not aesthetically but also climatically responsive building.

Pardis Khaneh Apartments Building
© Deed Studio
Pardis Khaneh Apartments Building
© Deed Studio

For more artistic skyline, a flat black suspended shading device is designed on the top of roof. There is a small garden in the lobby of the house with small trees and bushes creating special beauty.

Pardis Khaneh Apartments Building
© Deed Studio
Pardis Khaneh Apartments Building
© Deed Studio

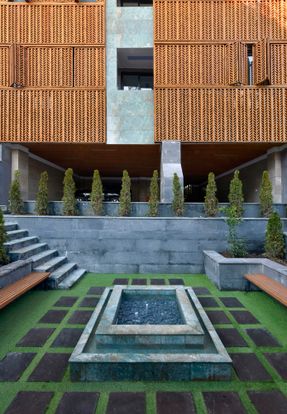

Moving along the lobby there is a Back yard which is like a sunken courtyard surrounded by floored trees, there is a small pond inside, decorated by turquoise stones. Besides a green area in the patio we can see another green space.

Pardis Khaneh Apartments Building
© Deed Studio
Pardis Khaneh Apartments Building
© Deed Studio

The special attention to gardens is also seen on the roof of the building since there is a roof garden awakening the resident’s senses to unique experience.”

In This place, the passing of time is not noticed, it’s a poetic space for peace of souls” one of the occupants said. In the pool space, despite the shining, gaudy similar places, the swimming pool has a cozy atmosphere with mystic qualities of lighting leading to a peaceful personal privacy…room in which to be.

All of the rooms are divided by glass partition for the limitless transparency and making the sense of wholeness in the space. At last, it is important to be mentioned that all these architectural constructions originating from traditional local Iranian architecture have been implemented in a modern style.

Pardis Khaneh Apartments Building
© Deed Studio
Pardis Khaneh Apartments Building
© Deed Studio
Pardis Khaneh Apartments Building
© Deed Studio


Pardis Khaneh Apartments Building
Pool Floor Plan

Pardis Khaneh Apartments Building
Basement 01 Plan

Pardis Khaneh Apartments Building
Ground Floor Plan

Pardis Khaneh Apartments Building
First Floor Plan

Pardis Khaneh Apartments Building
Second Floor Plan

Pardis Khaneh Apartments Building
Third Floor Plan

Pardis Khaneh Apartments Building
Fifth Floor Plan

Pardis Khaneh Apartments Building
Roof Plan

Pardis Khaneh Apartments Building
Basement 02 Plan

Pardis Khaneh Apartments Building
South Elevation


Pardis Khaneh Apartments Building
Section
Pardis Khaneh Apartments Building
Zoning Section


Pardis Khaneh Apartments Building

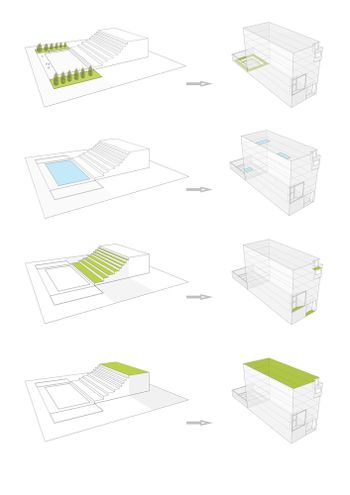

Gardens Diagram

Pardis Khaneh Apartments Building

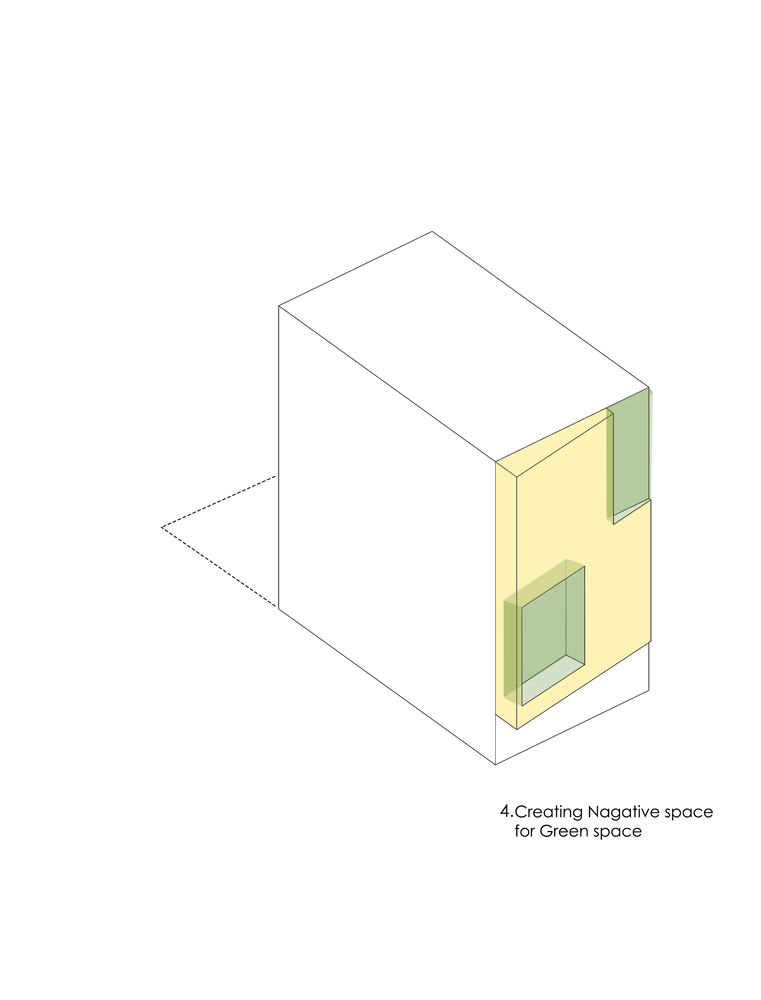

Facade Diagram 01

Pardis Khaneh Apartments Building
Facade Opning Diagram 02
Pardis Khaneh Apartments Building
Facade Opning Diagram 03
Pardis Khaneh Apartments Building
Facade Diagram 04
Pardis Khaneh Apartments Building
Facade Opning Diagram 05
Pardis Khaneh Apartments Building
Facade Opning Diagram 06
Pardis Khaneh Apartments Building
Facade Diagram 07
Pardis Khaneh Apartments Building
Facade Opning Diagram 01
Pardis Khaneh Apartments Building
Facade Opning Diagram 02
Pardis Khaneh Apartments Building
Facade Opning Diagram 03
Pardis Khaneh Apartments Building
Facade Opning Diagram 04
Pardis Khaneh Apartments Building
Courtyard Diagram
Pardis Khaneh Apartments Building
Diagram
Pardis Khaneh Apartments Building
Light Infiltration Diagram

Pardis Khaneh Apartments Building
Light Infiltration Diagram
Pardis Khaneh Apartments Building
Diagram

Pardis Khaneh Apartments Building
Sun Orientation Diagram
Pardis Khaneh Apartments Building
Diagram


Pardis Khaneh Apartments Building
Miniature Representation
